BenQ HT3560 vs BenQ HT8060

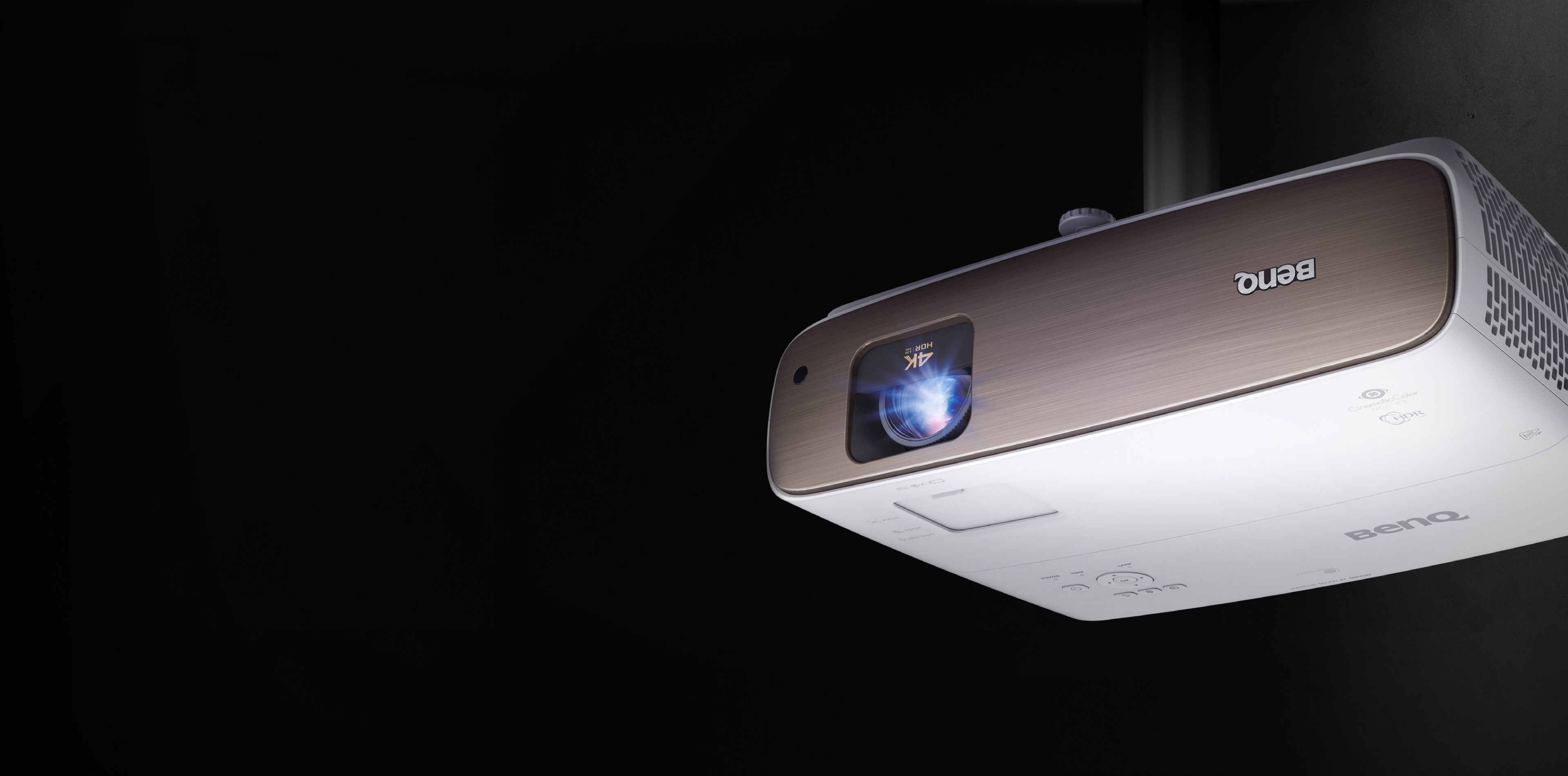

BenQ HT3560BenQ HT3560
MSRP $1,699
BenQ HT8060BenQ HT8060
MSRP $7,999
Key differences
Native resolution1080p (1920 × 1080)2.7K (2716 × 1528)
Throw ratio1.13–1.47:11.36–2.03:1
Lowest input lag8.7 msDerived34 msDerived
HDR formatsHDR10, + HDR10+, HLGHDR10, HLG
Fan noiseNormal 30 dB(A) · Eco 28 dB(A)Normal 26 dB(A) · Eco 23 dB(A)
PriceMSRP $1,699MSRP $7,999
Room fit
Distance to screen2.5–3.3 m3.0–4.5 m
Brightness
Rated brightness2,200 lmDerived2,200 lmDerived
White light outputANSI2,200 lm ANSI2,200 lm ANSI
Display system
Imaging technologyDLPDLP
Chip / panel diagonal0.47 in0.67 in
On-screen resolution4K UHD (3840 × 2160)Derived4K UHD (3840 × 2160)Derived
Native resolution1080p (1920 × 1080)2.7K (2716 × 1528)
Native aspect16:9Derived16:9Derived
Pixel shiftXPR 4-wayXPR 2-way
Addressable resolution4K UHD (3840 × 2160)4K UHD (3840 × 2160)
Colour wheel segments66
Contrast
Dynamic contrast50,000:150,000:1
Dynamic contrast method—Dynamic iris
Colour
Colour gamutRec. 709 100% coverage · DCI-P3 95% coverageRec. 709 100% coverage
Colour bit depth (per channel)10 bit10 bit
Gamma / EOTF presets2.2, 2.4, 2.6—
Colour temperature presetsNative, Custom—
HDR
HDR formatsHDR10, + HDR10+, HLGHDR10, HLG
Calibration
Colour management (CMS)—6-axis
Greyscale control points11—
Picture certificationsISF, + Filmmaker ModeISF, + THX
3D
3DYesYes
3D formats—Frame packing, Side-by-side, Top-bottom, Frame sequential
Light source
Light sourceLampLamp
Lamp power—240 W
Light-source life4,000 h normal · 10,000 h eco · 15,000 h dynamic3,000 h normal · 4,000 h eco · 6,000 h super eco
Warm-up time—About 30 s
Cool-down time—About 90 s
Optics
Throw ratio1.13–1.47:11.36–2.03:1
ZoomOpticalOptical
Zoom ratio1.3×Derived1.49×Derived
Focal length12–15.6 mm20.54–30.31 mm
Aperture (f-number)1.9–2.472.05–2.37
Vertical lens shift0–10%±65%
Horizontal lens shift—±27%
Vertical keystone30°—
Horizontal keystone30°—
Lens elements10—
Motion & gaming
Frame interpolation (MEMC)Yes—
Input lag1080p: 60 Hz 17.9 ms · 120 Hz 21 ms · 240 Hz 8.7 ms · 4K UHD: 60 Hz 17.9 ms1080p: 60 Hz 84 ms · 4K UHD: 60 Hz 34 ms
Lowest input lag8.7 msDerived34 msDerived
Input lag at 4K 60 Hz17.9 msDerived34 msDerived
Inputs & control
HDMI inputs2 × HDMI 2.0 (HDCP 2.2) · HDMI 2.0 (eARC, HDCP 2.2)HDMI 2.0 (HDCP 2.2) · HDMI 1.4
HDMI inputs (count)3Derived2Derived
Newest HDMI versionHDMI 2.0DerivedHDMI 2.0Derived
Max input resolution4K UHD4K UHD
USB media playbackYes—
Control portsRS-232, 12 V triggerRS-232, 12 V trigger
Horizontal scan15–135 kHz15–102 kHz
Vertical scan23–120 Hz23–120 Hz
Smart platform
Ethernet—Yes
Audio
Speakers20
Audio outputs3.5 mm, Optical, HDMI eARC—
HDMI audio returneARCDerived—
Physical & installation
Dimensions (W × D × H)380 × 263 × 127 mm471 × 565 × 225 mm
Weight4,200 g14,800 g
Ceiling mountM4, 20–25 mm screwsM6, 20–25 mm screws
Environment & power
Operating temperature0–40°C0–40°C
Operating humidity10–90%RH—
Altitude3,000 m · high-altitude mode—
Power draw330 WNormal 384 W · Eco 290 W
Standby0.5 WUp to 0.5 W
Networked standby—Up to 3 W
Mains input100–240 V · 50/60 Hz100–240 V · 50/60 Hz
Noise
Fan noiseNormal 30 dB(A) · Eco 28 dB(A)Normal 26 dB(A) · Eco 23 dB(A)
Support & ownership
Warranty3 yr3 yr
User manualhttps://esupportdownload.benq.com/esupport/PROJECTOR/UserManual/HT3560/HT3560_UM_EN_230414114349.pdf—
Spare parts—Lamp 5J.JFY05.001
In the box
In the boxPower cord, Remote, Remote batteries, Quick start guide, Warranty card, Lens capPower cord, Remote, Remote batteries, Quick start guide, + User manual, Warranty card, Lens cap
