JVC DLA-NZ7 vs JVC DLA-RS2100

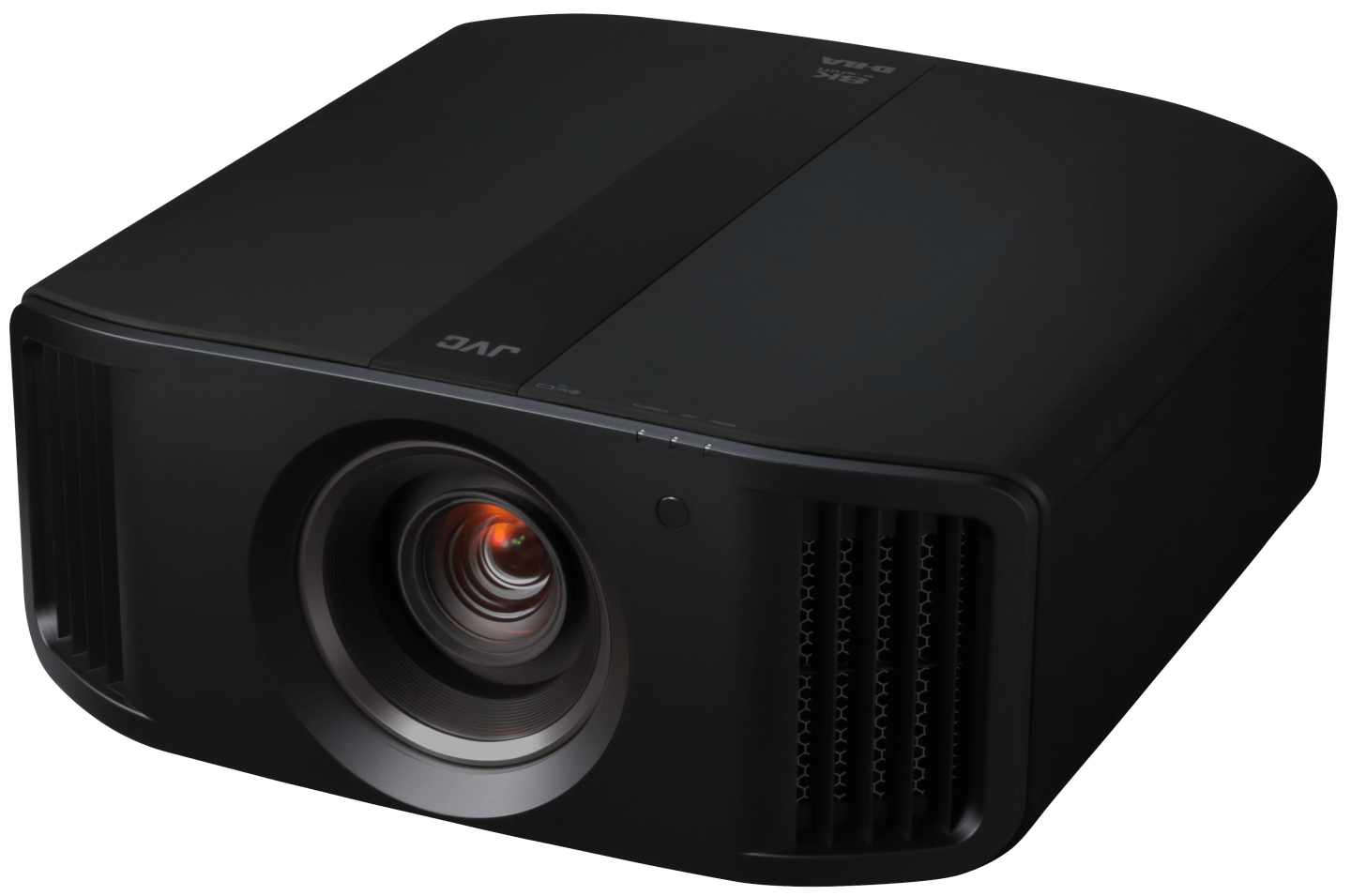

JVC DLA-NZ7JVC DLA-NZ7
MSRP $8,999
JVC DLA-RS2100JVC DLA-RS2100
MSRP $8,999
Room fit
Distance to screen3.2–6.6 m3.2–6.6 m
Brightness
Claimed brightness (non-standard)2,200 lm2,200 lm
Display system
Imaging technologyLCoSLCoS
Chip / panel diagonal0.69 in0.69 in
Panel alignmentZone-by-zoneZone-by-zone
On-screen resolution8192 × 4320Derived8192 × 4320Derived
Native resolutionDCI 4K (4096 × 2160)DCI 4K (4096 × 2160)
Native aspect17:9Derived17:9Derived
Pixel shift8K e-shift8K e-shift
Addressable resolution8192 × 43208192 × 4320
Contrast
Native contrast (on/off)40,000:140,000:1
Dynamic contrast methodLight-source dimmingLight-source dimming
Manual irisYesYes
Colour
Colour bit depth (per channel)12 bit12 bit
Gamma / EOTF presets2.2, 2.4, 2.6, Custom2.2, 2.4, 2.6, Custom
Colour temperature presetsD93, D65, D55, CustomD93, D65, D55, Custom
HDR
HDR formatsHDR10, HDR10+, HLGHDR10, HDR10+, HLG
Tone mappingDynamicDynamic
Tone mapping (maker name)Frame Adapt HDRFrame Adapt HDR
HDR metadata usedUses MaxCLL—
Calibration
Colour management (CMS)6-axis6-axis
Auto-calibrationSensor supportedSensor supported
Picture certificationsISF, Filmmaker ModeISF, Filmmaker Mode
3D
3DYesYes
3D formatsFrame packing, Side-by-side, Top-bottomFrame packing, Side-by-side, Top-bottom
3D glasses syncRFRF
Light source
Light sourceLaser (phosphor)Laser (phosphor)
EmitterBlue laser + phosphorBlue laser + phosphor
Light engineBLU-EscentBLU-Escent
Light-source life20,000 h20,000 h
Life defined as50% brightness—
Light output controlContinuousContinuous
Warm-up time40 s—
Cool-down time10 s—
Optics
Throw ratio1.43–2.92:11.43–2.92:1
Image size60–200 in60–200 in
ZoomOpticalOptical
Zoom ratio2.04×Derived2.04×Derived
FocusMotorisedMotorised
Vertical lens shift±80%±80%
Horizontal lens shift±34%±34%
Motorised lens shiftYesYes
Lens memory slots1010
Lens elements1717
Lens materialGlassGlass
Motion & gaming
Frame interpolation (MEMC)YesYes
Frame interpolation at 4KYesYes
Max input refresh1080p: 120 Hz · 4K UHD: 120 Hz · DCI 4K: 120 Hz · 8K: 60 Hz1080p: 120 Hz · 4K UHD: 120 Hz · DCI 4K: 120 Hz · 8K: 60 Hz
Max refresh at 1080p120 HzDerived120 HzDerived
Max refresh at 4K120 HzDerived120 HzDerived
Inputs & control
HDMI inputs2 × HDMI 2.1 (HDCP 2.3, 48 Gbps)2 × HDMI 2.1 (HDCP 2.3, 48 Gbps)
HDMI inputs (count)2Derived2Derived
Newest HDMI versionHDMI 2.1DerivedHDMI 2.1Derived
Max input resolution8K8K
Control portsRS-232, 12 V triggerRS-232, + Wired IR, 12 V trigger
Control-system driversControl4Control4
Smart platform
EthernetYesYes
Smart platformNone—
Audio
Speakers00
Physical & installation
Dimensions (W × D × H)500 × 505 × 234 mm500 × 505 × 234 mm
Weight22,500 g22,500 g
ColoursBlackBlack
OrientationsTable, Ceiling, RearTable, Ceiling, Rear
Ceiling mountM5, 20–25 mm screwsM5, 20–25 mm screws
ExhaustFront—
Environment & power
Operating temperature5–35°C5–35°C
Operating humidity20–80%RH20–80%RH
Altitude2,000 m · high-altitude mode2,000 m · high-altitude mode
Power draw420 W420 W
Standby0.3 W0.3 W
Networked standby1.5 W1.5 W
Mains input100–240 V · 50/60 Hz100–240 V · 50/60 Hz
Noise
Fan noiseEco 24 dB(A)Eco 24 dB(A)
Safety & compliance
Laser classClass 1Class 1
Risk groupRG2RG2
MarksFCCFCC
Support & ownership
Warranty3 yr3 yr
User manualhttps://manuals.jvckenwood.com/download/files/B5A-3961-41.pdfhttps://manuals.jvckenwood.com/download/files/B5A-3961-41.pdf
FirmwareV300—
In the box
In the boxPower cord, Remote, Remote batteries, Quick start guide, Warranty card, Lens capPower cord, Remote, Remote batteries, Quick start guide, Warranty card, Lens cap
RemoteBacklit—
