Epson LightScene EV-110

Brand	Epson · LightScene
Type	Installation
Released	February 2021
Resolution	WXGA
Imaging technology	3LCD
Light source	Laser (phosphor)
Brightness	2,200 lm ISO
Native contrast (on/off)	2,000:1
Throw ratio	1.38–2.19:1

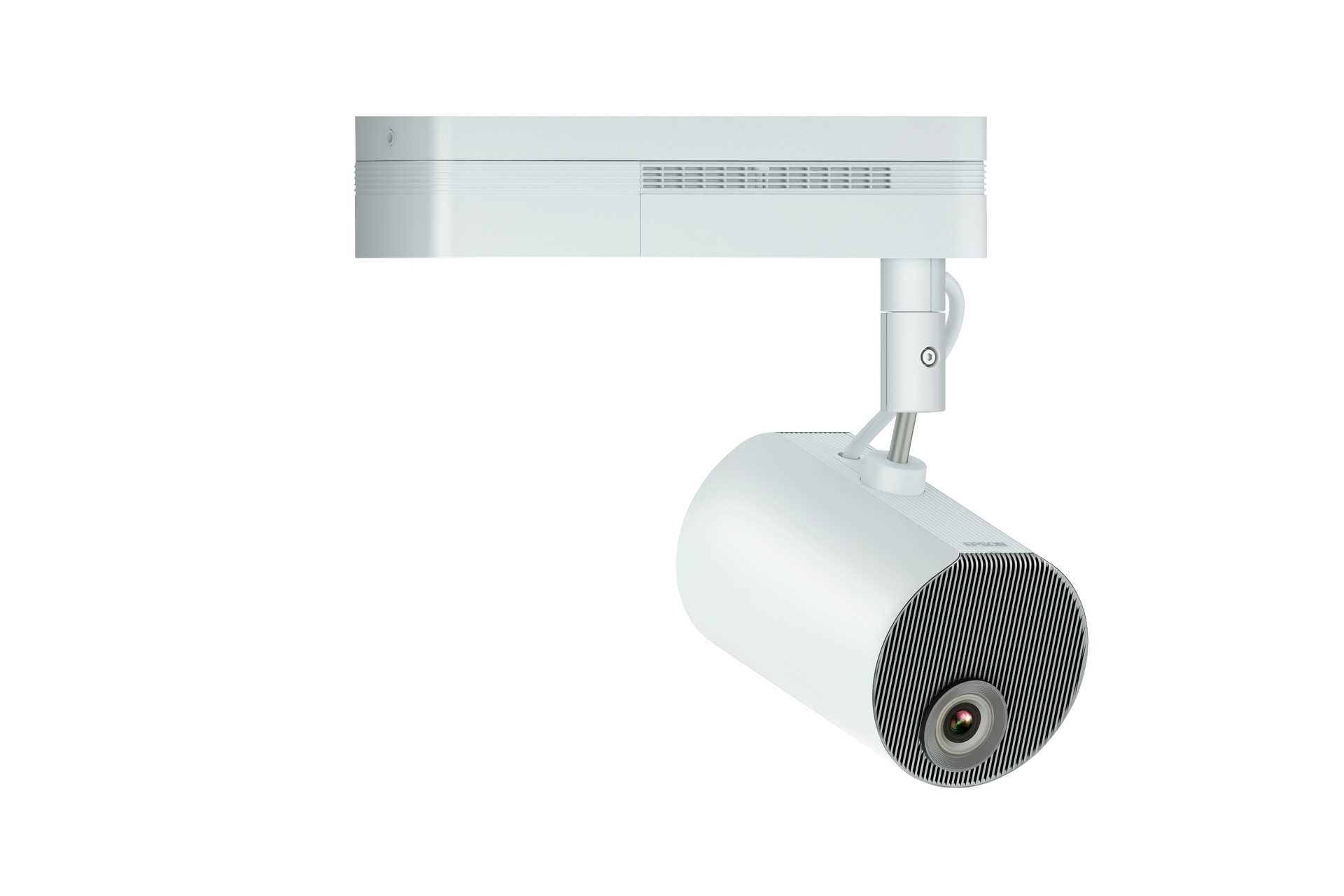

A laser 3LCD accent-lighting projector built as a spotlight on a ball-joint mount, with a 1280x800 panel set and 2,200 lumens of white and color light output. It has a 1.58x powered zoom and focus lens, an SD card media player with playlists, and network control through PJLink, Crestron and Art-Net. It suits retail displays, museums, projection mapping and digital signage.

Data sheet


White light output	2,200 lm ISO (Normal power)
Colour light output	2,200 lm (Normal power)
Brightness by mode	Normal 2,200 lm · Eco 1,100 lm
Eco brightness	50%Derived
Imaging technology	3LCD
Chip / panel diagonal	0.59 in
Native resolution	WXGA (1280 × 800)
Native aspect	16:10Derived
Native contrast (on/off)	2,000:1
Dynamic contrast	Over 2,500,000:1

Light source

Light source	Laser (phosphor)
Light-source life	20,000 h normal · 30,000 h eco
Life defined as	50% brightness

Optics

Throw ratio	1.38–2.19:1100″ · 2.97–4.72 m
Image size	30–150 in
Zoom	Optical
Zoom ratio	1.59×Derived
Focal length	18.2–28.4 mm
Aperture (f-number)	1.51–1.92
Focus	Motorised
Vertical keystone	45°
Horizontal keystone	40°
Interchangeable lens	No

Inputs & control

HDMI inputs	HDMI (HDCP 1.4)
Max input resolution	WUXGA
PJLink	Class 2
Control-system drivers	Crestron

Smart platform

Wi-Fi	Wi-Fi 4
Bluetooth	4.2
Ethernet	Yes

Audio

Audio outputs	3.5 mm, Bluetooth
HDMI audio return	NoneDerived

Physical & installation

Weight	4,900 g
Colours	White
Built-in stand	Gimbal, 90° tilt, 360° pan
Sealed optical engine	Yes

Environment & power

Operating temperature	5–40°C
Operating humidity	20–80%RH
Altitude	3,048 m · high-altitude mode
Power draw	Normal 150 W · Eco 111 W
Standby	0.4 W
Networked standby	2 W
Mains input	100–240 V · 50/60 Hz
Fan noise	Normal 34 dB(A) · Eco 22 dB(A)

Safety & support

Laser class	Class 1
Risk group	RG2
FDA laser notice	Notice 57
Marks	FCC
Warranty	🇺🇸 US 3 yr or 20,000 h · 🇬🇧 GB 5 yr or 12,000 h
User manual	files.support.epson.com
Spare parts	Mount V12HA32020

In the box

Power cord, Remote, Remote batteries, Quick start guide, Stand or mount

Similar models

Model	Resolution	Tech	Lumens	Price
BenQ AH30ST 1080p · DLP	1080p	DLP	3,000 +800	$1,499 −$1,275	Compare
BenQ AW30ST WXGA · DLP	WXGA	DLP	3,200 +1,000	$1,199 −$1,575	Compare
ViewSonic LSD400HD-ST 1080p · DLP	1080p	DLP	4,000 +1,800	$1,082 −$1,692	Compare
ViewSonic LSD400W WXGA · DLP	WXGA	DLP	4,000 +1,800	$699.99 −$2,074	Compare
BenQ AH500ST 1080p · DLP	1080p	DLP	4,000 +1,800	$1,899 −$875	Compare
BenQ AH700ST 1080p · DLP	1080p	DLP	4,000 +1,800	$2,299 −$475	Compare

Other

Tools

Throw calculator — How far from the screen the LightScene EV-110 needs to sit for a given image size, set to its 1.38–2.19:1 lens.
Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
Download spec as JSON — The same data from the open data API, with variants and identifiers.

Variants & identifiers

Use these to confirm a listing is this exact model. Any of them works at /p/{code}.

Variant	Region	Type	Code
White (EV-110), US	🇺🇸 US	UPC	010343960145
White (EV-110), US	🇺🇸 US	MPN	V11HA22020
Black (EV-115), US	🇺🇸 US	UPC	010343960152
Black (EV-115), US	🇺🇸 US	MPN	V11HA22120
White (EV-110), EU/UK	🇬🇧 GB	EAN	8715946689326
White (EV-110), EU/UK	🇬🇧 GB	MPN	V11HA22040
Black (EV-115), EU/UK	🇬🇧 GB	EAN	8715946689333
Black (EV-115), EU/UK	🇬🇧 GB	MPN	V11HA22140
All variants	All regions	Model number	EV-115
