Epson PowerLite 870E
| Brand | Epson · PowerLite |
| Type | Education |
| Released | June 2026 |
| Resolution | 1080p |
| Imaging technology | 3LCD |
| Light source | Laser (phosphor) |
| Brightness | 5,000 lm ISO |
| Throw ratio | 0.25–0.35:1 |

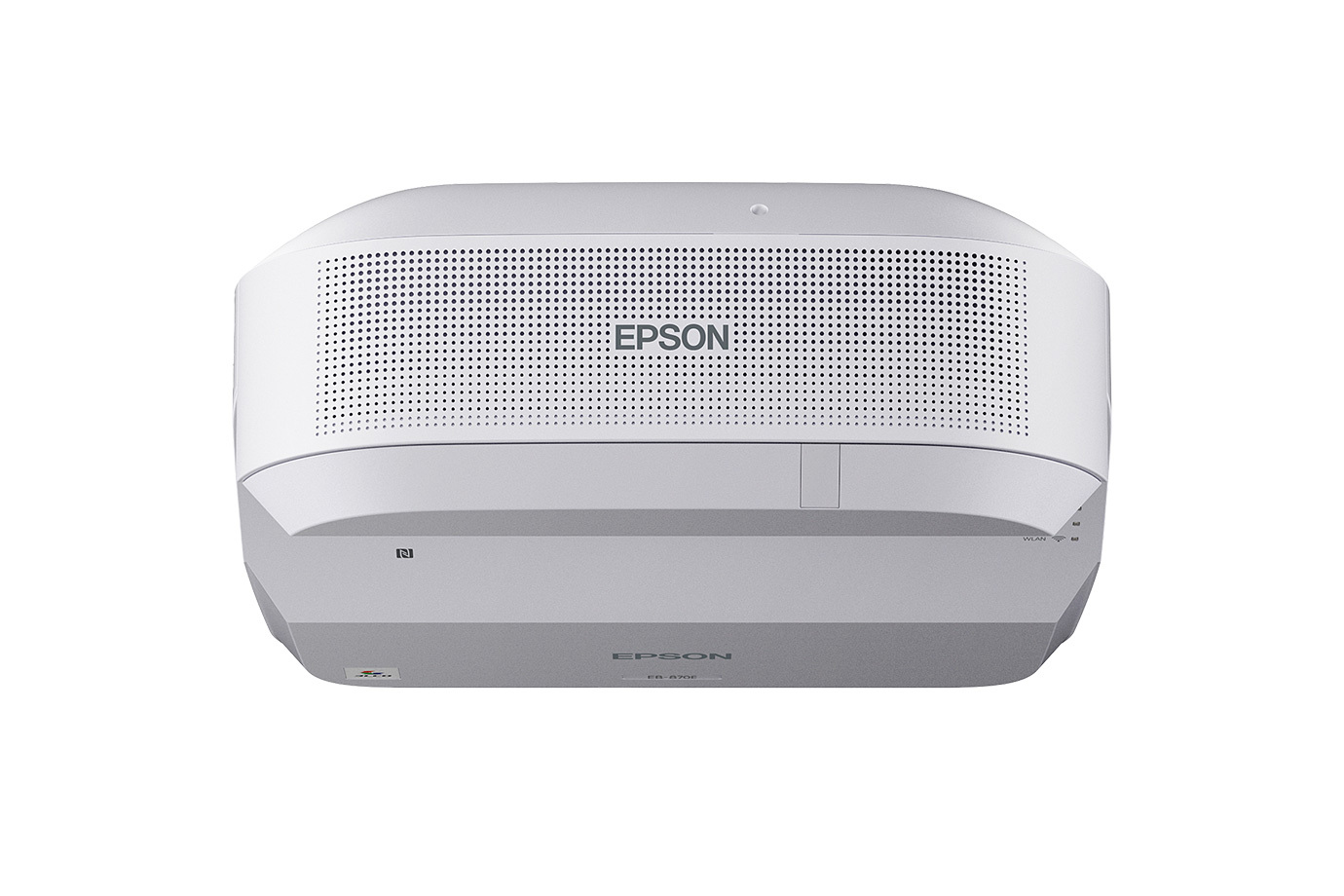

A white ultra-short-throw 3LCD laser projector with three 1080p panels and 4K Enhancement pixel shifting, rated 5,000 lumens in both white and color brightness. It throws 60 to 180 inches from a 0.25 to 0.35 throw ratio, with three HDMI inputs, HDBaseT, Wi-Fi 6E, Apple AirPlay and Miracast. It is aimed at classrooms and meeting rooms.
Data sheet
| White light output | 5,000 lm ISO ISO 21118 per the maker footnote: white light output measured in accordance with ISO 21118 | ISO 21118 per the maker footnote: white light output measured in accordance with ISO 21118 |
| Colour light output | 5,000 lm IDMS 15.4 per the maker footnote | IDMS 15.4 per the maker footnote |
| Imaging technology | 3LCD | |
| Native resolution | 1080p (1920 × 1080) | |
| Native aspect | 16:9Derived | |
| Pixel shift | Yes (scheme not stated) | |
| Dynamic contrast | Up to 5,000,000:1 |
Light source
| Light source | Laser (phosphor) | |
| Emitter | Blue laser + phosphor | |
| Light-source life | 20,000 h normal · 30,000 h eco | |
| Life defined as | 50% brightness |
Optics
| Throw ratio | 0.25–0.35:1100″ · 0.55–0.77 m | |
| Image size | 60–180 in | |
| Zoom | Digital | |
| Focal length | 3.7 mm | |
| Aperture (f-number) | 1.6 | |
| Focus | Manual | |
| Vertical keystone | 3° | |
| Horizontal keystone | 3° |
Inputs & control
| HDMI inputs | 3 × HDMI (HDCP 2.3) | |
| Other video inputs | HDBaseT | |
| Audio inputs | Microphone | |
| USB media playback | Yes | |
| Control ports | RS-232 |
Audio
| Speaker power | 16 W | |
| Speakers | 1 | |
| Layout | Mono | |
| Audio outputs | 3.5 mm | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 376 × 396 × 173 mm | |
| Weight | 7,031 g | |
| Colours | Black, White | |
| Orientations | Table, Ceiling, Portrait |
Environment & power
| Operating temperature | 0–40°C | |
| Power draw | Normal 320 W · Eco 247 W | |
| Standby | 0.5 W | |
| Networked standby | 2 W | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 32 dB(A) · Eco 25 dB(A) |
Safety & support
| Warranty | 🇺🇸 US 3 yr · 🇨🇦 CA 3 yr | |
| Spare parts | Air filter V13H134A66 · Mount V12HC54010 |
In the box
| In the box | Remote, Remote batteries, Quick start guide, Warranty card |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|
Epson PowerLite 800F 1080p · 3LCD | 1080p | 3LCD | 5,000 | $2,986 −$2,546 | Compare |
Epson BrightLink 870Ei 1080p · 3LCD | 1080p | 3LCD | 5,000 | $6,471 +$939 | Compare |
Epson PowerLite 810E 1080p · 3LCD | 1080p | 3LCD | 5,000 | $3,662 −$1,870 | Compare |
Epson BrightLink 1480Fi 1080p · 3LCD | 1080p | 3LCD | 5,000 | $3,090 −$2,442 | Compare |
Epson BrightLink 1485Fi 1366 × 768 · 3LCD | 1366 × 768 | 3LCD | 5,000 | $3,568 −$1,964 | Compare |
Epson PowerLite L270F 1080p · 3LCD | 1080p | 3LCD | 5,200 +200 | $1,410 −$4,122 | Compare |
