Epson PowerLite L270F
| Brand | Epson · PowerLite |
| Type | Education |
| Released | June 2026 |
| Resolution | 1080p |
| Imaging technology | 3LCD |
| Light source | Laser (phosphor) |
| Brightness | 5,200 lm ISO |
| Throw ratio | 1.32–2.12:1 |

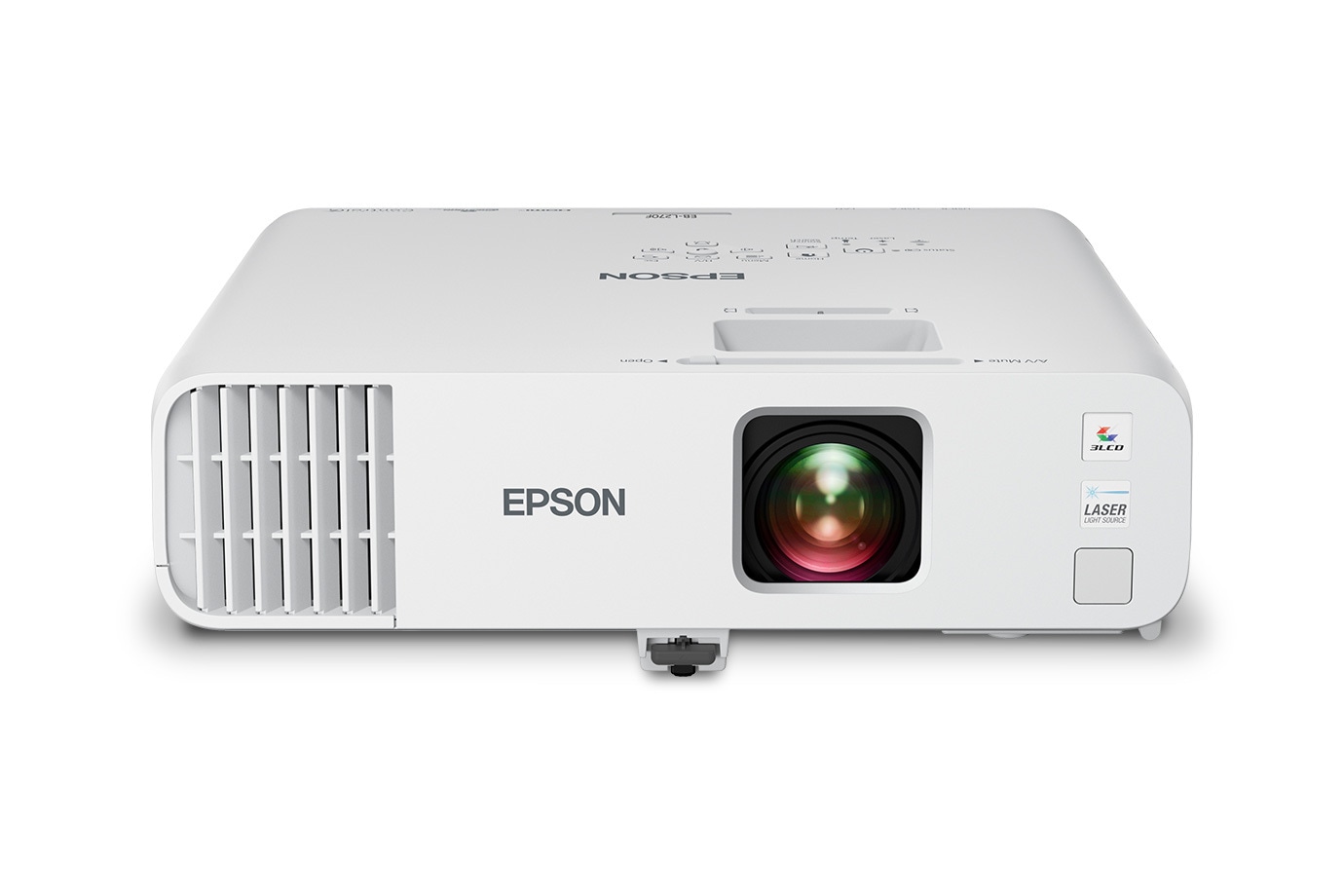

A 1080p 3LCD laser projector rated at 5,200 lumens of white and colour light output, aimed at classrooms, meeting rooms and small houses of worship. It has two HDMI inputs, VGA, a LAN port, a 1.6x manual zoom lens with H/V keystone and Quick Corner, and a 16 W mono speaker. Wireless casting needs an optional wireless LAN module.
Data sheet
| White light output | 5,200 lm ISO (Normal power) | |
| Colour light output | 5,200 lm (Normal power) | |
| Brightness by mode | Normal 5,200 lm · Eco 3,600 lm | |
| Eco brightness | 69%Derived | |
| Imaging technology | 3LCD | |
| Native resolution | 1080p (1920 × 1080) | |
| Native aspect | 16:9Derived | |
| Pixel shift | None | |
| Dynamic contrast | Over 5,000,000:1 |
Light source
| Light source | Laser (phosphor) | |
| Emitter | Blue laser + phosphor | |
| Light-source life | 20,000 h normal · 30,000 h eco | |
| Life defined as | 50% brightness | |
| Light output control | Continuous | |
| Constant brightness mode | Yes | |
| Warm-up time | 30 s |
Optics
| Throw ratio | 1.32–2.12:1100″ · 2.92–4.69 m | |
| Image size | 31–310 in | |
| Zoom | Optical | |
| Zoom ratio | 1.61×Derived | |
| Focal length | 18.2–29.1 mm | |
| Aperture (f-number) | 1.51–1.77 | |
| Focus | Manual | |
| Autofocus | No | |
| Vertical lens shift | None | |
| Horizontal lens shift | None | |
| Vertical keystone | 30° | |
| Horizontal keystone | 30° | |
| Auto keystone | No | |
| Grid warp | Yes |
Inputs & control
| HDMI inputs | 2 × HDMI 2.0 | |
| Other video inputs | VGA | |
| Max input resolution | DCI 4K | |
| Audio inputs | 3.5 mm, RCA, Microphone | |
| USB media playback | Yes | |
| Control ports | RS-232 | |
| Control-system drivers | Crestron |
Audio
| Speaker power | 16 W | |
| Layout | Mono | |
| Audio outputs | 3.5 mm | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 325 × 299 × 90 mm | |
| Weight | 4,200 g | |
| Orientations | Table, Ceiling, Rear, Portrait, 360° | |
| Ceiling mount | 9 × M4, 9 mm screws | |
| Dust filter | Replaceable |
Environment & power
| Operating temperature | 0–40°C | |
| Operating humidity | 20–80%RH | |
| Altitude | 3,048 m · high-altitude mode | |
| Power draw | Max 291 W · Normal 291 W · Eco 226 W | |
| Standby | 0.5 W | |
| Networked standby | 2 W | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 38 dB(A) · Eco 28 dB(A) |
Safety & support
| Laser class | Class 1 | |
| Risk group | RG2 | |
| Marks | FCC, UL | |
| Warranty | 🇺🇸 US 3 yr or 20,000 h · 🇨🇦 CA 3 yr or 20,000 h Service is whole unit exchange per the spec sheet. | |
| User manual | files.support.epson.com | |
| Spare parts | Air filter V13H134A60 |
In the box
| In the box | Power cord, Remote, Remote batteries, HDMI cable |
