Epson PowerLite 800F vs Epson PowerLite L270F

Epson PowerLite 800FEpson PowerLite 800F
MSRP $2,986

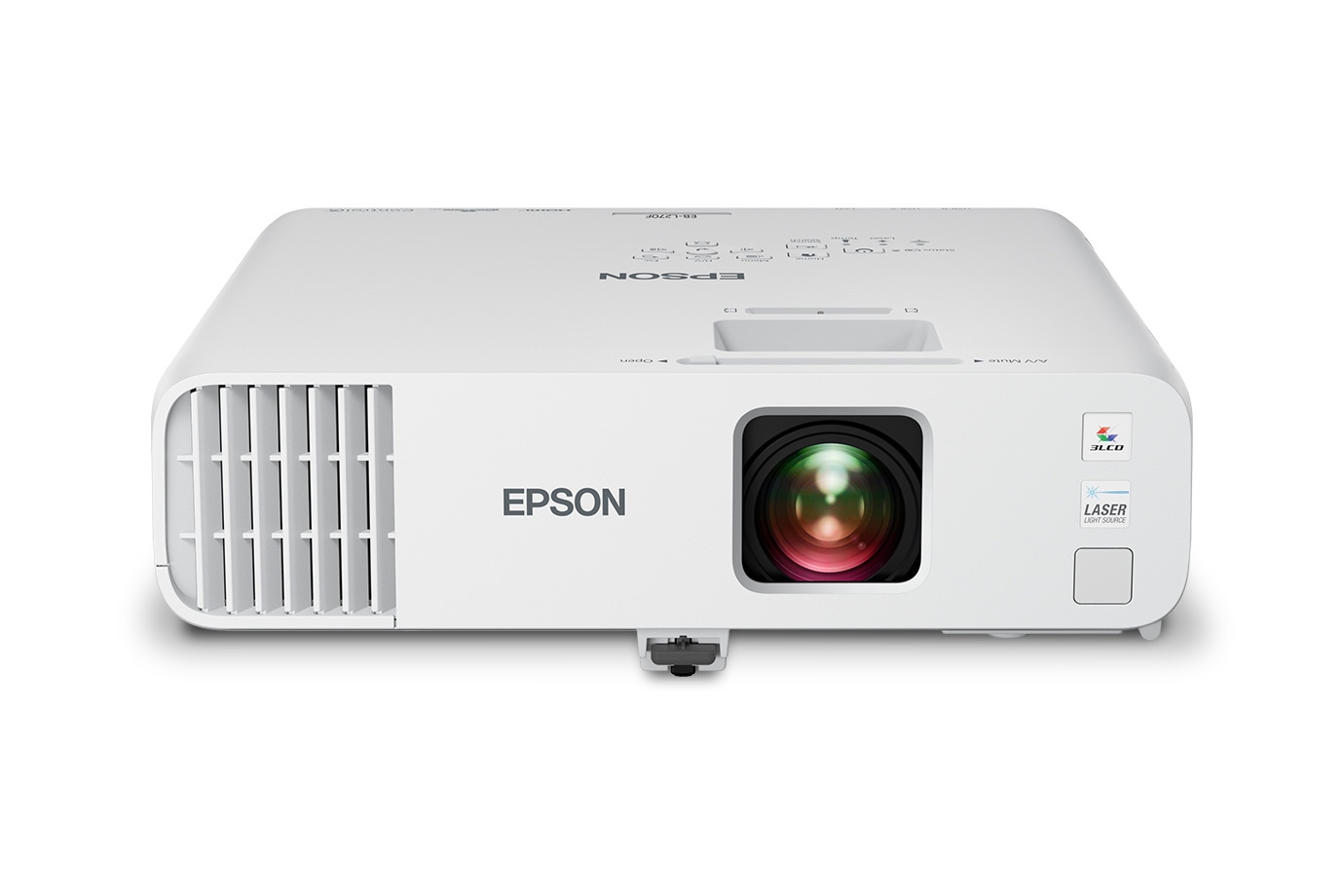

Epson PowerLite L270FEpson PowerLite L270F
MSRP $1,410
Key differences
White light outputISO5,000 lm ISO5,200 lm ISO (Normal power)
Native resolution1366 × 7681080p (1920 × 1080)
Throw ratio0.27–0.37:11.32–2.12:1
Fan noiseNormal 36 dB(A) · Eco 27 dB(A)Normal 38 dB(A) · Eco 28 dB(A)
PriceMSRP $2,986MSRP $1,410
Room fit
Distance to screen0.60–0.82 m2.9–4.7 m
Brightness
Rated brightness5,000 lmDerived5,200 lmDerived
White light outputISO5,000 lm ISO5,200 lm ISO (Normal power)
Colour light output5,000 lm5,200 lm (Normal power)
Brightness by modeNormal 5,000 lm · Eco 3,500 lmNormal 5,200 lm · Eco 3,600 lm
Eco brightness70%Derived69%Derived
Display system
Imaging technology3LCD3LCD
Chip / panel diagonal0.62 in—
On-screen resolution1080p (1920 × 1080)Derived1080p (1920 × 1080)Derived
Native resolution1366 × 7681080p (1920 × 1080)
Native aspect16:9Derived16:9Derived
Pixel shiftYes (scheme not stated)None
Addressable resolution1080p (1920 × 1080)—
Contrast
Dynamic contrastOver 2,500,000:1Over 5,000,000:1
Colour
Colour bit depth (per channel)10 bit—
Light source
Light sourceLaser (phosphor)Laser (phosphor)
EmitterBlue laser + phosphorBlue laser + phosphor
Light-source life20,000 h normal · 30,000 h eco20,000 h normal · 30,000 h eco
Life defined as50% brightness50% brightness
Light output control—Continuous
Constant brightness mode—Yes
Warm-up time—30 s
Optics
Throw ratio0.27–0.37:11.32–2.12:1
Image size65–130 in31–310 in
ZoomDigitalOptical
Zoom ratio—1.61×Derived
Focal length3.9 mm18.2–29.1 mm
Aperture (f-number)1.51.51–1.77
FocusManualManual
Autofocus—No
Vertical lens shift—None
Horizontal lens shift—None
Vertical keystone3°30°
Horizontal keystone3°30°
Auto keystone—No
Grid warp—Yes
Inputs & control
HDMI inputs3 × HDMI 2.0 (HDCP 2.3)2 × HDMI 2.0
HDMI inputs (count)3Derived2Derived
Newest HDMI versionHDMI 2.0DerivedHDMI 2.0Derived
Other video inputsVGA, + Composite, + HDBaseTVGA
Max input resolutionDCI 4KDCI 4K
Audio inputs3.5 mm3.5 mm, + RCA, + Microphone
USB media playbackYesYes
Control portsRS-232RS-232
PJLinkClass 2—
Control-system drivers+ Control4, Crestron, + AMXCrestron
Smart platform
EthernetYesYes
CastingMiracastMiracast
Audio
Speaker power16 W16 W
Speakers2—
LayoutStereoMono
Audio outputs3.5 mm3.5 mm
HDMI audio returnNoneDerivedNoneDerived
Physical & installation
Dimensions (W × D × H)460 × 450 × 229 mm325 × 299 × 90 mm
Weight9,390 g4,200 g
ColoursBlack, White—
OrientationsTable, Ceiling, RearTable, Ceiling, Rear, + Portrait, + 360°
Ceiling mount—9 × M4, 9 mm screws
Dust filterReplaceableReplaceable
Environment & power
Operating temperature0–45°C0–40°C
Operating humidity20–80%RH20–80%RH
Altitude3,048 m · high-altitude mode3,048 m · high-altitude mode
Power drawNormal 381 W · Eco 270 WMax 291 W · Normal 291 W · Eco 226 W
Standby0.5 W0.5 W
Networked standby2 W2 W
Mains input100–240 V · 50/60 Hz100–240 V · 50/60 Hz
Noise
Fan noiseNormal 36 dB(A) · Eco 27 dB(A)Normal 38 dB(A) · Eco 28 dB(A)
Safety & compliance
Laser classClass 1Class 1
Risk groupRG2RG2
FDA laser noticeNotice 57—
MarksFCC, ULFCC, UL
Support & ownership
Warranty3 yr or 20,000 h🇺🇸 US 3 yr or 20,000 h · 🇨🇦 CA 3 yr or 20,000 h
User manualhttps://files.support.epson.com/docid/cpd5/cpd59311.pdfhttps://files.support.epson.com/docid/cpd6/cpd63079.pdf
Spare partsAir filter ELPAF56 · Mount ELPMB62Air filter V13H134A60
In the box
In the boxPower cord, Remote, Remote batteries, + Quick start guidePower cord, Remote, Remote batteries, + HDMI cable
