Epson PowerLite 810E

Brand	Epson · PowerLite
Type	Education
Released	June 2023
Resolution	1080p
HDR formats	HDR10, HLG
Imaging technology	3LCD
Light source	Laser (phosphor)
Brightness	5,000 lm ISO
Throw ratio	0.16–0.22:1

A white extreme-short-throw 3LCD laser projector with three 1080p panels and 4K Enhancement pixel shifting, rated 5,000 lumens in both white and color brightness. It throws 80 to 160 inches from a 0.16 throw ratio at 1 to 4 inches from the wall, and has HDMI, HDBaseT, wired and wireless networking and Miracast. It is aimed at classrooms and meeting rooms.

Data sheet


White light output	5,000 lm ISO ISO 21118 per the maker footnote: white light output measured in accordance with ISO 21118	ISO 21118 per the maker footnote: white light output measured in accordance with ISO 21118
Colour light output	5,000 lm IDMS 15.4 per the maker footnote	IDMS 15.4 per the maker footnote
Imaging technology	3LCD
Chip / panel diagonal	0.62 in
Native resolution	1080p (1920 × 1080)
Native aspect	16:9Derived
Pixel shift	Yes (scheme not stated)
Dynamic contrast	Over 2,500,000:1
HDR formats	HDR10, HLG

Light source

Light source	Laser (phosphor)
Emitter	Blue laser + phosphor
Light-source life	20,000 h normal · 30,000 h eco
Life defined as	50% brightness
Constant brightness mode	Yes

Optics

Throw ratio	0.16–0.22:1100″ · 0.35–0.49 m
Image size	80–160 in
Zoom	Digital
Focal length	2.3 mm
Aperture (f-number)	1.8
Focus	Manual
Vertical keystone	3.6°
Horizontal keystone	0.9°
Grid warp	Yes

Motion & gaming

Frame interpolation (MEMC)

Yes

Inputs & control

HDMI inputs	2 × HDMI (HDCP 2.3)
Other video inputs	HDBaseT
USB media playback	Yes
Control ports	RS-232
PJLink	Class 2
Control-system drivers	Crestron, AMX

Smart platform

Wi-Fi	Wi-Fi 5
Ethernet	Yes
Casting	Miracast

Audio

Speaker power	16 W
Speakers	2
Layout	Stereo

Physical & installation

Dimensions (W × D × H)	695 × 341 × 145 mm
Weight	12,500 g
Colours	White
Orientations	Table, Ceiling, Rear
Ceiling mount	4 × M4, 9 mm deep
Dust filter	Replaceable

Environment & power

Operating temperature	0–40°C
Operating humidity	20–80%RH
Altitude	3,048 m · high-altitude mode
Power draw	Normal 398 W · Eco 296 W
Standby	0.4 W
Networked standby	2 W
Mains input	100–240 V · 50/60 Hz
Fan noise	Normal 35 dB(A) · Eco 26 dB(A)

Safety & support

Warranty	🇺🇸 US 3 yr · 🇨🇦 CA 3 yr
Spare parts	Air filter V13H134AE0 · Mount V12HB12010

In the box

Power cord, Remote, Remote batteries, Quick start guide

Reviews

Articles

Date	Title	Publication
July 16, 2024	Epson PowerLite 810E UST Projector Review ProjectorCentral · July 16, 2024	ProjectorCentral

Similar models

Model	Resolution	Tech	Lumens	Price

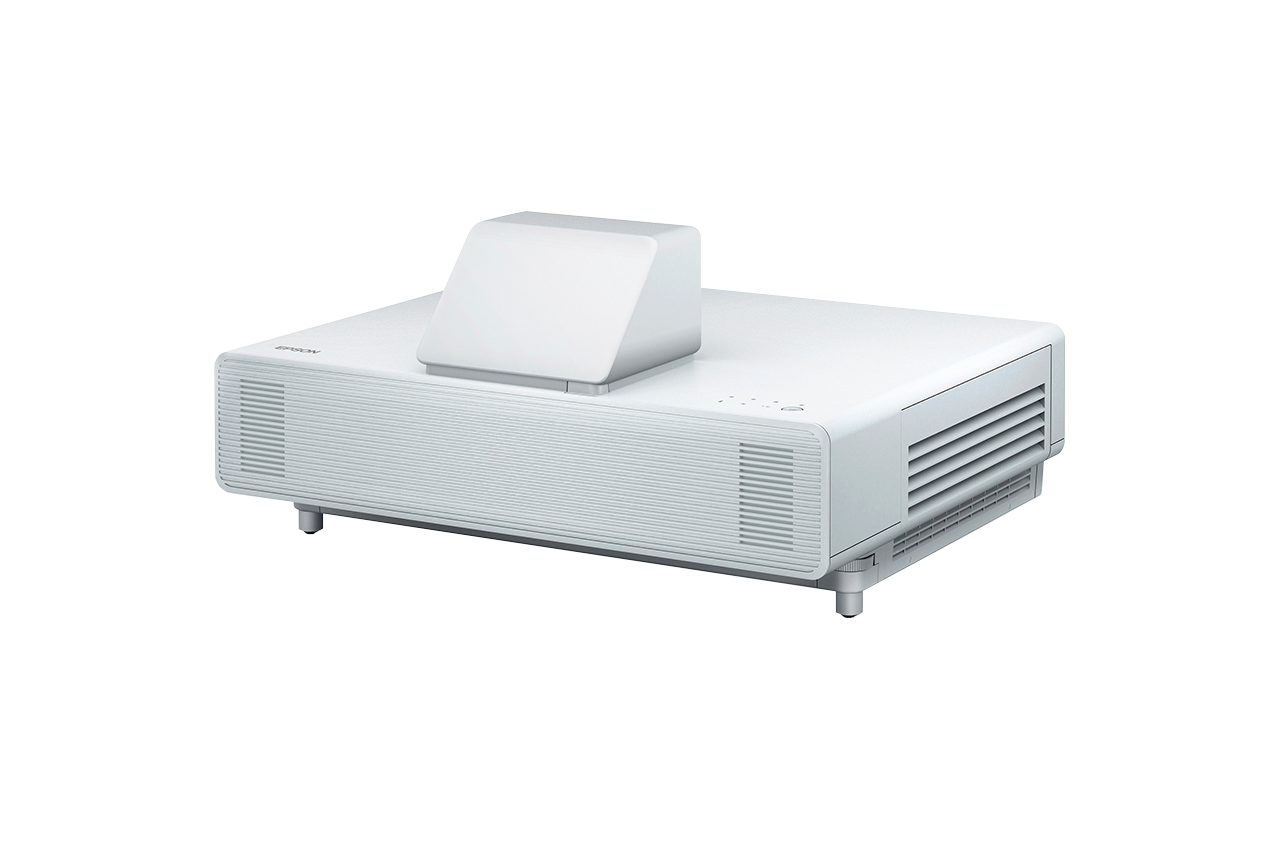

Epson PowerLite 800F 1080p · 3LCD	1080p	3LCD	5,000	$2,986 −$676	Compare

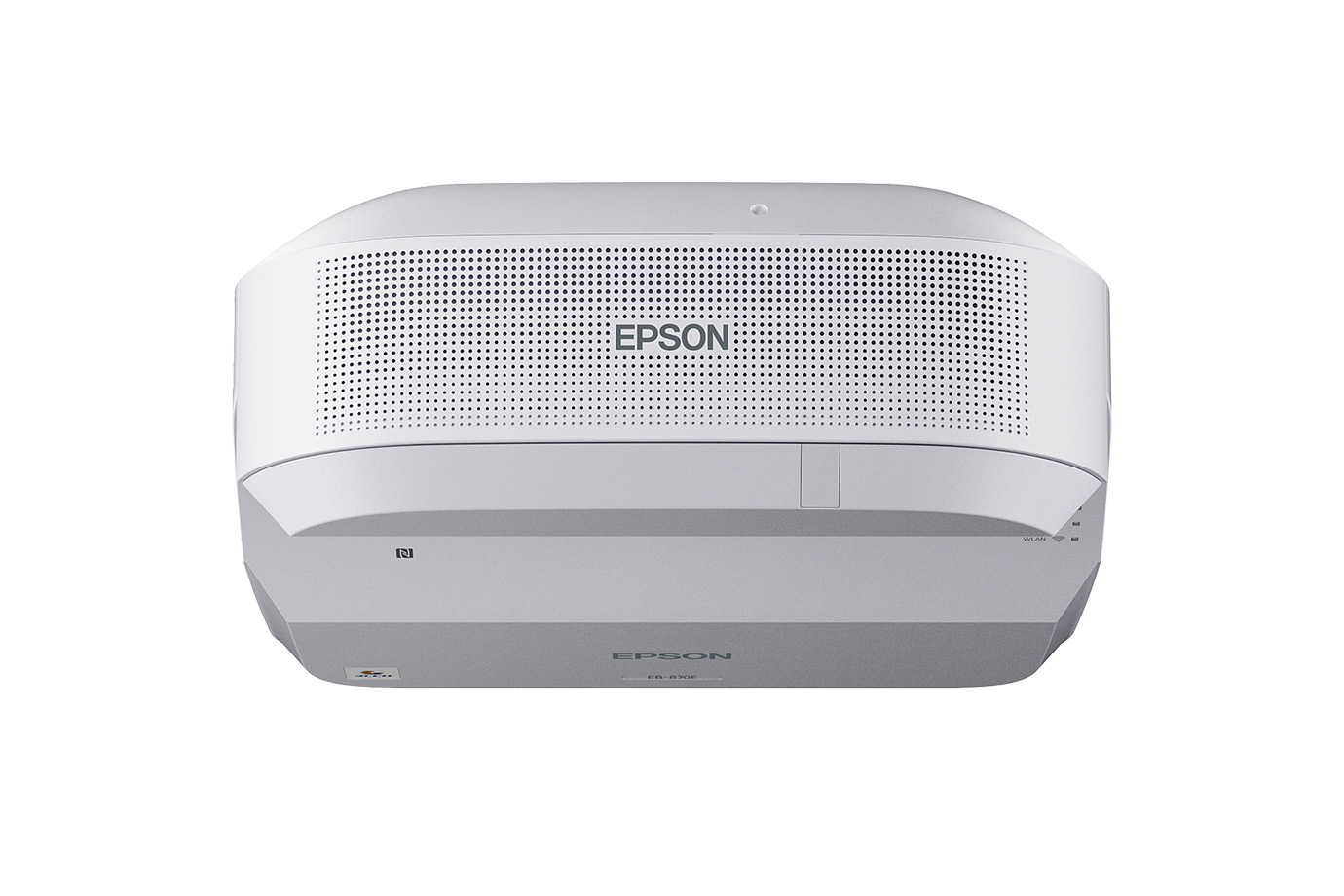

Epson PowerLite 870E 1080p · 3LCD	1080p	3LCD	5,000	$5,532 +$1,870	Compare

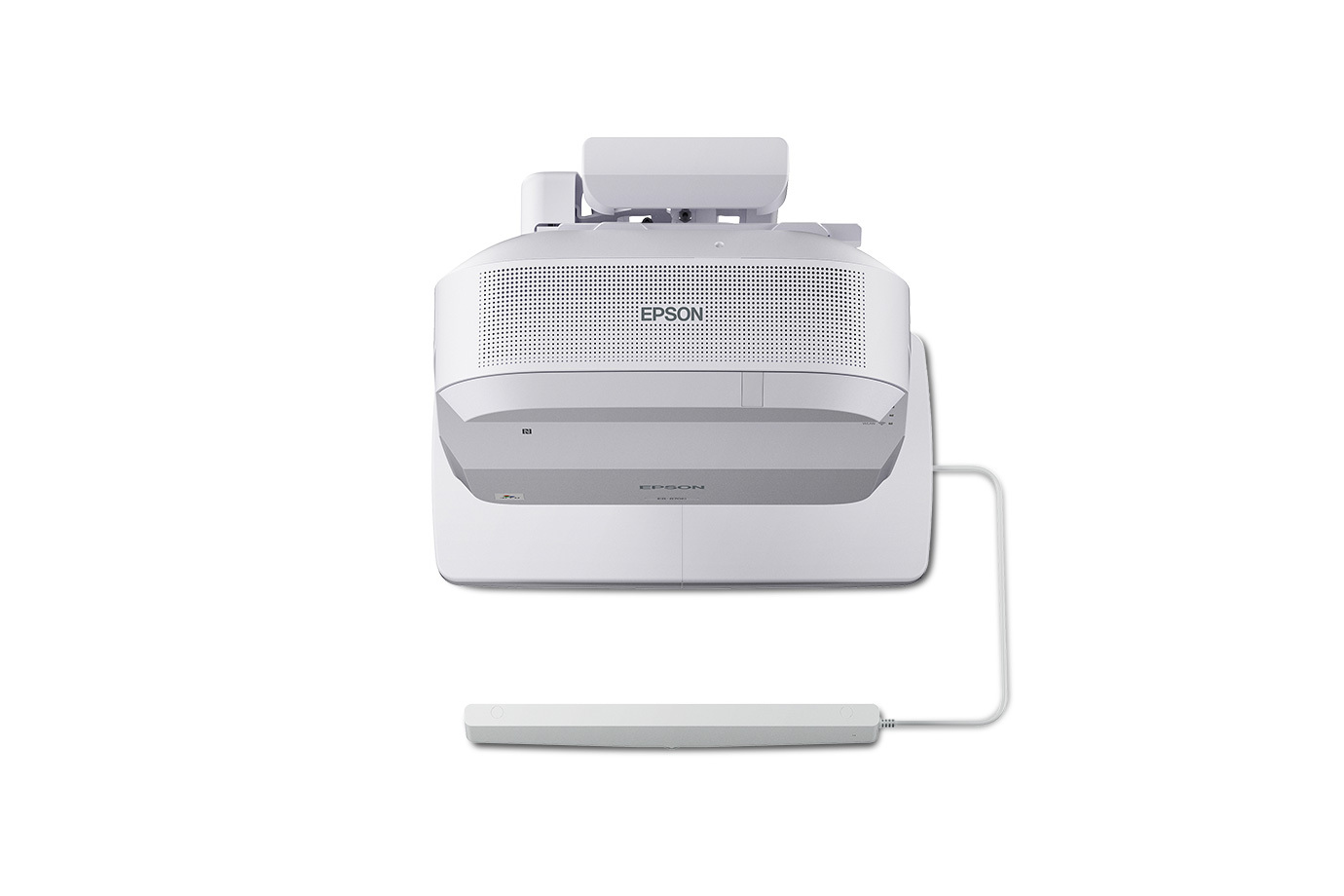

Epson BrightLink 870Ei 1080p · 3LCD	1080p	3LCD	5,000	$6,471 +$2,809	Compare
Epson BrightLink 1480Fi 1080p · 3LCD	1080p	3LCD	5,000	$3,090 −$572	Compare
Epson BrightLink 1485Fi 1366 × 768 · 3LCD	1366 × 768	3LCD	5,000	$3,568 −$94	Compare

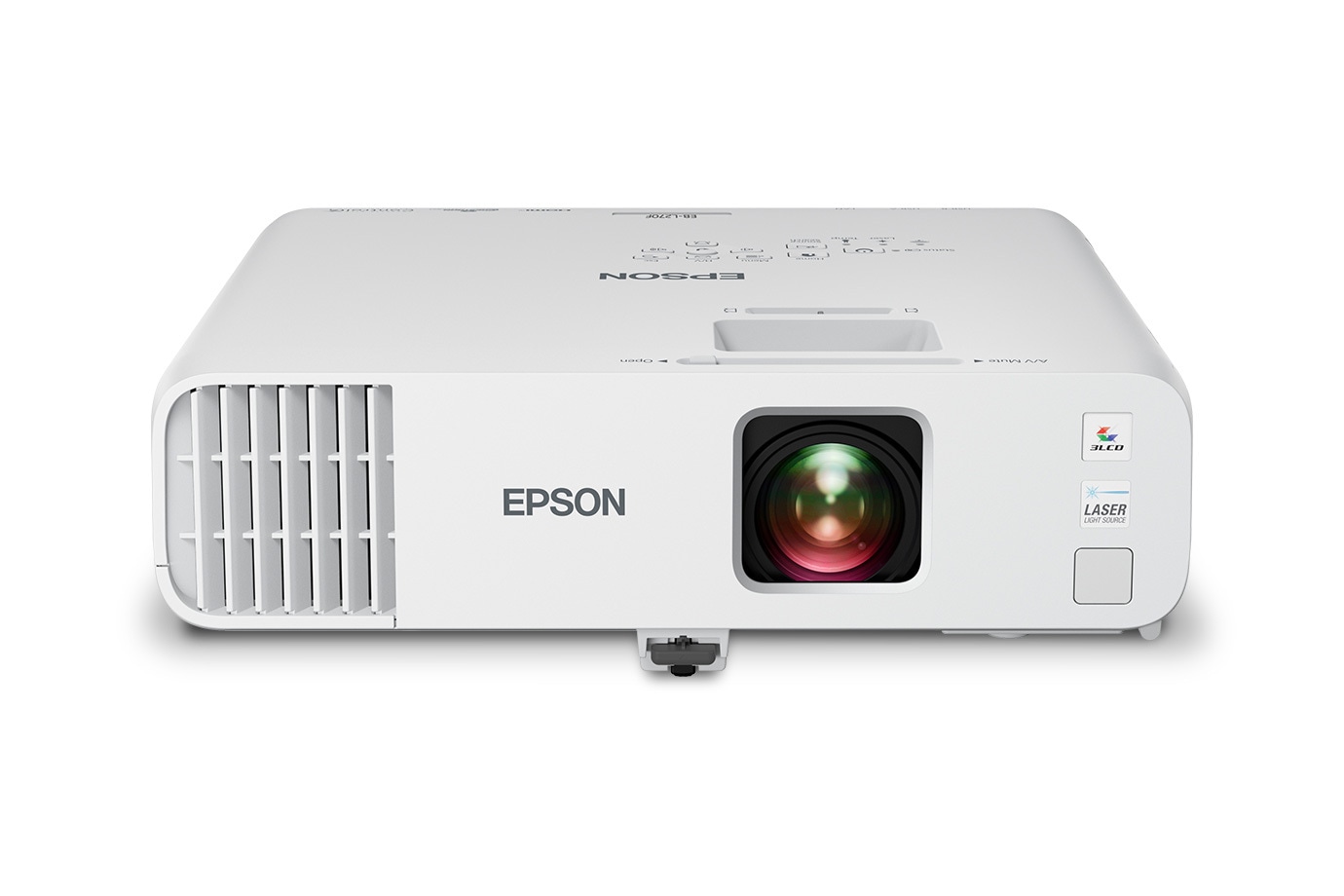

Epson PowerLite L270F 1080p · 3LCD	1080p	3LCD	5,200 +200	$1,410 −$2,252	Compare

Other

Tools

Throw calculator — How far from the screen the PowerLite 810E needs to sit for a given image size, set to its 0.16–0.22:1 lens.
Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
Download spec as JSON — The same data from the open data API, with variants and identifiers.

Variants & identifiers

Use these to confirm a listing is this exact model. Any of them works at /p/{code}.

Variant	Region	Type	Code
White, US	🇺🇸 US	UPC	010343978447
White, US	🇺🇸 US	MPN	V11HA99020

Sources

Also known as

PowerLite 810E 3LCD Extreme Short Throw Lamp-Free Laser Display with 4K Enhancement	All regions	Marketing name
EB-810E	All regions	Regional model
