Epson PowerLite 800F vs Epson PowerLite 810E

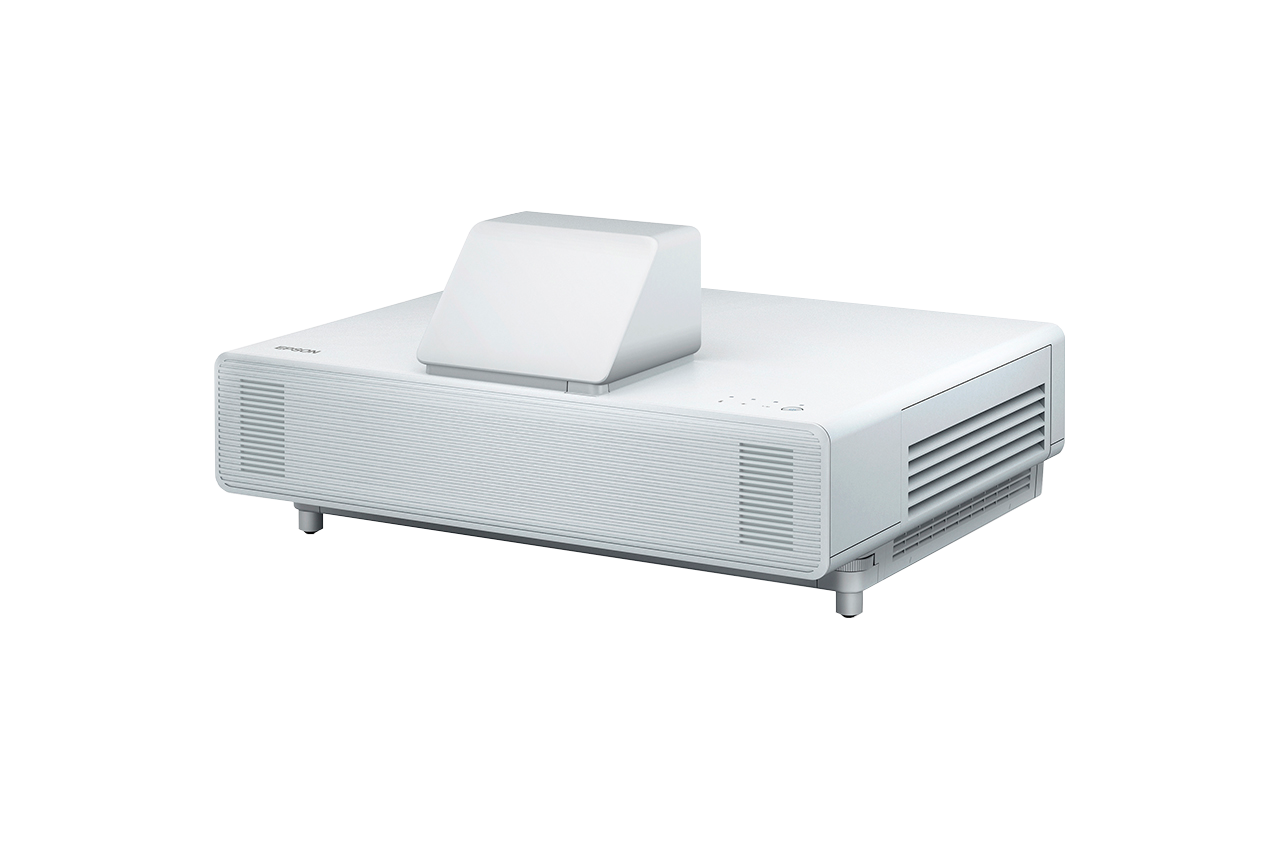

Epson PowerLite 800FEpson PowerLite 800F
MSRP $2,986
Epson PowerLite 810E
Epson PowerLite 810E
MSRP $3,662
Key differences
Native resolution1366 × 7681080p (1920 × 1080)
Throw ratio0.27–0.37:10.16–0.22:1
HDR formats—HDR10, HLG
Fan noiseNormal 36 dB(A) · Eco 27 dB(A)Normal 35 dB(A) · Eco 26 dB(A)
PriceMSRP $2,986MSRP $3,662
Room fit
Distance to screen0.60–0.82 m0.35–0.49 m
Brightness
Rated brightness5,000 lmDerived5,000 lmDerived
White light outputISO5,000 lm ISO5,000 lm ISO
Colour light output5,000 lm5,000 lm
Brightness by modeNormal 5,000 lm · Eco 3,500 lm—
Eco brightness70%Derived—
Display system
Imaging technology3LCD3LCD
Chip / panel diagonal0.62 in0.62 in
On-screen resolution1080p (1920 × 1080)Derived1080p (1920 × 1080)Derived
Native resolution1366 × 7681080p (1920 × 1080)
Native aspect16:9Derived16:9Derived
Pixel shiftYes (scheme not stated)Yes (scheme not stated)
Addressable resolution1080p (1920 × 1080)—
Contrast
Dynamic contrastOver 2,500,000:1Over 2,500,000:1
Colour
Colour bit depth (per channel)10 bit—
HDR
HDR formats—HDR10, HLG
Light source
Light sourceLaser (phosphor)Laser (phosphor)
EmitterBlue laser + phosphorBlue laser + phosphor
Light-source life20,000 h normal · 30,000 h eco20,000 h normal · 30,000 h eco
Life defined as50% brightness50% brightness
Constant brightness mode—Yes
Optics
Throw ratio0.27–0.37:10.16–0.22:1
Image size65–130 in80–160 in
ZoomDigitalDigital
Focal length3.9 mm2.3 mm
Aperture (f-number)1.51.8
FocusManualManual
Vertical keystone3°3.6°
Horizontal keystone3°0.9°
Grid warp—Yes
Motion & gaming
Frame interpolation (MEMC)—Yes
Inputs & control
HDMI inputs3 × HDMI 2.0 (HDCP 2.3)2 × HDMI (HDCP 2.3)
HDMI inputs (count)3Derived2Derived
Newest HDMI versionHDMI 2.0Derived—
Other video inputs+ VGA, + Composite, HDBaseTHDBaseT
Max input resolutionDCI 4K—
Audio inputs3.5 mm—
USB media playbackYesYes
Control portsRS-232RS-232
PJLinkClass 2Class 2
Control-system drivers+ Control4, Crestron, AMXCrestron, AMX
Smart platform
Wi-Fi—Wi-Fi 5
EthernetYesYes
CastingMiracastMiracast
Audio
Speaker power16 W16 W
Speakers22
LayoutStereoStereo
Audio outputs3.5 mm—
HDMI audio returnNoneDerived—
Physical & installation
Dimensions (W × D × H)460 × 450 × 229 mm695 × 341 × 145 mm
Weight9,390 g12,500 g
Colours+ Black, WhiteWhite
OrientationsTable, Ceiling, RearTable, Ceiling, Rear
Ceiling mount—4 × M4, 9 mm deep
Dust filterReplaceableReplaceable
Environment & power
Operating temperature0–45°C0–40°C
Operating humidity20–80%RH20–80%RH
Altitude3,048 m · high-altitude mode3,048 m · high-altitude mode
Power drawNormal 381 W · Eco 270 WNormal 398 W · Eco 296 W
Standby0.5 W0.4 W
Networked standby2 W2 W
Mains input100–240 V · 50/60 Hz100–240 V · 50/60 Hz
Noise
Fan noiseNormal 36 dB(A) · Eco 27 dB(A)Normal 35 dB(A) · Eco 26 dB(A)
Safety & compliance
Laser classClass 1—
Risk groupRG2—
FDA laser noticeNotice 57—
MarksFCC, UL—
Support & ownership
Warranty3 yr or 20,000 h🇺🇸 US 3 yr · 🇨🇦 CA 3 yr
User manualhttps://files.support.epson.com/docid/cpd5/cpd59311.pdf—
Spare partsAir filter ELPAF56 · Mount ELPMB62Air filter V13H134AE0 · Mount V12HB12010
In the box
In the boxPower cord, Remote, Remote batteries, Quick start guidePower cord, Remote, Remote batteries, Quick start guide
