Epson PowerLite E24

Brand	Epson · PowerLite
Type	Education
Released	April 2025
Resolution	1024 × 768
Imaging technology	3LCD
Light source	Lamp
Claimed brightness (non-standard)	3,600 lm
Throw ratio	1.44–2.88:1

The PowerLite E24 is a 3LCD classroom projector with a 1024x768 (XGA) panel and a 210 W UHE lamp rated at 3,600 lumens of both white and color light output. It has digital zoom only, a horizontal keystone slider, one HDMI input, analog computer and composite inputs, and a 5 W mono speaker. It suits small and medium classrooms and meeting rooms.

Data sheet


Colour light output	3,600 lm
Claimed brightness (non-standard)	3,600 lm
Imaging technology	3LCD
Chip / panel diagonal	0.55 in
Native resolution	1024 × 768
Native aspect	4:3Derived
Dynamic contrast	Up to 15,000:1
Colour bit depth (per channel)	10 bit

Light source

Light source	Lamp
Lamp power	210 W
Replacement lamp	ELPLP97
Light-source life	6,000 h normal · 12,000 h eco

Optics

Throw ratio	1.44–2.88:1100″ · 2.93–5.85 m
Image size	30–350 in
Zoom	Digital
Focal length	16.7 mm
Aperture (f-number)	1.44
Focus	Manual
Vertical keystone	30°
Horizontal keystone	30°

Inputs & control

HDMI inputs	HDMI
Other video inputs	VGA, Composite
Audio inputs	3.5 mm, RCA
Control ports	RS-232

Audio

Speaker power	5 W
Speakers	1
Layout	Mono
Audio outputs	3.5 mm
HDMI audio return	NoneDerived

Physical & installation

Dimensions (W × D × H)	302 × 249 × 87 mm
Weight	2,700 g
Orientations	Table, Ceiling, Rear
Dust filter	Replaceable

Environment & power

Operating temperature	5–40°C
Altitude	3,048 m
Power draw	Normal 349 W · Eco 241 W
Standby	Up to 0.3 W
Mains input	100–240 V · 50/60 Hz
Fan noise	Normal 37 dB(A) · Eco 28 dB(A)

Safety & support

Warranty	🇺🇸 US 2 yr (light source 3 mo)
User manual	files.support.epson.com
Spare parts	Lamp V13H010L97 · Air filter V13H134A32

In the box

Power cord, Remote, Remote batteries, Quick start guide

Similar models

Model	Resolution	Tech	Lumens	Price
NEC UM361X 1024 × 768 · 3LCD	1024 × 768	3LCD	3,600	—	Compare

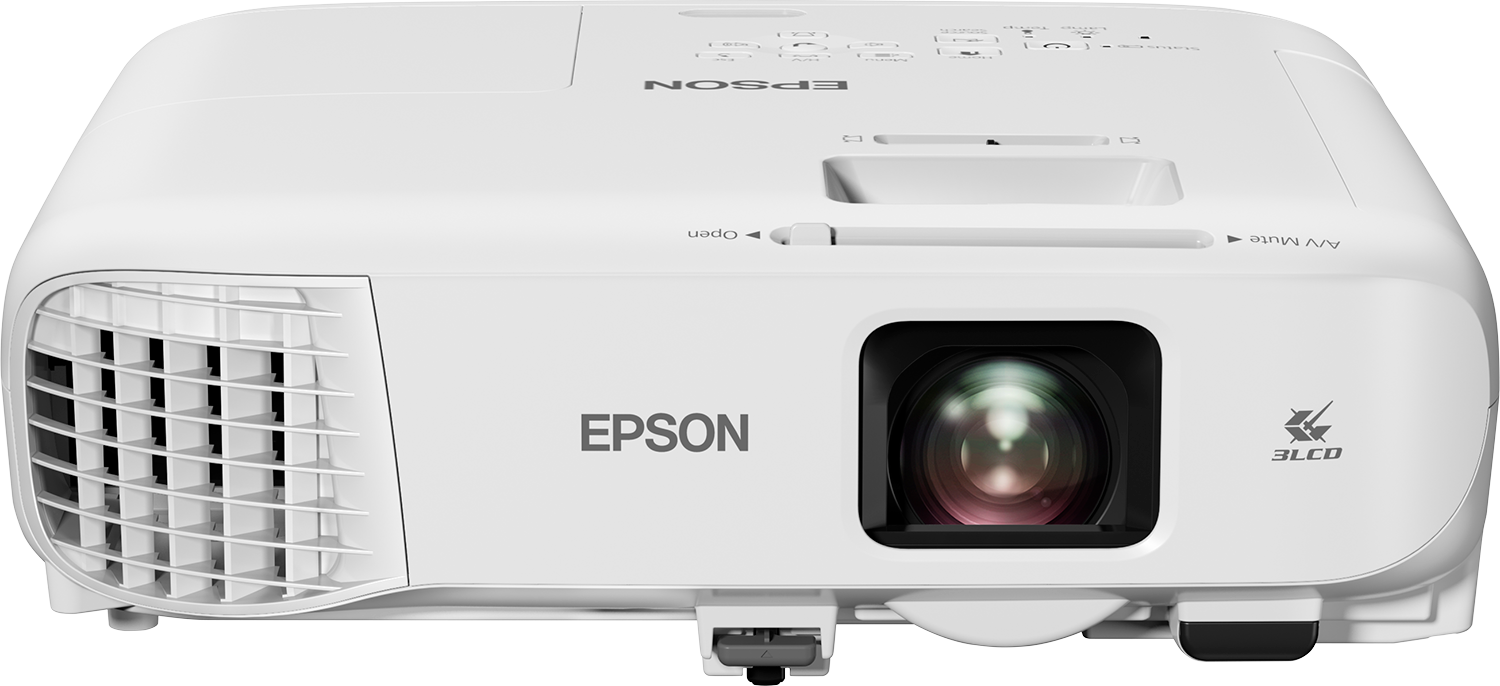

Epson PowerLite X49 1024 × 768 · 3LCD	1024 × 768	3LCD	3,600	$497 +$76	Compare

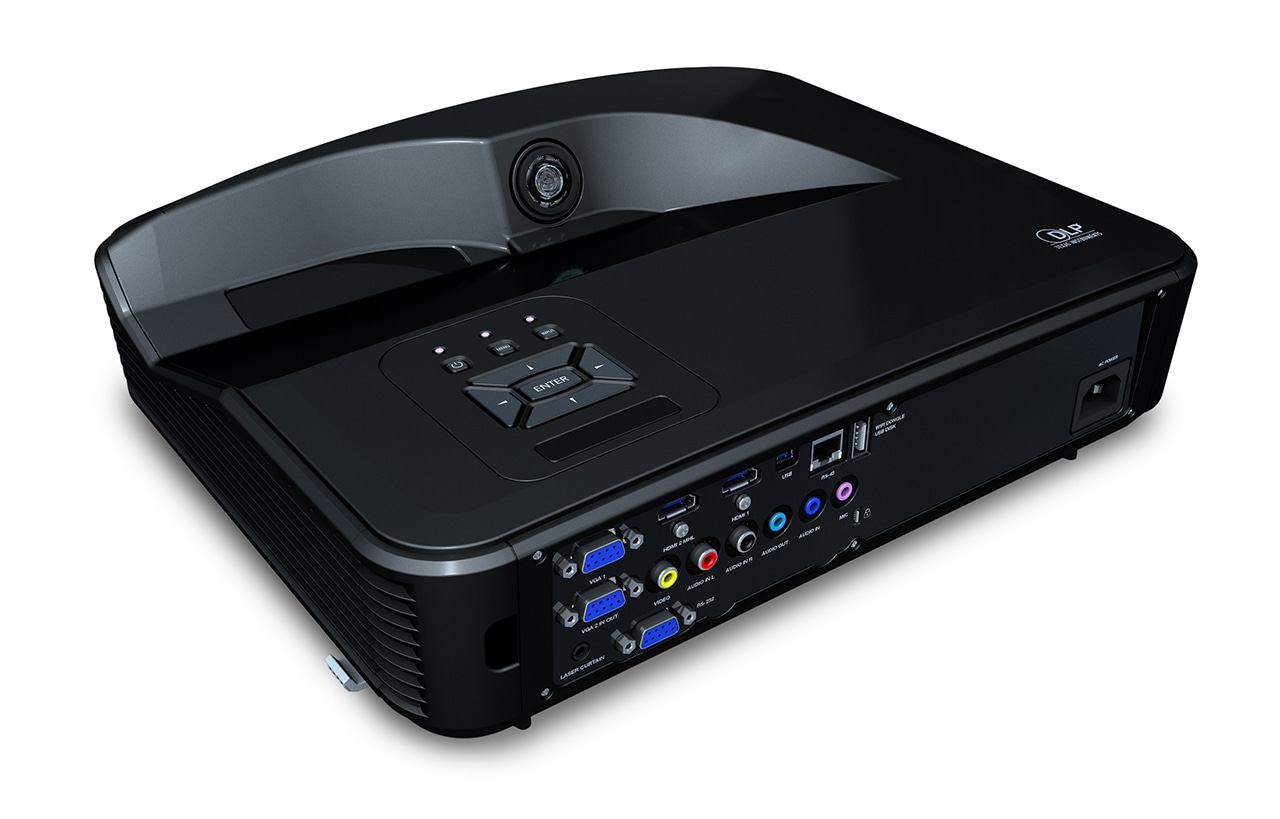

Christie Captiva DHD400S 1080p · DLP	1080p	DLP	3,500 −100	$1,999.99 +$1,579	Compare
NEC NP-UM351W WXGA · 3LCD	WXGA	3LCD	3,500 −100	—	Compare
Epson PowerLite 685W WXGA · 3LCD	WXGA	3LCD	3,500 −100	$1,390 +$969	Compare
Epson PowerLite E20 1024 × 768 · 3LCD	1024 × 768	3LCD	3,400 −200	$469 +$48	Compare

Other

Tools

Throw calculator — How far from the screen the PowerLite E24 needs to sit for a given image size, set to its 1.44–2.88:1 lens.
Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
Download spec as JSON — The same data from the open data API, with variants and identifiers.

Variants & identifiers

Use these to confirm a listing is this exact model. Any of them works at /p/{code}.

Variant	Region	Type	Code
White, US	🇺🇸 US	UPC	198390001360
White, US	🇺🇸 US	MPN	V11HB51020
All variants	All regions	Model number	HB51A
