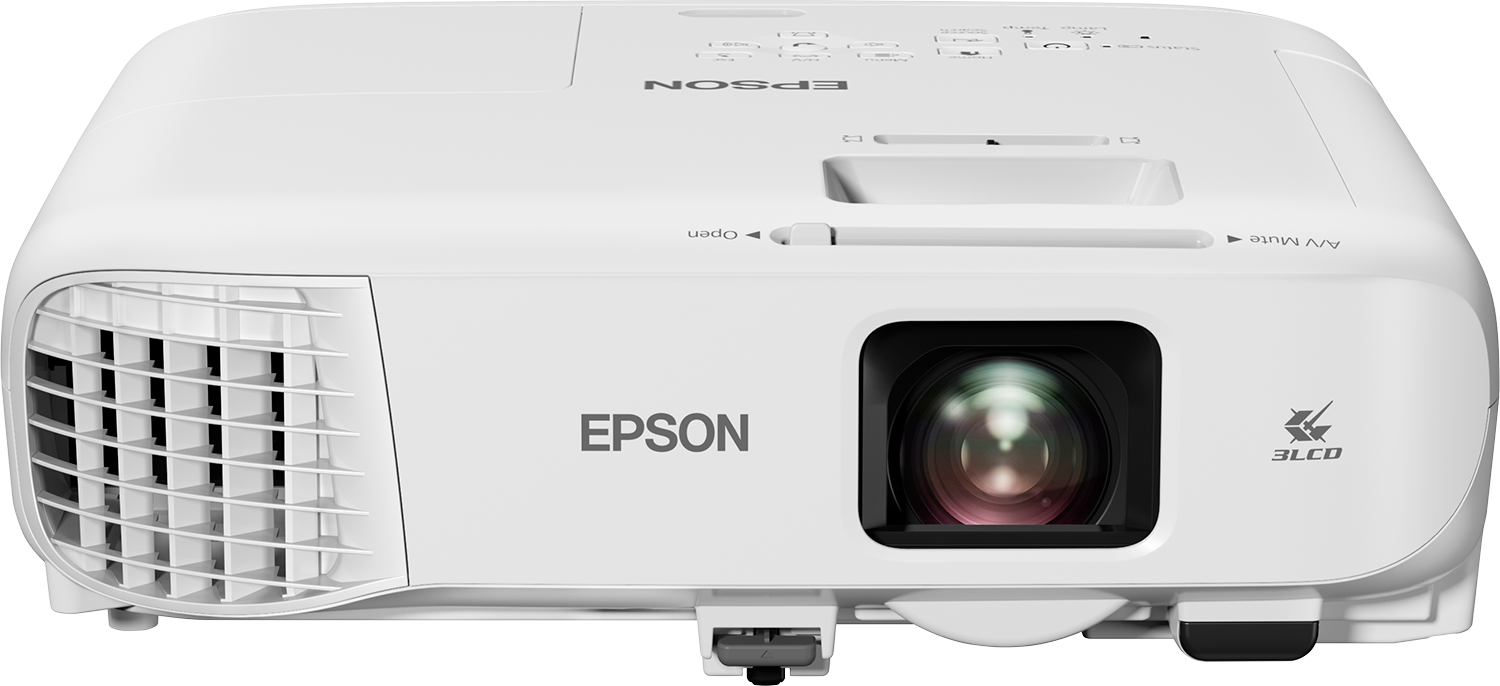

Epson PowerLite X49

MSRP$508

Brand	Epson · PowerLite
Type	Education
Released	July 2020
Resolution	1024 × 768
Imaging technology	3LCD
Light source type	Lamp
ISO light output	3,600 lm
Throw ratio	1.48–1.77:1

A 3600-lumen XGA 3LCD lamp projector for classrooms and small meeting rooms, with a 1.2x manual zoom lens, 30 degree vertical and horizontal keystone correction, Quick Corner, an HDMI input, a wired network port and an optional wireless module. Epson rates the 210 W lamp at up to 12,000 hours in ECO mode, and it is sold in Europe and Asia as the EB-X49.

Data sheet


Imaging technology	3LCD
Technology brand	3LCD
Number of imaging devices	3
Chip / panel diagonal	0.55 in
Native aspect ratio	4:3
Native resolution	1024 × 768
Optical system description	Poly-silicon TFT active matrix
Dynamic contrast	16,000:1
Bit depth / 'number of colours'	30 bit

Optics

Throw ratio	1.48–1.77:1
Projection distance table	30″: 0.89–1.07 m · 40″: 1.19–1.43 m · 50″: 1.5–1.8 m · 60″: 1.8–2.17 m · 80″: 2.41–2.9 m · 100″: 3.02–3.63 m · 150″: 4.54–5.46 m · 200″: 6.07–7.29 m · 250″: 7.59–9.12 m · 300″: 9.12–10.95 m
Zoom type	Optical
Zoom ratio	1.2×
Focus	Manual
Vertical lens shift	0%
Horizontal lens shift	0%
Motorized lens shift	No
Focal length	16.9–20.28 mm
F-number	1.49–1.72
Interchangeable lens	No
Image size range	30–300 in
Vertical keystone	-30–30°
Horizontal keystone	-30–30°
Corner / warp correction	4pt

Light source

Light source type	Lamp
Light source detail	210 W UHE lamp (ELPLP97)
Lamp wattage	210 W
Light source life	Normal: 6,000 h · Eco: 12,000 h
Life definition	Unspecified
Cool-down time	0 s
ISO light output	3,600 lm ISO 21118 · Normal mode	ISO 21118 · Normal mode
Colour light output (CLO)	3,600 lm (colour) IDMS 15.4 · Normal mode	IDMS 15.4 · Normal mode
Brightness by mode	Normal: 3,600 lm · Eco: 2,400 lm

Audio

Speaker power	5 W
Speaker count	1
Audio channels	Mono
Audio outputs	3.5 mm

Inputs, control & connectivity

Max input signal	1920 × 1080
HDMI port count	1
VGA input	Yes
USB media playback	Yes
RS-232	Yes
LAN control	Yes
Control ecosystem drivers	Crestron, Control4
Ethernet	Yes
Autofocus	None
Auto keystone	Yes

Environment & power

Operating temperature	5–35°C
Operating humidity	20–80%RH
Altitude / high-altitude mode	3,048 m
High-altitude mode	Yes
Operating orientations	Table, Ceiling, Rear
Rated voltage	100–240 V
Rated frequency	50–60 Hz
Power consumption (max)	345 W
Power consumption by mode	Normal: 345 W · Eco: 235 W
Standby power	0.3 W
Networked standby power	2 W
Fan noise (sound pressure)	Normal: 37 dB(A) · Eco: 28 dB(A)

Physical & installation

Width	302 mm
Depth	249 mm
Height	92 mm
Weight	2.7 kg
Colours / finishes	White
Air filter	Replaceable

Support & ownership

Warranty	🇺🇸 US 2 yr · 🇨🇦 CA 2 yr · 🇪🇺 EU 3 yr · 🇮🇳 IN 3 yr
Light-source warranty	90 days
User manual	https://files.support.epson.com/docid/cpd5/cpd59679.pdf
Safety & market certifications	FCC, UL

In the box

Box contents

Projector, Power cord, Vga cable, Remote, Batteries, Software cd, Quick setup sheet, Warranty card
