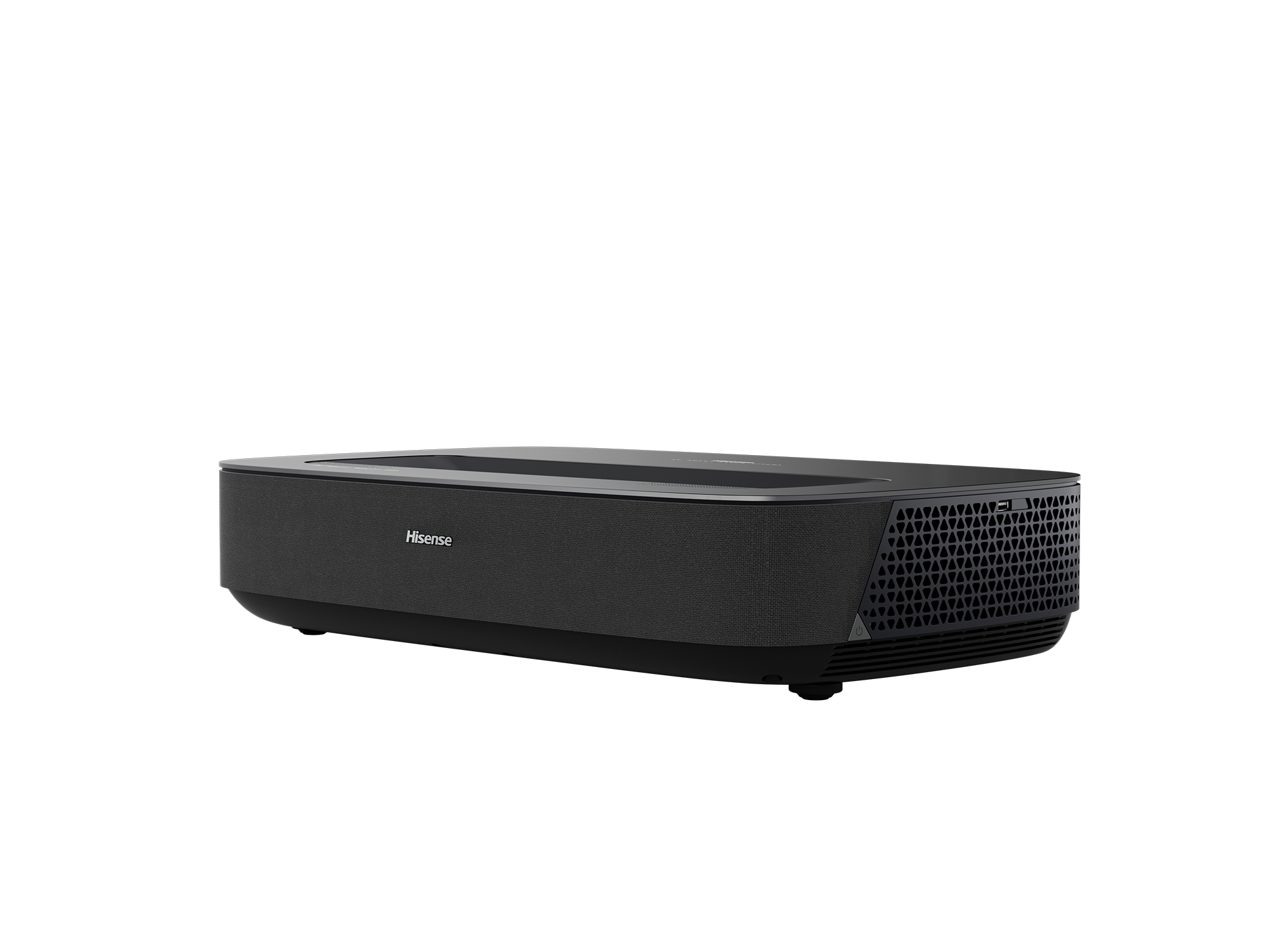

Hisense PL1

Brand	Hisense · Laser Cinema
Type	UST laser TV
Status	Discontinued
Released	June 2023
Resolution	4K UHD
HDR formats	HDR10, HLG, Dolby Vision
Imaging technology	DLP
Light source type	Laser (phosphor)
ANSI lumens	2,200 lm
Throw ratio	0.25:1

An ultra-short-throw 4K laser projector, sold as a Laser Cinema, that projects 80 to 120 inches from a 0.25:1 throw using a 0.47 inch DLP chip. It is rated 2,200 ANSI lumens, runs Google TV, supports Dolby Vision, and has two HDMI 2.1 inputs and 30 W stereo speakers with Dolby Atmos. It has no lens shift and relies on a screen or wall in front of the unit.

Data sheet


Imaging technology	DLP
Number of imaging devices	1
Chip / panel diagonal	0.47 in
Native aspect ratio	16:9
Addressable resolution	3840 × 2160
Dynamic contrast	2,000,000:1
DCI-P3 gamut	85%
Bit depth / 'number of colours'	10 bit
Filmmaker Mode	Yes
HDR formats	HDR10, HLG, Dolby Vision
Tone mapping type	Dynamic
Frame interpolation (MEMC)	Yes
Max refresh rate	3840×2160: 60 Hz
Auto low-latency mode	Yes

Optics

Throw ratio	0.25:1
Zoom type	None
Focus	Motorized
Vertical lens shift	0%
Horizontal lens shift	0%
Image size range	80–120 in
Corner / warp correction	8pt

Light source

Light source type	Laser (phosphor)
Light source detail	X-Fusion™ Laser Engine
Light source life	Laser life: 25,000 h
Laser wavelengths	B 455 nm
ANSI lumens	2,200 lm ANSI	ANSI

Audio

Speaker power	30 W
Speaker count	2
Audio channels	Stereo
Dolby Atmos	Yes
Audio outputs	3.5 mm, Optical
HDMI ARC	Yes
HDMI eARC	Yes
Bluetooth audio out	Yes

Inputs, control & connectivity

HDMI port count	2
HDMI ports (feature-level)	HDMI 1: HDMI 2.1 (ALLM); HDMI 2: HDMI 2.1 (ALLM)
USB media playback	Yes
Control ecosystem drivers	Alexa, Google Home, Control4, HomeKit
Wi-Fi	Wi-Fi 5
Ethernet	Yes
Screen fit / alignment	Yes
Eye-protection sensor	Yes

Firmware / software

Smart OS	Google TV
Certified OS	Yes
Casting	Chromecast built-in, AirPlay 2

Environment & power

Operating temperature	5–35°C
Operating humidity	20–80%RH
Rated voltage	120 V
Rated frequency	60 Hz
Power consumption (max)	300 W
Standby power	0.5 W

Physical & installation

Width	531 mm
Depth	335 mm
Height	120 mm
Weight	8.5 kg

Support & ownership

Warranty	🇨🇦 CA 2 yr
Photobiological risk group	RG2
Laser product class	Class 1
Safety & market certifications	FCC

In the box

Remote type

Voice
