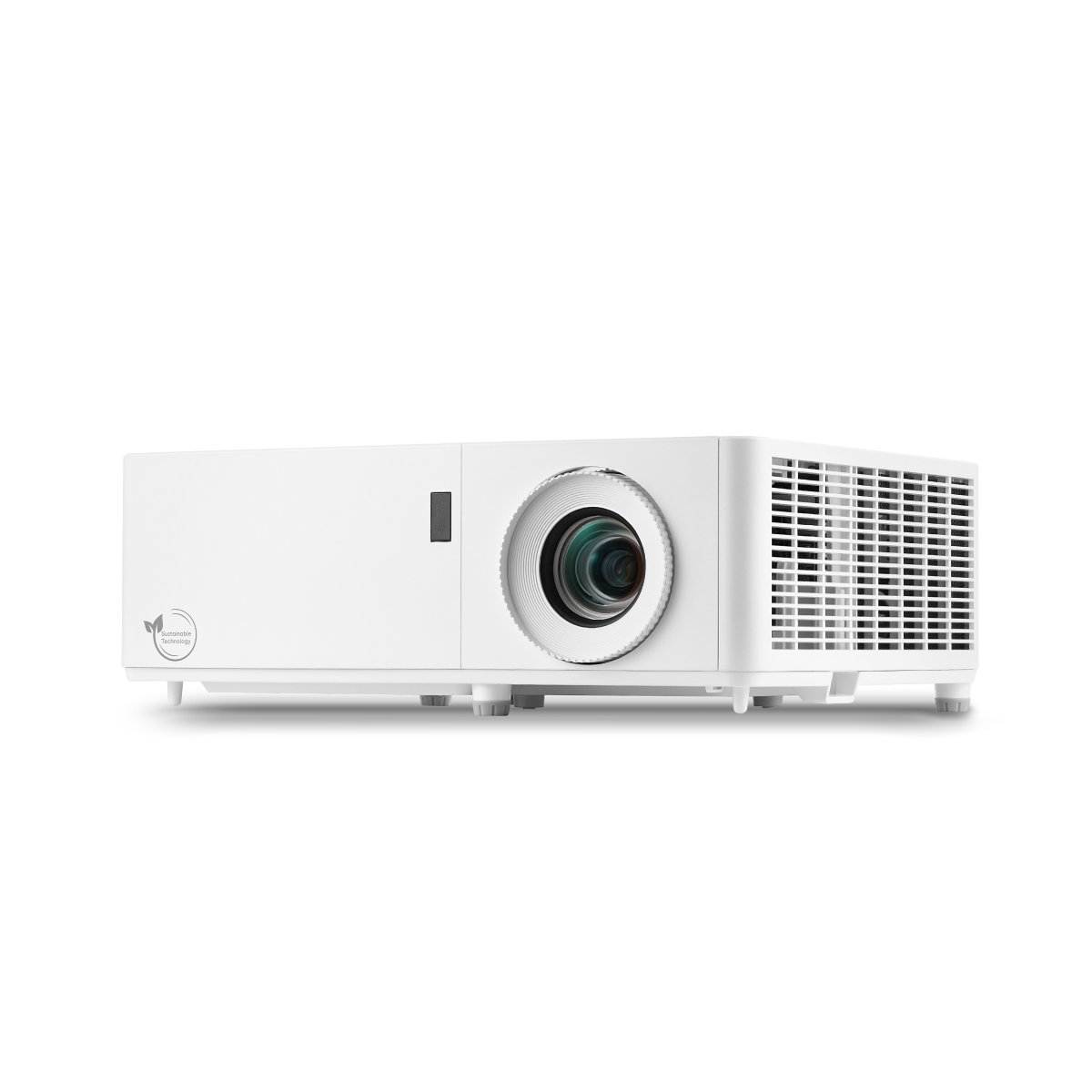

InFocus IN1089SL

Brand	InFocus · Quantum Laser
Type	Business
Released	September 2025
Resolution	WUXGA
HDR formats	HLG
Imaging technology	DLP
Light source	Laser (phosphor)
Claimed brightness (non-standard)	5,000 lm
Throw ratio	1.4–2.24:1

A single-chip 0.67-inch DLP laser projector with native 1920x1200 (WUXGA, 16:10) resolution and a claimed 5,000 lumens. It has a 1.6x manual zoom lens, two HDMI inputs, VGA, LAN and RS232, a rated 30,000 hours (Eco) of light-source life, and suits classrooms and meeting rooms.

Data sheet


Claimed brightness (non-standard)	5,000 lm
Brightness uniformity	80%
Imaging technology	DLP
Chip / panel diagonal	0.67 in
Native resolution	WUXGA (1920 × 1200)
Native aspect	16:10Derived
Colour bit depth (per channel)	10 bit
Gamma / EOTF presets	2.2, 2.4, 2.6
HDR formats	HLG
Colour management (CMS)	6-axis
3D	Yes
3D formats	Frame packing, Side-by-side, Top-bottom, Frame sequential
3D glasses sync	DLP-Link

Light source

Light source	Laser (phosphor)
Light engine	Quantum Laser
Light-source life	20,000 h normal · 30,000 h eco
Warm-up time	10 s

Optics

Throw ratio	1.4–2.24:1100″ · 3.02–4.82 m
Image size	30–300 in
Zoom	Optical
Zoom ratio	1.6×Derived
Focal length	20.91–32.62 mm
Aperture (f-number)	2.5–3.26
Focus	Manual
Vertical keystone	30°
Horizontal keystone	30°
Auto keystone	Yes
Corner correction	4-corner

Inputs & control

HDMI inputs	HDMI 1.4 · HDMI 2.0
Other video inputs	VGA, Composite
Max input resolution	4K UHD
Audio inputs	3.5 mm
Control ports	RS-232
PJLink	Class 2
Control-system drivers	Crestron, AMX

Smart platform

Ethernet

Yes

Audio

Speaker power	10 W
Audio outputs	3.5 mm
HDMI audio return	NoneDerived

Physical & installation

Dimensions (W × D × H)	337 × 265 × 123 mm
Weight	4,400 g
Orientations	Table, Ceiling, Rear, Portrait
Ceiling mount	3 × M4, screws ≥ 10 mm
Ingress protection	IP5X

Environment & power

Operating temperature	0–40°C
Operating humidity	10–85%RH
Altitude	3,048 m · high-altitude mode
Power draw	Max 240 W
Standby	Up to 0.5 W
Networked standby	Up to 2 W
Mains input	100–240 V · 50/60 Hz
Fan noise	Normal 34 dB(A) · Eco 31 dB(A)

Safety & support

Laser class	Class 1
Risk group	RG2
FDA laser notice	Notice 57
Marks	CE, FCC
User manual	infocus.com

In the box

In the box	Power cord, Remote, Quick start guide, HDMI cable, Lens cap
Remote	IR

Similar models

Model	Resolution	Tech	Lumens	Price
Panasonic PT-VMZ50 WUXGA · 3LCD	WUXGA	3LCD	5,000	$2,253.77	Compare
InFocus IN1044 1024 × 768 · 3LCD	1024 × 768	3LCD	5,000*	$999	Compare
InFocus IN1046 WXGA · 3LCD	WXGA	3LCD	5,000*	$1,119	Compare
InFocus IN1059 WUXGA · 3LCD	WUXGA	3LCD	5,000*	$1,539	Compare
BenQ LH750 1080p · DLP	1080p	DLP	5,000	$1,399	Compare
Epson PowerLite 815E 1080p · 3LCD	1080p	3LCD	5,000	$3,662	Compare

Other

Tools

Throw calculator — How far from the screen the IN1089SL needs to sit for a given image size, set to its 1.4–2.24:1 lens.
Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
Download spec as JSON — The same data from the open data API, with variants and identifiers.

Variants & identifiers

Use these to confirm a listing is this exact model. Any of them works at /p/{code}.

Variant	Region	Type	Code
Standard	All regions	EAN	0850031865358
Standard	All regions	MPN	IN1089SL
All variants	All regions	Model number	P139
