LG CineBeam PF510Q
| Brand | LG · CineBeam |
| Type | Portable |
| Released | January 2023 |
| Resolution | 1080p |
| HDR formats | HDR10 |
| Imaging technology | DLP |
| Light source | LED |
| Brightness | 450 lm ANSI |
| Throw ratio | 1.2:1 |
A Full HD single-chip DLP portable projector with a 4-channel LED light source, rated at up to 450 ANSI lumens and 30,000 hours. It runs webOS 22, has two HDMI inputs, a mono 5 W speaker and auto vertical keystone, and is mains-powered with no battery.
Data sheet
| White light output | Up to 450 lm ANSI | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.33 in | |
| Native resolution | 1080p (1920 × 1080) | |
| Native aspect | 16:9Derived | |
| Dynamic contrast | 150,000:1 | |
| Colour bit depth (per channel) | 8 bit | |
| HDR formats | HDR10 |
Light source
| Light source | LED | |
| Emitter | 4-channel LED | |
| Light-source life | Up to 30,000 h |
Optics
| Throw ratio | 1.2:1100″ · 2.66 m | |
| Image size | 30–120 in | |
| Focus | Manual | |
| Vertical lens shift | None | |
| Horizontal lens shift | None | |
| Auto keystone | Yes |
Inputs & control
| HDMI inputs | 2 × HDMI |
Smart platform
| Ethernet | Yes | |
| Smart platform | webOS | |
| OS version | 22 | |
| Casting | AirPlay 2, Miracast | |
| Smart home | HomeKit |
Audio
| Speaker power | 5 W | |
| Speakers | 1 | |
| Layout | Mono | |
| Audio outputs | Bluetooth | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 147 × 147 × 66 mm | |
| Weight | 998 g | |
| Tripod socket | Yes |
Environment & power
| Power draw | Max 62 W | |
| Standby | Up to 0.5 W | |
| Power supply | External adapter | |
| Mains input | 100–240 V | |
| Fan noise | Max 29 dB(A) · Normal 26 dB(A) · Eco 24 dB(A) |
Safety & support
| Warranty | 🇺🇸 US 1 yr |
In the box
| In the box | Power cord, Remote, Remote batteries, Warranty card | |
| Remote | IR |
Reviews
Articles
| Date | Title | Publication |
|---|---|---|
| December 19, 2022 | LG CineBeam PF510Q Portable Smart Projector Review Projector Reviews · December 19, 2022 | Projector Reviews |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|
XGIMI MoGo 3 Pro 1080p · DLP | 1080p | DLP | 450 | $449 −$150 | Compare |

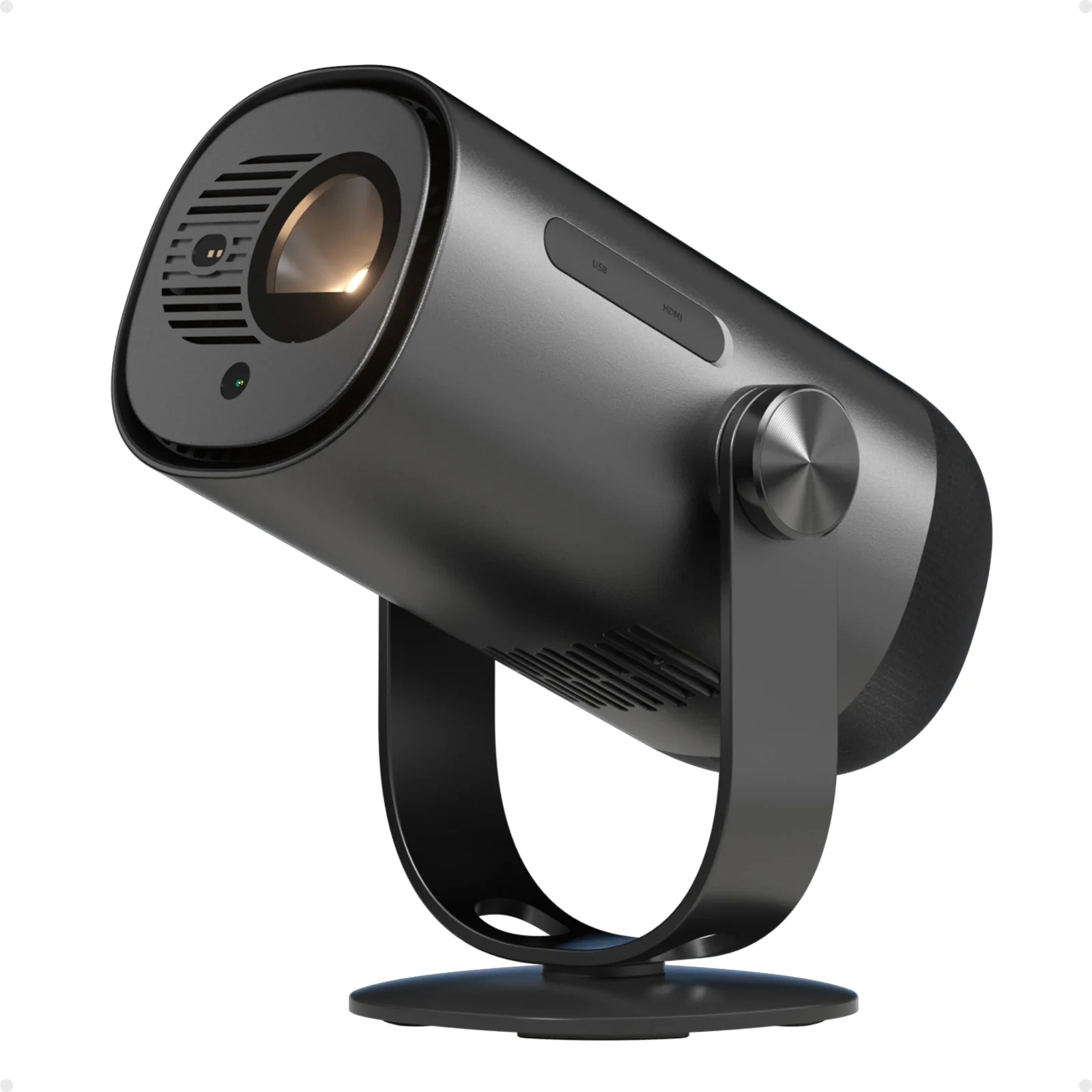

Dangbei Freedo 1080p · DLP | 1080p | DLP | 450 | $439 −$160 | Compare |

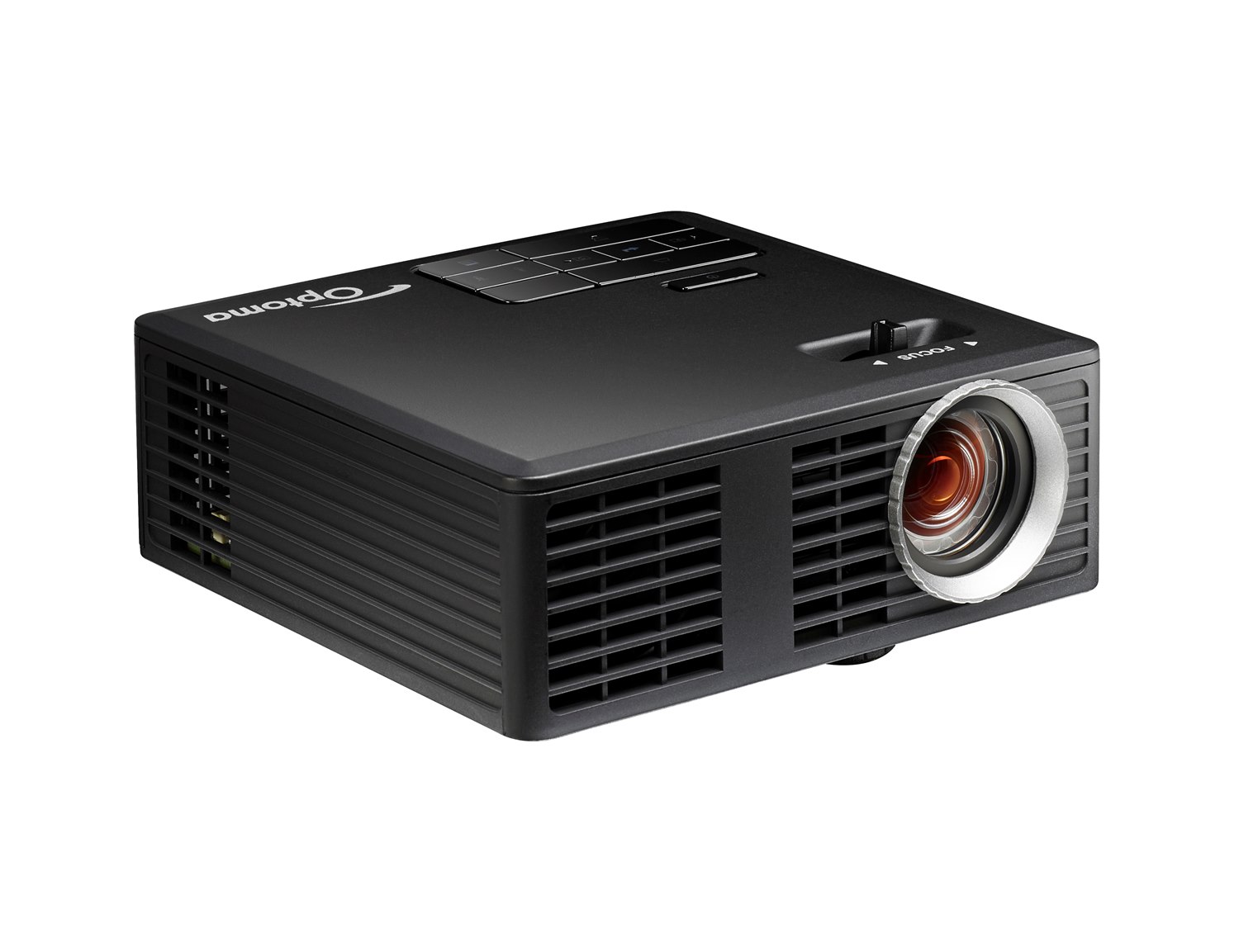

Optoma ML750i WXGA · DLP | WXGA | DLP | 450 | $771 +$172 | Compare |

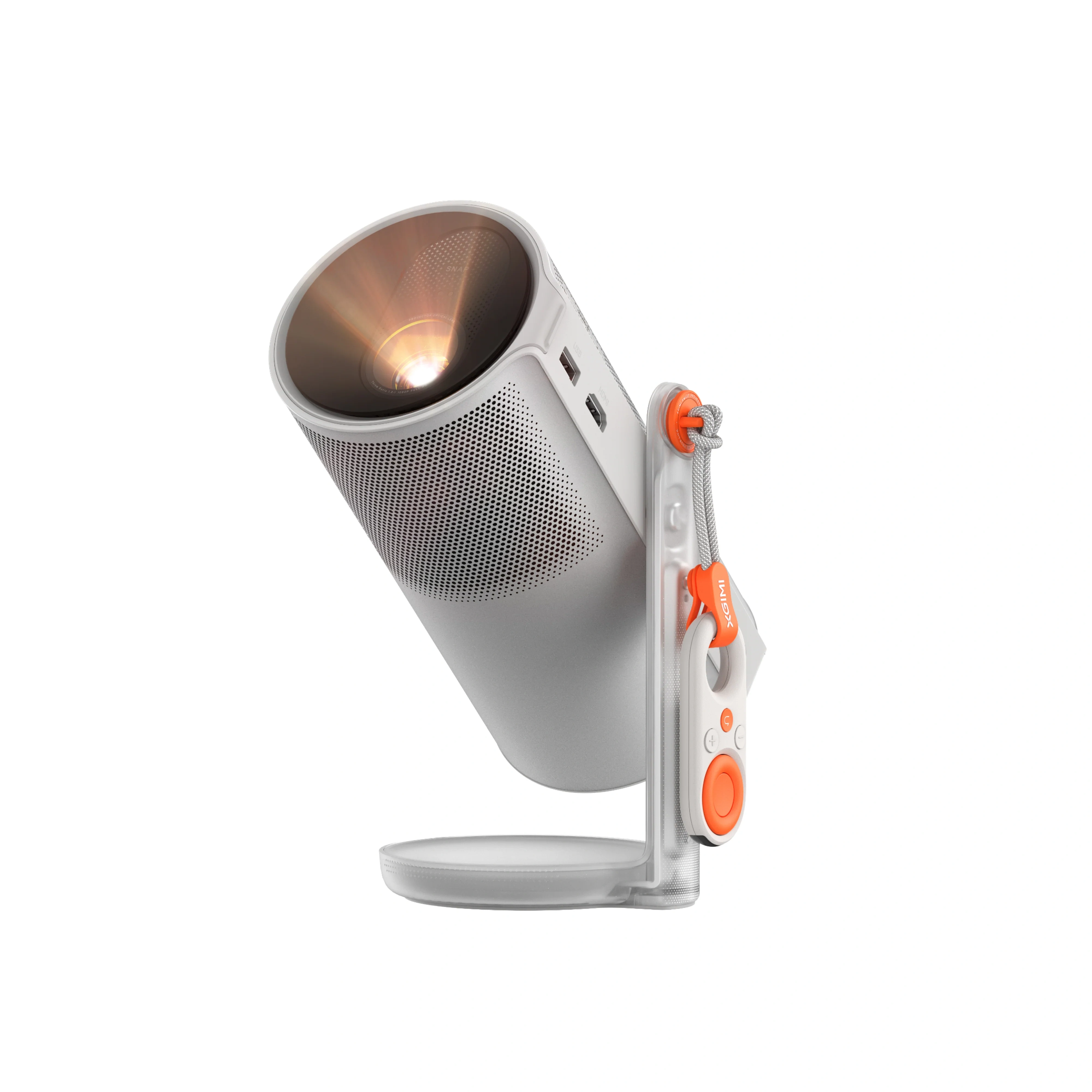

XGIMI MoGo 4 1080p · DLP | 1080p | DLP | 450 | $399 −$200 | Compare |

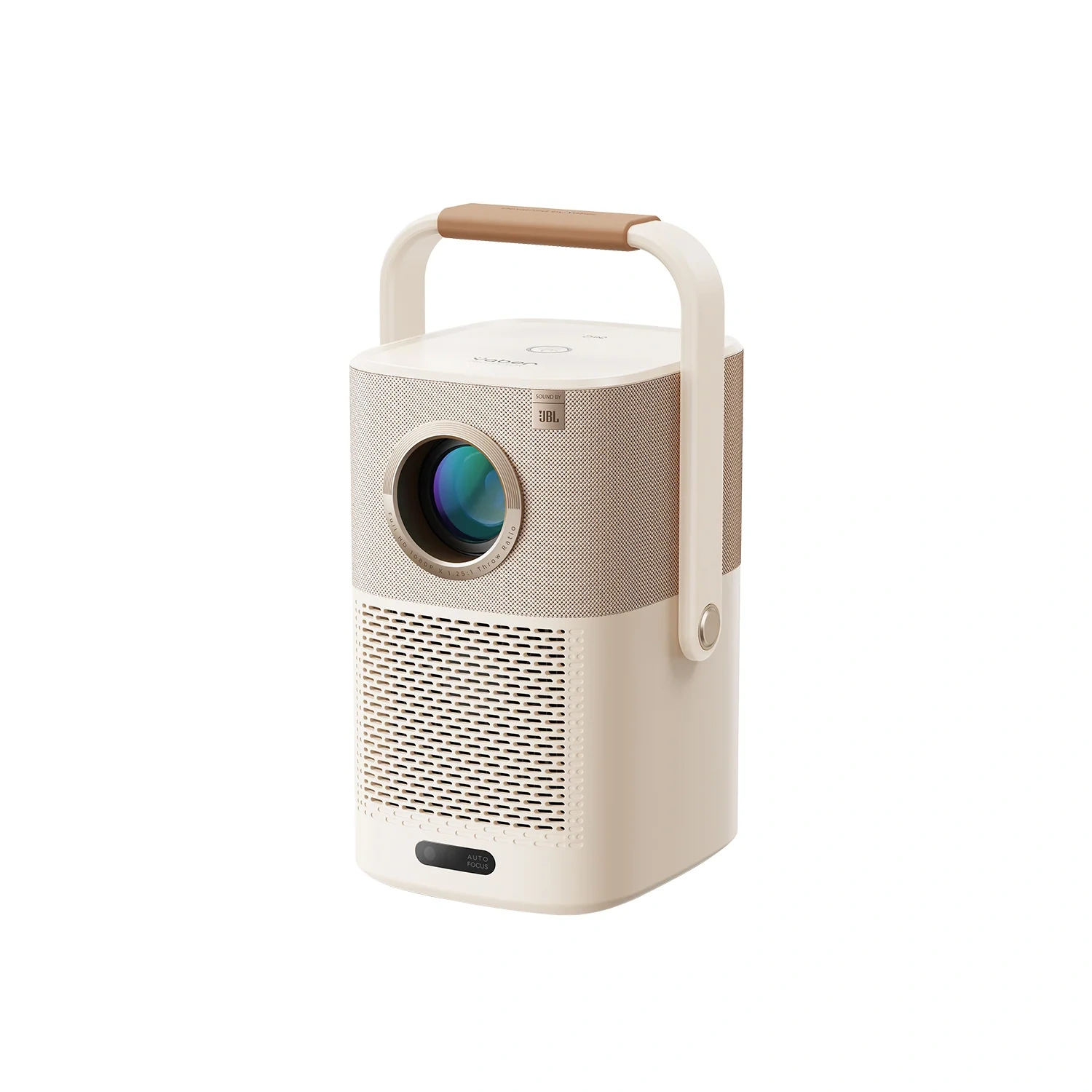

Yaber T2 1080p · Single-panel LCD | 1080p | Single-panel LCD | 450 | $249.99 −$349 | Compare |
