Optoma ZU600UST

Brand	Optoma · Professional
Type	Business
Released	September 2026
Resolution	WUXGA
Imaging technology	DLP
Light source	Laser (phosphor)
Brightness	6,000 lm ISO
Throw ratio	0.25:1
Input lag	1080p: 60 Hz 16.2 ms · 120 Hz 8.6 ms · 4K UHD: 60 Hz 16.2 ms

A WUXGA (1920x1200) single-chip DLP laser projector with a fixed ultra-short-throw lens (0.25:1), rated at 6,000 lumens to ISO 21118. It has two HDMI 2.0 inputs, HDBaseT 3.0, a 15 W speaker and a 30,000-hour laser life in Eco mode, and it is aimed at meeting rooms, exhibitions and classrooms.

Data sheet


White light output	6,000 lm ISO
Brightness uniformity	75%
Imaging technology	DLP
Native resolution	WUXGA (1920 × 1200)
Native aspect	16:10Derived
Dynamic contrast	2,000,000:1
Gamma / EOTF presets	2.2, 2.4
3D	Yes
3D glasses sync	DLP-Link

Light source

Light source	Laser (phosphor)
Light engine	DuraCore
Light-source life	30,000 h eco
Light output control	Steps
Constant brightness mode	Yes
Cool-down time	90 s

Optics

Throw ratio	0.25:1100″ · 0.54 m
Image size	130–150 in
Projection offset	117%
Zoom	None
Focal length	3.7 mm
Aperture (f-number)	2.44
Focus	Manual
Autofocus	No
Vertical keystone	5°
Horizontal keystone	5°
Corner correction	4-corner

Motion & gaming

Max input refresh	1080p: 120 Hz · 4K UHD: 60 Hz
Input lag	1080p: 60 Hz 16.2 ms · 120 Hz 8.6 ms · 4K UHD: 60 Hz 16.2 ms Low Latency Mode on	Low Latency Mode on

Inputs & control

HDMI inputs	2 × HDMI 2.0 (HDCP 2.3)
Max input resolution	DCI 4K
Control ports	RS-232
PJLink	Class 2
Control-system drivers	Crestron, AMX

Smart platform

Ethernet

Yes

Audio

Speaker power	15 W
Speakers	1
Layout	Mono
Audio outputs	3.5 mm
HDMI audio return	NoneDerived

Physical & installation

Dimensions (W × D × H)	328 × 327 × 110 mm
Weight	4,400 g
Orientations	360°
Ceiling mount	M4, 10 mm screws
Ingress protection	IP6X

Environment & power

Operating temperature	0–40°C
Operating humidity	0–80%RH
Altitude	3,048 m
Power draw	Max 305 W · Eco 215 W
Standby	Up to 0.5 W
Mains input	100–240 V · 50/60 Hz
Fan noise	Normal 36 dB(A) · Eco 31 dB(A)

Safety & support

Laser class	Class 1
Risk group	RG2
FDA laser notice	Notice 57
Marks	FCC
Warranty	🇺🇸 US 3 yr Datasheet figure; Optoma's US warranty page was not read, so terms and any separate laser term are not stated.
User manual	region-resource.optoma.com

In the box

In the box	Power cord, Remote, User manual
Remote	IR

Similar models

Model	Resolution	Tech	Lumens	Price
Panasonic PT-VMZ60 WUXGA · 3LCD	WUXGA	3LCD	6,000	$2,998	Compare

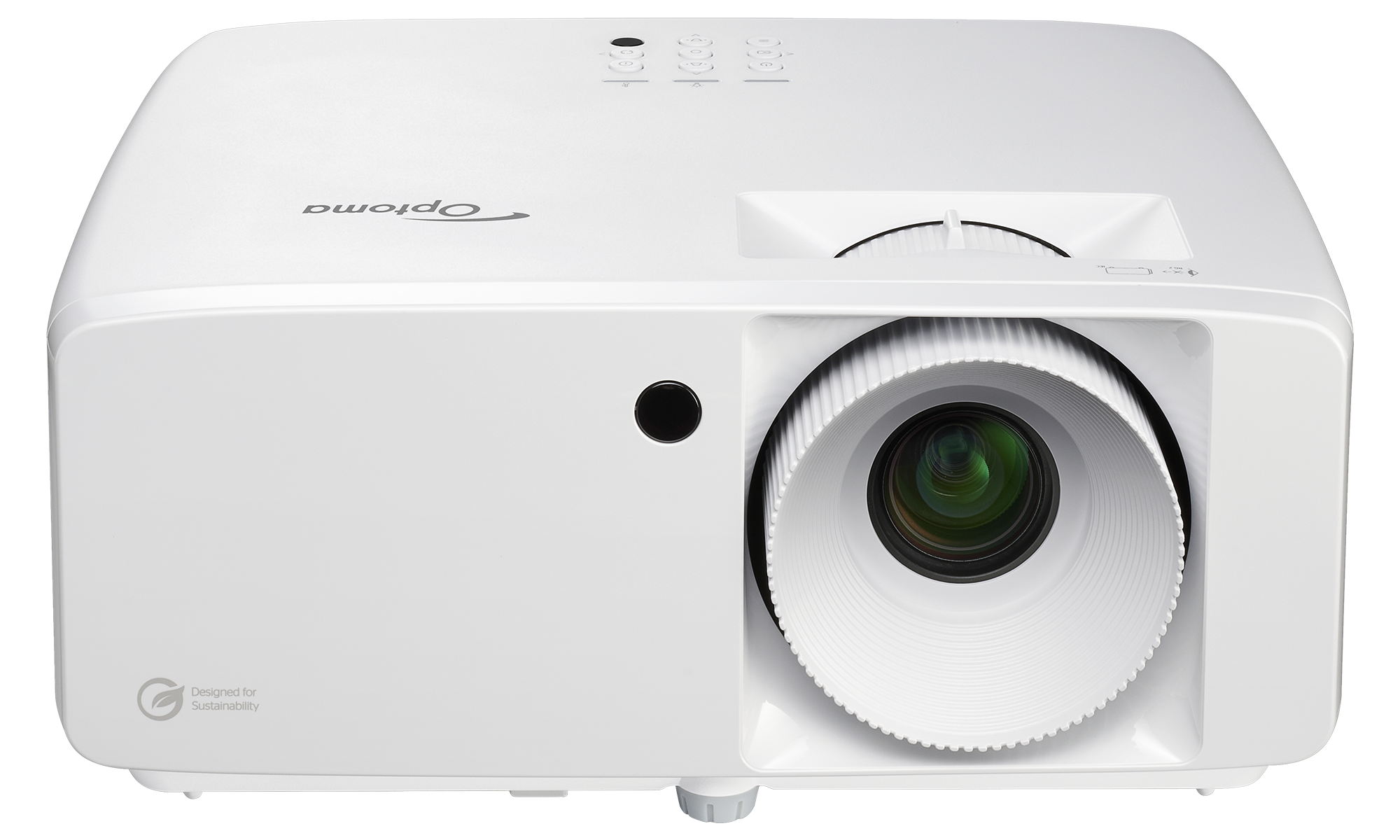

Optoma ZW521 WXGA · DLP	WXGA	DLP	6,000	—	Compare
