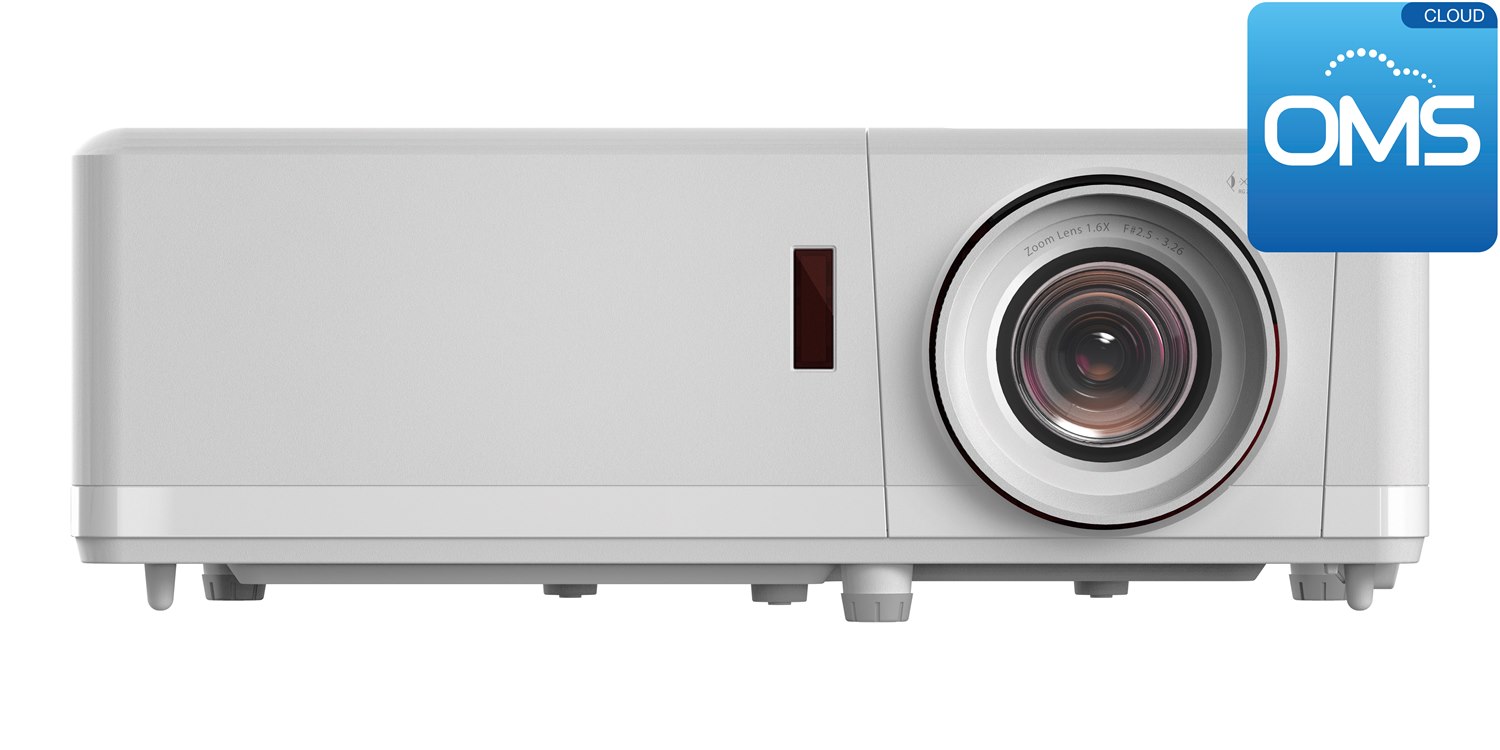

Optoma ZH507+

Brand	Optoma
Type	Business
Released	March 2023
Resolution	1080p
Imaging technology	DLP
Light source	Laser (phosphor)
Brightness	5,500 lm ANSI
Throw ratio	1.4–2.24:1
Input lag	1080p: 60 Hz 16.2 ms · 120 Hz 8.2 ms · 4K UHD: 60 Hz 16.8 ms

A single-chip 1080p DLP laser projector for large rooms, education and houses of worship, rated at 5,500 lumens. It has a 1.6x manual zoom, vertical lens shift, an IP6X-rated sealed optical engine, two HDMI inputs and 10 W stereo speakers.

Data sheet


White light output	5,500 lm ANSIPreliminary
Claimed brightness (non-standard)	5,500 lm
Brightness uniformity	80%
Imaging technology	DLP
Chip / panel diagonal	0.65 in
Native resolution	1080p (1920 × 1080)
Native aspect	16:9Derived
Dynamic contrast	300,000:1
3D	Yes
3D formats	Frame packing, Side-by-side, Top-bottom
3D glasses sync	DLP-Link

Light source

Light source	Laser (phosphor)
Light-source life	30,000 h
Constant brightness mode	Yes
Cool-down time	90 s

Optics

Throw ratio	1.4–2.24:1100″ · 3.10–4.96 m
Image size	20.2–320 in
Projection offset	100%
Zoom	Optical
Zoom ratio	1.6×Derived
Focal length	20.91–32.62 mm
Aperture (f-number)	2.5–3.26
Focus	Manual
Vertical lens shift	0–16%
Vertical keystone	30°
Horizontal keystone	30°
Auto keystone	Yes
Corner correction	4-corner

Motion & gaming

Input lag

1080p: 60 Hz 16.2 ms · 120 Hz 8.2 ms · 4K UHD: 60 Hz 16.8 ms

Enhanced Gaming on, HDMI1; the 4K60 source is output at 1080p60

Inputs & control

HDMI inputs	HDMI 2.0 (HDCP 2.2) · HDMI 1.4 (HDCP 1.4)
Other video inputs	VGA, Composite
Audio inputs	3.5 mm, Microphone
Control ports	RS-232, 12 V trigger
PJLink	Class 2
Control-system drivers	Crestron, AMX

Smart platform

Ethernet

Yes

Audio

Speaker power	10 W
Speakers	2
Audio outputs	3.5 mm
HDMI audio return	NoneDerived

Physical & installation

Dimensions (W × D × H)	337 × 265 × 123 mm
Weight	4,500 g
Orientations	Table, Ceiling, Rear
Ceiling mount	M4, screws ≥ 10 mm
Ingress protection	IP6X (light engine)
Sealed optical engine	Yes

Environment & power

Operating temperature	5–40°C
Operating humidity	10–85%RH
Altitude	3,000 m · high-altitude mode
Power draw	Max 282 W · Eco 227 W
Standby	Up to 0.5 W
Power supply	Built in
Mains input	100–240 V · 50/60 Hz
Fan noise	Max 35 dB(A) · Eco 29 dB(A)

Safety & support

Laser class	Class 1
Risk group	RG2
FDA laser notice	Notice 57
Marks	FCC
Warranty	🇺🇸 US 3 yr
User manual	region-resource.optoma.com

In the box

Power cord, Remote, Remote batteries, User manual, Wi-Fi dongle
