Optoma ZH507+ vs Optoma ZU600UST

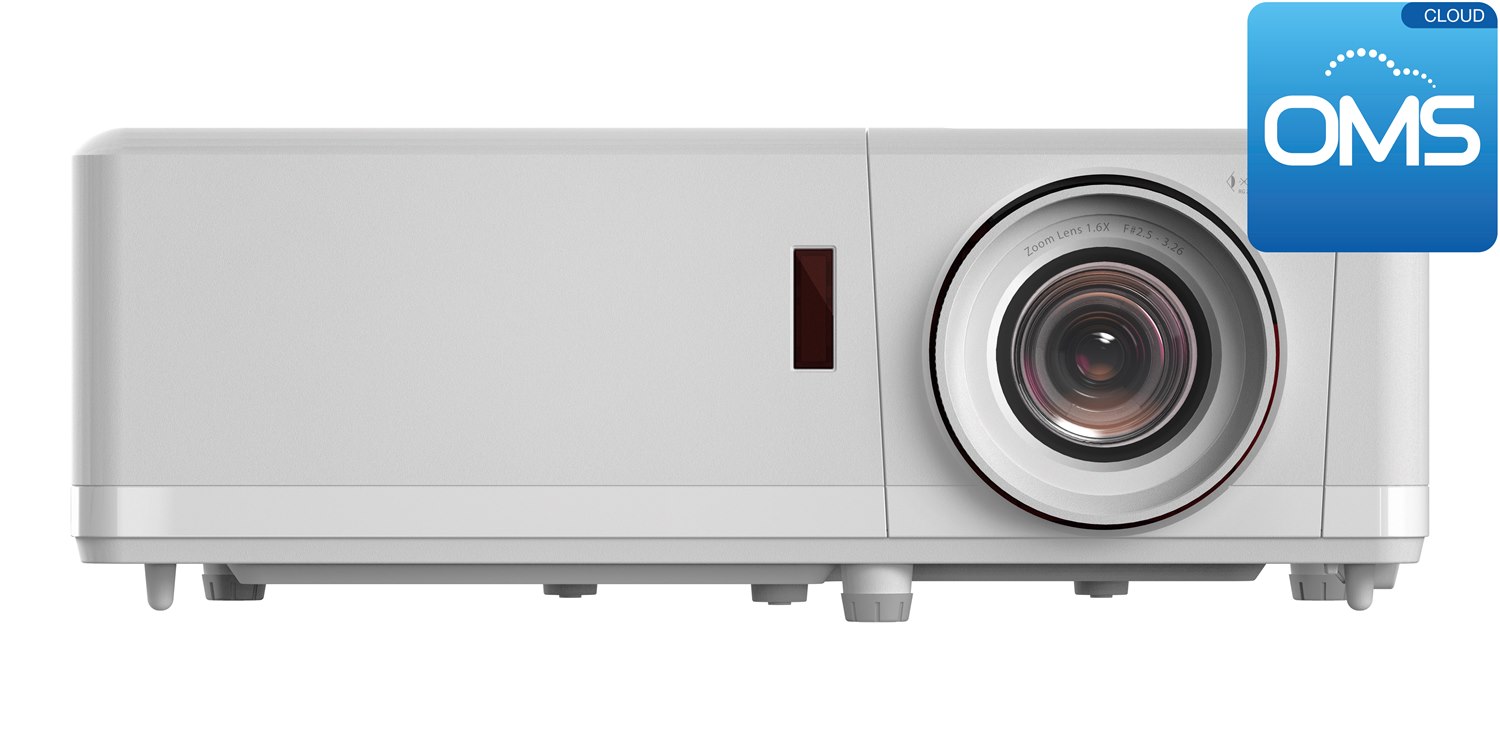

 Optoma ZH507+MSRP $4,369 |  | |
|---|---|---|
| Key differences | ||
| White light output | 5,500 lm ANSIPreliminary | 6,000 lm ISO |
| Native resolution | 1080p (1920 × 1080) | WUXGA (1920 × 1200) |
| Throw ratio | 1.4–2.24:1 | 0.25:1 |
| Lowest input lag | 8.2 msDerived | 8.6 msDerived |
| Fan noise | Max 35 dB(A) · Eco 29 dB(A) | Normal 36 dB(A) · Eco 31 dB(A) |
| Price | MSRP $4,369 | — |
| Room fit | ||
| Distance to screen | 3.1–5.0 m | 0.54 m |
| Brightness | ||
| Rated brightness | 5,500 lmDerived | 6,000 lmDerived |
| White light output | 5,500 lm ANSIPreliminary | 6,000 lm ISO |
| Claimed brightness (non-standard) | 5,500 lm | — |
| Brightness uniformity | 80% | 75% |
| Display system | ||
| Imaging technology | DLP | DLP |
| Chip / panel diagonal | 0.65 in | — |
| On-screen resolution | 1080p (1920 × 1080)Derived | WUXGA (1920 × 1200)Derived |
| Native resolution | 1080p (1920 × 1080) | WUXGA (1920 × 1200) |
| Native aspect | 16:9Derived | 16:10Derived |
| Contrast | ||
| Dynamic contrast | 300,000:1 | 2,000,000:1 |
| Colour | ||
| Gamma / EOTF presets | — | 2.2, 2.4 |
| 3D | ||
| 3D | Yes | Yes |
| 3D formats | Frame packing, Side-by-side, Top-bottom | — |
| 3D glasses sync | DLP-Link | DLP-Link |
| Light source | ||
| Light source | Laser (phosphor) | Laser (phosphor) |
| Light engine | — | DuraCore |
| Light-source life | 30,000 h | 30,000 h eco |
| Light output control | — | Steps |
| Constant brightness mode | Yes | Yes |
| Cool-down time | 90 s | 90 s |
| Optics | ||
| Throw ratio | 1.4–2.24:1 | 0.25:1 |
| Image size | 20.2–320 in | 130–150 in |
| Projection offset | 100% | 117% |
| Zoom | Optical | None |
| Zoom ratio | 1.6×Derived | — |
| Focal length | 20.91–32.62 mm | 3.7 mm |
| Aperture (f-number) | 2.5–3.26 | 2.44 |
| Focus | Manual | Manual |
| Autofocus | — | No |
| Vertical lens shift | 0–16% | — |
| Vertical keystone | 30° | 5° |
| Horizontal keystone | 30° | 5° |
| Auto keystone | Yes | — |
| Corner correction | 4-corner | 4-corner |
| Motion & gaming | ||
| Max input refresh | — | 1080p: 120 Hz · 4K UHD: 60 Hz |
| Max refresh at 1080p | — | 120 HzDerived |
| Max refresh at 4K | — | 60 HzDerived |
| Input lag | 1080p: 60 Hz 16.2 ms · 120 Hz 8.2 ms · 4K UHD: 60 Hz 16.8 ms | 1080p: 60 Hz 16.2 ms · 120 Hz 8.6 ms · 4K UHD: 60 Hz 16.2 ms |
| Lowest input lag | 8.2 msDerived | 8.6 msDerived |
| Input lag at 4K 60 Hz | 16.8 msDerived | 16.2 msDerived |
| Inputs & control | ||
| HDMI inputs | HDMI 2.0 (HDCP 2.2) · HDMI 1.4 (HDCP 1.4) | 2 × HDMI 2.0 (HDCP 2.3) |
| HDMI inputs (count) | 2Derived | 2Derived |
| Newest HDMI version | HDMI 2.0Derived | HDMI 2.0Derived |
| Other video inputs | VGA, Composite | — |
| Max input resolution | — | DCI 4K |
| Audio inputs | 3.5 mm, Microphone | — |
| Control ports | RS-232, + 12 V trigger | RS-232 |
| PJLink | Class 2 | Class 2 |
| Control-system drivers | Crestron, AMX | Crestron, AMX |
| Horizontal scan | 15.38–91.15 kHz | 15–140 kHz |
| Vertical scan | 50–85 Hz | 24–120 Hz |
| Smart platform | ||
| Ethernet | Yes | Yes |
| Audio | ||
| Speaker power | 10 W | 15 W |
| Speakers | 2 | 1 |
| Layout | — | Mono |
| Audio outputs | 3.5 mm | 3.5 mm |
| HDMI audio return | NoneDerived | NoneDerived |
| Physical & installation | ||
| Dimensions (W × D × H) | 337 × 265 × 123 mm | 328 × 327 × 110 mm |
| Weight | 4,500 g | 4,400 g |
| Orientations | + Table, + Ceiling, + Rear | + 360° |
| Ceiling mount | M4, screws ≥ 10 mm | M4, 10 mm screws |
| Ingress protection | IP6X (light engine) | IP6X |
| Sealed optical engine | Yes | — |
| Environment & power | ||
| Operating temperature | 5–40°C | 0–40°C |
| Operating humidity | 10–85%RH | 0–80%RH |
| Altitude | 3,000 m · high-altitude mode | 3,048 m |
| Power draw | Max 282 W · Eco 227 W | Max 305 W · Eco 215 W |
| Standby | Up to 0.5 W | Up to 0.5 W |
| Power supply | Built in | — |
| Mains input | 100–240 V · 50/60 Hz | 100–240 V · 50/60 Hz |
| Noise | ||
| Fan noise | Max 35 dB(A) · Eco 29 dB(A) | Normal 36 dB(A) · Eco 31 dB(A) |
| Safety & compliance | ||
| Laser class | Class 1 | Class 1 |
| Risk group | RG2 | RG2 |
| FDA laser notice | Notice 57 | Notice 57 |
| Marks | FCC | FCC |
| Support & ownership | ||
| Warranty | 3 yr | 3 yr |
| User manual | https://region-resource.optoma.com/products/import/Documents/80233fe8-c874-4eab-8164-2f93fa7e133d.pdf | https://region-resource.optoma.com/products/documents/1yJJZMi77BePSXMo1xpC0VFFkQYpgiTPksD4RcEq.pdf |
| In the box | ||
| In the box | Power cord, Remote, + Remote batteries, User manual, + Wi-Fi dongle | Power cord, Remote, User manual |
| Remote | — | IR |
