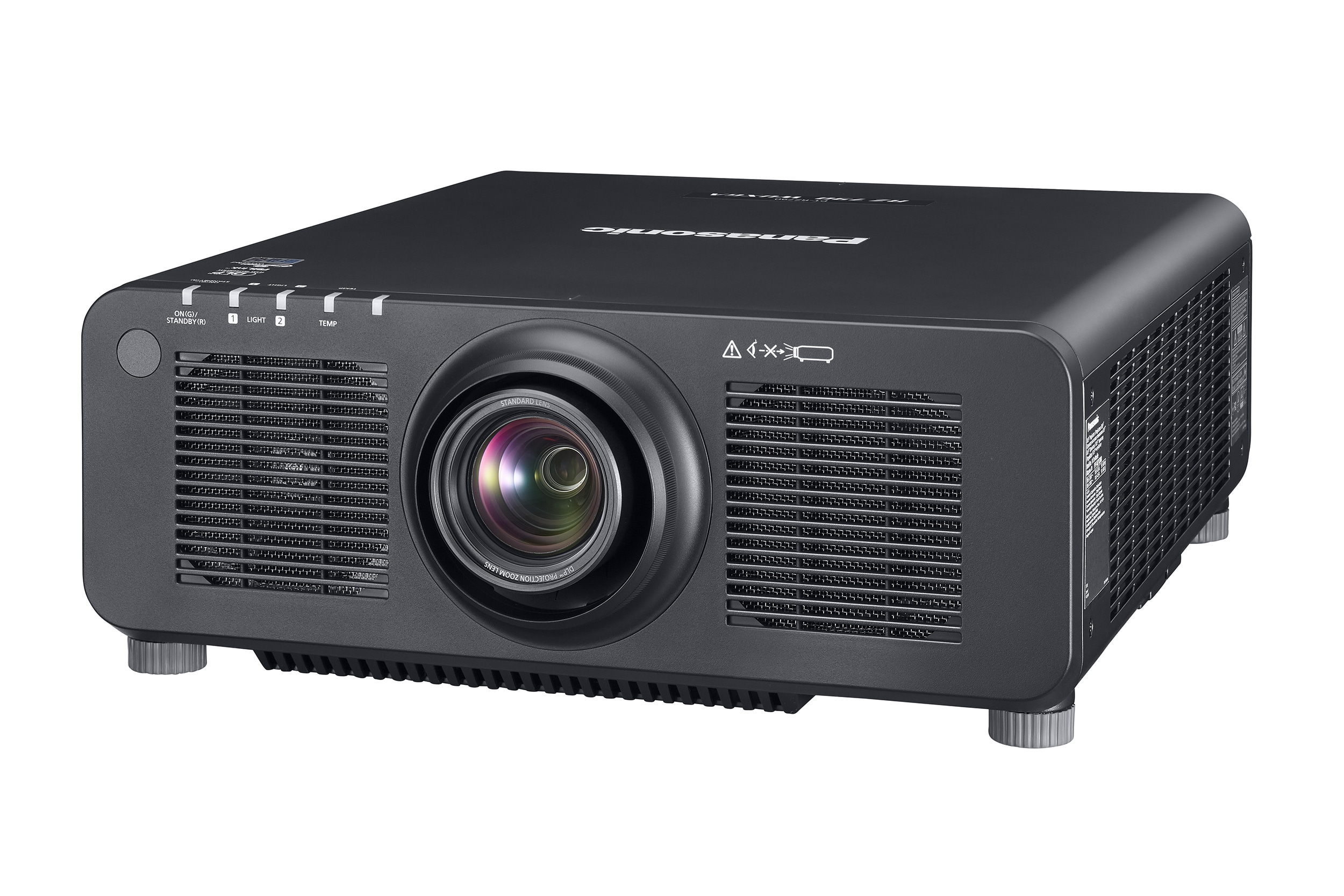

Panasonic PT-RZ790
| Brand | Panasonic · Solid Shine |
| Type | Installation |
| Status | Discontinued |
| Released | August 2020 |
| Resolution | WUXGA |
| Imaging technology | DLP |
| Light source | Laser (phosphor) |
| Brightness | 7,000 lm ISO |
| Throw ratio | 1.71–2.41:1 |
A 7,000 lm WUXGA single-chip DLP laser installation projector with a motorised standard zoom lens, and a lens-less L version that takes Panasonic's range of optional lenses. It sits in the PT-RZ990 series between the RZ890 and RZ690 and suits museums, exhibits and multi-screen installations.
Data sheet
| White light output | 7,000 lm ISO (Normal power) · 7,000 lm ANSI (Normal power) Operating mode NORMAL; average of all products when shipped | Operating mode NORMAL; average of all products when shipped |
| Brightness by mode | Normal 7,000 lm · Eco 5,600 lm | |
| Eco brightness | 80%Derived | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.67 in | |
| Native resolution | WUXGA (1920 × 1200) | |
| Native aspect | 16:10Derived | |
| Pixel shift | None | |
| Dynamic contrast | 10,000:1 |
Light source
| Light source | Laser (phosphor) | |
| Light-source life | 20,000 h normal · 24,000 h eco | |
| Life defined as | 50% brightness |
Optics
| Throw ratio | 1.71–2.41:1100″ · 3.68–5.19 m | |
| Image size | 50–600 in | |
| Zoom | Optical | |
| Zoom ratio | 1.41×Derived | |
| Focal length | 25.6–35.7 mm | |
| Aperture (f-number) | 1.7–1.9 | |
| Focus | Motorised | |
| Vertical lens shift | -16–50% | |
| Horizontal lens shift | -10–30% | |
| Motorised lens shift | Yes | |
| Vertical keystone | 40° | |
| Horizontal keystone | 15° | |
| Interchangeable lens | Yes |
Inputs & control
| HDMI inputs | HDMI (HDCP 2.2) | |
| Max input resolution | DCI 4K | |
| Control ports | RS-232 | |
| PJLink | Class 2 |
Smart platform
| Ethernet | Yes |
Physical & installation
| Dimensions (W × D × H) | 498 × 581 × 200 mm | |
| Weight | 22,100 g | |
| Orientations | Table, Ceiling, Rear, Portrait, 360° | |
| Ceiling mount | 5 × M6, 12 mm screws |
Environment & power
| Operating temperature | 0–45°C | |
| Operating humidity | 10–80%RH | |
| Altitude | 4,200 m | |
| Power draw | Max 630 W · Normal 545 W · Eco 435 W | |
| Standby | 0.5 W | |
| Networked standby | 7 W | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | 36 dB(A) |
Safety & support
| Laser class | Class 1 (US: Class 3R) | |
| Risk group | RG2 |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|
Panasonic PT-MZ780 WUXGA · 3LCD | WUXGA | 3LCD | 7,000 | $11,999 | Compare |
Panasonic PT-EW730Z WXGA · 3LCD | WXGA | 3LCD | 7,000 | $5,999 | Compare |
Epson PowerLite L790SE WUXGA · 3LCD | WUXGA | 3LCD | 7,000 | $6,349 | Compare |
Epson EB-PU1007W WUXGA · 3LCD | WUXGA | 3LCD | 7,000 | $8,250 | Compare |
Optoma ZK708T 4K UHD · DLP | 4K UHD | DLP | 7,000* | $7,499 | Compare |

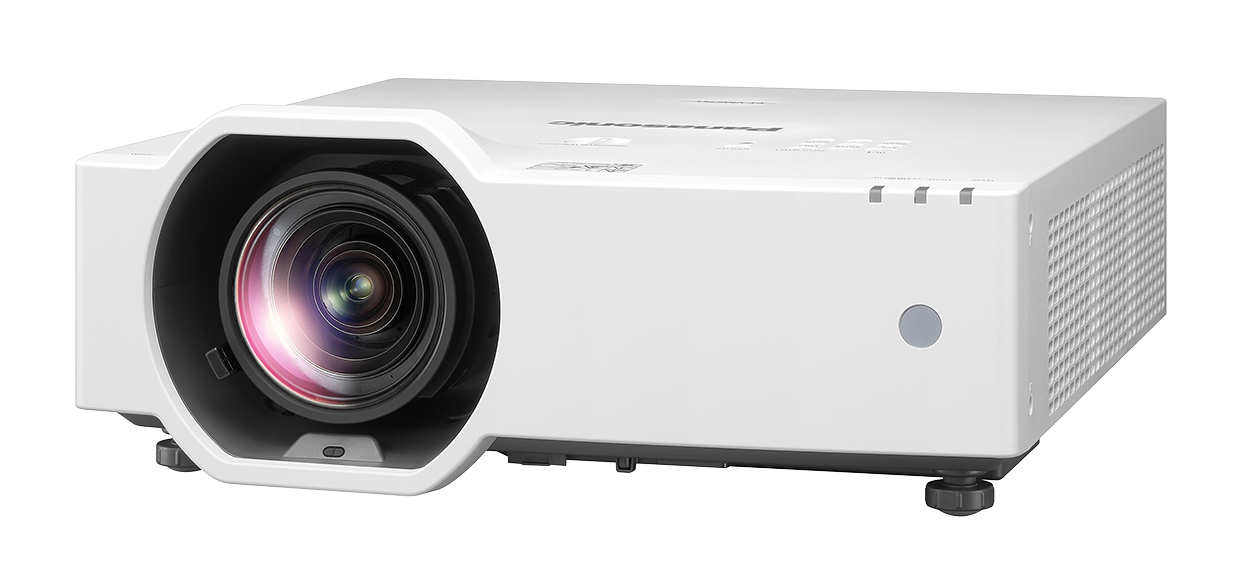

Panasonic PT-VMZ7ST WUXGA · 3LCD | WUXGA | 3LCD | 7,000 | — | Compare |
'%20id='layer1'%3e%3cg%20transform='matrix(2.6281465,0,0,-2.6281465,438.2711,583.07067)'%20id='g3414'%3e%3cpath%20id='path3416'%20style='fill:%23003f98;fill-opacity:1;fill-rule:nonzero;stroke:none'%20d='m%200,0%20c%20-4.881,0%20-6.762,4.493%20-6.762,9.059%200,4.566%201.881,9.056%206.762,9.056%204.876,0%206.762,-4.49%206.762,-9.056%20C%206.762,4.493%204.876,0%200,0%20m%200,22.708%20c%20-7.686,0%20-12.124,-5.759%20-12.124,-13.649%200,-7.893%204.438,-13.651%2012.124,-13.651%207.682,0%2012.119,5.758%2012.119,13.651%200,7.89%20-4.437,13.649%20-12.119,13.649'%20/%3e%3c/g%3e%3cg%20transform='matrix(2.6281465,0,0,-2.6281465,231.98971,525.40283)'%20id='g3418'%3e%3cpath%20id='path3420'%20style='fill:%23003f98;fill-opacity:1;fill-rule:nonzero;stroke:none'%20d='m%200,0%2019.259,0%200,-4.594%20-13.902,0%200,-5.714%2012.964,0%200,-4.478%20-12.964,0%200,-6.391%2013.902,0%200,-4.592%20L%200,-25.769%200,0%20Z'%20/%3e%3c/g%3e%3cg%20transform='matrix(2.6281465,0,0,-2.6281465,315.46174,560.74167)'%20id='g3422'%3e%3cpath%20id='path3424'%20style='fill:%23003f98;fill-opacity:1;fill-rule:nonzero;stroke:none'%20d='m%200,0%20-4.85,0%200,8.853%200,0.005%204.85,0%20c%203.371,0%205.613,-1.467%205.613,-4.43%20C%205.613,1.466%203.371,0%200,0%20m%20-10.205,-12.322%205.355,0%200,7.732%204.85,0%20c%206.564,0%2010.969,3.224%2010.969,9.018%200,5.795%20-4.405,9.018%20-10.969,9.018%20l%20-10.205,0%200,-25.768%20z'%20/%3e%3c/g%3e%3cg%20transform='matrix(2.6281465,0,0,-2.6281465,489.89471,525.40283)'%20id='g3426'%3e%3cpath%20id='path3428'%20style='fill:%23003f98;fill-opacity:1;fill-rule:nonzero;stroke:none'%20d='m%200,0%20-5.5,0%200,-25.769%205.252,0%200,10.438%20c%200,2.857%20-0.102,5.391%20-0.199,7.632%200.619,-1.29%202.5,-5.166%203.367,-6.622%20l%206.836,-11.448%205.5,0%200,25.769%20-5.252,0%200,-10.177%20c%200,-2.854%200.105,-5.654%200.199,-7.89%20-0.619,1.29%20-2.495,5.164%20-3.375,6.618%20L%200,0%20Z'%20/%3e%3c/g%3e%3cg%20transform='matrix(2.6281465,0,0,-2.6281465,360.27875,570.72049)'%20id='g3430'%3e%3cpath%20id='path3432'%20style='fill:%23003f98;fill-opacity:1;fill-rule:nonzero;stroke:none'%20d='m%200,0%20c%200,-3.463%202.881,-4.809%205.945,-4.809%202,0%205.248,0.58%205.248,3.24%200,2.809%20-3.968,3.34%20-7.797,4.359%20-4.015,1.063%20-7.882,2.569%20-7.882,7.344%200,5.323%205.035,7.875%209.738,7.875%205.43,0%2010.424,-2.37%2010.424,-8.384%20l%20-5.358,0%20c%20-0.182,3.134%20-2.588,3.938%20-5.322,3.938%20-1.824,0%20-4.121,-0.766%20-4.121,-2.956%200,-2.004%201.311,-2.313%207.832,-3.992%201.898,-0.474%207.845,-1.622%207.845,-7.525%200,-4.778%20-3.755,-8.347%20-10.831,-8.347%20-5.756,0%20-11.151,2.841%20-11.08,9.257%20L%200,0%20Z'%20/%3e%3c/g%3e%3c/g%3e%3c/svg%3e)
Other
Tools
- Throw calculator — How far from the screen the PT-RZ790 needs to sit for a given image size, set to its 1.71–2.41:1 lens.
- Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
- Download spec as JSON — The same data from the open data API, with variants and identifiers.
Variants & identifiers
Use these to confirm a listing is this exact model. Any of them works at /p/{code}.
| Variant | Region | Type | Code |
|---|---|---|---|
| Black | All regions | MPN | PT-RZ790B |
| MPN | PT-RZ790BU | ||
| White | All regions | MPN | PT-RZ790W |
| MPN | PT-RZ790WU | ||
| All variants | All regions | Model number | PT-RZ790LB |
| All variants | All regions | Model number | PT-RZ790LW |
Sources
- PT-RZ790/790L product page and specifications (Panasonic Connect Europe)
- PT-RZ790B/RZ790LB/RZ790W/RZ790LW spec file (as of August 2020)
- Panasonic PT-RZ790BU specifications (ProjectorCentral)
- PT-RZ990 Series specifications (Panasonic Global; covers PT-RZ990/RZ890/RZ790/RZ690)
- PT-RZ990/RZ890/RZ790/RZ690 Operating Instructions (English)
Also known as
| PT-RZ790BE | 🇪🇺 EU | Regional model |
