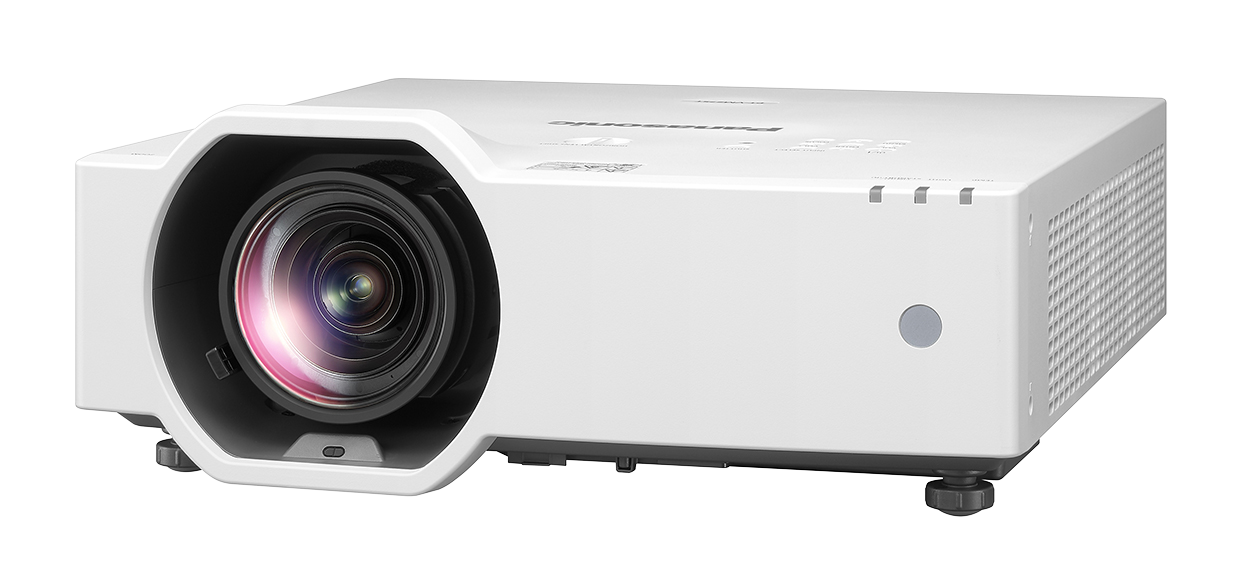

Panasonic PT-VMZ7ST
| Brand | Panasonic · Short-Throw LCD Projectors |
| Type | Installation |
| Released | May 2025 |
| Resolution | WUXGA |
| Imaging technology | 3LCD |
| Light source | Laser (phosphor) |
| Brightness | 7,000 lm ISO |
| Throw ratio | 0.8–1.01:1 |
A short-throw 3LCD laser projector with a 1920x1200 (WUXGA, 16:10) panel and a rated 7,000 lumens (ISO/IEC 21118 and ANSI). It projects a 100-inch image from about 1.72 m with a 1.2x manual zoom, powered focus and manual vertical and horizontal lens shift, and has two HDMI inputs, HDBaseT (DIGITAL LINK), a 10 W mono speaker and a washable filter. It is the brighter of a two-model series with the PT-VMZ6ST.
Data sheet
| White light output | 7,000 lm ISO · 7,000 lm ANSI PICTURE MODE DYNAMIC, LIGHT POWER NORMAL, DAYLIGHT VIEW OFF, AUTO POWER SAVE OFF | PICTURE MODE DYNAMIC, LIGHT POWER NORMAL, DAYLIGHT VIEW OFF, AUTO POWER SAVE OFF |
| Brightness uniformity | 85% | |
| Brightness by mode | Max 7,000 lm · Normal 5,950 lm · Eco 4,900 lm | |
| Eco brightness | 70%Derived | |
| Imaging technology | 3LCD | |
| Chip / panel diagonal | 0.64 in | |
| Native resolution | WUXGA (1920 × 1200) | |
| Native aspect | 16:10Derived | |
| Dynamic contrast | 5,000,000:1 | |
| Colour bit depth (per channel) | 10 bit |
Light source
| Light source | Laser (phosphor) | |
| Light-source life | 20,000 h normal · 24,000 h eco | |
| Life defined as | 50% brightness |
Optics
| Throw ratio | 0.8–1.01:1100″ · 1.72–2.18 m | |
| Image size | 70–300 in | |
| Zoom | Optical | |
| Zoom ratio | 1.27×Derived | |
| Focal length | 11.3–14.2 mm | |
| Aperture (f-number) | 1.53–1.66 | |
| Focus | Motorised | |
| Vertical lens shift | 0–50% | |
| Horizontal lens shift | ±20% | |
| Motorised lens shift | No | |
| Vertical keystone | 25° | |
| Horizontal keystone | 35° | |
| Interchangeable lens | No |
Inputs & control
| HDMI inputs | 2 × HDMI (HDCP 1.4) | |
| Other video inputs | VGA, HDBaseT | |
| Max input resolution | DCI 4K | |
| Audio inputs | 3.5 mm | |
| USB media playback | Yes | |
| Control ports | RS-232 | |
| PJLink | Class 2 |
Smart platform
| Ethernet | Yes |
Audio
| Speaker power | 10 W | |
| Speakers | 1 | |
| Layout | Mono | |
| Audio outputs | 3.5 mm | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 414 × 424 × 167 mm | |
| Weight | 8,400 g | |
| Colours | Black, White | |
| Orientations | Table, Ceiling, Rear, 360° | |
| Dust filter | Washable |
Environment & power
| Operating temperature | 0–45°C | |
| Operating humidity | 20–80%RH | |
| Altitude | 2,700 m | |
| Power draw | Max 345 W · Normal 310 W · Eco 235 W | |
| Standby | 0.5 W | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 37 dB(A) · Eco 37 dB(A) |
Safety & support
| Laser class | Class 1 | |
| Risk group | RG2 | |
| User manual | pim-api.connect.panasonic.com |
In the box
| In the box | Power cord, Remote, Remote batteries |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|

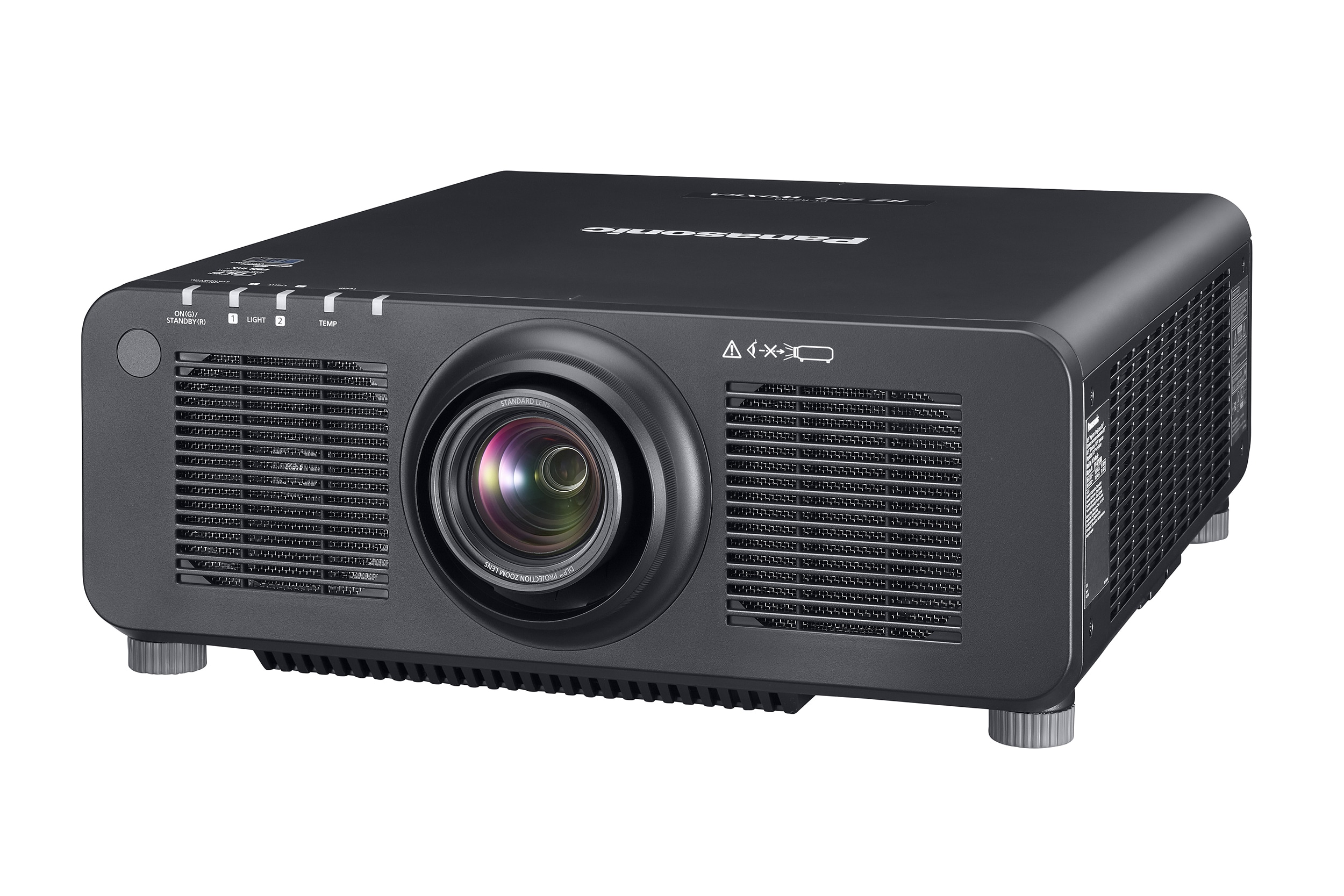

Panasonic PT-RZ790 WUXGA · DLP | WUXGA | DLP | 7,000 | — | Compare |
