Panasonic PT-TMW380

Brand	Panasonic · PT-TMZ400 Series
Type	Education
Status	Discontinued
Released	January 2023
Resolution	WXGA
Imaging technology	3LCD
Light source	Laser (phosphor)
Brightness	3,800 lm ISO
Throw ratio	0.43:1

A compact 3LCD laser short-throw projector with a 1280x800 panel and a rated 3,800 lumens. A fixed 0.43:1 lens fills an 80-inch image from about 73 cm, with no lens shift, and the washable filter and laser source are rated for 20,000 hours.

Data sheet


White light output	3,800 lm ISO (Normal power) · 3,800 lm ANSI PICTURE MODE DYNAMIC, LIGHT POWER NORMAL, DAYLIGHT VIEW OFF, AUTO POWER SAVE OFF; average of all products when shipped	PICTURE MODE DYNAMIC, LIGHT POWER NORMAL, DAYLIGHT VIEW OFF, AUTO POWER SAVE OFF; average of all products when shipped
Brightness uniformity	85%
Brightness by mode	Normal 3,800 lm · Eco 2,660 lm PICTURE MODE DYNAMIC, LIGHT POWER NORMAL for the first figure; Panasonic's footnote cites ISO/IEC 21118:2020	PICTURE MODE DYNAMIC, LIGHT POWER NORMAL for the first figure; Panasonic's footnote cites ISO/IEC 21118:2020
Eco brightness	70%Derived
Imaging technology	3LCD
Chip / panel diagonal	0.64 in
Native resolution	WXGA (1280 × 800)
Native aspect	16:10Derived
Dynamic contrast	3,000,000:1 PICTURE MODE DYNAMIC, DYNAMIC CONTRAST 1	PICTURE MODE DYNAMIC, DYNAMIC CONTRAST 1

Light source

Light source	Laser (phosphor)
Light-source life	20,000 h normal · 24,000 h eco
Life defined as	50% brightness

Optics

Throw ratio	0.43:1100″ · 0.93 m
Image size	50–105 in
Zoom	Digital
Focal length	6.08 mm
Aperture (f-number)	1.8
Focus	Manual
Vertical lens shift	None
Horizontal lens shift	None
Vertical keystone	15°
Horizontal keystone	15°
Auto keystone	Yes
Interchangeable lens	No

Inputs & control

HDMI inputs	2 × HDMI (HDCP 1.4)
Other video inputs	VGA
Max input resolution	DCI 4K
Audio inputs	3.5 mm
Control ports	RS-232
PJLink	Class 2
Control-system drivers	Crestron, AMX

Smart platform

Ethernet

Yes

Audio

Speaker power	10 W
Layout	Mono
Audio outputs	3.5 mm
HDMI audio return	NoneDerived

Physical & installation

Dimensions (W × D × H)	349 × 370 × 138 mm
Weight	4,900 g
Colours	White
Orientations	Table, Ceiling, Rear, 360°
Dust filter	Washable

Environment & power

Operating temperature	0–45°C
Operating humidity	20–80%RH
Altitude	2,700 m
Power draw	Max 230 W · Normal 205 W · Eco 155 W On-mode power at 25 C and 700 m; figures at 100-240 V	On-mode power at 25 C and 700 m; figures at 100-240 V
Standby	0.5 W Standby mode ECO	Standby mode ECO
Networked standby	14 W STANDBY MODE NORMAL, IN STANDBY MODE of AUDIO SETTING OFF, QUICK STARTUP OFF, DC OUT terminal not in use	STANDBY MODE NORMAL, IN STANDBY MODE of AUDIO SETTING OFF, QUICK STARTUP OFF, DC OUT terminal not in use
Mains input	100–240 V · 50/60 Hz
Fan noise	Normal 35 dB(A) · Eco 35 dB(A)

Safety & support

Laser class	Class 1
Risk group	RG2

In the box

Power cord, Remote, Remote batteries

Similar models

Model	Resolution	Tech	Lumens	Price

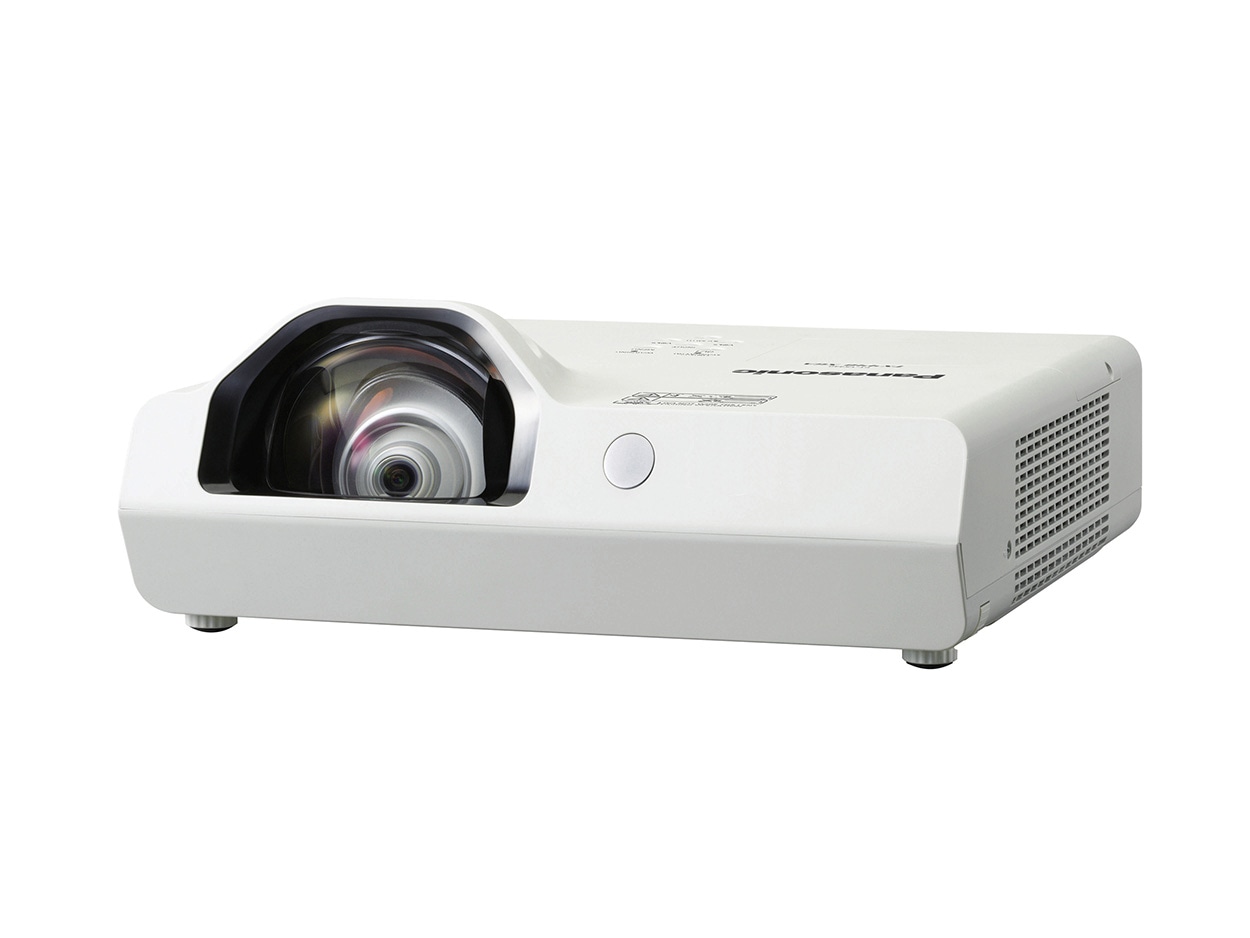

Panasonic PT-TX440 1024 × 768 · 3LCD	1024 × 768	3LCD	3,800	—	Compare
