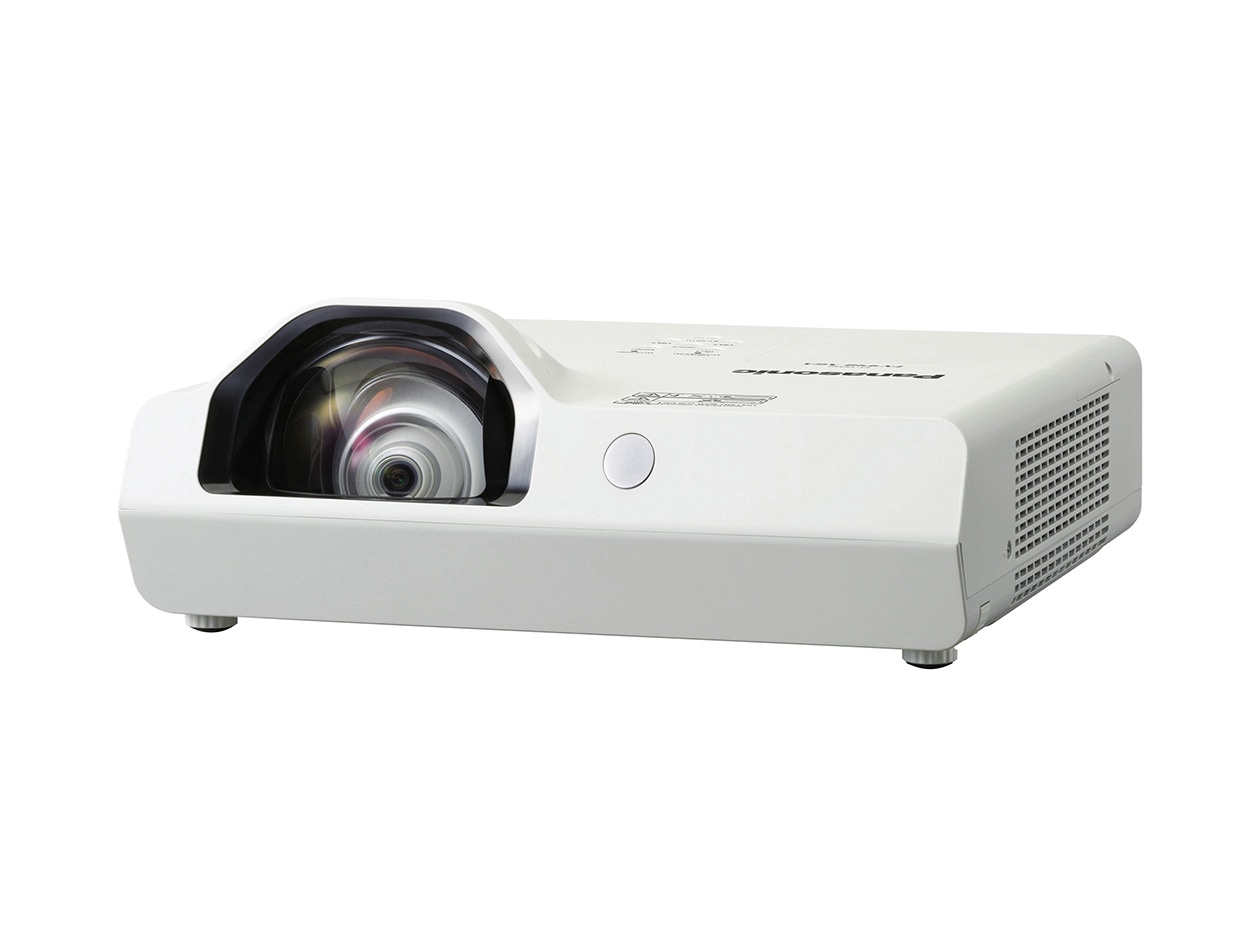

Panasonic PT-TX440

Brand	Panasonic · PT-TW381R Series
Type	Education
Status	Discontinued
Released	May 2020
Resolution	1024 × 768
Imaging technology	3LCD
Light source	Lamp
Brightness	3,800 lm ISO
Throw ratio	0.46:1

A 3LCD lamp projector for classrooms and meeting rooms with a fixed short-throw lens. 1024x768 panels give a rated 3,800 lumens, an 80-inch image from 0.75 m, two HDMI inputs and a 10 W speaker.

Data sheet


White light output	3,800 lm ISO (Normal power, Dynamic mode) · 3,800 lm ANSI PICTURE MODE DYNAMIC, LAMP POWER NORMAL, AUTO POWER SAVE OFF, DAYLIGHT VIEW OFF	PICTURE MODE DYNAMIC, LAMP POWER NORMAL, AUTO POWER SAVE OFF, DAYLIGHT VIEW OFF
Brightness uniformity	85%
Imaging technology	3LCD
Chip / panel diagonal	0.63 in
Native resolution	1024 × 768
Native aspect	4:3Derived
Dynamic contrast	20,000:1
Colour bit depth (per channel)	8 bit

Light source

Light source	Lamp
Lamp power	230 W
Replacement lamp	ET-LAL510
Light-source life	10,000 h normal · 20,000 h eco
Life defined as	50% brightness

Optics

Throw ratio	0.46:1100″ · 0.93 m
Image size	50–100 in
Zoom	None
Focal length	6.08 mm
Aperture (f-number)	1.8
Focus	Manual
Vertical keystone	15°
Horizontal keystone	15°
Auto keystone	Yes
Corner correction	4-corner
Grid warp	Yes
Interchangeable lens	No

Inputs & control

HDMI inputs	2 × HDMI (HDCP 1.4)
Other video inputs	VGA, Composite
Audio inputs	3.5 mm, RCA
USB media playback	Yes
Control ports	RS-232
PJLink	Class 2

Smart platform

Ethernet

Yes

Audio

Speaker power	10 W
Layout	Mono
Audio outputs	3.5 mm
HDMI audio return	NoneDerived

Physical & installation

Dimensions (W × D × H)	335 × 329 × 134 mm
Weight	3,900 g
Orientations	Table, Ceiling, Rear
Ceiling mount	M4, 10 mm deep, 1.25 N·m
Dust filter	Replaceable

Environment & power

Operating temperature	5–40°C
Operating humidity	20–80%RH
Altitude	2,700 m
Power draw	Max 300 W
Standby	0.5 W STANDBY MODE ECO	STANDBY MODE ECO
Power supply	Built in
Mains input	100–240 V · 50/60 Hz
Fan noise	Normal 38 dB(A) · Eco 35 dB(A)

Safety & support

Marks	FCC
User manual	bizpartner.panasonic.net
Spare parts	Lamp ET-LAL510 · Air filter ET-RFL300

In the box

Power cord, Remote, Remote batteries

Similar models

Model	Resolution	Tech	Lumens	Price
Panasonic PT-TMW380 WXGA · 3LCD	WXGA	3LCD	3,800	—	Compare
Epson PowerLite 118 1024 × 768 · 3LCD	1024 × 768	3LCD	3,800	$568.99	Compare
Epson PowerLite W49 WXGA · 3LCD	WXGA	3LCD	3,800	$629	Compare
ViewSonic PS600W WXGA · DLP	WXGA	DLP	3,700 −100	$599	Compare
ViewSonic PS600X 1024 × 768 · DLP	1024 × 768	DLP	3,700 −100	$576	Compare
NEC UM361X 1024 × 768 · 3LCD	1024 × 768	3LCD	3,600 −200	—	Compare

Other

Tools

Throw calculator — How far from the screen the PT-TX440 needs to sit for a given image size, set to its 0.46:1 lens.
Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
Download spec as JSON — The same data from the open data API, with variants and identifiers.

Variants & identifiers

Use these to confirm a listing is this exact model. Any of them works at /p/{code}.

Variant	Region	Type	Code
White, US	🇺🇸 US	MPN	PT-TX440U

Sources

Also known as

PT-TX440U	🇺🇸 US	Regional model
PT-TX440E	Worldwide	Regional model
