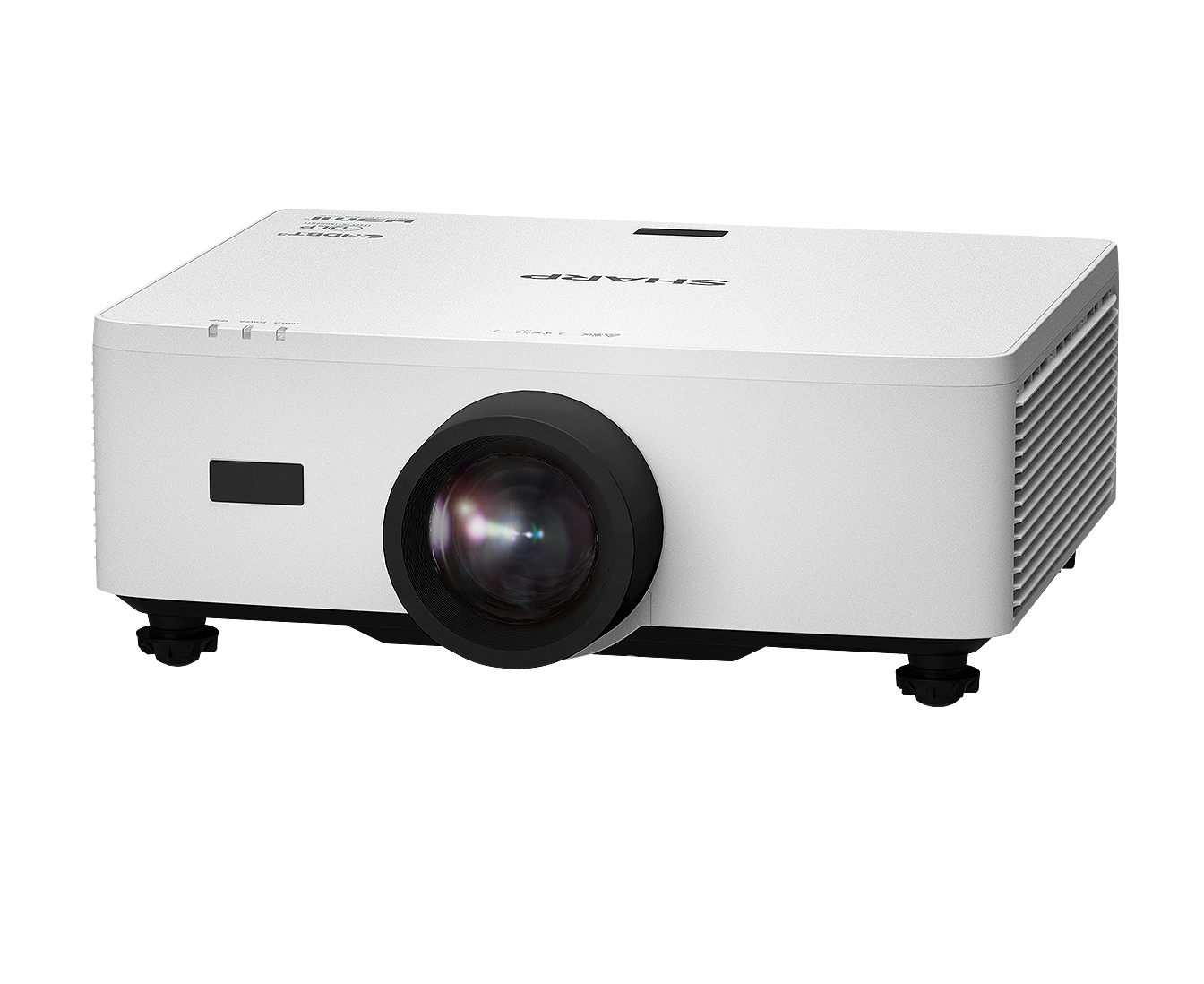

Sharp XP-P601Q-W

Brand	Sharp · P Series
Type	Installation
Released	June 2024
Resolution	4K UHD (1080p pixel shift)
Imaging technology	DLP
Light source type	Laser (phosphor)
ISO light output	6,000 lm
Throw ratio	1.25–2:1

A 6,000-lumen laser DLP installation projector from Sharp (built by Sharp NEC Display Solutions). A 0.65-inch 1080p DMD with pixel shifting gives a 3840x2160 image. It has a motorized lens (1.6x zoom, focus and shift), two HDMI inputs plus HDBaseT, a sealed laser engine rated 20,000 hours, and a 360-degree installation range including portrait.

Data sheet


Imaging technology	DLP
Technology brand	DLP
Number of imaging devices	1
Chip / panel diagonal	0.65 in
Native aspect ratio	16:9
Native resolution	1920 × 1080
Pixel shift	Other
Addressable resolution	3840 × 2160
Dynamic contrast	3,000,000:1
Dynamic light control	Laser dimming
Gamma / EOTF presets	2.2, 2.4, 2.6
Bit depth / 'number of colours'	10 bit
Colour management system	6-axis
Tone mapping type	Adjustable
Max refresh rate	1920×1080: 240 Hz · 3840×2160: 60 Hz
3D support	Yes
3D sync method	DLP-Link
3D formats	Frame packing, Side-by-side, Top-bottom, Frame sequential

Optics

Throw ratio	1.25–2:1
Throw reference point	Lens
Projection distance table	60″: 1.64–2.63 m · 70″: 1.92–3.08 m · 80″: 2.2–3.52 m · 90″: 2.49–3.97 m · 100″: 2.77–4.42 m · 120″: 3.33–5.31 m · 150″: 4.18–6.65 m · 180″: 5.03–7.99 m · 200″: 5.59–8.88 m · 250″: 7–11.12 m · 300″: 8.41–13.35 m
Zoom type	Optical
Zoom ratio	1.6×
Focus	Motorized
Vertical lens shift	±55%
Horizontal lens shift	±25%
Motorized lens shift	Yes
Focal length	18.7–29.6 mm
F-number	2–2.4
Image size range	60–300 in
Lens memory	5
Vertical keystone	-40–40°
Horizontal keystone	-40–40°
Corner / warp correction	Warp

Light source

Light source type	Laser (phosphor)
Light source detail	Multiple 455 nm laser diodes sealed in a light module
Light source life	Normal: 20,000 h · Eco: 30,000 h
Life definition	50% brightness
Constant brightness mode	Yes
Laser wavelengths	B 455 nm
Light-source dimming	Continuous
ISO light output	6,000 lm ISO 21118	ISO 21118
ANSI lumens	6,000 lm ANSI	ANSI

Audio

Speaker power	20 W
Speaker count	2
Audio channels	Mono
Audio outputs	3.5 mm

Inputs, control & connectivity

Max input signal	3840 × 2160
HDMI port count	2
HDMI ports (feature-level)	HDMI 1: HDMI, HDCP 2.2; HDMI 2: HDMI, HDCP 2.2
Audio input terminals	3.5 mm
Horizontal scan frequency	15–255 kHz
Vertical scan frequency	24–240 Hz
USB-C video (DP Alt Mode)	No
HDBaseT	Yes
SDI	No
VGA input	No
RS-232	Yes
LAN control	Yes
Wired IR input	Yes
12 V trigger	Yes
PJLink class	Class 2
Control ecosystem drivers	Crestron
Wi-Fi	None
Ethernet	Yes

Environment & power

Operating temperature	0–45°C
Operating humidity	10–85%RH
Altitude / high-altitude mode	3,048 m
High-altitude mode	Yes
Operating orientations	Table, Ceiling, Rear, Portrait, 360°
Rated voltage	100–240 V
Rated frequency	50–60 Hz
Power consumption (max)	530 W
Power consumption by mode	Normal: 530 W · Eco: 285 W
Standby power	0.5 W
Networked standby power	2 W
Power supply	Internal
Fan noise (sound pressure)	Typical: 36 dB(A) · Eco: 34 dB(A)

Physical & installation

Width	486 mm
Depth	433 mm
Height	186 mm
Weight	14.7 kg
Colours / finishes	White
Mount hole pattern	Thread: M4 · Holes: 4 · Min screw length mm: 8
Sealed optical engine	Yes
Air filter	None

Support & ownership

Warranty	🇨🇦 CA 5 yr or 20,000 h · 🇪🇺 EU 3 yr
Light-source warranty	EU: 3 years or 10,000 h, whichever comes first
User manual	https://www.projectorcentral.com/pdf/projector_manual_12438.pdf
Photobiological risk group	RG2
Laser product class	Class 1 (IEC 60825-1:2014)
Safety & market certifications	CE, UKCA

In the box

Box contents	Projector, Remote, Batteries, Power cord, Quick start guide, Security sticker
Remote type	IR
