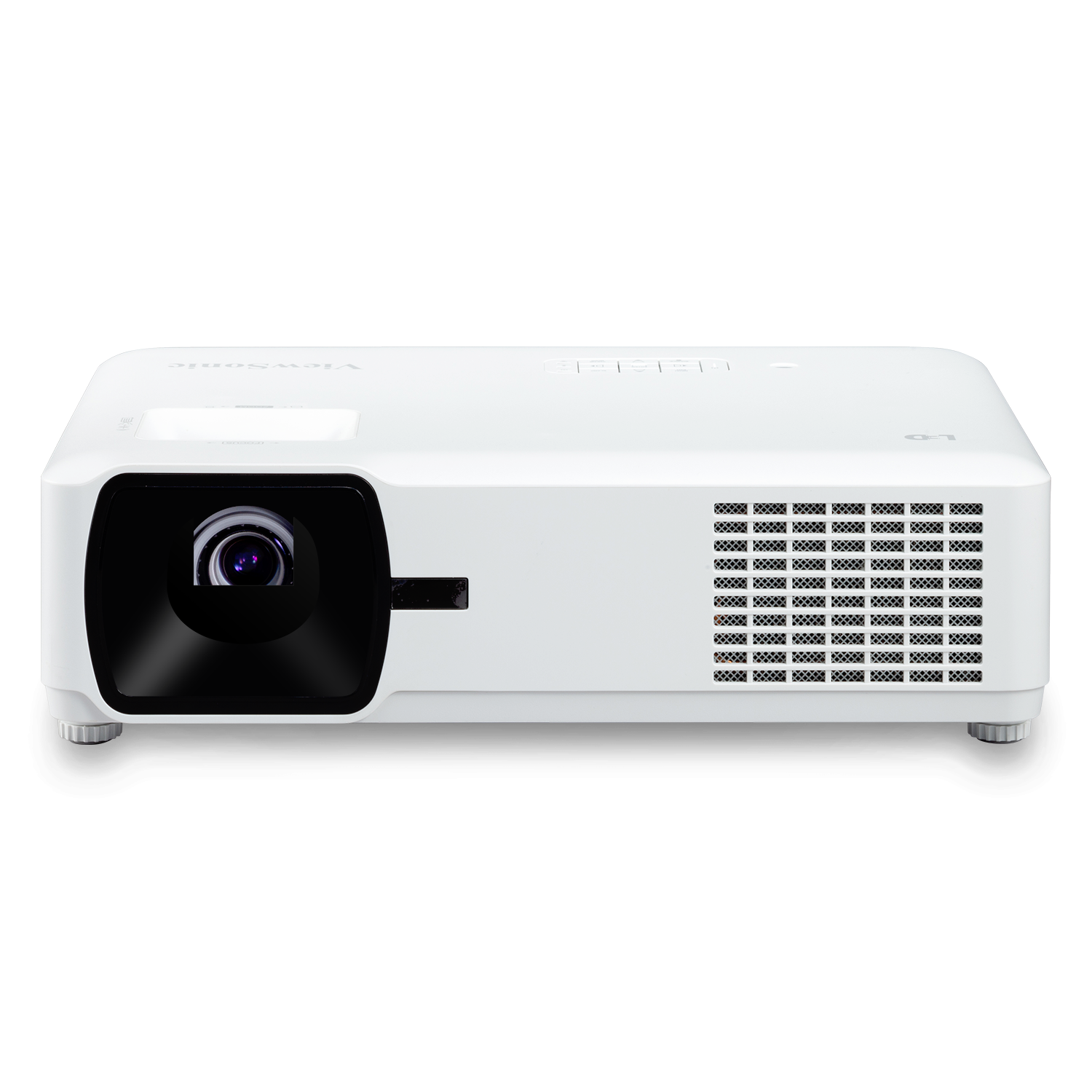

ViewSonic LS600W
| Brand | ViewSonic · LS Series |
| Type | Business |
| Status | Discontinued |
| Released | October 2020 |
| Resolution | WXGA |
| Imaging technology | DLP |
| Light source | LED |
| Brightness | 3,000 lm ANSI |
| Throw ratio | 1.37–1.64:1 |
A single-chip DLP LED projector with a 0.65-inch 1280x800 (WXGA) chip, aimed at business and education rooms. It has a 1.2x manual zoom with no lens shift, two HDMI 1.4 inputs, LAN control and a 10 W mono speaker, and is rated for 30,000 hours of light-source life.
Data sheet
| White light output | 3,000 lm ANSI | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.65 in | |
| Native resolution | WXGA (1280 × 800) | |
| Native aspect | 16:10Derived | |
| Dynamic contrast | 3,000,000:1 | |
| Dynamic contrast method | Light-source dimming | |
| Colour bit depth (per channel) | 10 bit | |
| Colour temperature presets | D93, D65 | |
| Picture mode memories | 2 | |
| 3D | Yes | |
| 3D formats | Frame packing, Side-by-side, Top-bottom, Frame sequential |
Light source
| Light source | LED | |
| Emitter | 4-channel LED | |
| Light-source life | 30,000 h |
Optics
| Throw ratio | 1.37–1.64:1100″ · 2.95–3.53 m | |
| Image size | 30–300 in | |
| Projection offset | 79% | |
| Zoom | Optical | |
| Zoom ratio | 1.2×Derived | |
| Focal length | 19.16–23.02 mm | |
| Aperture (f-number) | 1.6–1.75 | |
| Focus | Manual | |
| Vertical lens shift | None | |
| Horizontal lens shift | None | |
| Vertical keystone | 40° | |
| Horizontal keystone | 40° | |
| Corner correction | 4-corner | |
| Interchangeable lens | No |
Inputs & control
| HDMI inputs | 2 × HDMI 1.4 (HDCP 1.4) | |
| Other video inputs | VGA, Composite | |
| Max input resolution | 1080p | |
| Audio inputs | 3.5 mm | |
| Control ports | RS-232 | |
| Control-system drivers | Crestron, AMX |
Smart platform
| Ethernet | Yes |
Audio
| Speaker power | 10 W | |
| Speakers | 1 | |
| Layout | Mono | |
| Audio outputs | 3.5 mm | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 386 × 276 × 116 mm | |
| Weight | 5,000 g | |
| Orientations | Table, Ceiling, Rear | |
| Ceiling mount | M4, 12.8–15.8 mm screws | |
| Dust filter | None | |
| Ingress protection | IP5X (light engine) | |
| Sealed optical engine | Yes |
Environment & power
| Operating temperature | 0–40°C | |
| Operating humidity | 10–90%RH | |
| Altitude | 3,000 m · high-altitude mode | |
| Power draw | 270 W | |
| Standby | Up to 0.5 W | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 31 dB(A) · Eco 25 dB(A) |
Safety & support
| Risk group | RG2 | |
| Marks | CE, FCC | |
| Warranty | 🇺🇸 US 3 yr User guide: North and South America. The US page overview says "3-year limited parts and labor, and first year free Express Exchange", but its spec table Warranty row on this out-of-stock listing reads "Final Sale. Sold AS-IS with no warranty", which is not taken as the model's warranty. | |
| User manual | viewsonicglobal.com |
In the box
| In the box | Power cord, Remote, Quick start guide, VGA cable | |
| Remote | IR |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|
Casio XJ-A252 WXGA · DLP | WXGA | DLP | 3,000* | $995 +$96 | Compare |
Casio XJ-M251 WXGA · DLP | WXGA | DLP | 3,000* | — | Compare |
Casio XJ-V2 1024 × 768 · DLP | 1024 × 768 | DLP | 3,000* | $699 −$200 | Compare |
NEC NP-M300W WXGA · 3LCD | WXGA | 3LCD | 3,000 | $1,399 +$500 | Compare |
NEC NP-VE303X 1024 × 768 · DLP | 1024 × 768 | DLP | 3,000 | — | Compare |
ASUS H1 1080p · DLP | 1080p | DLP | 3,000* | $999 +$100 | Compare |
