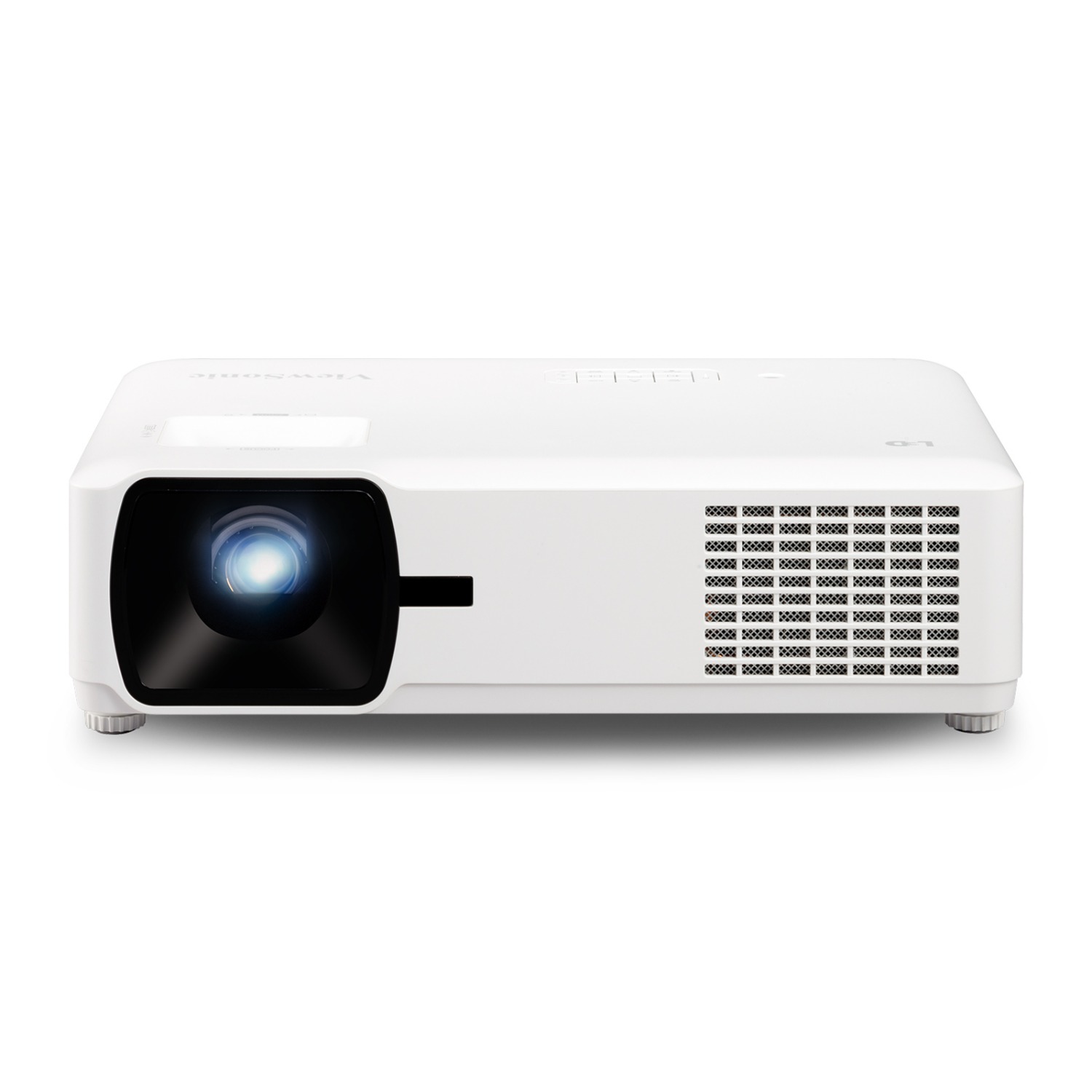

ViewSonic LS610HDH

Brand	ViewSonic · LS Series
Type	Business
Status	Discontinued
Released	December 2022
Resolution	1080p
HDR formats	HLG
Imaging technology	DLP
Light source	LED
Brightness	4,000 lm ANSI
Throw ratio	1.3–1.56:1

A single-chip DLP projector with a 0.65-inch 1080p chip and an RGBB LED light engine, rated at 4,000 ANSI lumens, aimed at classrooms and meeting rooms. It has a 1.2x manual zoom lens with no lens shift, two HDMI inputs, LAN and RS232 control, HLG support, 3D and a 10 W mono speaker. ViewSonic rates the light source at 60,000 hours; ProjectorCentral says 30,000.

Data sheet


White light output	4,000 lm ANSI
Claimed brightness (non-standard)	5,000 lm
Imaging technology	DLP
Chip / panel diagonal	0.65 in
Native resolution	1080p (1920 × 1080)
Native aspect	16:9Derived
Dynamic contrast	3,000,000:1
Colour gamut	Rec. 709 125%
Colour bit depth (per channel)	10 bit
Colour temperature presets	D93, D65, Custom
HDR formats	HLG
Colour management (CMS)	6-axis
Picture mode memories	2
3D	Yes
3D formats	Frame packing, Side-by-side, Top-bottom, Frame sequential

Light source

Light source	LED
Emitter	4-channel LED
Light-source life	60,000 h
Light output control	Steps

Optics

Throw ratio	1.3–1.56:1100″ · 2.88–3.45 m
Image size	30–300 in
Projection offset	83%
Zoom	Optical
Zoom ratio	1.2×Derived
Focal length	19.16–23.02 mm
Aperture (f-number)	1.6–1.75
Focus	Manual
Vertical lens shift	None
Horizontal lens shift	None
Vertical keystone	40°
Horizontal keystone	40°
Corner correction	4-corner
Interchangeable lens	No

Inputs & control

HDMI inputs	2 × HDMI 2.0 (HDCP 2.2)
Max input resolution	4K UHD
Audio inputs	3.5 mm
Control ports	RS-232
Control-system drivers	Crestron, AMX

Smart platform

Ethernet

Yes

Audio

Speaker power	10 W
Speakers	1
Layout	Mono
Audio outputs	3.5 mm
HDMI audio return	NoneDerived

Physical & installation

Dimensions (W × D × H)	386 × 276 × 116 mm
Weight	5,000 g
Orientations	360°
Ceiling mount	M4, 12.8–15.8 mm screws
Dust filter	None
Ingress protection	IP5X (light engine)
Sealed optical engine	Yes

Environment & power

Operating temperature	0–40°C
Operating humidity	10–90%RH
Altitude	3,000 m · high-altitude mode
Power draw	330 W
Standby	Up to 0.5 W
Mains input	100–240 V · 50/60 Hz
Fan noise	Normal 32 dB(A) · Eco 27 dB(A)

Safety & support

Risk group	RG2
Marks	CE, FCC
Warranty	🇺🇸 US 3 yr (light source 1 yr)

In the box

In the box	Power cord, Remote, Remote batteries, Quick start guide
Remote	IR
