X2-4K
| Brand | ViewSonic · X |
| Type | Home cinema |
| Released | August 2023 |
| Resolution | 4K UHD |
| HDR formats | HDR10, HLG |
| Imaging technology | DLP |
| Light source | LED |
| Brightness | 2,000 lm ANSI |
| Throw ratio | 0.69–0.83:1 |
| Input lag | 1080p: 240 Hz 4.2 ms |

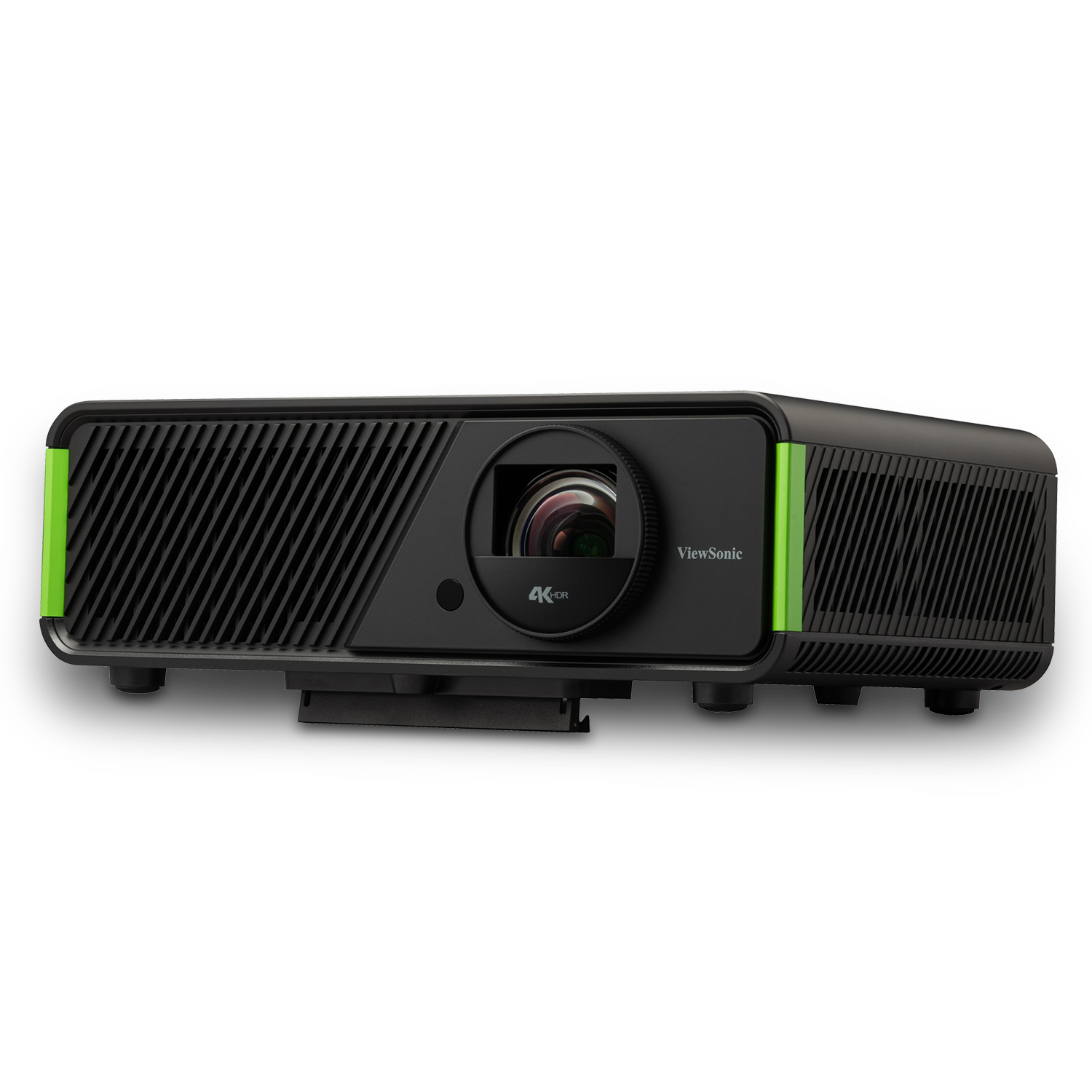

A short-throw 4K DLP home projector with an RGB LED light source, Xbox certification and a 240 Hz 1080p mode. It suits console gamers who want a large picture from a short distance in a living room.
Data sheet
| White light output | 2,000 lm ANSI | |
| Claimed brightness (non-standard) | 2,900 lm (LED lumens) | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.65 in | |
| Native aspect | 16:9Derived | |
| Pixel shift | XPR 4-way | |
| Addressable resolution | 4K UHD (3840 × 2160) | |
| Dynamic contrast | 3,000,000:1 | |
| Colour bit depth (per channel) | 10 bit | |
| HDR formats | HDR10, HLG | |
| 3D | Yes | |
| 3D formats | Frame packing, Side-by-side, Top-bottom, Frame sequential | |
| 3D glasses sync | DLP-Link |
Light source
| Light source | LED | |
| Emitter | RGB LED | |
| Light-source life | 60,000 h |
Optics
| Throw ratio | 0.69–0.83:1100″ · 1.53–1.84 m | |
| Image size | 60–120 in | |
| Projection offset | 105% | |
| Zoom | Optical | |
| Zoom ratio | 1.2×Derived | |
| Focal length | 10.2–12.25 mm | |
| Aperture (f-number) | 2.53–2.73 | |
| Focus | Manual | |
| Vertical lens shift | None | |
| Horizontal lens shift | None | |
| Vertical keystone | 40° | |
| Horizontal keystone | 40° | |
| Auto keystone | Yes | |
| Corner correction | 4-corner | |
| Grid warp | Yes |
Motion & gaming
| Max input refresh | 1080p: 240 Hz · 2560 × 1440: 120 Hz · 4K UHD: 60 Hz | |
| Input lag | 1080p: 240 Hz 4.2 ms | |
| Gaming features | ALLM |
Inputs & control
| HDMI inputs | HDMI 2.0 · HDMI 1.4 | |
| Max input resolution | 4K UHD | |
| Control ports | RS-232 |
Audio
| Speaker power | 12 W | |
| Speakers | 2 | |
| Layout | Stereo | |
| Tuned by | Harman Kardon | |
| Audio outputs | 3.5 mm, Bluetooth | |
| HDMI audio return | NoneDerived | |
| Bluetooth speaker mode | Yes |
Physical & installation
| Dimensions (W × D × H) | 355 × 251 × 121 mm | |
| Weight | 3,600 g | |
| Orientations | Table, Ceiling, Rear | |
| Ceiling mount | M4, screws ≤ 8 mm |
Environment & power
| Operating temperature | 0–40°C | |
| Altitude | 3,000 m · high-altitude mode | |
| Power draw | 236 W | |
| Standby | Up to 0.5 W | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 33 dB(A) · Eco 29 dB(A) |
Safety & support
| Risk group | RG2 | |
| Marks | FCC | |
| Warranty | 🇺🇸 US 3 yr (light source 1 yr) |
In the box
| In the box | Power cord, Remote, Quick start guide | |
| Remote | IR · Bluetooth |
Reviews
Articles
| Date | Title | Publication |
|---|---|---|
| October 12, 2023 | ViewSonic X2-4K 4K LED Projector Review ProjectorCentral · October 12, 2023 | ProjectorCentral |
| September 25, 2023 | ViewSonic X2-4K Gaming Projector Review Projector Reviews · September 25, 2023 | Projector Reviews |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|
BenQ HT3550 4K UHD · DLP | 4K UHD | DLP | 2,000 | $1,499 −$100 | Compare |
BenQ HT3550i 4K UHD · DLP | 4K UHD | DLP | 2,000 | $1,799 +$200 | Compare |
Sony VPL-XW5000ES 4K UHD · LCoS | 4K UHD | LCoS | 2,000 | $4,499.99 +$2,901 | Compare |
Dangbei DBOX02 Pro 4K UHD · DLP | 4K UHD | DLP | 2,000 | $898.98 −$700 | Compare |
JVC DLA-NZ500 DCI 4K · LCoS | DCI 4K | LCoS | 2,000* | $6,899.99 +$5,301 | Compare |
Valerion StreamMaster Plus 2 4K UHD · DLP | 4K UHD | DLP | 2,000 | $1,199 −$400 | Compare |
;fill-opacity:1;'%20d='M%20112.03125%2097.964844%20L%20138.898438%2097.964844%20L%20169.914062%201.007812%20L%20145.558594%201.007812%20L%20125.46875%2064.109375%20L%20105.371094%201.007812%20L%2081.042969%201.007812%20Z%20M%20112.03125%2097.964844%20'/%3e%3cpath%20style='%20stroke:none;fill-rule:nonzero;fill:rgb(99.607843%25,0.392157%25,0%25);fill-opacity:1;'%20d='M%20248.660156%2076.714844%20L%20248.660156%2060.359375%20L%20225.6875%2060.359375%20L%20225.6875%2076.714844%20L%20197.230469%2076.714844%20L%20197.230469%2022.296875%20L%20225.6875%2022.296875%20L%20225.6875%2038.625%20L%20248.660156%2038.625%20L%20248.660156%2018.074219%20L%20248.640625%2018.074219%20C%20248.640625%2015.941406%20248.492188%2013.882812%20248.191406%2011.847656%20C%20247.375%206.046875%20242.65625%201.539062%20236.882812%200.691406%20C%20235.003906%200.429688%20233.125%200.308594%20231.1875%200.308594%20L%20191.71875%200.308594%20C%20189.78125%200.308594%20187.886719%200.429688%20186.03125%200.691406%20C%20180.25%201.539062%20175.527344%206.046875%20174.699219%2011.847656%20C%20174.414062%2013.882812%20174.253906%2015.941406%20174.253906%2018.074219%20L%20174.253906%2080.929688%20C%20174.253906%2083.046875%20174.414062%2085.109375%20174.699219%2087.140625%20C%20175.527344%2092.960938%20180.25%2097.421875%20186.03125%2098.289062%20C%20187.886719%2098.550781%20189.78125%2098.671875%20191.71875%2098.671875%20L%20231.1875%2098.671875%20C%20233.125%2098.671875%20235.003906%2098.550781%20236.882812%2098.289062%20C%20242.65625%2097.421875%20247.375%2092.960938%20248.191406%2087.140625%20C%20248.492188%2085.109375%20248.640625%2083.046875%20248.640625%2080.929688%20L%20248.660156%2080.917969%20Z%20M%20248.660156%2076.714844%20'/%3e%3cpath%20style='%20stroke:none;fill-rule:nonzero;fill:rgb(99.607843%25,0.392157%25,0%25);fill-opacity:1;'%20d='M%200.214844%2076.714844%20L%200.214844%2058.25%20L%2023.171875%2058.25%20L%2023.171875%2076.714844%20L%2051.65625%2076.714844%20L%2051.65625%201.011719%20L%2074.617188%201.011719%20L%2074.617188%2080.929688%20C%2074.617188%2083.046875%2074.445312%2085.109375%2074.164062%2087.140625%20C%2073.332031%2092.960938%2068.605469%2097.421875%2062.832031%2098.289062%20C%2060.996094%2098.550781%2059.082031%2098.671875%2057.136719%2098.671875%20L%2017.671875%2098.671875%20C%2015.734375%2098.671875%2013.84375%2098.550781%2011.988281%2098.289062%20C%206.234375%2097.421875%201.5%2092.960938%200.664062%2087.140625%20C%200.363281%2085.109375%200.230469%2083.046875%200.230469%2080.929688%20L%200.214844%2080.917969%20Z%20M%200.214844%2076.714844%20'/%3e%3c/g%3e%3c/svg%3e)
Other
Tools
- Throw calculator — How far from the screen the X2-4K needs to sit for a given image size, set to its 0.69–0.83:1 lens.
- Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
- Download spec as JSON — The same data from the open data API, with variants and identifiers.
Variants & identifiers
Use these to confirm a listing is this exact model. Any of them works at /p/{code}.
| Variant | Region | Type | Code |
|---|---|---|---|
| Standard | 🇺🇸 US | UPC | 766907019551 |
| MPN | X2-4K | ||
| All variants | All regions | Model number | VS19302 |
