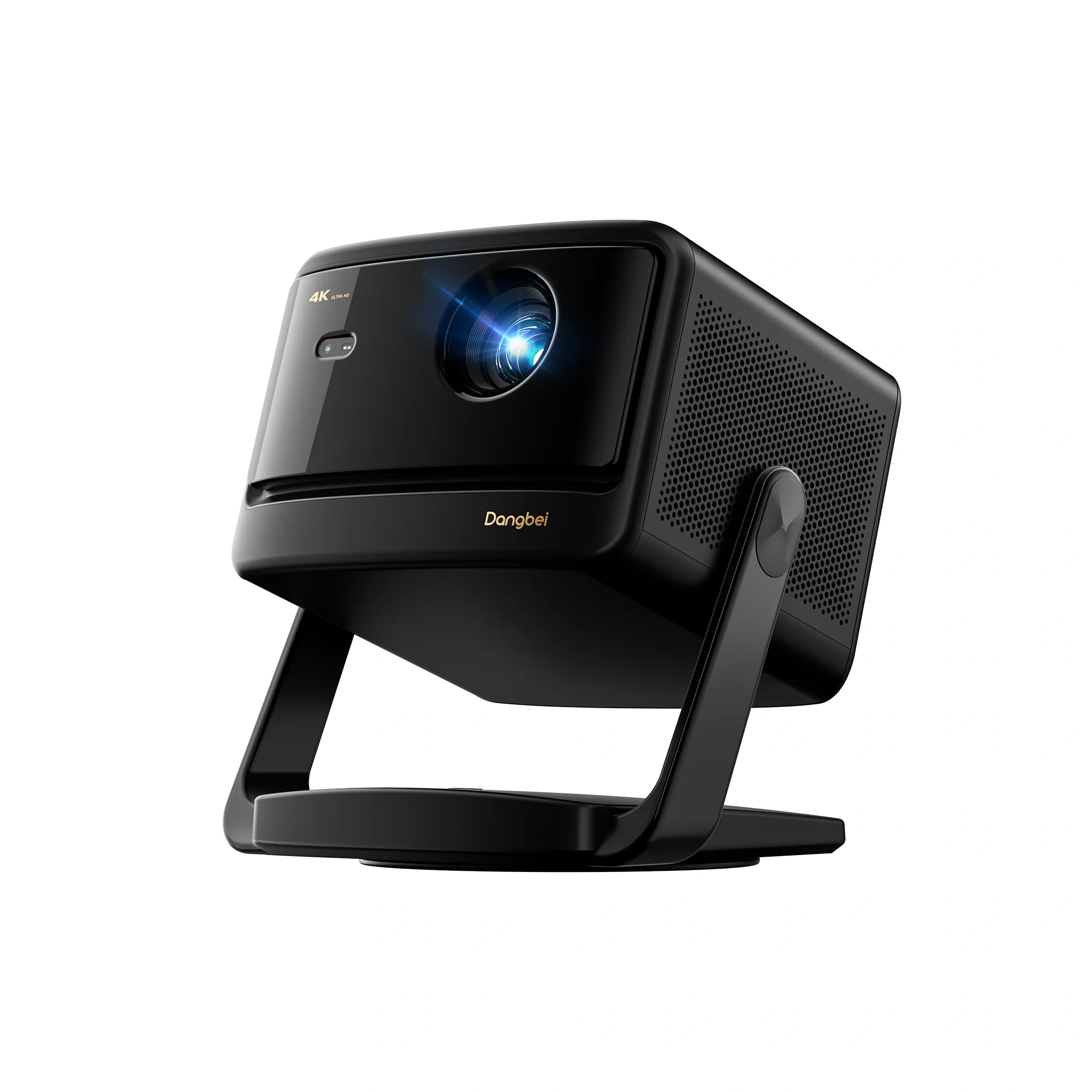

Dangbei DBOX02 Pro
MSRP$1,599
| Brand | Dangbei · Pro Series |
| Type | Home cinema |
| Released | July 2025 |
| Resolution | 4K UHD |
| HDR formats | HDR10, HDR10+, HLG |
| Imaging technology | DLP |
| Light source type | RGB triple laser |
| ISO light output | 2,000 lm |
| Throw ratio | 1.27:1 |
A single-chip 0.47-inch DLP laser projector with a 3840x2160 output, a rated 2,000 ISO lumens and a fixed 1.27:1 throw. It runs Google TV with pre-installed Netflix, has autofocus, auto keystone, screen fit and obstacle avoidance, two 12W speakers, and a built-in gimbal stand that rotates 360 degrees and tilts 120 degrees.
Data sheet
| Imaging technology | DLP | |
| Technology brand | DLP | |
| Number of imaging devices | 1 | |
| Chip / panel diagonal | 0.47 in | |
| Addressable resolution | 3840 × 2160 | |
| Rec.709 gamut | 108% | |
| Gamut metric | Area | |
| Bit depth / 'number of colours' | 8 bit | |
| HDR formats | HDR10, HDR10+, HLG | |
| Frame interpolation (MEMC) | Yes | |
| Max refresh rate | 1920×1080: 240 Hz | |
| 3D support | Yes | |
| 3D formats | Side-by-side, Top-bottom |
Optics
| Throw ratio | 1.27:1 | |
| Projection distance table | 80″: 2.2 m · 100″: 2.8 m · 120″: 3.37 m · 150″: 4.2 m | |
| Zoom type | Digital | |
| Focus | Auto | |
| Vertical lens shift | 0% | |
| Horizontal lens shift | 0% | |
| Image size range | 40–300 in | |
| Corner / warp correction | 4pt |
Light source
| Light source type | RGB triple laser | |
| Light source detail | LaserVibe laser engine using blue and red lasers | |
| Laser wavelengths | R 640 nm, G 530 nm, B 460 nm | |
| ISO light output | 2,000 lm ISO 21118 | ISO 21118 |
Audio
| Speaker power | 24 W | |
| Speaker count | 2 | |
| DTS | Yes | |
| Audio outputs | 3.5 mm, HDMI eARC, Bluetooth | |
| HDMI eARC | Yes | |
| Bluetooth speaker mode | Yes | |
| Bluetooth audio out | Yes |
Inputs, control & connectivity
| Max input signal | 3840 × 2160 | |
| HDMI port count | 2 | |
| HDMI ports (feature-level) | HDMI 1 (eARC): HDMI 2.1, eARC; HDMI 2: HDMI 2.1 | |
| USB media playback | Yes | |
| Wi-Fi | Wi-Fi 6 | |
| Bluetooth version | 5.2 | |
| Ethernet | Yes | |
| Auto keystone | Yes | |
| Screen fit / alignment | Yes | |
| Obstacle avoidance | Yes | |
| Eye-protection sensor | Yes | |
| Integrated stand / gimbal | Type: gimbal · Pan deg: 360 · Tilt deg: 120 |
Environment & power
| Operating temperature | 0–40°C | |
| Rated voltage | 100–240 V | |
| Power consumption (max) | 110 W | |
| Power consumption by mode | Off: 0.5 W · Standby: 0.5 W · Networked standby: 2 W | |
| Standby power | 0.5 W | |
| Networked standby power | 2 W | |
| Power supply | External brick | |
| Fan noise (sound pressure) | Standard: 24 dB(A) | |
| Noise measurement distance | 1 m |
Physical & installation
| Width | 263 mm | |
| Depth | 216 mm | |
| Height | 247 mm | |
| Weight | 4.8 kg | |
| Colours / finishes | Dark grey | |
| Mount hole pattern | Thread: M25 · Depth mm: 10 · Holes: 1 |
Support & ownership
| Warranty | 🇺🇸 US 1 yr | |
| User manual | https://cdn.shopify.com/s/files/1/0582/1127/0815/files/DBOX02Pro_20250630.pdf | |
| Photobiological risk group | RG2 | |
| Laser product class | Class 1 | |
| Safety & market certifications | CE, UKCA, FCC |
In the box
| Box contents | Remote, Batteries, Power adapter, Power cable, Manual, Screw release plate | |
| Remote type | Bluetooth |
Tools
- Throw calculator — How far from the screen the DBOX02 Pro needs to sit for a given image size, set to its 1.27:1 lens.
- Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
- Download spec as JSON — The same data from the open data API, with variants and identifiers.
Variants & identifiers
Use these to confirm a listing is this exact model. Any of them works at /p/{code}.
| Variant | Region | Type | Code |
|---|---|---|---|
| Dark Grey, US | 🇺🇸 US | ASIN | B0F7RKFBFY |
| UPC | 717052492911 | ||
| Maker SKU | US-DB-LU4AH | ||
| All variants | All regions | Model number | DBOX04 |
