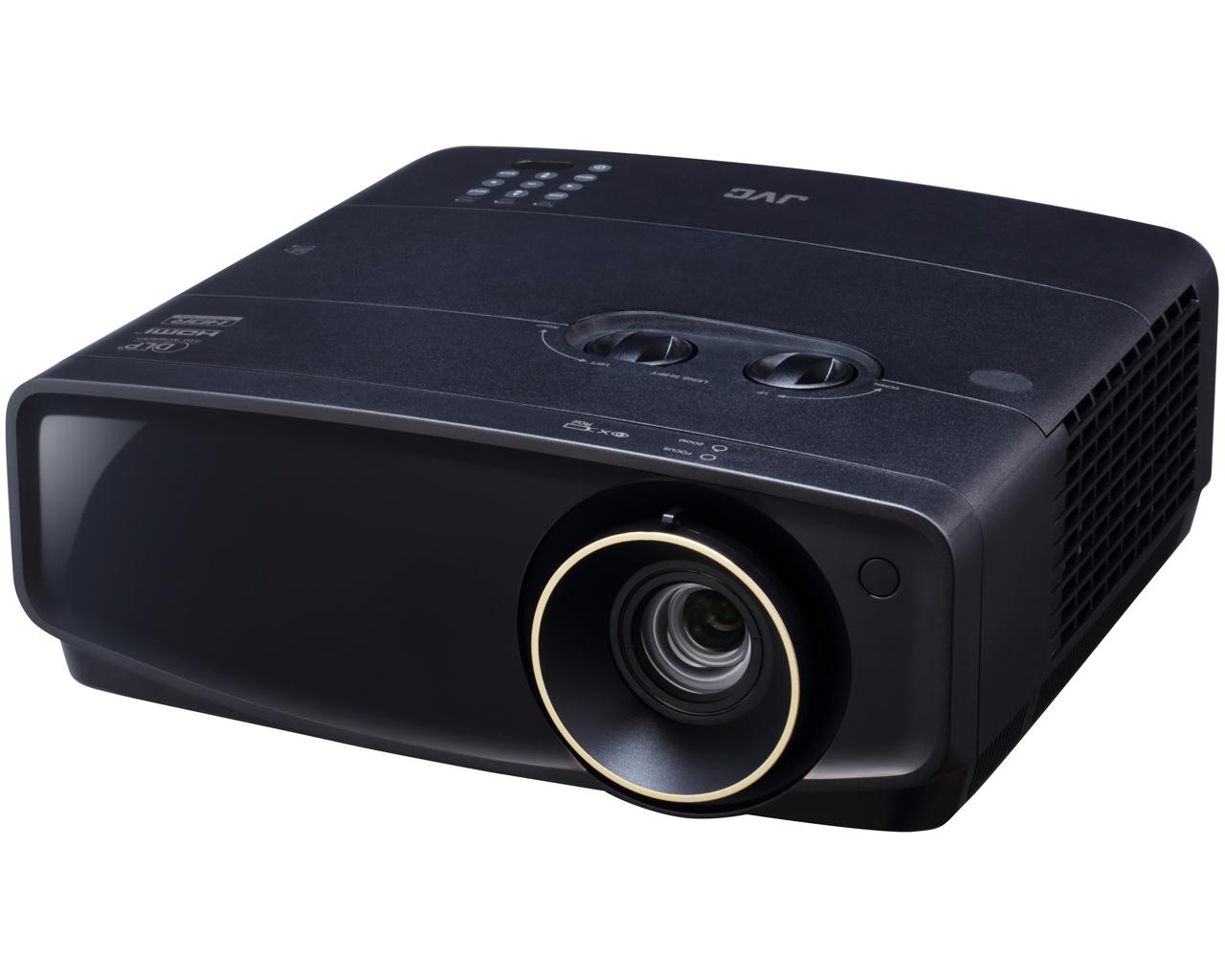

JVC LX-UH1B
| Brand | JVC · DLP Home Theater |
| Type | Home cinema |
| Status | Discontinued |
| Released | June 2018 |
| Resolution | 4K UHD (1080p pixel shift) |
| HDR formats | HDR10, HLG |
| Imaging technology | DLP |
| Light source | Lamp |
| Brightness | 2,000 lm ANSI |
| Throw ratio | 1.36–2.18:1 |
A discontinued single-chip DLP home theatre projector that gets 4K UHD from a 0.47-inch 1080p DMD with e-shift, with a 240 W lamp and a rated 2,000 lumens. It has a manual 1.6x zoom lens with wide lens shift, HDR10 and HLG support, and two HDMI inputs of which only HDMI 1 takes 4K.
Data sheet
| White light output | 2,000 lm ANSI typical @High bright mode | typical @High bright mode |
| Brightness by mode | Eco 1,400 lm | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.47 in | |
| Native resolution | 1080p (1920 × 1080) | |
| Native aspect | 16:9Derived | |
| Pixel shift | e-shift | |
| Addressable resolution | 4K UHD (3840 × 2160) | |
| Colour wheel segments | 6 | |
| Dynamic contrast | 100,000:1 | |
| Colour gamut | Rec. 709 100% | |
| Gamma / EOTF presets | 2.2, 2.4, 2.6 | |
| HDR formats | HDR10, HLG | |
| Colour management (CMS) | 6-axis | |
| Picture mode memories | 2 |
Light source
| Light source | Lamp | |
| Lamp power | 240 W | |
| Replacement lamp | PK-L2417U | |
| Light-source life | 4,000 h normal · 10,000 h eco | |
| Cool-down time | About 120 s |
Optics
| Throw ratio | 1.36–2.18:1100″ · 3.01–4.83 m | |
| Image size | 60–200 in | |
| Zoom | Optical | |
| Zoom ratio | 1.6×Derived | |
| Focal length | 14.3–22.9 mm | |
| Aperture (f-number) | 1.81 | |
| Focus | Manual | |
| Vertical lens shift | ±60% | |
| Horizontal lens shift | ±23% | |
| Motorised lens shift | No |
Inputs & control
| HDMI inputs | HDMI (HDCP 2.2) · HDMI (HDCP 1.4) | |
| Other video inputs | VGA | |
| Max input resolution | 4K UHD | |
| Control ports | RS-232, 12 V trigger |
Physical & installation
| Dimensions (W × D × H) | 333 × 324 × 122 mm | |
| Weight | 4,800 g | |
| Colours | Black, White | |
| Orientations | Table, Ceiling, Rear | |
| Ceiling mount | M4, 20–25 mm screws |
Environment & power
| Operating temperature | 0–40°C | |
| Operating humidity | 10–90%RH | |
| Altitude | 3,000 m · high-altitude mode | |
| Power draw | Max 370 W | |
| Standby | Up to 0.5 W | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 33 dB(A) · Eco 29 dB(A) |
Safety & support
| Risk group | RG2 | |
| Marks | CE, FCC | |
| Warranty | 🇺🇸 US 1 yr | |
| User manual | manuals.jvckenwood.com |
In the box
| In the box | Power cord, Remote, Remote batteries, User manual | |
| Remote | IR |
