Sharp XP-P601Q-W vs ViewSonic LS920WU

Sharp XP-P601Q-WSharp XP-P601Q-W
$4,765.93

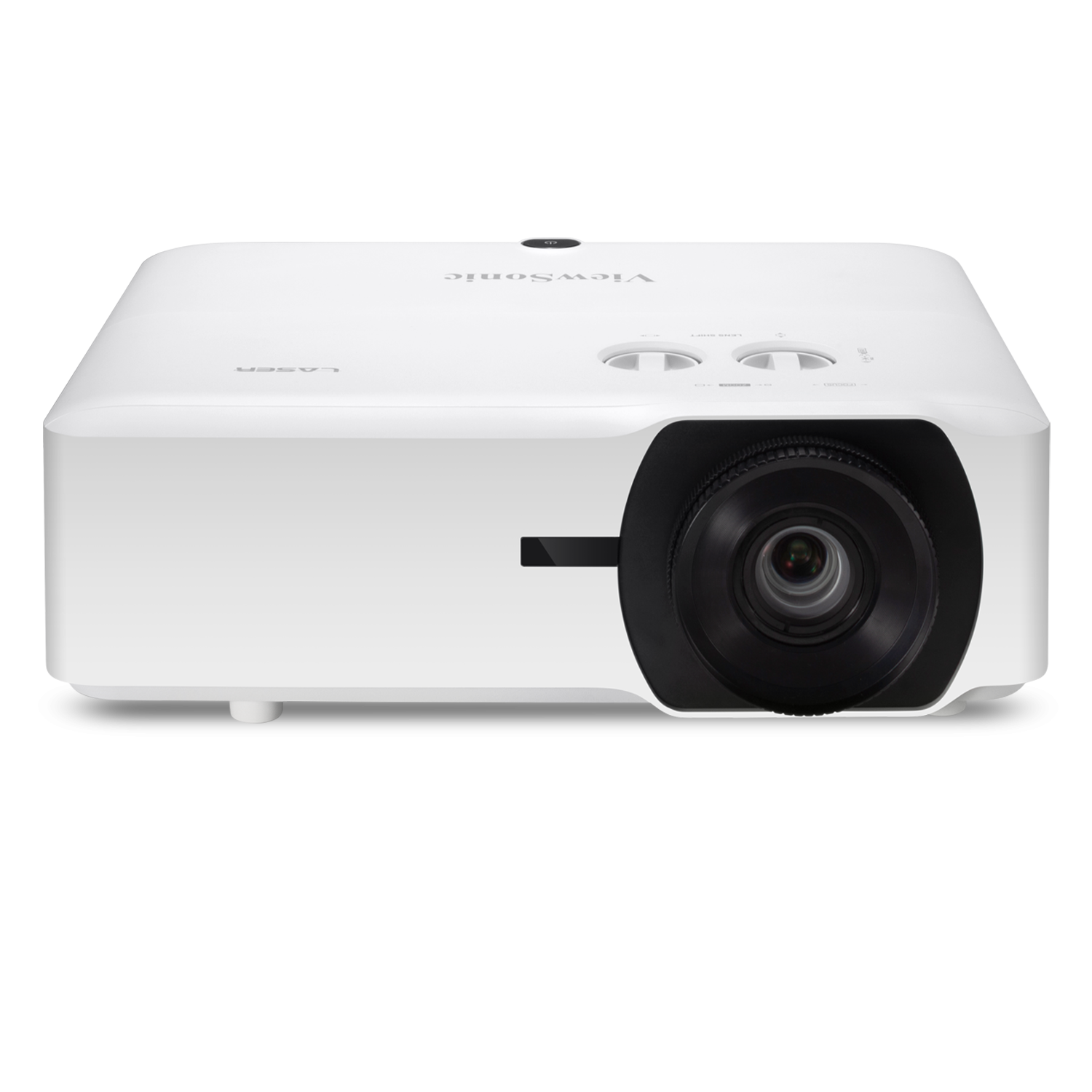

ViewSonic LS920WUViewSonic LS920WU
MSRP $3,699
Key differences
White light outputANSI6,000 lm ISO · 6,000 lm ANSI6,000 lm ANSI
Native resolution1080p (1920 × 1080)WUXGA (1920 × 1200)
Throw ratio1.25–2:11.36–2.18:1
HDR formats—HLG
Fan noiseNormal 36 dB(A) · Eco 34 dB(A)Normal 36 dB(A) · Eco 29 dB(A)
Price$4,765.93MSRP $3,699
Room fit
Distance to screen2.8–4.4 m2.9–4.7 m
Brightness
Rated brightness6,000 lmDerived6,000 lmDerived
White light outputANSI6,000 lm ISO · 6,000 lm ANSI6,000 lm ANSI
Display system
Imaging technologyDLPDLP
Chip / panel diagonal0.65 in—
On-screen resolution4K UHD (3840 × 2160)DerivedWUXGA (1920 × 1200)Derived
Native resolution1080p (1920 × 1080)WUXGA (1920 × 1200)
Native aspect16:9Derived16:10Derived
Pixel shiftYes (scheme not stated)—
Addressable resolution4K UHD (3840 × 2160)—
Contrast
Dynamic contrast3,000,000:1—
Dynamic contrast methodLight-source dimming—
Colour
Colour bit depth (per channel)10 bit—
Gamma / EOTF presets2.2, 2.4, 2.6—
Colour temperature presets—D93, D65
HDR
HDR formats—HLG
Tone mappingAdjustable—
Calibration
Colour management (CMS)6-axis—
3D
3DYesYes
3D formatsFrame packing, Side-by-side, Top-bottom, Frame sequentialFrame packing, Side-by-side, Top-bottom, Frame sequential
3D glasses syncDLP-Link—
Light source
Light sourceLaser (phosphor)Laser (phosphor)
EmitterBlue laser + phosphor—
Laser wavelengthsB 455 nm—
Light-source life20,000 h normal · 30,000 h eco20,000 h
Life defined as50% brightness—
Light output controlContinuous—
Constant brightness modeYes—
Optics
Throw ratio1.25–2:11.36–2.18:1
Image size60–300 in30–300 in
ZoomOpticalOptical
Zoom ratio1.6×Derived1.6×Derived
Focal length18.7–29.6 mm—
Aperture (f-number)2–2.4—
FocusMotorisedManual
Vertical lens shift±55%±50%
Horizontal lens shift±25%±50%
Motorised lens shiftYes—
Lens memory slots5—
Vertical keystone40°40°
Horizontal keystone40°40°
Corner correction—4-corner
Grid warpYes—
Motion & gaming
Max input refresh1080p: 240 Hz · 4K UHD: 60 Hz—
Max refresh at 1080p240 HzDerived—
Max refresh at 4K60 HzDerived—
Inputs & control
HDMI inputs2 × HDMI (HDCP 2.2)2 × HDMI 2.0 (HDCP 2.2)
HDMI inputs (count)2Derived2Derived
Newest HDMI version—HDMI 2.0Derived
Other video inputsHDBaseT+ VGA, + Composite, HDBaseT
Max input resolution4K UHD4K UHD
Audio inputs3.5 mm3.5 mm, + RCA
Control portsRS-232, + Wired IR, 12 V triggerRS-232, 12 V trigger
PJLinkClass 2—
Control-system driversCrestronCrestron, + AMX
Horizontal scan15–255 kHz15–135 kHz
Vertical scan24–240 Hz23–120 Hz
Smart platform
Wi-FiNone—
EthernetYesYes
Audio
Speaker power20 W20 W
Speakers22
LayoutMono—
Audio outputs3.5 mm3.5 mm
HDMI audio returnNoneDerivedNoneDerived
Physical & installation
Dimensions (W × D × H)486 × 433 × 186 mm405 × 305 × 145 mm
Weight14,700 g6,500 g
ColoursWhite—
Orientations+ Table, + Ceiling, + Rear, Portrait, 360°Portrait, 360°
Ceiling mount4 × M4, screws ≥ 8 mmM4, 12.8–15.8 mm screws
Dust filterNone—
Sealed optical engineYes—
Environment & power
Operating temperature0–45°C0–40°C
Operating humidity10–85%RH10–90%RH
Altitude3,048 m · high-altitude mode3,000 m · high-altitude mode
Power drawMax 530 W · Normal 530 W · Eco 285 W450 W
StandbyUp to 0.5 WUp to 0.5 W
Networked standbyUp to 2 W—
Power supplyBuilt in—
Mains input100–240 V · 50/60 Hz100–240 V · 50/60 Hz
Noise
Fan noiseNormal 36 dB(A) · Eco 34 dB(A)Normal 36 dB(A) · Eco 29 dB(A)
Safety & compliance
Laser classClass 1—
Risk groupRG2RG2
MarksCE, + UKCACE, + FCC
Support & ownership
Warranty🇨🇦 CA 5 yr or 20,000 h · 🇪🇺 EU 3 yr (light source 3 yr or 10,000 h)5 yr (light source 1 yr)
User manualhttps://www.projectorcentral.com/pdf/projector_manual_12438.pdfhttps://www.viewsonicglobal.com/public/products_download/user_guide/Projector/LS920WU_LS921WU/LS920WU_LS921WU_UG_ENG.pdf
In the box
In the boxPower cord, Remote, + Remote batteries, Quick start guidePower cord, Remote, Quick start guide
RemoteIR—
