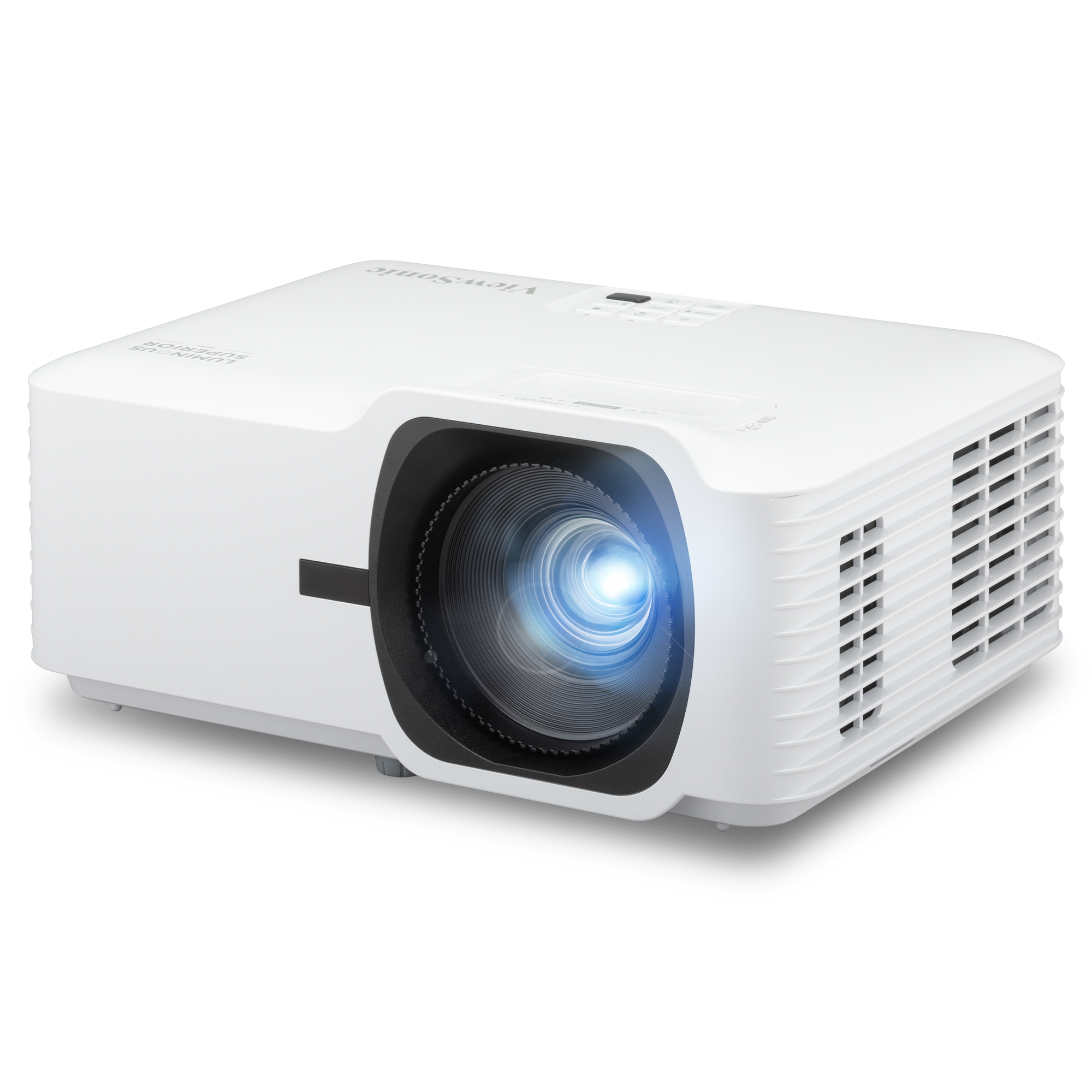

Sharp XP-P601Q-W vs ViewSonic LSD600W
 Sharp XP-P601Q-W$4,765.93 |  ViewSonic LSD600W | |
|---|---|---|
| Key differences | ||
| White light outputANSI | 6,000 lm ISO · 6,000 lm ANSI | 6,000 lm ANSI |
| Native resolution | 1080p (1920 × 1080) | WXGA (1280 × 800) |
| Throw ratio | 1.25–2:1 | 1.18–1.54:1 |
| Fan noise | Normal 36 dB(A) · Eco 34 dB(A) | Normal 32 dB(A) · Eco 27 dB(A) |
| Price | $4,765.93 | — |
| Room fit | ||
| Distance to screen | 2.8–4.4 m | 2.5–3.3 m |
| Brightness | ||
| Rated brightness | 6,000 lmDerived | 6,000 lmDerived |
| White light outputANSI | 6,000 lm ISO · 6,000 lm ANSI | 6,000 lm ANSI |
| Claimed brightness (non-standard) | — | 6,600 lm (peak) |
| Display system | ||
| Imaging technology | DLP | DLP |
| Chip / panel diagonal | 0.65 in | 0.65 in |
| On-screen resolution | 4K UHD (3840 × 2160)Derived | WXGA (1280 × 800)Derived |
| Native resolution | 1080p (1920 × 1080) | WXGA (1280 × 800) |
| Native aspect | 16:9Derived | 16:10Derived |
| Pixel shift | Yes (scheme not stated) | — |
| Addressable resolution | 4K UHD (3840 × 2160) | — |
| Contrast | ||
| Dynamic contrast | 3,000,000:1 | 3,000,000:1 |
| Dynamic contrast method | Light-source dimming | Light-source dimming |
| Colour | ||
| Colour bit depth (per channel) | 10 bit | 10 bit |
| Gamma / EOTF presets | 2.2, 2.4, 2.6 | — |
| HDR | ||
| Tone mapping | Adjustable | — |
| Calibration | ||
| Colour management (CMS) | 6-axis | 6-axis |
| 3D | ||
| 3D | Yes | Yes |
| 3D formats | Frame packing, Side-by-side, Top-bottom, Frame sequential | — |
| 3D glasses sync | DLP-Link | DLP-Link |
| Light source | ||
| Light source | Laser (phosphor) | Laser (phosphor) |
| Emitter | Blue laser + phosphor | — |
| Laser wavelengths | B 455 nm | — |
| Light-source life | 20,000 h normal · 30,000 h eco | 20,000 h normal · 30,000 h eco |
| Life defined as | 50% brightness | — |
| Light output control | Continuous | — |
| Constant brightness mode | Yes | — |
| Optics | ||
| Throw ratio | 1.25–2:1 | 1.18–1.54:1 |
| Image size | 60–300 in | 30–300 in |
| Projection offset | — | 124% |
| Zoom | Optical | Optical |
| Zoom ratio | 1.6×Derived | 1.31×Derived |
| Focal length | 18.7–29.6 mm | 16.9–21.61 mm |
| Aperture (f-number) | 2–2.4 | 2.43–2.78 |
| Focus | Motorised | Manual |
| Autofocus | — | No |
| Vertical lens shift | ±55% | — |
| Horizontal lens shift | ±25% | — |
| Motorised lens shift | Yes | — |
| Lens memory slots | 5 | — |
| Vertical keystone | 40° | 30° |
| Horizontal keystone | 40° | 30° |
| Corner correction | — | 4-corner |
| Grid warp | Yes | — |
| Motion & gaming | ||
| Max input refresh | 1080p: 240 Hz · 4K UHD: 60 Hz | 720p: 120 Hz |
| Max refresh at 1080p | 240 HzDerived | — |
| Max refresh at 4K | 60 HzDerived | — |
| Inputs & control | ||
| HDMI inputs | 2 × HDMI (HDCP 2.2) | 2 × HDMI 1.4 (HDCP 1.4) |
| HDMI inputs (count) | 2Derived | 2Derived |
| Newest HDMI version | — | HDMI 1.4Derived |
| Other video inputs | HDBaseT | — |
| Max input resolution | 4K UHD | WUXGA |
| Audio inputs | 3.5 mm | — |
| USB media playback | — | No |
| Control ports | RS-232, + Wired IR, + 12 V trigger | RS-232 |
| PJLink | Class 2 | — |
| Control-system drivers | Crestron | — |
| Horizontal scan | 15–255 kHz | 15–102 kHz |
| Vertical scan | 24–240 Hz | 24–120 Hz |
| Smart platform | ||
| Wi-Fi | None | — |
| Ethernet | Yes | No |
| Audio | ||
| Speaker power | 20 W | 15 W |
| Speakers | 2 | 1 |
| Layout | Mono | Mono |
| Audio outputs | 3.5 mm | 3.5 mm |
| HDMI audio return | NoneDerived | NoneDerived |
| Physical & installation | ||
| Dimensions (W × D × H) | 486 × 433 × 186 mm | 286 × 216 × 129 mm |
| Weight | 14,700 g | 2,900 g |
| Colours | White | — |
| Orientations | Table, Ceiling, Rear, Portrait, 360° | Table, Ceiling, Rear, Portrait, 360° |
| Ceiling mount | 4 × M4, screws ≥ 8 mm | M4, screws ≤ 8 mm |
| Dust filter | None | — |
| Sealed optical engine | Yes | Yes |
| Environment & power | ||
| Operating temperature | 0–45°C | 0–40°C |
| Operating humidity | 10–85%RH | 10–80%RH |
| Altitude | 3,048 m · high-altitude mode | 3,658 m · high-altitude mode |
| Power draw | Max 530 W · Normal 530 W · Eco 285 W | 163 W |
| Standby | Up to 0.5 W | Up to 0.5 W |
| Networked standby | Up to 2 W | — |
| Power supply | Built in | External adapter |
| Mains input | 100–240 V · 50/60 Hz | 100–240 V · 50/60 Hz |
| Noise | ||
| Fan noise | Normal 36 dB(A) · Eco 34 dB(A) | Normal 32 dB(A) · Eco 27 dB(A) |
| Safety & compliance | ||
| Laser class | Class 1 | Class 1 |
| Risk group | RG2 | RG2 |
| Hazard distance | — | 1 m |
| Marks | CE, + UKCA | CE, + FCC |
| Support & ownership | ||
| Warranty | 🇨🇦 CA 5 yr or 20,000 h · 🇪🇺 EU 3 yr (light source 3 yr or 10,000 h) | 3 yr |
| User manual | https://www.projectorcentral.com/pdf/projector_manual_12438.pdf | https://www.viewsonicglobal.com/public/products_download/user_guide/projector/LSD500HD/LSD500HD_V53HD_LS740HD-5_V52HD-5_LSD600W_LS740W-5_UG_ENG.pdf |
| In the box | ||
| In the box | Power cord, Remote, Remote batteries, Quick start guide | Power cord, + Power adapter, Remote, Remote batteries, Quick start guide |
| Remote | IR | IR |
