JMGO IRIS Ultra Max

MSRP$3,499

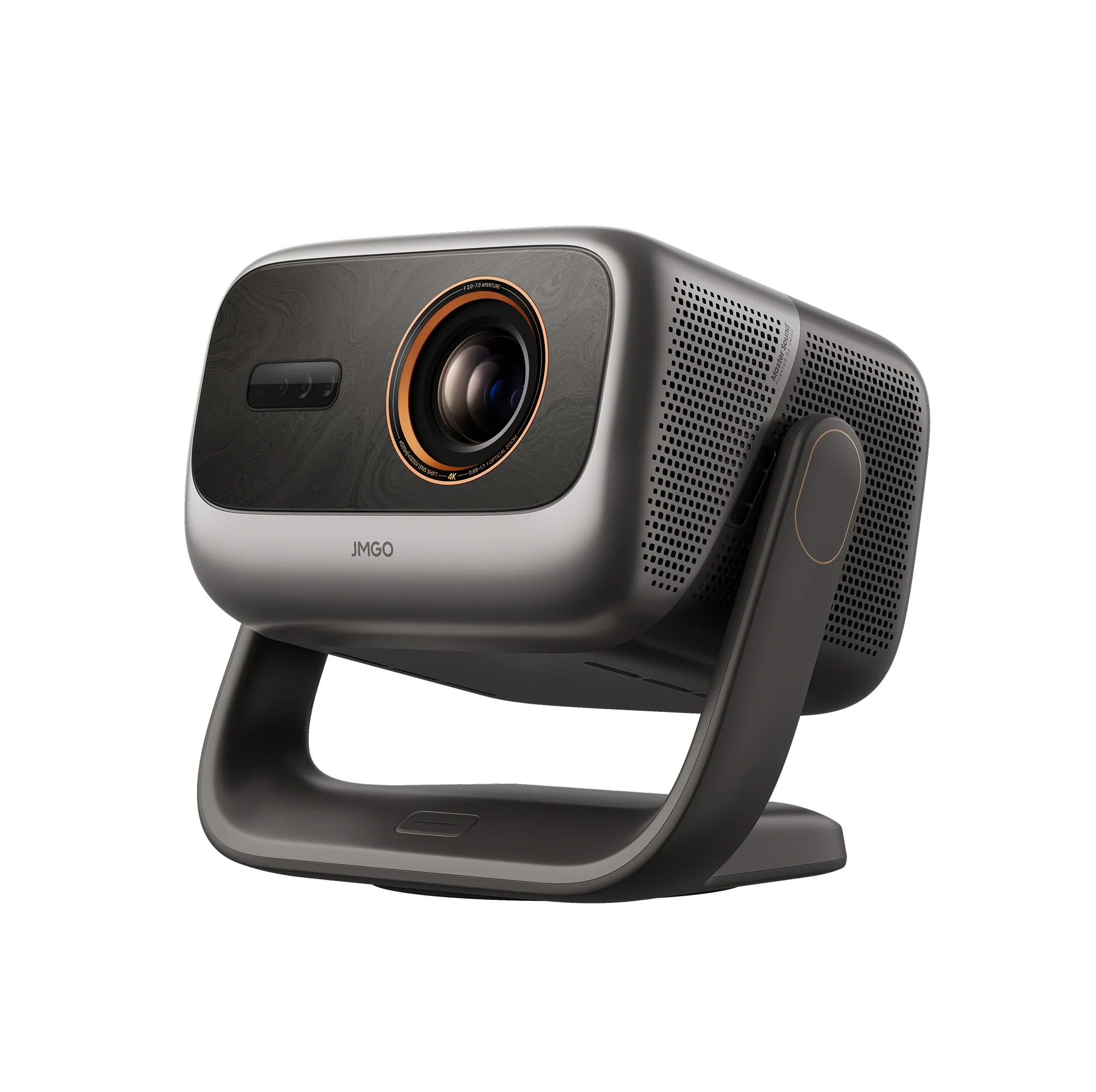

JMGO IRIS Ultra Max front three-quarter view on its gimbal stand, dark grey body with orange-ringed lens

Brand	JMGO · IRIS
Type	Home cinema
Released	October 2026
Resolution	4K UHD (1080p pixel shift)
HDR formats	HDR10, Dolby Vision
Imaging technology	DLP
Light source type	RGB triple laser
ISO light output	6,500 lm
Native on/off contrast	10,000:1
Throw ratio	0.88–1.7:1

A single-chip DLP triple-laser projector with a 4K output at up to 120 Hz, a rated 6,500 ISO lumens and a rated 10,000:1 native contrast. It has an optical zoom (0.88 to 1.7:1), four-way optical lens shift, an AI gimbal stand, two HDMI 2.1 inputs and Google TV. It suits gaming and bright-room home cinema.

Data sheet


Imaging technology	DLP
Chip / panel model	DLP472TP
Chip / panel diagonal	0.47 in
Native aspect ratio	16:9
Native resolution	1920 × 1080
Pixel shift	Other
Addressable resolution	3840 × 2160
Native on/off contrast	10,000:1 FOFO, aperture f/7.0, throw ratio 1.7:1 (the darkest iris setting)	FOFO, aperture f/7.0, throw ratio 1.7:1 (the darkest iris setting)
Dynamic light control	Laser dimming
Manual iris / aperture	Yes
BT.2020 gamut	110%
Gamut metric	Area
HDR formats	HDR10, Dolby Vision
Max HDR input	Dolby Vision at 4K 120 Hz
Frame interpolation (MEMC)	Yes
Interpolation at 4K	Yes
Max refresh rate	3840×2160: 120 Hz
Variable refresh rate	HDMI VRR
Auto low-latency mode	Yes
3D support	Yes
3D formats	Frame packing, Side-by-side, Top-bottom

Optics

Throw ratio	0.88–1.7:1
Zoom type	Optical
Zoom ratio	1.93×
Focus	Auto
Vertical lens shift	±130%
Horizontal lens shift	±53%
F-number	2–7
Image size range	40–300 in

Light source

Light source type	RGB triple laser
Light source detail	MALC 6.0 triple-laser engine with QuaLas 42 lasers
Light-source dimming	Dynamic frame
ISO light output	6,500 lm Dynamic mode, ISO 21118; rated value is the average of mass-produced units under laboratory conditions	Dynamic mode, ISO 21118; rated value is the average of mass-produced units under laboratory conditions

Audio

Speaker power	25 W
Speaker count	2
Audio partner	Dynaudio
DTS	Yes
Audio outputs	3.5 mm, HDMI ARC, HDMI eARC
HDMI ARC	Yes
HDMI eARC	Yes

Inputs, control & connectivity

Max input signal	3840 × 2160
HDMI port count	2
HDMI ports (feature-level)	HDMI 1: HDMI 2.1; HDMI 2: HDMI 2.1
Wi-Fi	Wi-Fi 6
Bluetooth version	5.4
Auto keystone	Yes
Screen fit / alignment	Yes
Obstacle avoidance	Yes
Eye-protection sensor	Yes
Integrated stand / gimbal	Horizontal deg: 360 · Vertical deg: 150

Firmware / software

Smart OS	Google TV
OS version	Google TV 5.0
RAM	4 GB
Storage	64 GB
SoC	MT9679

Environment & power

Rated voltage	100–240 V
Rated frequency	50–60 Hz
Power consumption (max)	300 W
Fan noise (sound pressure)	Rated max: 26 dB(A) · Standard startup: 17 dB(A)
Noise measurement distance	1 m

Physical & installation

Width	230 mm
Depth	274 mm
Height	308 mm
Weight	7 kg

Support & ownership

Warranty

🇺🇸 US 2 yr · 🇪🇺 EU 2 yr

In the box

Box contents

Projector, Remote, Batteries, Lens cloth, Quick start guide, Power adapter, Charging cable
