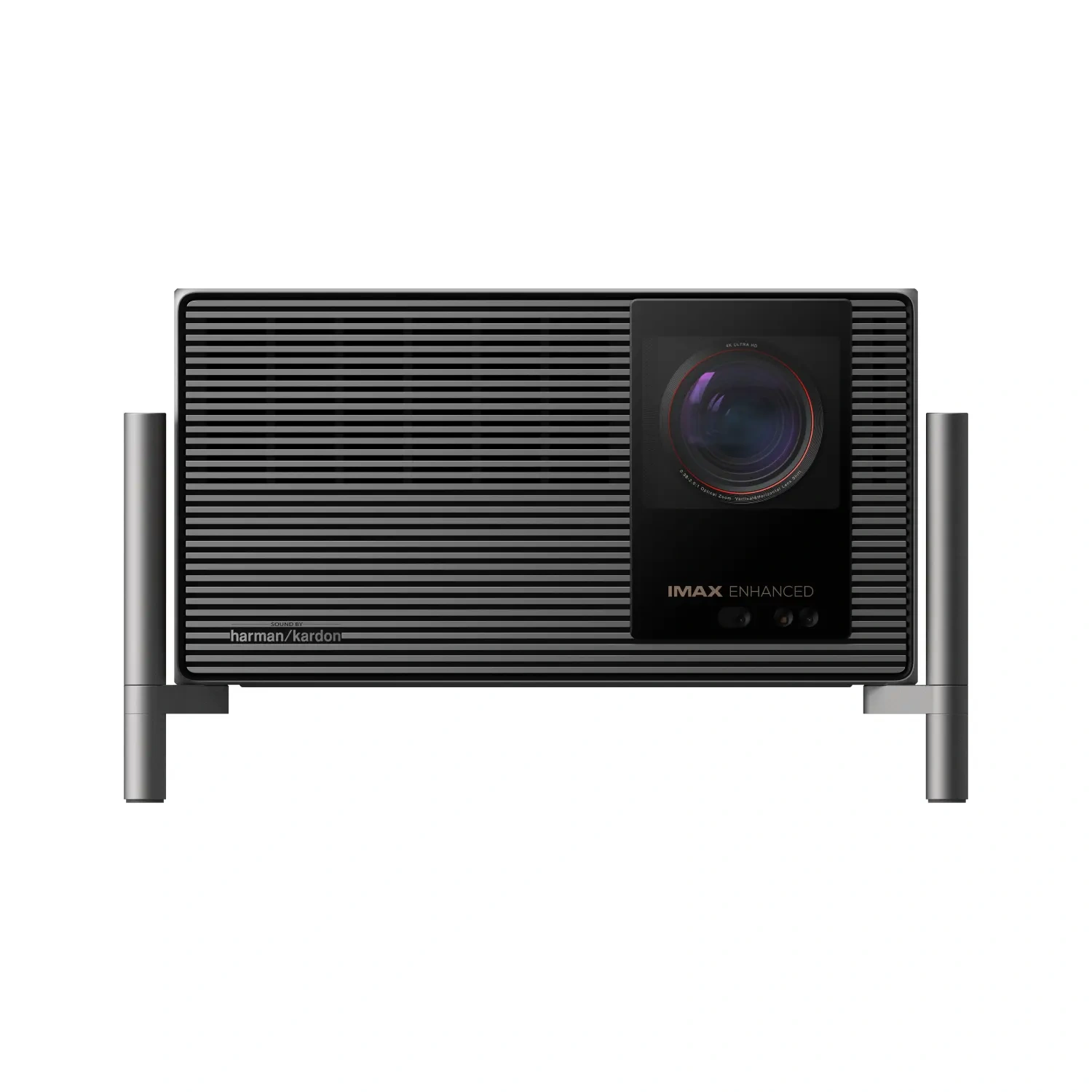

XGIMI TITAN Noir Max
| Brand | XGIMI · TITAN |
| Type | Home cinema |
| Released | June 2026 |
| Resolution | 4K UHD (1080p pixel shift) |
| HDR formats | HDR10+, Dolby Vision |
| Imaging technology | DLP |
| Light source | RGB triple laser |
| Brightness | 7,000 lm ISO |
| Native contrast (on/off) | 10,000:1 |
| Throw ratio | 0.98–2:1 |
| Input lag | 1080p: 120 Hz 2.2 ms · 240 Hz 1 ms · 4K UHD: 60 Hz 3 ms |
A single-chip DLP home cinema projector with an RGB triple laser, a 0.47-inch DMD and a rated 7,000 ISO lumens, outputting a 3840x2160 image. It has a dual iris with a rated 10,000:1 native contrast, a 0.98-2.0:1 zoom with large lens shift, three HDMI inputs and 1 ms rated input lag at 1080p240, and no built-in smart platform.
Data sheet
| White light output | 7,000 lm ISO (Max power) | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.47 in | |
| Native resolution | 1080p (1920 × 1080) | |
| Native aspect | 16:9Derived | |
| Addressable resolution | 4K UHD (3840 × 2160) | |
| Native contrast (on/off) | Up to 10,000:1 Iris set to f/7.0 and a throw ratio of 0.98:1 | Iris set to f/7.0 and a throw ratio of 0.98:1 |
| Dynamic contrast | Up to 100,000:1 | |
| Colour gamut | BT.2020 110% area | |
| HDR formats | HDR10+, Dolby Vision | |
| 3D | Yes |
Light source
| Light source | RGB triple laser | |
| Light output control | Steps |
Optics
| Throw ratio | 0.98–2:1100″ · 2.17–4.43 m | |
| Image size | 40–300 in | |
| Zoom | Optical | |
| Zoom ratio | 2.04×Derived | |
| Focus | Motorised | |
| Autofocus | Yes | |
| Vertical lens shift | ±130% | |
| Horizontal lens shift | ±50% | |
| Auto keystone | Yes | |
| Auto setup | Fit to screen, Obstacle avoidance |
Motion & gaming
| Frame interpolation (MEMC) | Yes | |
| Input lag | 1080p: 120 Hz 2.2 ms · 240 Hz 1 ms · 4K UHD: 60 Hz 3 ms Game Mode, auto keystone (AK) off | Game Mode, auto keystone (AK) off |
| Gaming features | ALLM, FreeSync |
Inputs & control
| HDMI inputs | HDMI (eARC) · 2 × HDMI |
Audio
| Speaker power | 24 W | |
| Speakers | 2 | |
| Tuned by | Harman Kardon | |
| Audio formats | DTS Virtual:X | |
| Audio outputs | 3.5 mm, Optical, HDMI eARC | |
| HDMI audio return | eARCDerived |
Physical & installation
| Dimensions (W × D × H) | 334 × 248 × 178 mm | |
| Weight | 8,100 g | |
| Orientations | Table, Ceiling, Rear |
Environment & power
| Operating temperature | 0–40°C | |
| Power draw | Up to Max 360 W | |
| Power supply | External adapter | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Up to 28 dB(A) 25°C ambient, 1 m from the machine | 25°C ambient, 1 m from the machine |
Safety & support
| Eye-protection sensor | Yes | |
| Warranty | 🇺🇸 US 2 yr |
In the box
| In the box | Power cord, Power adapter, Remote, Remote batteries, User manual, Warranty card | |
| Remote | Bluetooth |
Reviews
Articles
| Date | Title | Publication |
|---|---|---|
| June 7, 2026 | XGIMI TITAN Noir Max 4K Projector Review Projector Reviews · June 7, 2026 | Projector Reviews |
| May 18, 2026 | XGIMI TITAN Noir Max Projector Review ProjectorCentral · May 18, 2026 | ProjectorCentral |
| April 17, 2026 | XGIMI Titan Noir Max: Test / Review Laurent Willen · April 17, 2026 | Laurent Willen |
Videos
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|

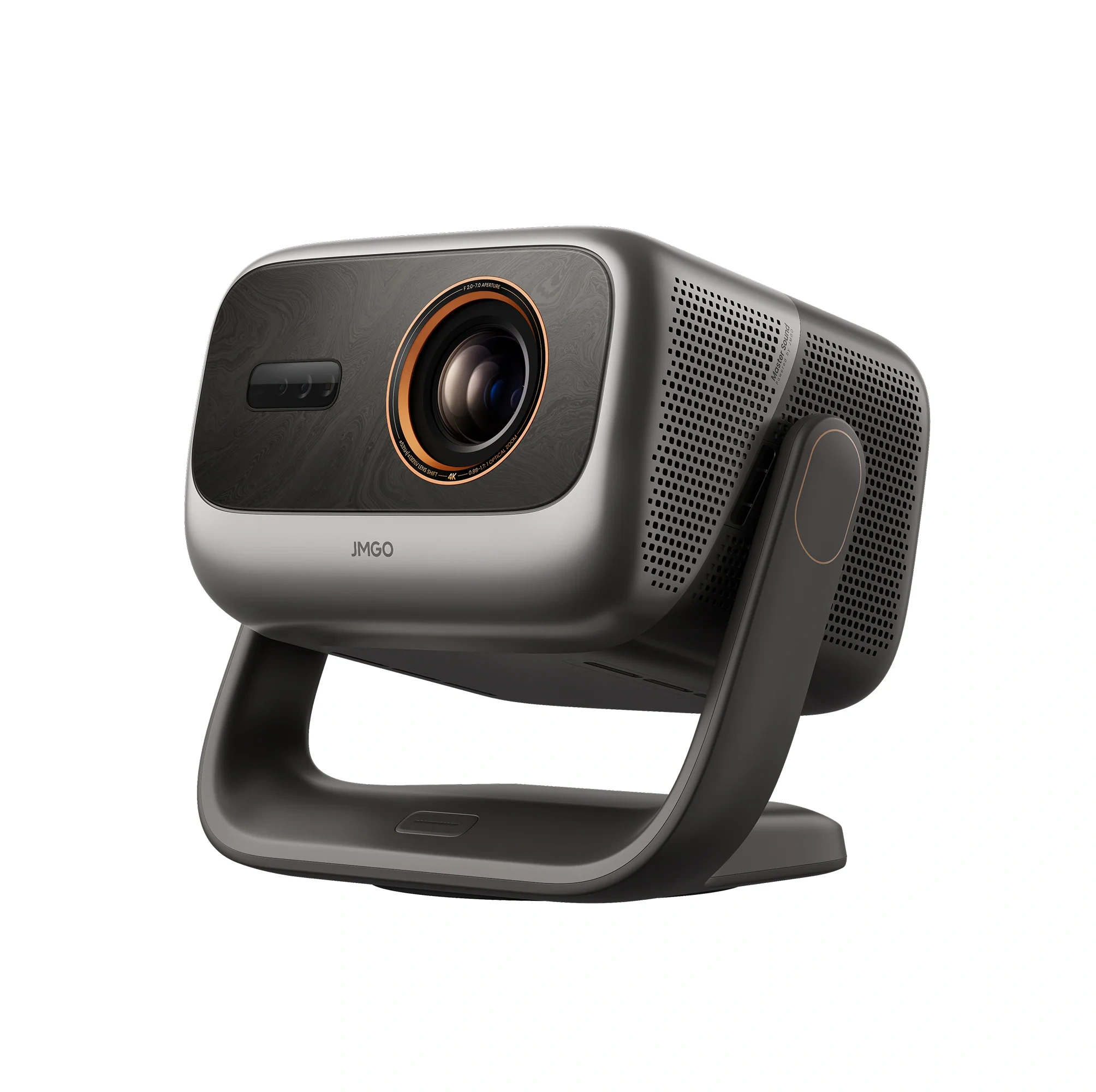

JMGO IRIS Ultra Max 4K UHD · DLP | 4K UHD | DLP | 6,500 −500 | $3,499 −$2,500 | Compare |
XGIMI HORIZON 30 Ultra Max 4K UHD · DLP | 4K UHD | DLP | 6,000 −1,000 | $3,499 −$2,500 | Compare |

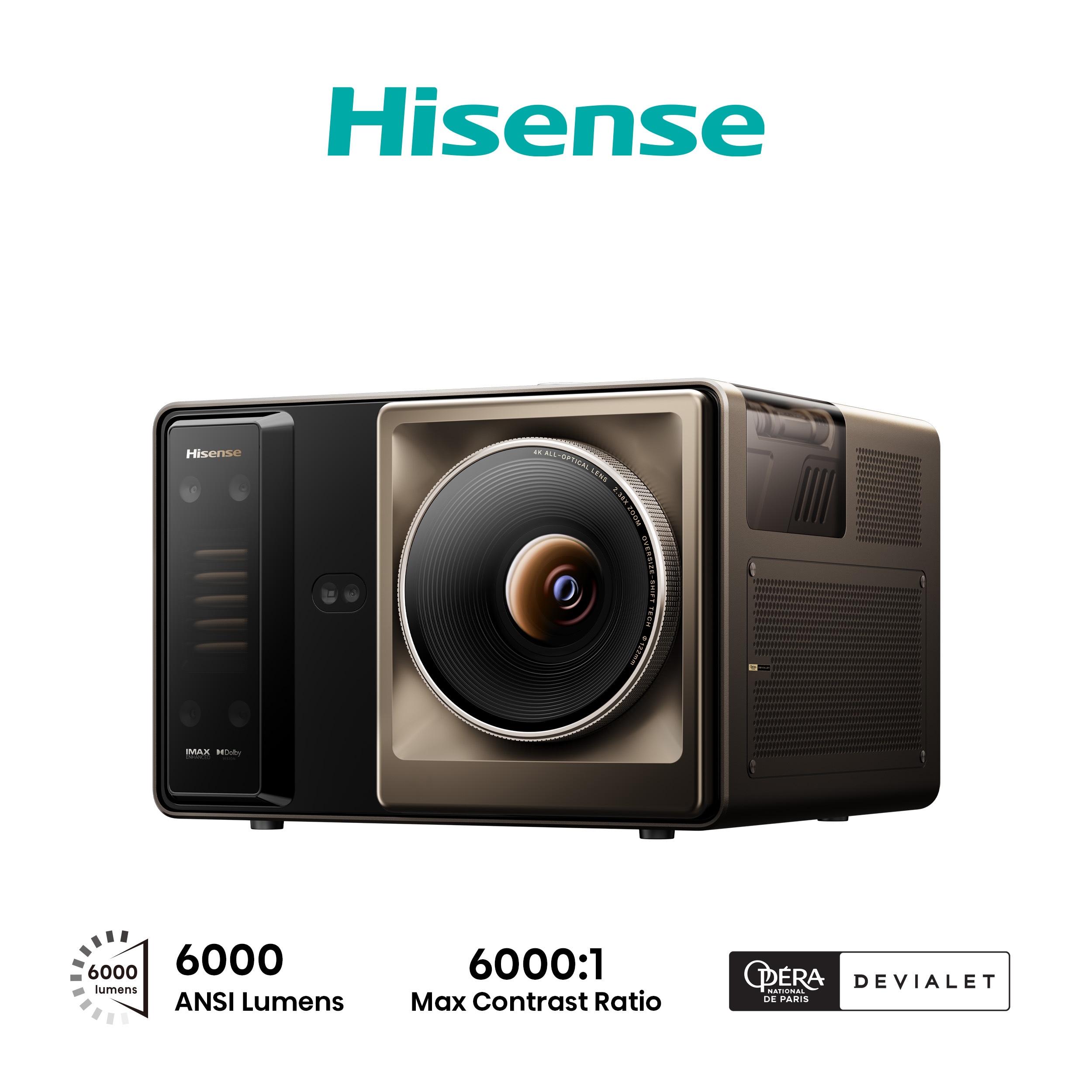

Hisense XR10 4K UHD · DLP | 4K UHD | DLP | 6,000 −1,000 | $5,997.97 −$1 | Compare |

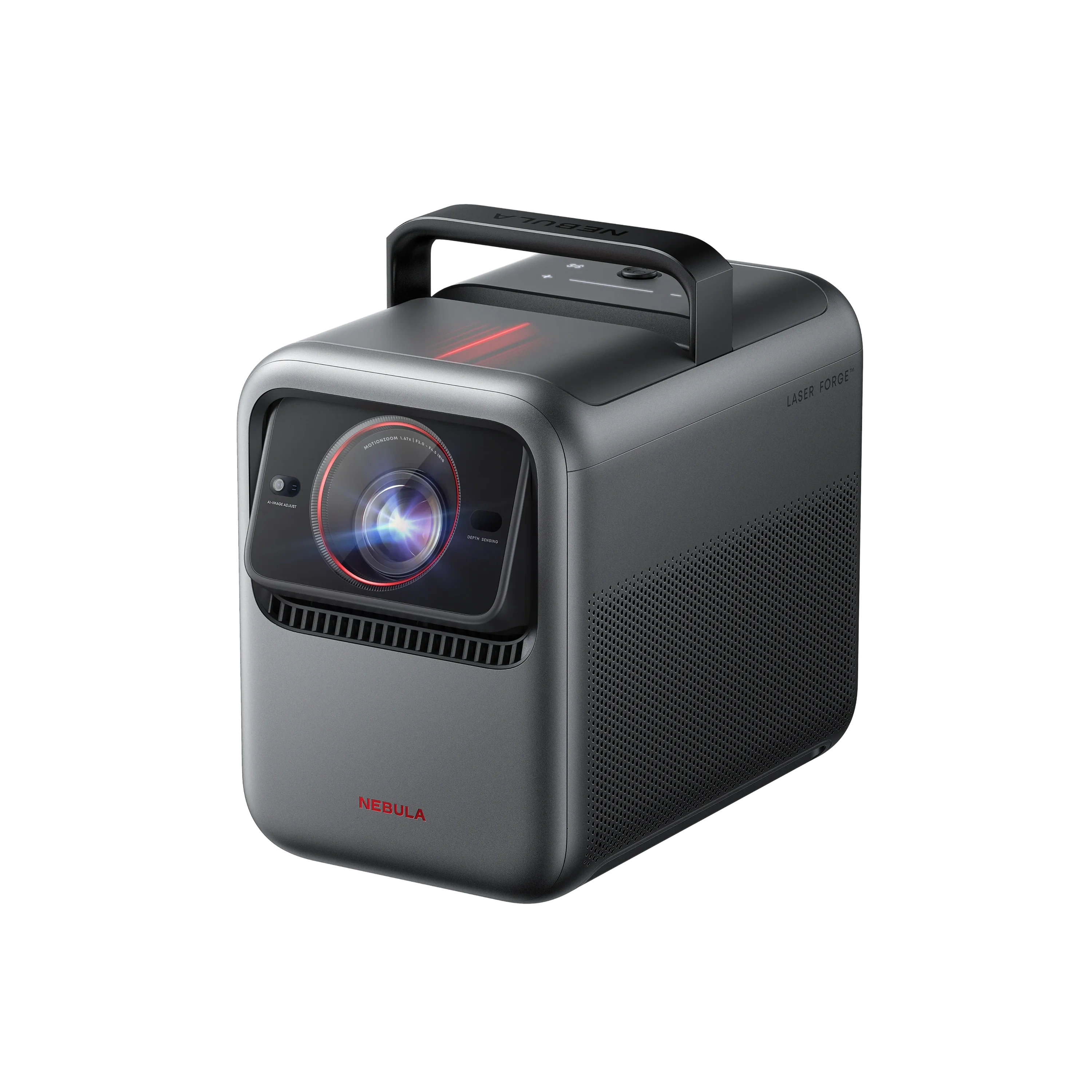

Nebula X1S 4K UHD · DLP | 4K UHD | DLP | 6,000 −1,000 | $2,799 −$3,200 | Compare |

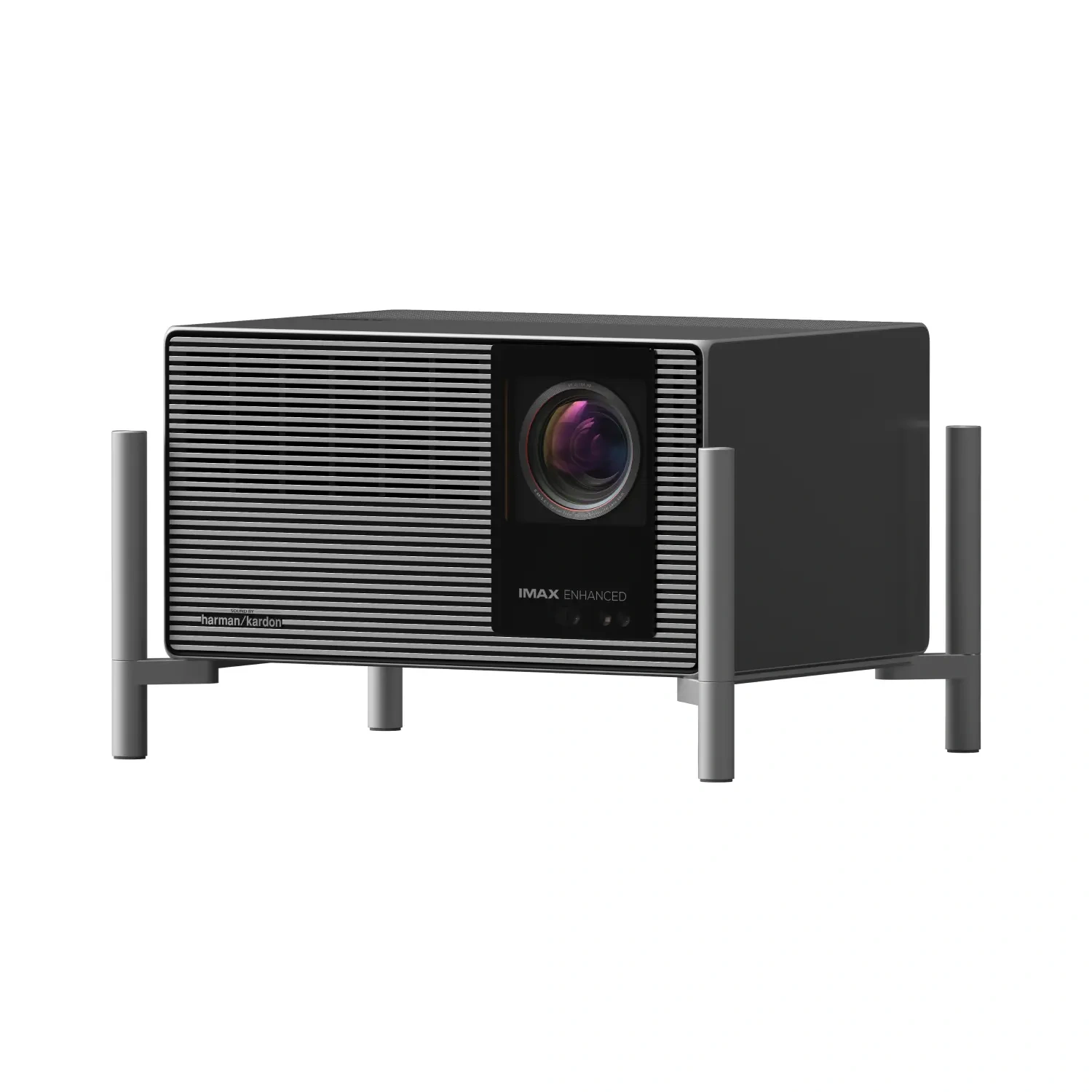

XGIMI TITAN Noir Pro 4K UHD · DLP | 4K UHD | DLP | 6,000 −1,000 | $4,999 −$1,000 | Compare |
