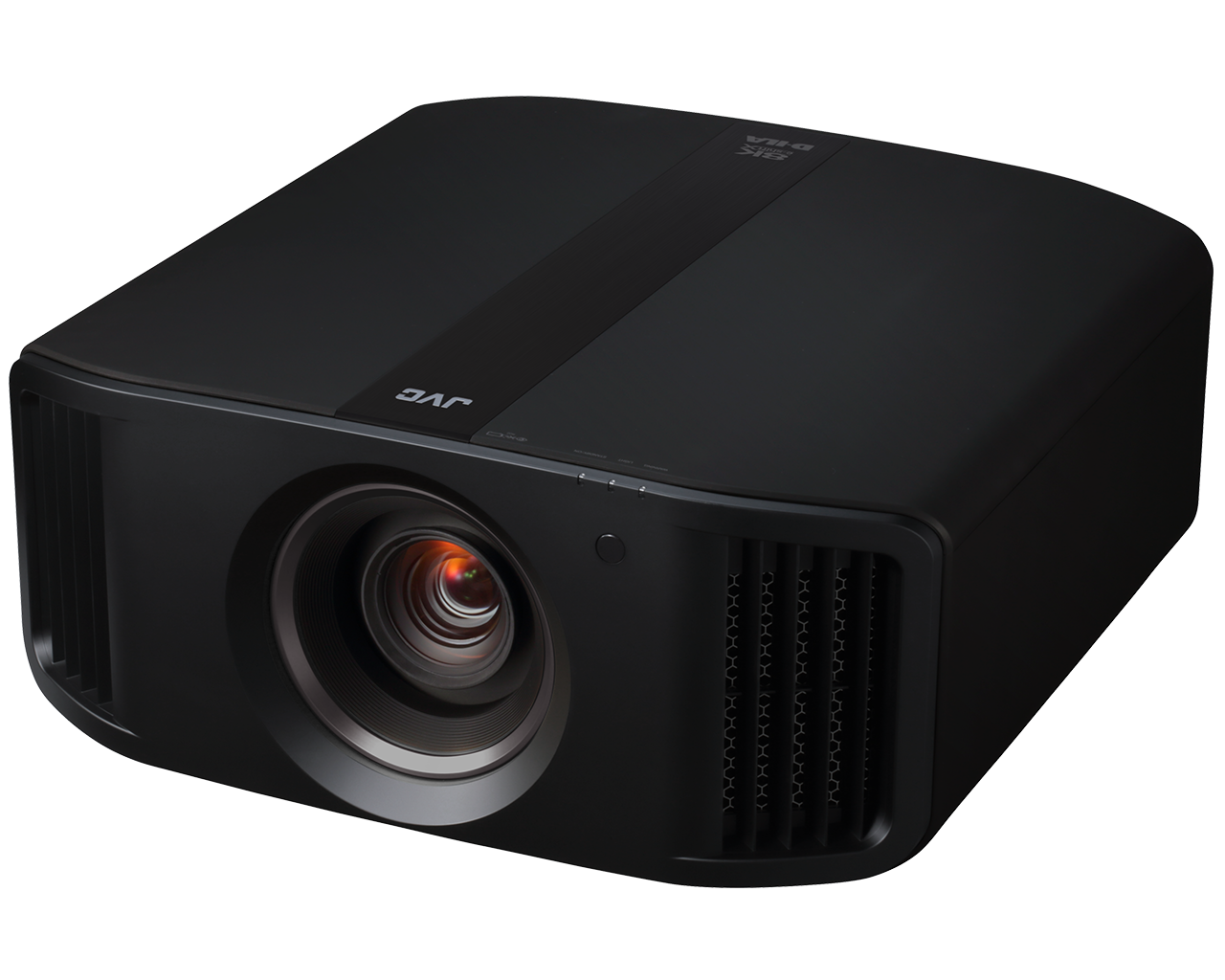

JVC DLA-NZ800
MSRP$18,999.95
| Brand | JVC · Procision |
| Type | Home cinema |
| Released | June 2024 |
| Resolution | 8192 × 4320 (DCI 4K pixel shift) |
| HDR formats | HDR10, HDR10+, HLG |
| Imaging technology | LCoS |
| Light source type | Laser (phosphor) |
| Claimed brightness (non-standard) | 2,700 |
| Native on/off contrast | 100,000:1 |
| Throw ratio | 1.43–2.92:1 |
A native 4K D-ILA laser projector with three 0.69-inch panels, 8K e-shiftX pixel shifting and a motorized 2x all-glass zoom lens with wide shift. JVC rates it at 2,700 lm with a stated native contrast of 100,000:1. It suits dedicated home theaters and is the lower-priced sibling of the DLA-NZ900.
Data sheet
| Imaging technology | LCoS | |
| Technology brand | D-ILA | |
| Number of imaging devices | 3 | |
| Chip / panel diagonal | 0.69 in | |
| Native aspect ratio | 17:9 | |
| Native resolution | 4096 × 2160 | |
| Pixel shift | 8K e-shift | |
| Addressable resolution | 8192 × 4320 | |
| Panel alignment / convergence control | Zone | |
| Native on/off contrast | 100,000:1 | |
| Dynamic light control | Iris + laser dimming | |
| Manual iris / aperture | Yes | |
| Colour temperature presets | D55, D65, D93, Custom | |
| Gamma / EOTF presets | 2.2, 2.4, 2.6, Custom | |
| Bit depth / 'number of colours' | 12 bit | |
| Filmmaker Mode | Yes | |
| Colour management system | 6-axis | |
| Auto-calibration | Sensor supported | |
| ISF certified | Yes | |
| HDR formats | HDR10, HDR10+, HLG | |
| Tone mapping type | Dynamic | |
| Tone-mapping brand name | Frame Adapt HDR | |
| Metadata handling | Uses MaxCLL | |
| Frame interpolation (MEMC) | Yes | |
| Max refresh rate | 1920×1080: 120 Hz · 3840×2160: 120 Hz · 4096×2160: 120 Hz · 7680×4320: 60 Hz | |
| Auto low-latency mode | Yes | |
| 3D support | Yes | |
| 3D sync method | RF | |
| 3D formats | Frame packing, Side-by-side, Top-bottom | |
| Glasses included | 0 |
Optics
| Throw ratio | 1.43–2.92:1 | |
| Projection distance table | 60″: 1.88–3.85 m · 70″: 2.2–4.5 m · 80″: 2.52–5.15 m · 90″: 2.84–5.8 m · 100″: 3.16–6.45 m · 110″: 3.49–7.1 m · 120″: 3.81–7.75 m · 130″: 4.13–8.4 m · 140″: 4.45–9.05 m · 150″: 4.77–9.7 m · 160″: 5.09–10.35 m · 170″: 5.41–11 m · 180″: 5.73–11.65 m · 190″: 6.05–12.3 m · 200″: 6.38–12.95 m | |
| Zoom type | Optical | |
| Zoom ratio | 2× | |
| Focus | Motorized | |
| Vertical lens shift | ±80% | |
| Horizontal lens shift | ±34% | |
| Motorized lens shift | Yes | |
| Lens elements | 17 | |
| Lens aperture | 65 mm | |
| Lens material | all-glass | |
| Image size range | 60–200 in | |
| Lens memory | 10 |
Light source
| Light source type | Laser (phosphor) | |
| Light source detail | BLU-Escent Laser Diode | |
| Light source life | Standard: 20,000 h | |
| Cool-down time | 10 s | |
| Laser wavelengths | B 455 nm | |
| Light-source dimming | Continuous | |
| Claimed brightness (non-standard) | 2,700 | |
| Claimed brightness unit | Unspecified |
Audio
Inputs, control & connectivity
| Max input signal | 7680 × 4320 | |
| HDMI port count | 2 | |
| HDMI ports (feature-level) | HDMI 1: HDMI, 48 Gbps, HDCP 2.3; HDMI 2: HDMI, 48 Gbps, HDCP 2.3 | |
| RS-232 | Yes | |
| LAN control | Yes | |
| 12 V trigger | Yes | |
| Control ecosystem drivers | Control4 | |
| Ethernet | Yes |
Environment & power
| Operating temperature | 5–35°C | |
| Operating humidity | 20–80%RH | |
| Altitude / high-altitude mode | 2,000 m | |
| High-altitude mode | Yes | |
| Operating orientations | Table, Ceiling, Rear | |
| Rated voltage | 100–240 V | |
| Rated frequency | 50–60 Hz | |
| Power consumption (max) | 440 W | |
| Power consumption by mode | In use: 440 W | |
| Standby power | 0.3 W | |
| Networked standby power | 1.5 W | |
| Fan noise (sound pressure) | Low mode: 24 dB(A) |
Physical & installation
| Width | 500 mm | |
| Depth | 505 mm | |
| Height | 234 mm | |
| Weight | 23.1 kg | |
| Exhaust / intake direction | Front | |
| Mount hole pattern | Thread: M5 · Screw length min mm: 20 · Screw length max mm: 25 |
Support & ownership
| Warranty | 🇺🇸 US 3 yr | |
| User manual | https://manuals.jvckenwood.com/download/files/B5A-4578-21.pdf | |
| Photobiological risk group | RG2 | |
| Laser product class | Class 1 | |
| Safety & market certifications | FCC, ISF |
In the box
| Box contents | Lens cover, Remote, Batteries, Power cord, Quick start guide, Warranty card | |
| Remote type | Backlit | |
| 3D glasses in box | 0 |
Tools
- Throw calculator — How far from the screen the DLA-NZ800 needs to sit for a given image size, set to its 1.43–2.92:1 lens.
- Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
- Download spec as JSON — The same data from the open data API, with variants and identifiers.
Variants & identifiers
Use these to confirm a listing is this exact model. Any of them works at /p/{code}.
| Variant | Region | Type | Code |
|---|---|---|---|
| US | 🇺🇸 US | ASIN | B0D45ZGZ4N |
| MPN | DLA-NZ800BK | ||
| DLA-NZ800BE | All regions | MPN | DLA-NZ800BE |
| US, retailer listing (DLANZ800CM) | 🇺🇸 US | UPC | 046838503610 |
| MPN | DLANZ800CM |
