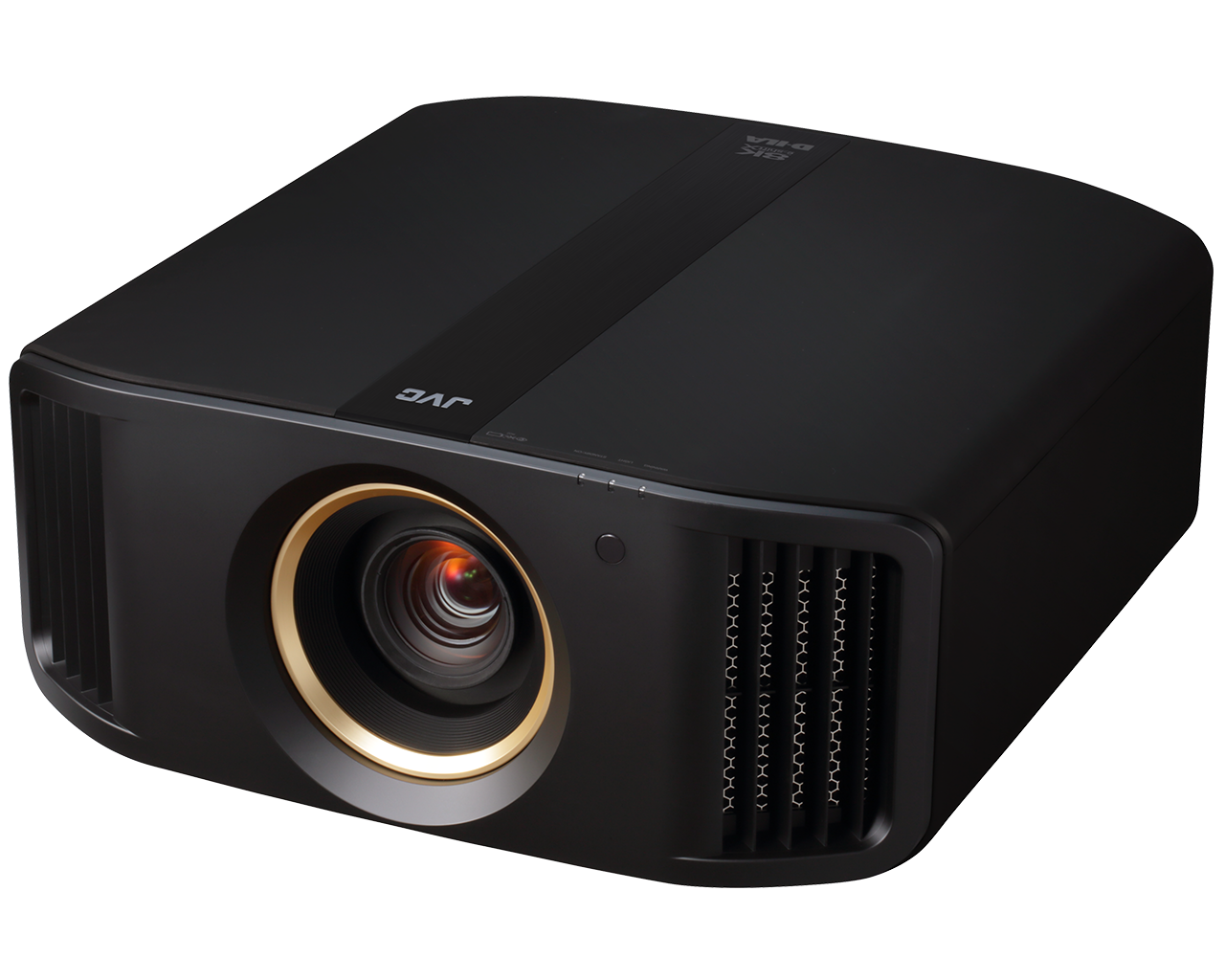

JVC DLA-RS3200

Brand	JVC · Reference Series
Type	Home cinema
Released	June 2024
Resolution	8192 × 4320 (DCI 4K pixel shift)
HDR formats	HDR10, HDR10+, HLG
Imaging technology	LCoS
Light source	Laser (phosphor)
Claimed brightness (non-standard)	2,700 lm
Native contrast (on/off)	100,000:1
Throw ratio	1.43–2.92:1

A native 4K D-ILA laser projector with three 0.69-inch panels, 8K e-shiftX pixel shifting and a motorized 2x all-glass zoom lens with wide lens shift. JVC rates it at 2,700 lm with a stated native contrast of 100,000:1. It suits dedicated home theaters and sits below the DLA-RS4200 in the Reference Series.

Data sheet


Claimed brightness (non-standard)	2,700 lm
Imaging technology	LCoS
Chip / panel diagonal	0.69 in
Panel alignment	Zone-by-zone
Native resolution	DCI 4K (4096 × 2160)
Native aspect	17:9Derived
Pixel shift	8K e-shift
Addressable resolution	8192 × 4320
Native contrast (on/off)	100,000:1
Dynamic contrast method	Iris + light-source dimming
Manual iris	Yes
Colour bit depth (per channel)	12 bit
Gamma / EOTF presets	2.2, 2.4, 2.6, Custom
Colour temperature presets	D93, D65, D55, Custom
HDR formats	HDR10, HDR10+, HLG
Tone mapping	Dynamic
Tone mapping (maker name)	Frame Adapt HDR
Colour management (CMS)	6-axis
Auto-calibration	Sensor supported
Picture certifications	ISF, Filmmaker Mode
3D	Yes
3D formats	Frame packing, Side-by-side, Top-bottom

Light source

Light source	Laser (phosphor)
Emitter	Blue laser + phosphor
Light engine	BLU-Escent
Laser wavelengths	B 455 nm
Light-source life	20,000 h
Light output control	Continuous
Cool-down time	10 s

Optics

Throw ratio	1.43–2.92:1100″ · 3.21–6.55 m
Image size	60–200 in
Zoom	Optical
Zoom ratio	2.04×Derived
Focus	Motorised
Vertical lens shift	±80%
Horizontal lens shift	±34%
Motorised lens shift	Yes
Lens memory slots	10
Lens elements	17
Lens material	Glass

Motion & gaming

Frame interpolation (MEMC)	Yes
Max input refresh	1080p: 120 Hz · 4K UHD: 120 Hz · DCI 4K: 120 Hz · 8K: 60 Hz
Gaming features	ALLM

Inputs & control

HDMI inputs	2 × HDMI (HDCP 2.3, 48 Gbps)
Max input resolution	8K
Control ports	RS-232, 12 V trigger
Control-system drivers	Control4

Smart platform

Ethernet

Yes

Audio

Speakers

Physical & installation

Dimensions (W × D × H)	500 × 505 × 234 mm
Weight	23,100 g
Orientations	Table, Ceiling, Rear
Ceiling mount	M5, 20–25 mm screws
Exhaust	Front

Environment & power

Operating temperature	5–35°C
Operating humidity	20–80%RH
Altitude	2,000 m · high-altitude mode
Power draw	440 W
Standby	0.3 W
Networked standby	1.5 W
Mains input	100–240 V · 50/60 Hz
Fan noise	Eco 24 dB(A)

Safety & support

Laser class	Class 1
Risk group	RG2
Marks	FCC
Warranty	🇺🇸 US 3 yr
User manual	manuals.jvckenwood.com

In the box

In the box	Power cord, Remote, Remote batteries, Quick start guide, Warranty card, Lens cap
Remote	Backlit

Similar models

Model	Resolution	Tech	Lumens	Price
LG CineBeam HU810PW 4K UHD · DLP	4K UHD	DLP	2,700	$2,925.70 −$16,074	Compare
Epson Pro Cinema LS12000 4K UHD · 3LCD	4K UHD	3LCD	2,700	$5,999 −$13,001	Compare

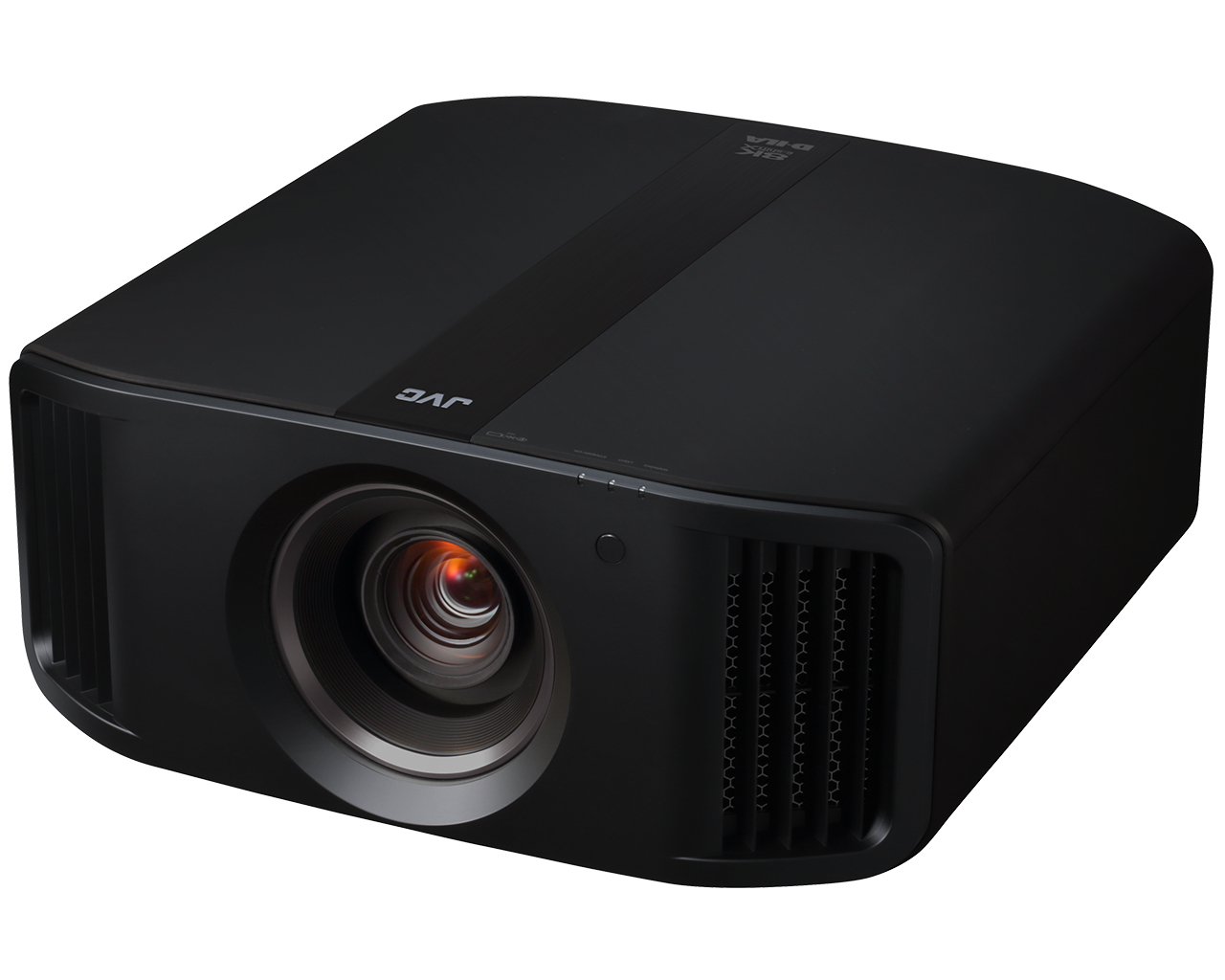

JVC DLA-NZ800 8192 × 4320 · LCoS	8192 × 4320	LCoS	2,700*	$15,999 −$3,001	Compare
Sony VPL-XW6100ES 4K UHD · LCoS	4K UHD	LCoS	2,700*	$11,998 −$7,002	Compare
BenQ W5800 4K UHD · DLP	4K UHD	DLP	2,600 −100	$4,999 −$14,001	Compare
Epson Home Cinema 2350 4K UHD · 3LCD	4K UHD	3LCD	2,800 +100	$1,299.99 −$17,700	Compare

Other

Tools

Throw calculator — How far from the screen the DLA-RS3200 needs to sit for a given image size, set to its 1.43–2.92:1 lens.
Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
Download spec as JSON — The same data from the open data API, with variants and identifiers.

Variants & identifiers

Use these to confirm a listing is this exact model. Any of them works at /p/{code}.

Variant	Region	Type	Code
DLA-RS3200K	🇺🇸 US	MPN	DLA-RS3200K
DLA-RS3200K	🇺🇸 US	retailer_sku	JVC-DLA-RS3200
DLA-RS3200E	All regions	MPN	DLA-RS3200E
