Panasonic PT-FRZ60
| Brand | Panasonic · PT-FRZ60 Series |
| Type | Installation |
| Released | November 2020 |
| Resolution | WUXGA |
| Imaging technology | DLP |
| Light source | Laser (phosphor) |
| Brightness | 6,000 lm ISO |
| Throw ratio | 1.46–2.94:1 |

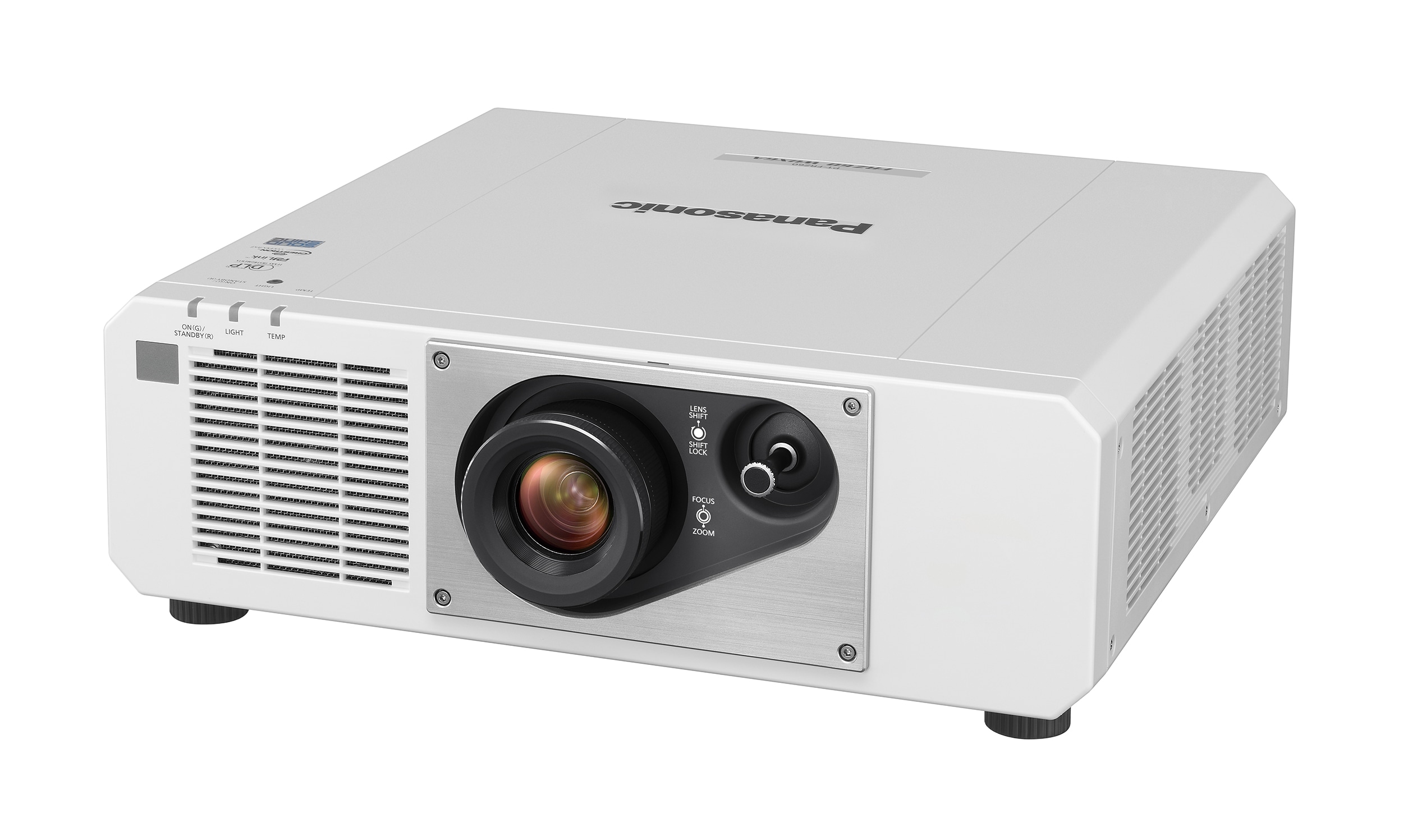

A fixed-installation single-chip DLP laser projector with a 1920x1200 (WUXGA, 16:10) chip, rated 6,000 lumens, and a 2.0x manual zoom lens with manual lens shift. It has two HDMI inputs, HDBaseT (DIGITAL LINK), VGA inputs and PJLink Class 2 control, no built-in speaker, and a filterless, sealed optical block for 360-degree mounting in classrooms, offices and auditoriums.
Data sheet
| White light output | 6,000 lm ISO (Normal power, Dynamic mode) · 6,000 lm ANSI PICTURE MODE DYNAMIC, DAYLIGHT VIEW OFF, DYNAMIC CONTRAST OFF, LIGHT OUTPUT 100%, AUTO POWER SAVE OFF; average of all products when shipped | PICTURE MODE DYNAMIC, DAYLIGHT VIEW OFF, DYNAMIC CONTRAST OFF, LIGHT OUTPUT 100%, AUTO POWER SAVE OFF; average of all products when shipped |
| Brightness by mode | Normal 6,000 lm · Eco 4,800 lm | |
| Eco brightness | 80%Derived | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.67 in | |
| Native resolution | WUXGA (1920 × 1200) | |
| Native aspect | 16:10Derived | |
| Dynamic contrast | 20,000:1 PICTURE MODE DYNAMIC, OPERATING MODE NORMAL, Dynamic Contrast 1 | PICTURE MODE DYNAMIC, OPERATING MODE NORMAL, Dynamic Contrast 1 |
Light source
| Light source | Laser (phosphor) | |
| Light-source life | 20,000 h normal · 24,000 h eco | |
| Life defined as | 50% brightness |
Optics
| Throw ratio | 1.46–2.94:1100″ · 3.14–6.33 m | |
| Image size | 40–300 in | |
| Zoom | Optical | |
| Zoom ratio | 2.01×Derived | |
| Focal length | 21.5–43 mm | |
| Aperture (f-number) | 2–3.4 | |
| Focus | Manual | |
| Autofocus | No | |
| Vertical lens shift | -44–64% | |
| Horizontal lens shift | -27–34% | |
| Motorised lens shift | No | |
| Vertical keystone | 40° | |
| Horizontal keystone | 20° |
Inputs & control
| HDMI inputs | 2 × HDMI (HDCP 2.3) | |
| Other video inputs | VGA, Composite, HDBaseT | |
| Max input resolution | DCI 4K | |
| Control ports | RS-232 | |
| PJLink | Class 2 |
Smart platform
| Ethernet | Yes |
Audio
| Speakers | 0 | |
| Audio outputs | 3.5 mm | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 498 × 492 × 168 mm | |
| Weight | 16,100 g | |
| Colours | Black, White | |
| Orientations | Table, Ceiling, Rear, 360° | |
| Dust filter | None | |
| Sealed optical engine | Yes |
Environment & power
| Operating temperature | 0–45°C | |
| Operating humidity | 10–80%RH | |
| Power draw | Max 540 W · Normal 490 W · Eco 385 W | |
| Standby | 0.5 W | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 35 dB(A) · Eco 35 dB(A) |
Safety & support
| Laser class | Class 1 | |
| Risk group | RG2 | |
| User manual | eu.connect.panasonic.com |
