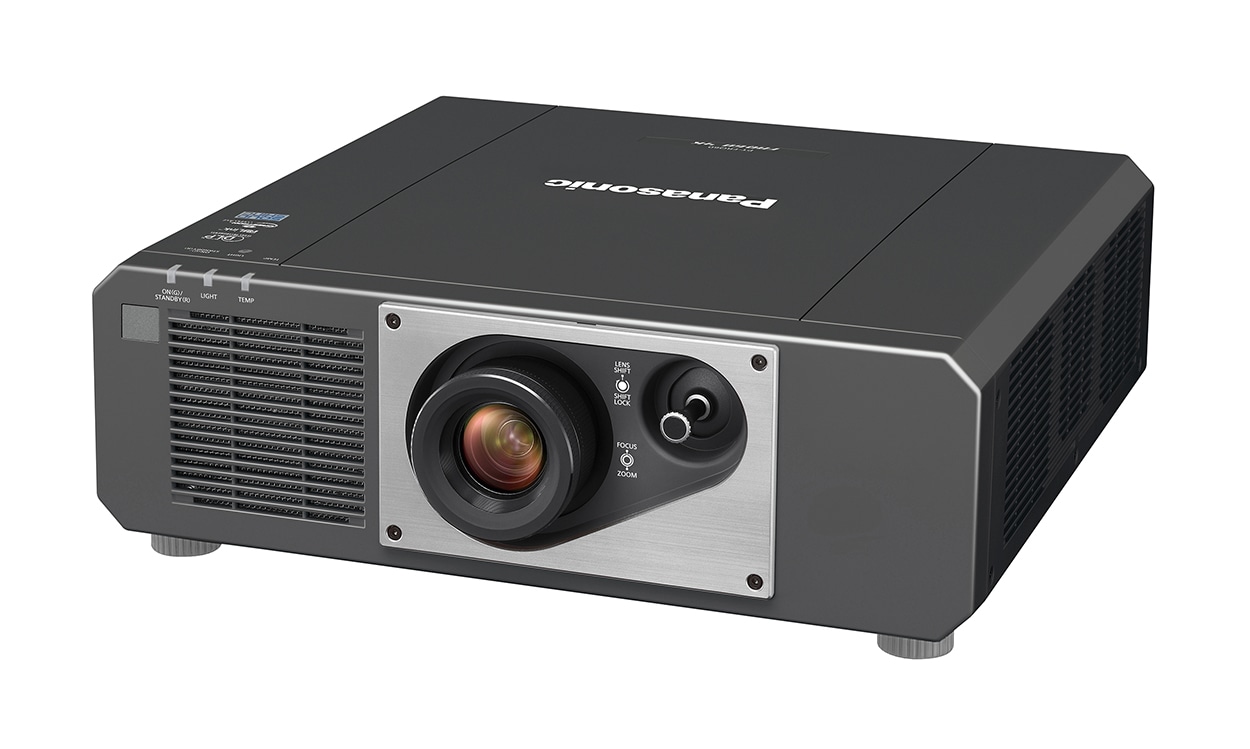

Panasonic PT-FRQ60

Brand	Panasonic · PT-FRQ60 Series
Type	Installation
Resolution	4K UHD (1080p pixel shift)
HDR formats	HLG
Imaging technology	DLP
Light source type	Laser (phosphor)
ISO light output	6,000 lm
Throw ratio	1.46–2.93:1
Input lag (rated)	1920×1080 @ 240 Hz: 8 ms

A fixed-lens single-chip DLP laser projector for installations such as museums, classrooms and offices. A 0.65-inch 1080p chip with Quad Pixel Drive produces a 3840x2160 image at a rated 6,000 lumens, with a 2.0x manual zoom, wide manual lens shift, 240 Hz 1080p input, two HDMI inputs and DIGITAL LINK.

Data sheet


Imaging technology	DLP
Technology brand	DLP
Number of imaging devices	1
Chip / panel diagonal	0.65 in
Native aspect ratio	16:9
Native resolution	1920 × 1080
Pixel shift	Other
Addressable resolution	3840 × 2160
Dynamic contrast	20,000:1 PICTURE MODE DYNAMIC and DYNAMIC CONTRAST 1, HDMI signal input; ISO/IEC 21118:2020 per maker footnote	PICTURE MODE DYNAMIC and DYNAMIC CONTRAST 1, HDMI signal input; ISO/IEC 21118:2020 per maker footnote
Dynamic light control	Laser dimming
Gamma / EOTF presets	2.2, Custom
HDR formats	HLG
Max refresh rate	1920×1080: 240 Hz
Input lag (rated)	1920×1080 @ 240 Hz: 8 ms

Optics

Throw ratio	1.46–2.93:1
Projection distance table	40″: 1.26–2.57 m · 50″: 1.59–3.22 m · 60″: 1.91–3.88 m · 70″: 2.24–4.53 m · 80″: 2.57–5.18 m · 90″: 2.9–5.83 m · 100″: 3.22–6.49 m · 120″: 3.88–7.79 m · 150″: 4.86–9.75 m · 200″: 6.5–13.01 m · 250″: 8.14–16.28 m · 300″: 9.78–19.54 m
Zoom type	Optical
Zoom ratio	2×
Focus	Manual
Vertical lens shift	-48–71%
Horizontal lens shift	-27–34%
Motorized lens shift	No
Focal length	21.5–43 mm
F-number	2–3.4
Interchangeable lens	No
Image size range	40–300 in
Vertical keystone	-40–40°
Horizontal keystone	-20–20°
Corner / warp correction	Warp

Light source

Light source type	Laser (phosphor)
Light source detail	Laser diodes
Light source life	Normal: 20,000 h · Eco: 24,000 h · Quiet: 20,000 h Light output declines to about 50 % of original; PICTURE MODE DYNAMIC, DYNAMIC CONTRAST 2, 30 °C, 700 m elevation, 0.15 mg/m3 particulate matter	Light output declines to about 50 % of original; PICTURE MODE DYNAMIC, DYNAMIC CONTRAST 2, 30 °C, 700 m elevation, 0.15 mg/m3 particulate matter
Life definition	50% brightness
Constant brightness mode	Yes
Cool-down time	0 s
Light-source dimming	Dynamic frame
ISO light output	6,000 lm ISO 21118 · NORMAL mode · PICTURE MODE DYNAMIC, LIGHT POWER NORMAL; average of all products when shipped	ISO 21118 · NORMAL mode · PICTURE MODE DYNAMIC, LIGHT POWER NORMAL; average of all products when shipped
ANSI lumens	6,000 lm Average of all products when shipped; Panasonic states ISO/IEC 21118 and ANSI results will be the same	Average of all products when shipped; Panasonic states ISO/IEC 21118 and ANSI results will be the same
Brightness by mode	Normal: 6,000 lm · Eco: 4,800 lm · Quiet: 4,800 lm
Brightness uniformity (centre-to-corner)	90%

Audio

Speaker count	0
Audio outputs	3.5 mm

Inputs, control & connectivity

Max input signal	4096 × 2160
HDMI port count	2
HDMI ports (feature-level)	HDMI 1: HDMI, HDCP 2.3; HDMI 2: HDMI, HDCP 2.3
Audio input terminals	3.5 mm
Horizontal scan frequency	27–292 kHz
Vertical scan frequency	24–240 Hz
HDBaseT	Yes
VGA input	Yes
RS-232	Yes
LAN control	Yes
PJLink class	Class 2
Control ecosystem drivers	Crestron
Ethernet	Yes

Environment & power

Operating temperature	0–45°C
Operating humidity	10–80%RH
Altitude / high-altitude mode	4,200 m
Operating orientations	Table, Ceiling, Rear, 360°
Rated voltage	100–240 V
Rated frequency	50–60 Hz
Power consumption (max)	505 W
Power consumption by mode	Normal: 445 W · Eco: 355 W · Quiet: 355 W Operating temperature 25 °C, altitude 700 m (spec file)	Operating temperature 25 °C, altitude 700 m (spec file)
Standby power	0.5 W STANDBY MODE ECO mode	STANDBY MODE ECO mode
Fan noise (sound pressure)	Normal: 36 dB(A) · Eco: 36 dB(A) · Quiet: 31 dB(A)

Physical & installation

Width	498 mm
Depth	492 mm
Height	168 mm
Weight	16.4 kg
Colours / finishes	Black, White
Mount hole pattern	Thread: M6 · Holes: 5 · Tapping depth mm: 15 · Torque nm: 4
Sealed optical engine	Yes
Air filter	None

Support & ownership

User manual	https://bizpartner.panasonic.net/public/ppr/file_view/205235
Photobiological risk group	RG2
Laser product class	Class 1 (IEC/EN 60825-1:2014)
Safety & market certifications	FCC

In the box

Box contents

Projector, Remote, Batteries, Power cord
