Panasonic PT-HTQ20

Release date not announced

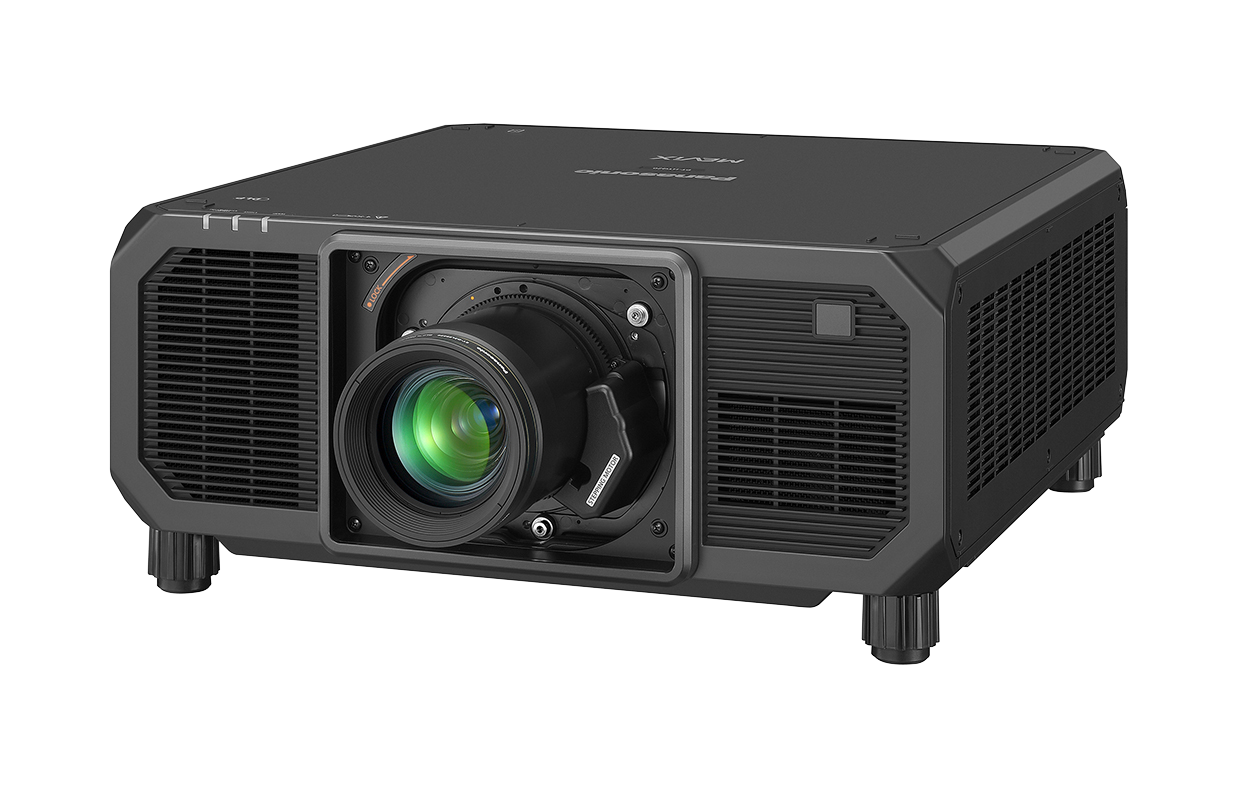

Panasonic PT-HTQ20 projector, black, front three-quarter view from the left with a zoom lens fitted

Brand	Panasonic · PT-HTQ20
Type	Installation
Status	Announced
Resolution	3840 × 2400 (WUXGA pixel shift)
HDR formats	HLG
Imaging technology	DLP
Light source	RGB triple laser
Brightness	20,000 lm ISO

A single-chip DLP projector for large venues and immersive attractions, with red, green and blue laser diodes and a 0.96-inch 1920x1200 chip. Quad Pixel Drive produces a 3840x2400 image at a rated 20,000 lumens on 200-240 V power. It is sold without a lens and takes Panasonic's D3LE-series interchangeable lenses.

Data sheet


White light output	20,000 lm ISO (Normal power, Dynamic mode) · 20,000 lm ANSI (Normal power, Dynamic mode) With the ET-D3LES250 zoom lens, PICTURE MODE DYNAMIC, LIGHT POWER NORMAL; average of all products when shipped	With the ET-D3LES250 zoom lens, PICTURE MODE DYNAMIC, LIGHT POWER NORMAL; average of all products when shipped
Brightness uniformity	90%
Brightness by mode	Normal 20,000 lm · Eco 16,000 lm
Eco brightness	80%Derived
Imaging technology	DLP
Chip / panel diagonal	0.96 in
Native resolution	WUXGA (1920 × 1200)
Native aspect	16:10Derived
Addressable resolution	3840 × 2400
Dynamic contrast	25,000:1
Colour gamut	Over BT.2020 95% coverage
Colour temperature presets	Custom
HDR formats	HLG

Light source

Light source	RGB triple laser
Emitter	RGB triple laser
Light-source life	20,000 h normal · 24,000 h eco
Life defined as	50% brightness PICTURE MODE DYNAMIC, DYNAMIC CONTRAST 3	PICTURE MODE DYNAMIC, DYNAMIC CONTRAST 3

Optics

Image size	70–1,000 in
Focus	Motorised
Vertical lens shift	±55%
Horizontal lens shift	±20%
Motorised lens shift	Yes
Vertical keystone	40°
Horizontal keystone	40°
Interchangeable lens	Yes

Motion & gaming

Max input refresh

1080p: 240 Hz

Inputs & control

HDMI inputs	2 × HDMI (HDCP 2.3)
Other video inputs	SDI
Max input resolution	DCI 4K HDMI	HDMI
Control ports	RS-232
PJLink	Class 2
Control-system drivers	Crestron, AMX

Smart platform

Ethernet

Yes

Physical & installation

Dimensions (W × D × H)	590 × 600 × 220 mm
Weight	38,700 g
Orientations	360°
Ceiling mount	6 × M6, 16 mm deep, 4 N·m
Dust filter	None
Ingress protection	IP5X (light engine)

Environment & power

Operating temperature	0–45°C
Operating humidity	10–80%RH
Altitude	4,200 m
Power draw	Max 1,450 W · Normal 1,165 W · Eco 950 W AC 200-240 V (100-120 V: normal 1,200 W, eco 990 W, max 1,430 W)	AC 200-240 V (100-120 V: normal 1,200 W, eco 990 W, max 1,430 W)
Standby	1 W STANDBY MODE [ECO], AC 200-240 V (0.3 W at AC 100-120 V)	STANDBY MODE [ECO], AC 200-240 V (0.3 W at AC 100-120 V)
Networked standby	11 W
Mains input	100–240 V · 50/60 Hz
Fan noise	Normal 42 dB(A) · Eco 42 dB(A)

Safety & support

Laser class	Class 1
Risk group	RG3

In the box

Power cord, Remote, Remote batteries

Similar models

Model	Resolution	Tech	Lumens	Price
Epson EB-PU2120W WUXGA · 3LCD	WUXGA	3LCD	20,000	$60,700	Compare
Epson EB-PU2220B WUXGA · 3LCD	WUXGA	3LCD	20,000	$72,279	Compare
Epson EB-PQ2220B 4K UHD · 3LCD	4K UHD	3LCD	20,000	$90,466	Compare
Panasonic PT-MZ20K WUXGA · 3LCD	WUXGA	3LCD	20,000	—	Compare

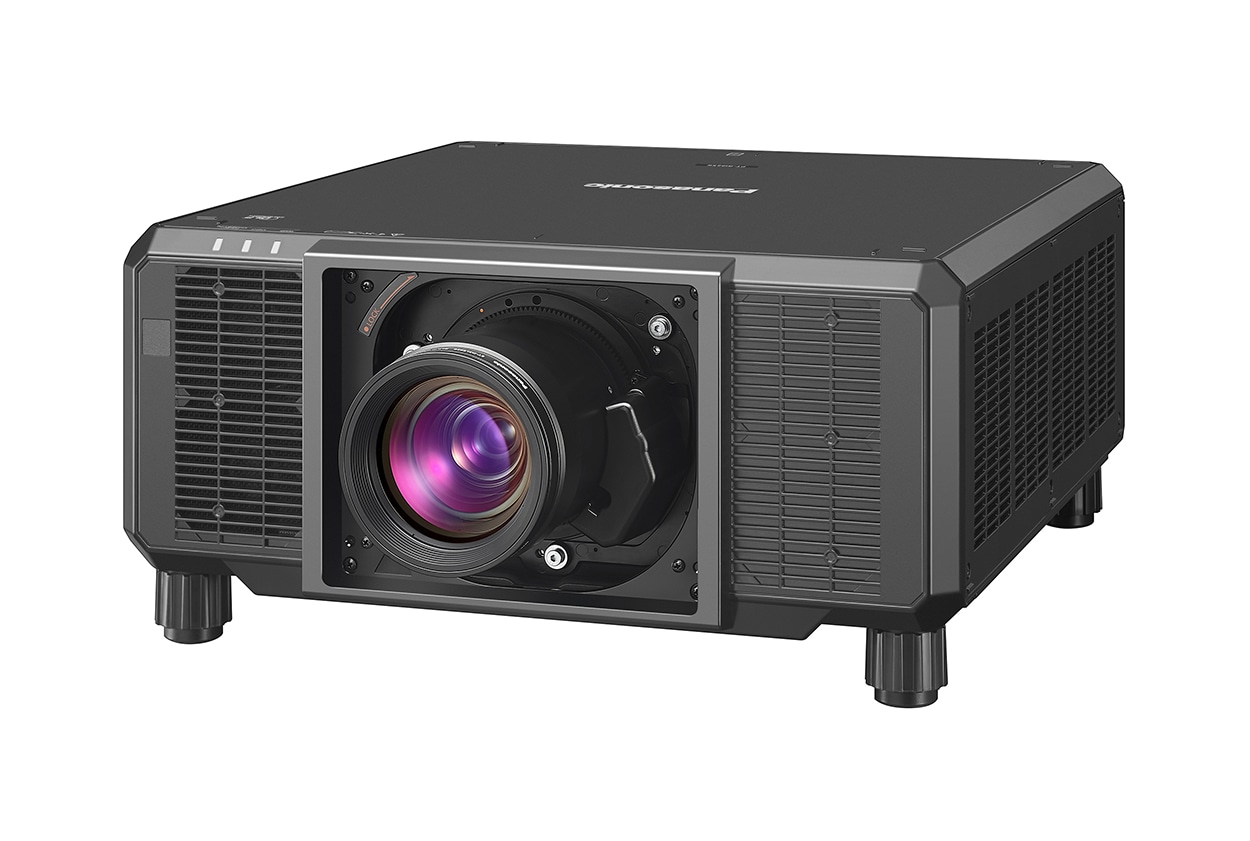

Panasonic PT-RQ25K 3840 × 2400 · DLP	3840 × 2400	DLP	20,000	—	Compare
