Panasonic PT-LW376
| Brand | Panasonic · PT-LB426 Series |
| Type | Business |
| Status | Discontinued |
| Resolution | WXGA |
| Imaging technology | 3LCD |
| Light source | Lamp |
| Brightness | 3,600 lm ISO |
| Throw ratio | 1.48–1.78:1 |

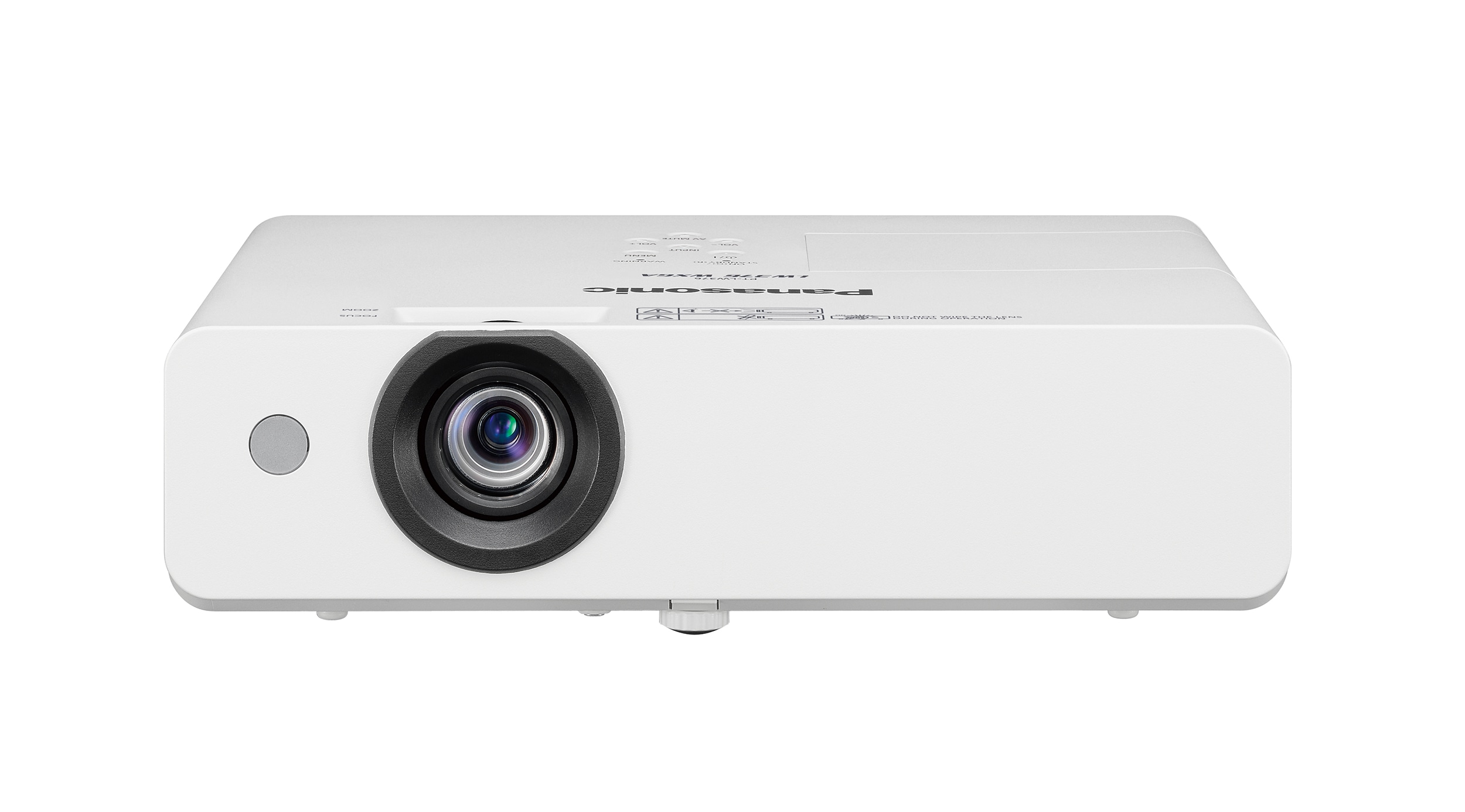

A 3LCD lamp portable projector for classrooms and meeting rooms. It has a 1280 x 800 panel, a rated 3,600 lumens, a 1.2x manual zoom lens, two HDMI inputs, LAN with PJLink and a 2.9 kg body.
Data sheet
| White light output | 3,600 lm ISO (Normal power, Dynamic mode) · 3,600 lm ANSI (Normal power, Dynamic mode) PICTURE MODE Dynamic, LAMP POWER Normal, AUTO POWER SAVE Off, DAYLIGHT VIEW Off; average of all products when shipped | PICTURE MODE Dynamic, LAMP POWER Normal, AUTO POWER SAVE Off, DAYLIGHT VIEW Off; average of all products when shipped |
| Brightness uniformity | 85% | |
| Imaging technology | 3LCD | |
| Chip / panel diagonal | 0.59 in | |
| Native resolution | WXGA (1280 × 800) | |
| Native aspect | 16:10Derived | |
| Dynamic contrast | 20,000:1 All white/all black, Iris On, Image mode Dynamic, Auto Power Save Off, Daylight View Off, Lamp control Normal | All white/all black, Iris On, Image mode Dynamic, Auto Power Save Off, Daylight View Off, Lamp control Normal |
| Dynamic contrast method | Dynamic iris |
Light source
| Light source | Lamp | |
| Lamp power | 230 W | |
| Replacement lamp | ET-LAL510 | |
| Light-source life | 10,000 h normal · 20,000 h eco |
Optics
| Throw ratio | 1.48–1.78:1100″ · 3.19–3.83 m | |
| Image size | 30–300 in | |
| Zoom | Optical | |
| Zoom ratio | 1.2×Derived | |
| Focal length | 19.16–23.02 mm | |
| Aperture (f-number) | 1.6–1.76 | |
| Focus | Manual | |
| Vertical keystone | 35° | |
| Horizontal keystone | 35° | |
| Auto keystone | Yes |
Inputs & control
| HDMI inputs | 2 × HDMI (HDCP 1.4) | |
| Other video inputs | VGA, Component, Composite | |
| Audio inputs | 3.5 mm, RCA | |
| USB media playback | Yes | |
| Control ports | RS-232 | |
| PJLink | Class 2 |
Smart platform
| Ethernet | Yes |
Audio
| Speaker power | 10 W | |
| Speakers | 1 | |
| Layout | Mono | |
| Audio outputs | 3.5 mm | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 335 × 252 × 96 mm | |
| Weight | 2,900 g | |
| Colours | White | |
| Orientations | Table, Ceiling, Rear | |
| Dust filter | Replaceable |
Environment & power
| Operating temperature | 5–40°C | |
| Operating humidity | 20–80%RH | |
| Altitude | 2,700 m | |
| Power draw | Max 300 W | |
| Standby | 0.5 W STANDBY MODE Eco | STANDBY MODE Eco |
| Networked standby | 1 W STANDBY MODE Network | STANDBY MODE Network |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 38 dB(A) · Eco 35 dB(A) |
Safety & support
| User manual | eu.connect.panasonic.com | |
| Spare parts | Lamp ET-LAL510 · Air filter ET-RFL300 |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|
NEC M363W WXGA · DLP | WXGA | DLP | 3,600 | $949 | Compare |
Optoma ZW350ST WXGA · DLP | WXGA | DLP | 3,600* | $814.99 | Compare |
InFocus IN114xa 1024 × 768 · DLP | 1024 × 768 | DLP | 3,500* −100 | — | Compare |
InFocus IN124STx 1024 × 768 · DLP | 1024 × 768 | DLP | 3,700* +100 | $796 | Compare |
NEC NP610 1024 × 768 · 3LCD | 1024 × 768 | 3LCD | 3,500 −100 | $1,799 | Compare |
BenQ EH600 1080p · DLP | 1080p | DLP | 3,500 −100 | $999 | Compare |
Other
Tools
- Throw calculator — How far from the screen the PT-LW376 needs to sit for a given image size, set to its 1.48–1.78:1 lens.
- Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
- Download spec as JSON — The same data from the open data API, with variants and identifiers.
Variants & identifiers
Use these to confirm a listing is this exact model. Any of them works at /p/{code}.
| Variant | Region | Type | Code |
|---|---|---|---|
| White, EU | 🇪🇺 EU | EAN | 5025232936106 |
Also known as
| PT-LW376U | 🇺🇸 US | Regional model |
