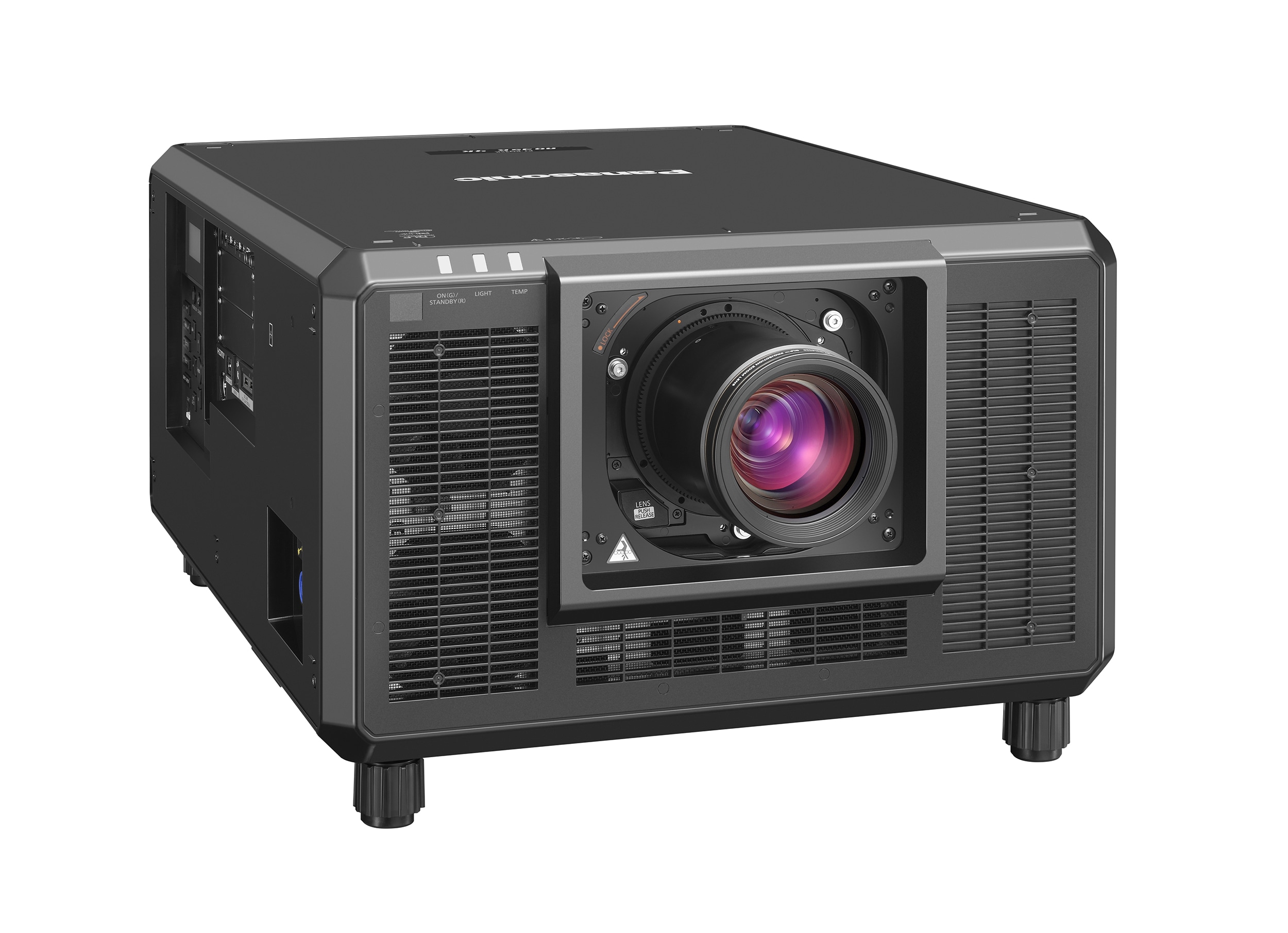

Panasonic PT-RQ35K

Brand	Panasonic · PT-RQ35K Series
Type	Installation
Released	December 2020
Resolution	3840 × 2400 (WUXGA pixel shift)
HDR formats	HLG
Imaging technology	DLP
Light source	Laser (phosphor)
Brightness	30,500 lm ISO

A lens-less three-chip DLP laser projector for large venues and staging. Three 0.96-inch 1920x1200 chips with Quad Pixel Drive produce a 3840x2400 image at a rated 30,500 lumens. Lenses are sold separately, and the body has two interface-board slots, HDMI, HDBaseT and RS-232C.

Data sheet


White light output	30,500 lm ISO (Normal power) · 30,500 lm ANSI (Normal power) OPERATING MODE NORMAL, AC 200 V supply, lens other than ET-D75LE95; average of all products when shipped	OPERATING MODE NORMAL, AC 200 V supply, lens other than ET-D75LE95; average of all products when shipped
Brightness uniformity	90%
Brightness by mode	Normal 30,500 lm · Eco 24,000 lm
Eco brightness	79%Derived
Imaging technology	DLP
Chip / panel diagonal	0.96 in
Native resolution	WUXGA (1920 × 1200)
Native aspect	16:10Derived
Pixel shift	Yes (scheme not stated)
Addressable resolution	3840 × 2400
Dynamic contrast	20,000:1 DYNAMIC CONTRAST 3; ISO/IEC 21118:2020 per maker footnote	DYNAMIC CONTRAST 3; ISO/IEC 21118:2020 per maker footnote
Colour gamut	About DCI-P3 90%
HDR formats	HLG

Light source

Light source	Laser (phosphor)
Light engine	Laser diodes (Blue LD, Red LD)
Light-source life	20,000 h normal · 24,000 h eco
Life defined as	50% brightness

Optics

Image size	70–1,000 in
Focus	Motorised
Vertical lens shift	±55%
Horizontal lens shift	±20%
Motorised lens shift	Yes
Vertical keystone	45°
Horizontal keystone	40°
Interchangeable lens	Yes

Inputs & control

HDMI inputs	HDMI (HDCP 2.2)
Other video inputs	HDBaseT
Max input resolution	DCI 4K
Control ports	RS-232
PJLink	Class 2

Smart platform

Ethernet

Yes

Physical & installation

Dimensions (W × D × H)	598 × 780 × 353 mm
Weight	69,800 g
Colours	Black
Orientations	360°
Dust filter	None

Environment & power

Operating temperature	0–45°C
Operating humidity	10–80%RH
Altitude	4,200 m
Power draw	Max 2,550 W · Normal 2,060 W · Eco 1,650 W
Standby	14 W
Mains input	100–240 V · 50/60 Hz
Fan noise	Normal 49 dB(A) · Eco 49 dB(A)

Safety & support

Laser class	Class 1
Risk group	RG3
Marks	FCC
User manual	eu.connect.panasonic.com

In the box

Power cord, Remote, Remote batteries
