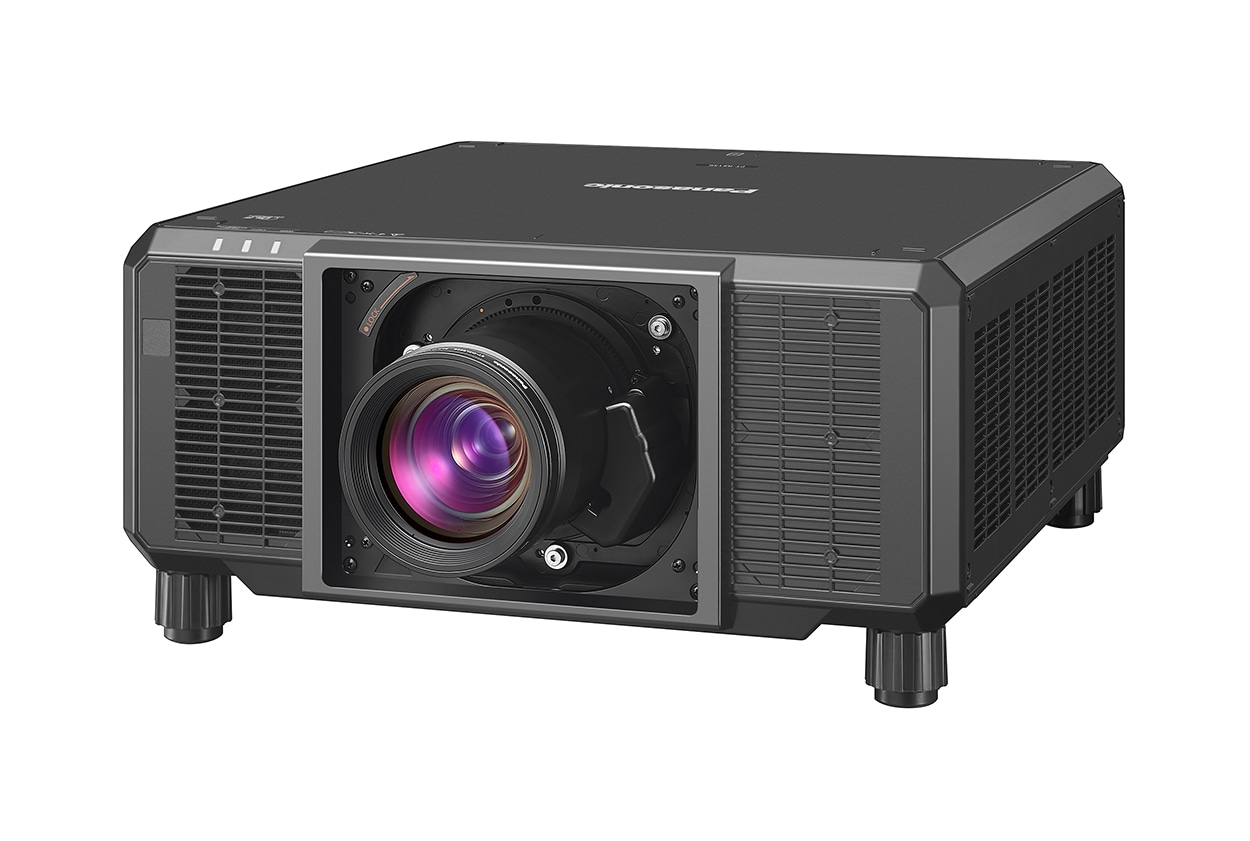

Panasonic PT-RZ14K
| Brand | Panasonic · PT-RZ14K |
| Type | Installation |
| Released | October 2023 |
| Resolution | WUXGA |
| HDR formats | HLG |
| Imaging technology | DLP |
| Light source | Laser (phosphor) |
| Brightness | 14,000 lm ISO |
A 3-chip DLP laser projector for rental, staging and large installations, with three 0.8-inch WUXGA chips and a rated 14,000 lumens. It ships without a lens, has powered lens shift, two HDMI inputs, DisplayPort, an Intel SDM slot and runs at full brightness on 100-120 V power.
Data sheet
| White light output | 14,000 lm ISO (Normal power) · 14,000 lm ANSI OPERATING MODE NORMAL; measured with the ET-D3LES20 zoom lens fitted (value varies with the lens); average of all products when shipped | OPERATING MODE NORMAL; measured with the ET-D3LES20 zoom lens fitted (value varies with the lens); average of all products when shipped |
| Brightness uniformity | 90% | |
| Brightness by mode | Normal 14,000 lm · Eco 11,200 lm | |
| Eco brightness | 80%Derived | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.8 in | |
| Native resolution | WUXGA (1920 × 1200) | |
| Native aspect | 16:10Derived | |
| Dynamic contrast | 25,000:1 Full On/Full Off with DYNAMIC CONTRAST set to [3]; ISO/IEC 21118:2020 per maker footnote | Full On/Full Off with DYNAMIC CONTRAST set to [3]; ISO/IEC 21118:2020 per maker footnote |
| Dynamic contrast method | Light-source dimming | |
| HDR formats | HLG | |
| 3D | Yes |
Light source
| Light source | Laser (phosphor) | |
| Light-source life | 20,000 h normal · 24,000 h eco IEC 62087:2008 broadcast content, Dynamic Contrast [3], 35 °C, 700 m, 0.15 mg/m3 particulate matter | IEC 62087:2008 broadcast content, Dynamic Contrast [3], 35 °C, 700 m, 0.15 mg/m3 particulate matter |
| Life defined as | 50% brightness |
Optics
| Image size | 70–1,000 in | |
| Focus | Motorised | |
| Vertical lens shift | ±66% | |
| Horizontal lens shift | ±24% | |
| Motorised lens shift | Yes | |
| Vertical keystone | 45° | |
| Horizontal keystone | 40° | |
| Grid warp | Yes | |
| Interchangeable lens | Yes |
Inputs & control
| HDMI inputs | 2 × HDMI (HDCP 2.3) | |
| Max input resolution | DCI 4K | |
| Control ports | RS-232 | |
| PJLink | Class 2 | |
| Control-system drivers | Crestron |
Smart platform
| Ethernet | Yes |
Physical & installation
| Dimensions (W × D × H) | 550 × 570 × 220 mm | |
| Weight | 35,000 g | |
| Colours | Black | |
| Orientations | Table, Ceiling, Rear, 360° | |
| Ceiling mount | M6, 16 mm deep, 4 N·m | |
| Dust filter | None | |
| Ingress protection | IP5X (light engine) |
Environment & power
| Operating temperature | 0–45°C | |
| Operating humidity | 10–80%RH | |
| Altitude | 4,200 m | |
| Power draw | Max 1,080 W · Normal 950 W · Eco 780 W ISO/IEC 21118:2020, 25 °C, 700 m | ISO/IEC 21118:2020, 25 °C, 700 m |
| Standby | 0.4 W STANDBY MODE ECO | STANDBY MODE ECO |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 40 dB(A) · Eco 40 dB(A) |
Safety & support
| Laser class | Class 1 | |
| Risk group | RG3 | |
| FDA laser notice | Notice 57 | |
| Marks | FCC | |
| Warranty | 🇺🇸 US 3 yr Stated by a US retailer; Panasonic's own warranty page was not located. | |
| User manual | bizpartner.panasonic.net |
In the box
| In the box | Power cord, Remote, Remote batteries |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|
Panasonic PT-MZ14K WUXGA · 3LCD | WUXGA | 3LCD | 14,000 | — | Compare |
Optoma ProScene ZK1320 3840 × 2400 · DLP | 3840 × 2400 | DLP | 13,500 −500 | — | Compare |
Optoma ProScene ZU1700 WUXGA · DLP | WUXGA | DLP | 14,500 +500 | $43,749 | Compare |
Epson EB-PU2113W WUXGA · 3LCD | WUXGA | 3LCD | 13,000 −1,000 | $30,409 | Compare |
Epson EB-PU2213B WUXGA · 3LCD | WUXGA | 3LCD | 13,000 −1,000 | $31,406 | Compare |
Epson EB-PQ2213B 4K UHD · 3LCD | 4K UHD | 3LCD | 13,000 −1,000 | $52,363 | Compare |
