Panasonic PT-RZ570

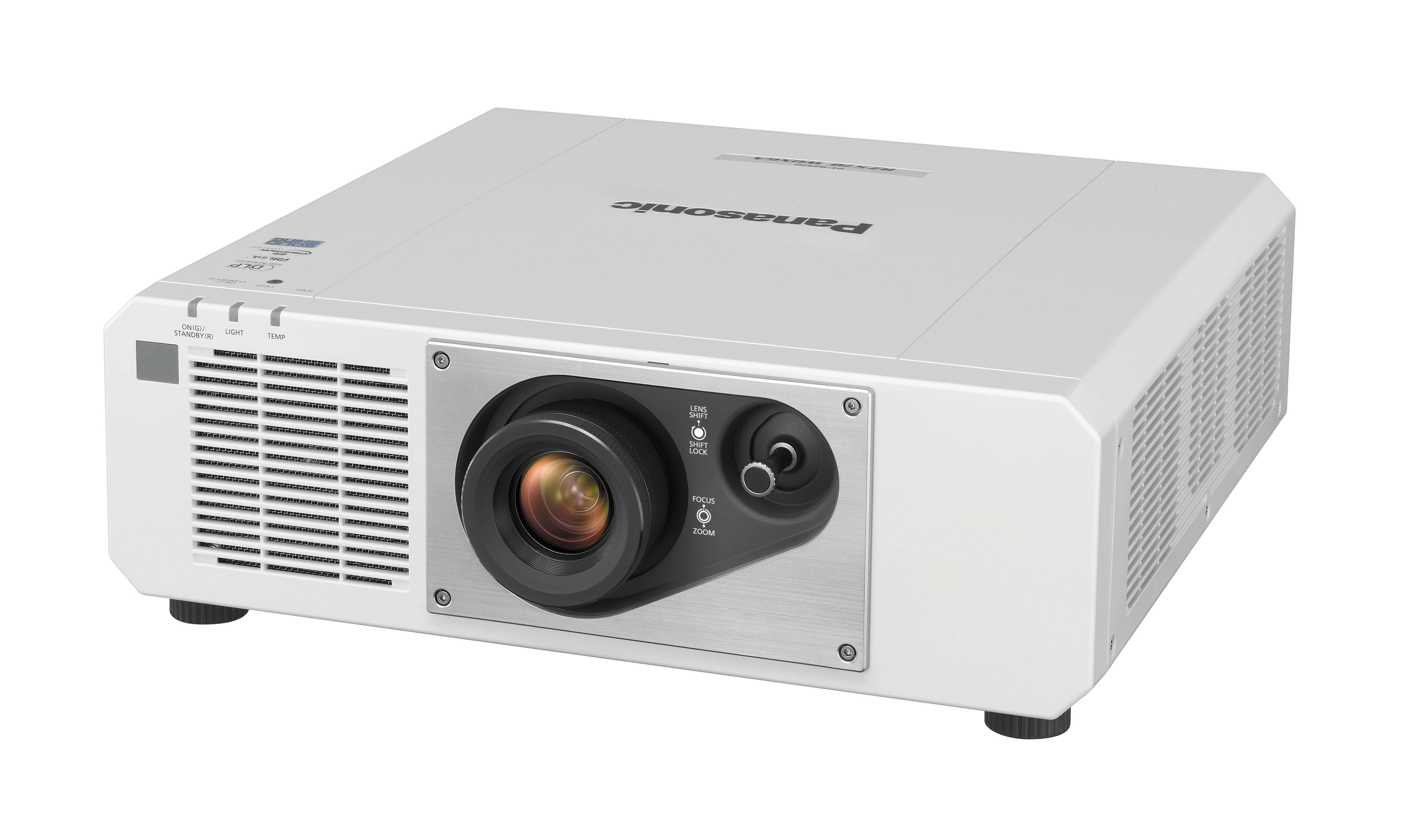

Panasonic PT-RZ570 laser projector, white, front three-quarter view showing the lens and left air intake
BrandPanasonic · Solid Shine
TypeInstallation
Status
Discontinued
ResolutionWUXGA
Imaging technologyDLP
Light sourceLaser (phosphor)
Brightness5,200 lm ISO
Throw ratio1.5–2.9:1

A 1-chip DLP laser projector for installation, education and corporate use, with a 0.67-inch WUXGA (1920x1200) chip, a rated 5,200 lumens and a 2x manual zoom lens with lens shift. It has HDMI, DVI-D, VGA and DIGITAL LINK inputs, can be mounted in any direction, and has no built-in speaker. Panasonic lists it as discontinued.

Where to buy

We earn a commission on purchases made through these links.

Data sheet


White light output5,200 lm ISO · 5,200 lm ANSI
Brightness by modeNormal 5,200 lm
Imaging technologyDLP
Chip / panel diagonal0.67 in
Native resolutionWUXGA (1920 × 1200)
Native aspect16:10Derived
Dynamic contrast20,000:1
Dynamic contrast methodLight-source dimming

Light source

Light sourceLaser (phosphor)Derived
EmitterBlue laser + phosphor
Light-source life20,000 h normal · 24,000 h eco
Life defined as50% brightness
Constant brightness modeYes

Optics

Throw ratio1.5–2.9:10 m5 m10 m15 m20 m40″60″80″100″120″150″200″250″300″100″ · 3.23–6.25 m
Image size40–300 in
ZoomOptical
Zoom ratio1.93×Derived
Focal length21.5–43 mm
Aperture (f-number)2–3.4
FocusManual
AutofocusNo
Vertical lens shift-44–64%
Motorised lens shiftNo
Vertical keystone40°
Horizontal keystone20°
Corner correction4-corner

Motion & gaming

Max input refresh720p: 120 Hz · 1080p: 60 Hz · WUXGA: 60 Hz

Inputs & control

HDMI inputs2 × HDMI
Other video inputsVGA, HDBaseT
Max input resolutionWUXGA
Audio inputs3.5 mm, RCA
Control portsRS-232
Control-system driversCrestron

Smart platform

EthernetYes

Audio

Speakers0
Audio outputs3.5 mm
HDMI audio returnNoneDerived

Physical & installation

Dimensions (W × D × H)498 × 492 × 168 mm
Weight16,300 g
ColoursBlack, White
OrientationsTable, Ceiling, Rear, Portrait, 360°
Dust filterNone
Sealed optical engineYes

Environment & power

Operating temperature0–45°C
Operating humidity10–80%RH
Altitude4,200 m
Power drawMax 500 W
Standby0.5 W
Networked standby10 W
Power supplyBuilt in
Mains input100–240 V · 50/60 Hz
Fan noise33 dB(A)

Safety & support

Laser classClass 1 (US: Class 3R)
Risk groupRG2
User manualeu.connect.panasonic.com

In the box

In the boxPower cord, Remote, Remote batteries, Software CD
