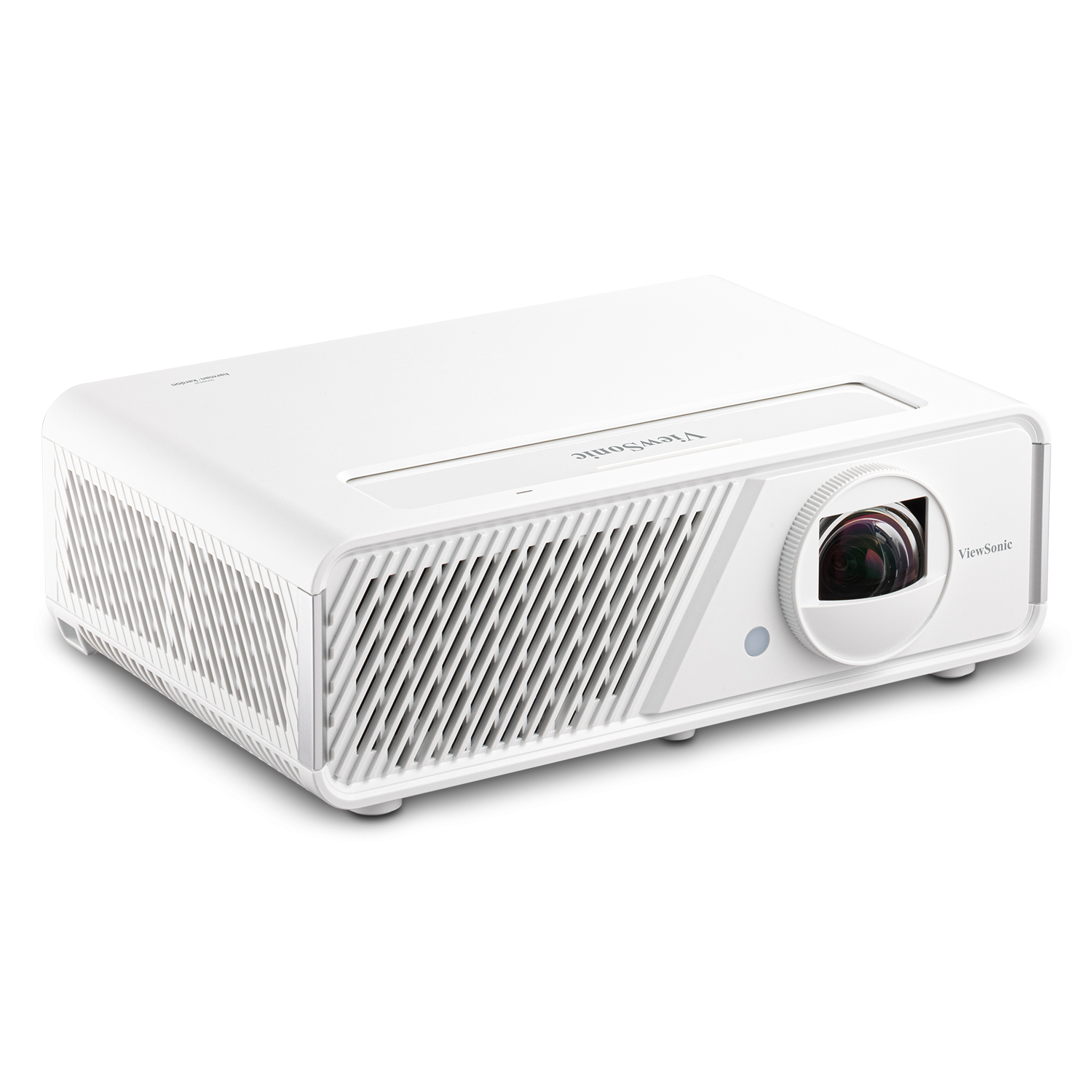

ViewSonic X2
| Brand | ViewSonic |
| Type | Home cinema |
| Status | Discontinued |
| Released | June 2022 |
| Resolution | 1080p |
| HDR formats | HDR10 |
| Imaging technology | DLP |
| Light source | LED |
| Claimed brightness (non-standard) | 3,100 lm (LED lumens) |
| Throw ratio | 0.69–0.83:1 |
A single-chip DLP short-throw home projector with a 0.65-inch 1080p chip and an RGB LED light source rated at 3,100 LED lumens and 30,000 hours. It has a 0.69-0.83 throw ratio, 1.2x optical zoom, no vertical lens shift, two HDMI 2.0 inputs, USB-C, Wi-Fi, Bluetooth and two 6 W Harman Kardon speakers.
Data sheet
| Claimed brightness (non-standard) | 3,100 lm (LED lumens) | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.65 in | |
| Native resolution | 1080p (1920 × 1080) | |
| Native aspect | 16:9Derived | |
| Dynamic contrast | 3,000,000:1 | |
| Colour gamut | Rec. 709 125% | |
| HDR formats | HDR10 | |
| 3D | Yes | |
| 3D formats | Frame packing, Side-by-side, Top-bottom, Frame sequential |
Light source
| Light source | LED | |
| Emitter | RGB LED | |
| Light-source life | 30,000 h |
Optics
| Throw ratio | 0.69–0.83:1100″ · 1.53–1.84 m | |
| Image size | 30–300 in | |
| Projection offset | 105% | |
| Zoom | Optical | |
| Zoom ratio | 1.2×Derived | |
| Focal length | 10.2–11.22 mm | |
| Aperture (f-number) | 2.6–2.78 | |
| Focus | Manual | |
| Vertical lens shift | None | |
| Vertical keystone | 40° | |
| Horizontal keystone | 40° | |
| Auto keystone | Yes | |
| Corner correction | 4-corner |
Inputs & control
| HDMI inputs | 2 × HDMI 2.0 (HDCP 2.2) | |
| Other video inputs | USB-C (DisplayPort) | |
| Max input resolution | 4K UHD | |
| Audio inputs | 3.5 mm, RCA | |
| USB media playback | Yes | |
| Control ports | RS-232 |
Audio
| Speaker power | 12 W | |
| Speakers | 2 | |
| Layout | Stereo | |
| Tuned by | Harman Kardon | |
| Audio outputs | 3.5 mm, Bluetooth | |
| HDMI audio return | NoneDerived | |
| Bluetooth speaker mode | Yes |
Physical & installation
| Dimensions (W × D × H) | 355 × 251 × 121 mm | |
| Weight | 3,600 g | |
| Ceiling mount | M4, screws ≤ 8 mm |
Environment & power
| Operating temperature | 0–40°C | |
| Operating humidity | 0–90%RH | |
| Altitude | 3,000 m | |
| Power draw | 218 W | |
| Standby | Up to 0.5 W | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 31 dB(A) · Eco 27 dB(A) |
Safety & support
| Marks | CE, FCC | |
| Warranty | 🇺🇸 US 3 yr (light source 1 yr) | |
| User manual | viewsonicglobal.com |
In the box
| In the box | Power cord, Remote, Quick start guide | |
| Remote | IR · backlit |
Reviews
Articles
| Date | Title | Publication |
|---|---|---|
| October 19, 2022 | ViewSonic X2 Short-Throw LED Projector Review ProjectorCentral · October 19, 2022 | ProjectorCentral |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|

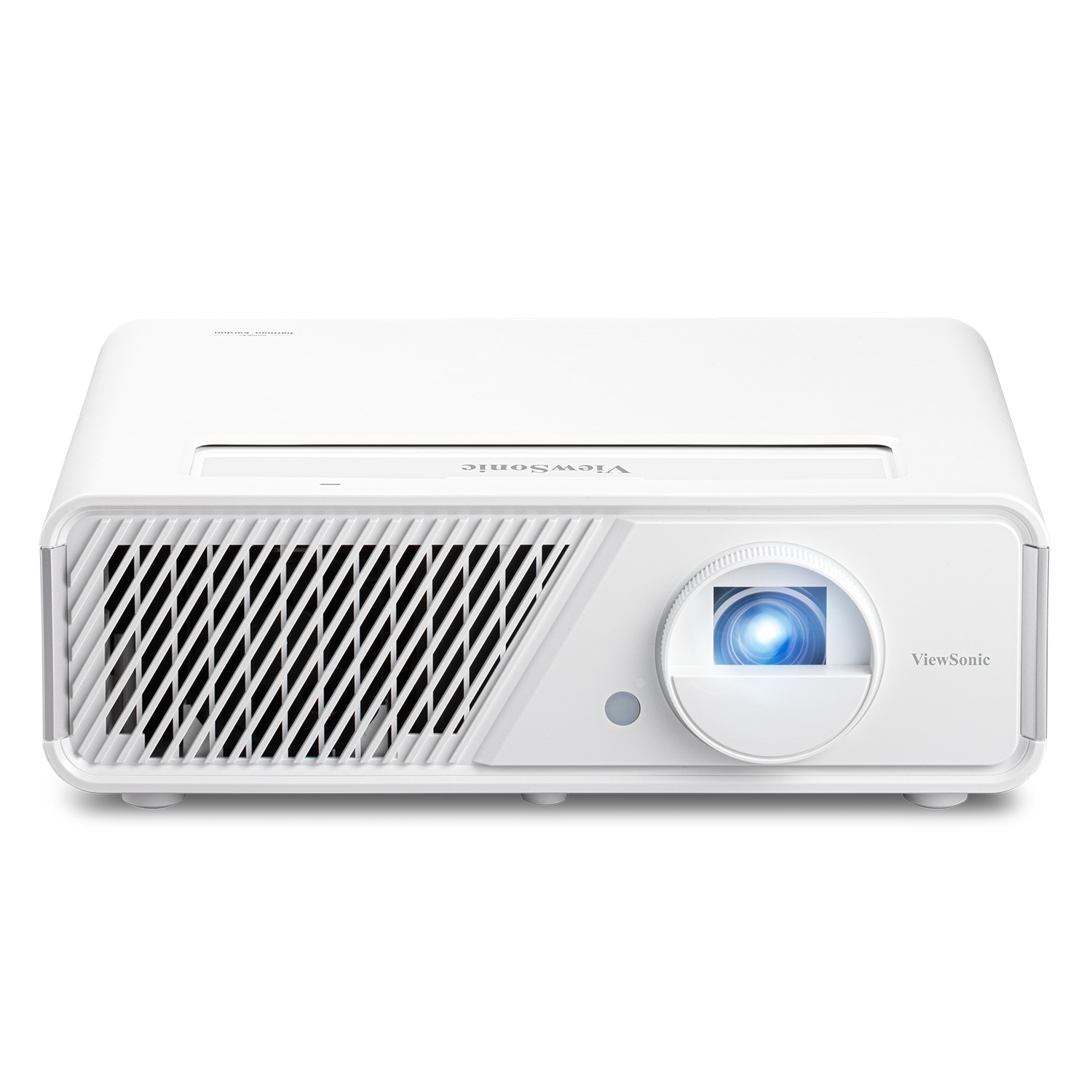

ViewSonic X1 1080p · DLP | 1080p | DLP | 3,100* | $999 −$100 | Compare |
