Dangbei MP1 Max
MSRP$1,999
| Brand | Dangbei |
| Type | Home cinema |
| Released | June 2025 |
| Resolution | 4K UHD |
| HDR formats | HDR10, HDR10+, HLG |
| Imaging technology | DLP |
| Light source type | Hybrid laser + LED |
| ISO light output | 3,100 lm |
| Throw ratio | 1.2:1 |

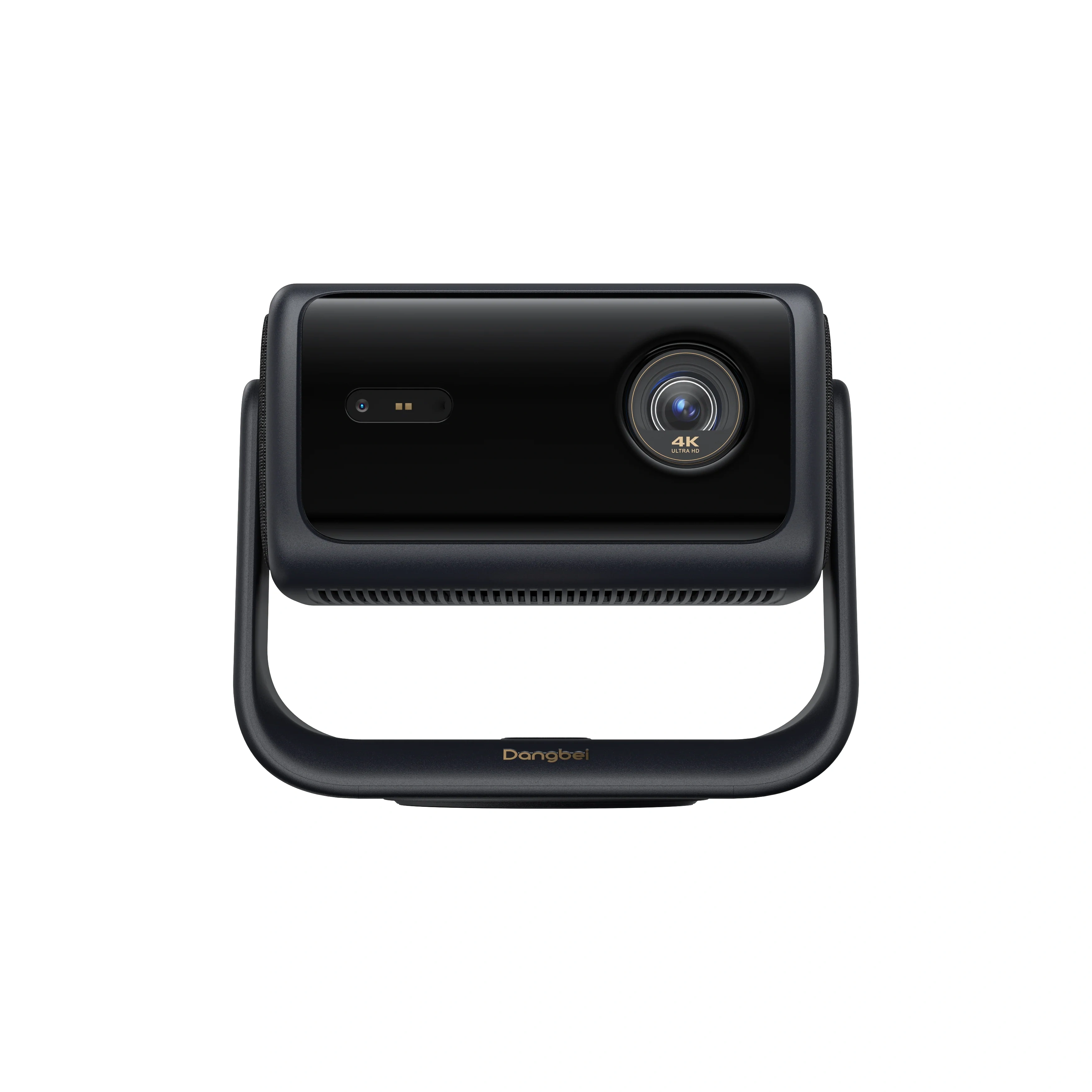

A 4K DLP projector with a triple laser plus LED light engine, rated at 3,100 ISO lumens, built on a 0.47-inch DMD. It runs Google TV with licensed Netflix, has a built-in stand that rotates 360 degrees and tilts 135 degrees, and uses a fixed 1.2:1 lens with digital zoom and automatic focus and keystone.
Data sheet
| Imaging technology | DLP | |
| Technology brand | DLP | |
| Chip / panel diagonal | 0.47 in | |
| Addressable resolution | 3840 × 2160 | |
| BT.2020 gamut | 110% | |
| Greyscale control points | 11 | |
| HDR formats | HDR10, HDR10+, HLG | |
| Frame interpolation (MEMC) | Yes | |
| Max refresh rate | 1920×1080: 240 Hz | |
| 3D support | Yes | |
| 3D formats | Side-by-side, Top-bottom |
Optics
| Throw ratio | 1.2:1 | |
| Zoom type | Digital | |
| Focus | Auto | |
| Image size range | 40–300 in | |
| Corner / warp correction | 4pt |
Light source
| Light source type | Hybrid laser + LED | |
| Light source detail | Triple laser + LED | |
| ISO light output | 3,100 lm ISO 21118 | ISO 21118 |
Audio
| Speaker power | 24 W | |
| Speaker count | 2 | |
| DTS | Yes | |
| Audio outputs | 3.5 mm, HDMI eARC, Bluetooth | |
| HDMI eARC | Yes | |
| Bluetooth speaker mode | Yes | |
| Bluetooth audio out | Yes |
Inputs, control & connectivity
| HDMI port count | 2 | |
| HDMI ports (feature-level) | HDMI 1: HDMI 2.1; HDMI 2: HDMI 2.1, eARC | |
| USB media playback | Yes | |
| Wi-Fi | Wi-Fi 6 | |
| Bluetooth version | 5.2 | |
| Ethernet | No | |
| Auto keystone | Yes | |
| Screen fit / alignment | Yes | |
| Obstacle avoidance | Yes | |
| Eye-protection sensor | Yes | |
| Integrated stand / gimbal | Type: built_in_stand · Horizontal rotation deg: 360 · Vertical tilt deg: 135 |
Environment & power
| Operating temperature | 5–35°C | |
| Operating orientations | Table, Ceiling | |
| Power consumption (max) | 190 W | |
| Standby power | 0.5 W | |
| Power supply | External brick | |
| Fan noise (sound pressure) | Standard: 24 dB(A) | |
| Noise measurement distance | 1 m |
Physical & installation
| Width | 296 mm | |
| Depth | 230 mm | |
| Height | 247 mm | |
| Weight | 5.6 kg | |
| Colours / finishes | Dark grey | |
| Mount hole pattern | Thread: 1/4-inch · Depth in: 0.26 · Holes: 1 |
Support & ownership
| Warranty | 🇺🇸 US 1 yr | |
| User manual | https://cdn.shopify.com/s/files/1/0582/1127/0815/files/MP1_Max-20250616.pdf?v=1750052373 | |
| Photobiological risk group | RG2 | |
| Laser product class | Class 1 laser product (IEC 60825-1:2014) | |
| Safety & market certifications | CE, UKCA, FCC |
In the box
| Box contents | Remote, Batteries, Carrying case, Power plug, Manual | |
| Remote type | Bluetooth |
Tools
- Throw calculator — How far from the screen the MP1 Max needs to sit for a given image size, set to its 1.2:1 lens.
- Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
- Download spec as JSON — The same data from the open data API, with variants and identifiers.
Variants & identifiers
Use these to confirm a listing is this exact model. Any of them works at /p/{code}.
| Variant | Region | Type | Code |
|---|---|---|---|
| US | 🇺🇸 US | ASIN | B0F437SQXF |
| UPC | 717052492836 | ||
| Maker SKU | US-DB-DU1H | ||
| MPN | DBOX03 |
Reviews
| Date | Title | Publication |
|---|---|---|
| September 22, 2025 | Dangbei MP1 Max Smart 4K Portable Projector Review | ProjectorCentral |
