Optoma ZK608TST vs Sharp XP-P601Q-W

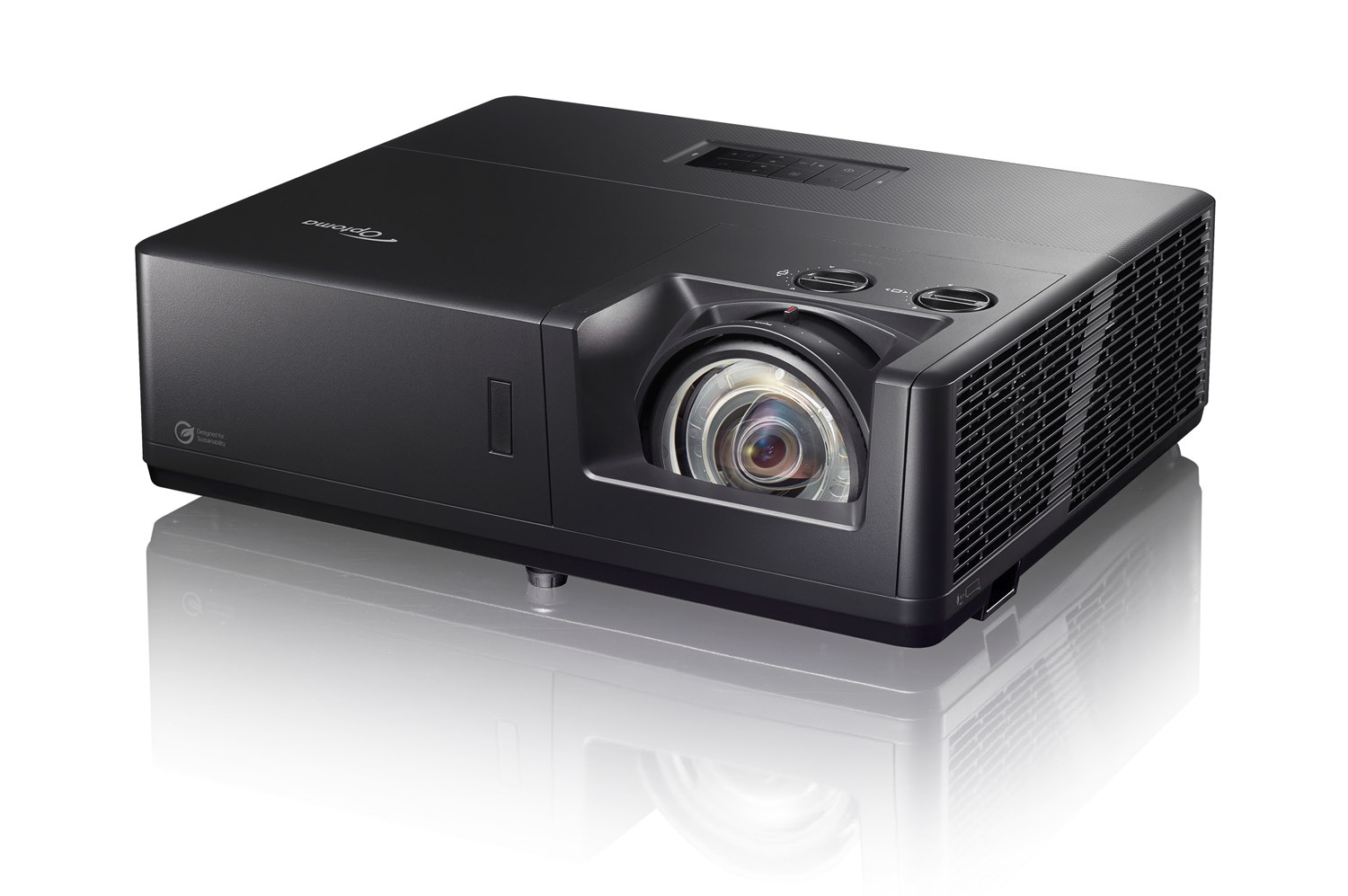

Optoma ZK608TSTOptoma ZK608TST
MSRP $8,999
Sharp XP-P601Q-WSharp XP-P601Q-W
$4,765.93
Key differences
White light output—6,000 lm ISO · 6,000 lm ANSI
Native resolution—1080p (1920 × 1080)
Throw ratio0.58:11.25–2:1
Lowest input lag4.36 msDerived—
HDR formatsHDR10, HLG—
Fan noiseMax 36 dB(A) · Eco 33 dB(A)Normal 36 dB(A) · Eco 34 dB(A)
PriceMSRP $8,999$4,765.93
Room fit
Distance to screen1.3 m2.8–4.4 m
Brightness
Rated brightness—6,000 lmDerived
White light output—6,000 lm ISO · 6,000 lm ANSI
Claimed brightness (non-standard)6,000 lm—
Brightness uniformity85%—
Display system
Imaging technologyDLPDLP
Chip / panel diagonal0.65 in0.65 in
On-screen resolution4K UHD (3840 × 2160)Derived4K UHD (3840 × 2160)Derived
Native resolution—1080p (1920 × 1080)
Native aspect16:9Derived16:9Derived
Pixel shift—Yes (scheme not stated)
Addressable resolution4K UHD (3840 × 2160)4K UHD (3840 × 2160)
Contrast
Dynamic contrast300,000:13,000,000:1
Dynamic contrast method—Light-source dimming
Colour
Colour bit depth (per channel)—10 bit
Gamma / EOTF presets—2.2, 2.4, 2.6
HDR
HDR formatsHDR10, HLG—
Tone mapping—Adjustable
Calibration
Colour management (CMS)—6-axis
3D
3DYesYes
3D formats—Frame packing, Side-by-side, Top-bottom, Frame sequential
3D glasses syncDLP-LinkDLP-Link
Light source
Light sourceLaser (phosphor)Laser (phosphor)
Emitter—Blue laser + phosphor
Laser wavelengths—B 455 nm
Light-source lifeUp to 30,000 h max20,000 h normal · 30,000 h eco
Life defined as—50% brightness
Light output control—Continuous
Constant brightness mode—Yes
Optics
Throw ratio0.58:11.25–2:1
Image size30–300 in60–300 in
Projection offset106%—
ZoomNoneOptical
Zoom ratio—1.6×Derived
Focal length8.51 mm18.7–29.6 mm
Aperture (f-number)—2–2.4
FocusManualMotorised
Vertical lens shift—±55%
Horizontal lens shift±4%±25%
Motorised lens shiftNoYes
Lens memory slots—5
Vertical keystone15°40°
Horizontal keystone15°40°
Auto keystoneYes—
Corner correction4-corner—
Grid warp—Yes
Motion & gaming
Max input refresh—1080p: 240 Hz · 4K UHD: 60 Hz
Max refresh at 1080p—240 HzDerived
Max refresh at 4K—60 HzDerived
Input lag1080p: 60 Hz 17 ms · 120 Hz 8.6 ms · 240 Hz 4.4 ms · 4K UHD: 60 Hz 16.9 ms—
Lowest input lag4.36 msDerived—
Input lag at 4K 60 Hz16.9 msDerived—
Inputs & control
HDMI inputs2 × HDMI 2.02 × HDMI (HDCP 2.2)
HDMI inputs (count)2Derived2Derived
Newest HDMI versionHDMI 2.0Derived—
Other video inputs+ VGA, HDBaseTHDBaseT
Max input resolutionDCI 4K4K UHD
Audio inputs3.5 mm3.5 mm
Control portsRS-232, 12 V triggerRS-232, + Wired IR, 12 V trigger
PJLinkClass 2Class 2
Control-system driversCrestronCrestron
Horizontal scan—15–255 kHz
Vertical scan24–120 Hz24–240 Hz
Smart platform
Wi-FiNoneNone
EthernetYesYes
Audio
Speaker power30 W20 W
Speakers22
Layout—Mono
Audio outputs3.5 mm3.5 mm
HDMI audio returnNoneDerivedNoneDerived
Physical & installation
Dimensions (W × D × H)374 × 302 × 117 mm486 × 433 × 186 mm
Weight6,300 g14,700 g
Colours+ Black+ White
Orientations360°+ Table, + Ceiling, + Rear, + Portrait, 360°
Ceiling mount—4 × M4, screws ≥ 8 mm
Dust filter—None
Ingress protectionIP6X—
Sealed optical engineYesYes
Environment & power
Operating temperature0–40°C0–45°C
Operating humidity—10–85%RH
Altitude—3,048 m · high-altitude mode
Power drawMax 366 W · Eco 300 WMax 530 W · Normal 530 W · Eco 285 W
StandbyUp to 0.5 WUp to 0.5 W
Networked standby—Up to 2 W
Power supply—Built in
Mains input100–240 V · 50/60 Hz100–240 V · 50/60 Hz
Noise
Fan noiseMax 36 dB(A) · Eco 33 dB(A)Normal 36 dB(A) · Eco 34 dB(A)
Safety & compliance
Laser classClass 1Class 1
Risk groupRG2RG2
FDA laser noticeNotice 57—
Marks+ FCC+ CE, + UKCA
Support & ownership
Warranty3 yr🇨🇦 CA 5 yr or 20,000 h · 🇪🇺 EU 3 yr (light source 3 yr or 10,000 h)
User manualhttps://region-resource.optoma.com/products/import/Documents/6faa2a33-4b9d-4130-82e6-94d79467557d.pdfhttps://www.projectorcentral.com/pdf/projector_manual_12438.pdf
In the box
In the boxPower cord, Remote, Remote batteries, + User manualPower cord, Remote, Remote batteries, + Quick start guide
RemoteBacklitIR
