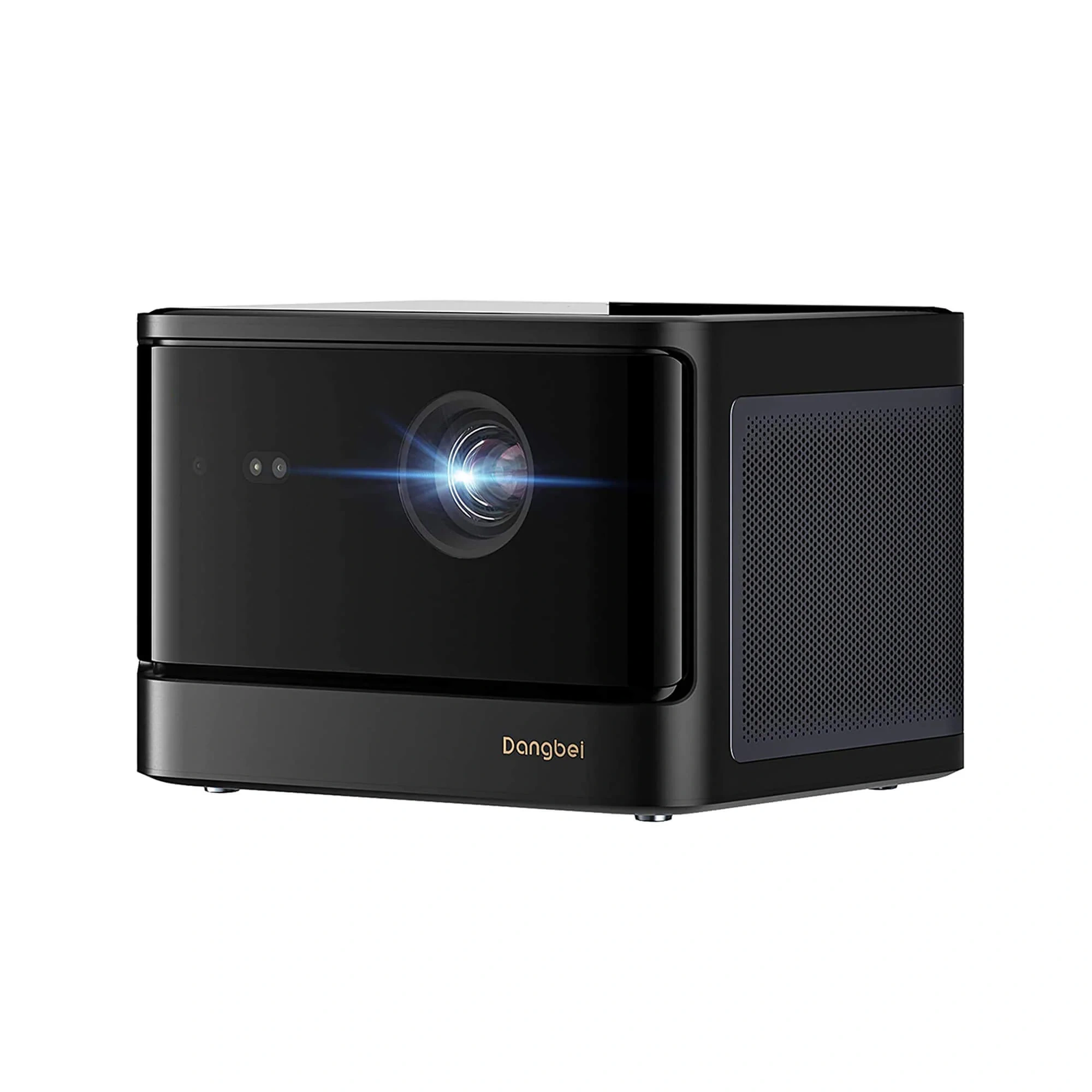

Dangbei DBOX01
| Brand | Dangbei · Mars |
| Type | Home cinema |
| Status | Discontinued |
| Released | June 2023 |
| Resolution | 1080p |
| HDR formats | HDR10, HLG |
| Imaging technology | DLP |
| Light source | Laser (phosphor) |
| Brightness | 2,100 lm ISO |
| Throw ratio | 1.27:1 |
A 1080p laser (ALPD) DLP home projector rated at 2,100 ISO lumens, with a fixed 1.27:1 lens, auto focus, auto keystone, screen fit and obstacle avoidance. It runs a Linux-based system with licensed Netflix, YouTube and Prime Video, has two HDMI ports, 2 x 10 W speakers and quoted noise under 24 dB.
Data sheet
| White light output | 2,100 lm ISO | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.47 in | |
| Native resolution | 1080p (1920 × 1080) | |
| Native aspect | 16:9Derived | |
| HDR formats | HDR10, HLG | |
| 3D | No |
Light source
| Light source | Laser (phosphor) | |
| Light engine | ALPD | |
| Light-source life | 30,000 h |
Optics
| Throw ratio | 1.27:1100″ · 2.81 m | |
| Image size | 60–180 in | |
| Projection offset | 100% | |
| Zoom | Digital | |
| Focus | Motorised | |
| Autofocus | Yes | |
| Vertical lens shift | None | |
| Horizontal lens shift | None | |
| Horizontal keystone | 30° | |
| Auto keystone | Yes | |
| Corner correction | 4-corner | |
| Auto setup | Fit to screen, Obstacle avoidance | |
| Interchangeable lens | No |
Motion & gaming
Inputs & control
| HDMI inputs | HDMI (ARC) · HDMI |
Audio
| Speaker power | 20 W | |
| Speakers | 2 | |
| Audio formats | Dolby Audio | |
| Audio outputs | Optical, HDMI ARC | |
| HDMI audio return | ARCDerived | |
| Bluetooth speaker mode | Yes |
Physical & installation
| Dimensions (W × D × H) | 246 × 209 × 173 mm | |
| Weight | 4,600 g | |
| Orientations | Table, Ceiling, Rear | |
| Tripod socket | Yes |
Environment & power
| Operating temperature | 5–35°C | |
| Power draw | Max 150 W | |
| Fan noise | Up to 24 dB(A) |
Safety & support
| Risk group | RG2 | |
| Eye-protection sensor | Yes | |
| Marks | CE, UKCA | |
| Warranty | 🇺🇸 US 1 yr ProjectorCentral lists 2 years; the maker's page says 1. | |
| User manual | shopifydata.dangbei.net |
In the box
| In the box | Power cord, Power adapter, Remote, User manual, Cleaning kit | |
| Remote | Bluetooth |
