JMGO N1S Ultimate

MSRP$2,799

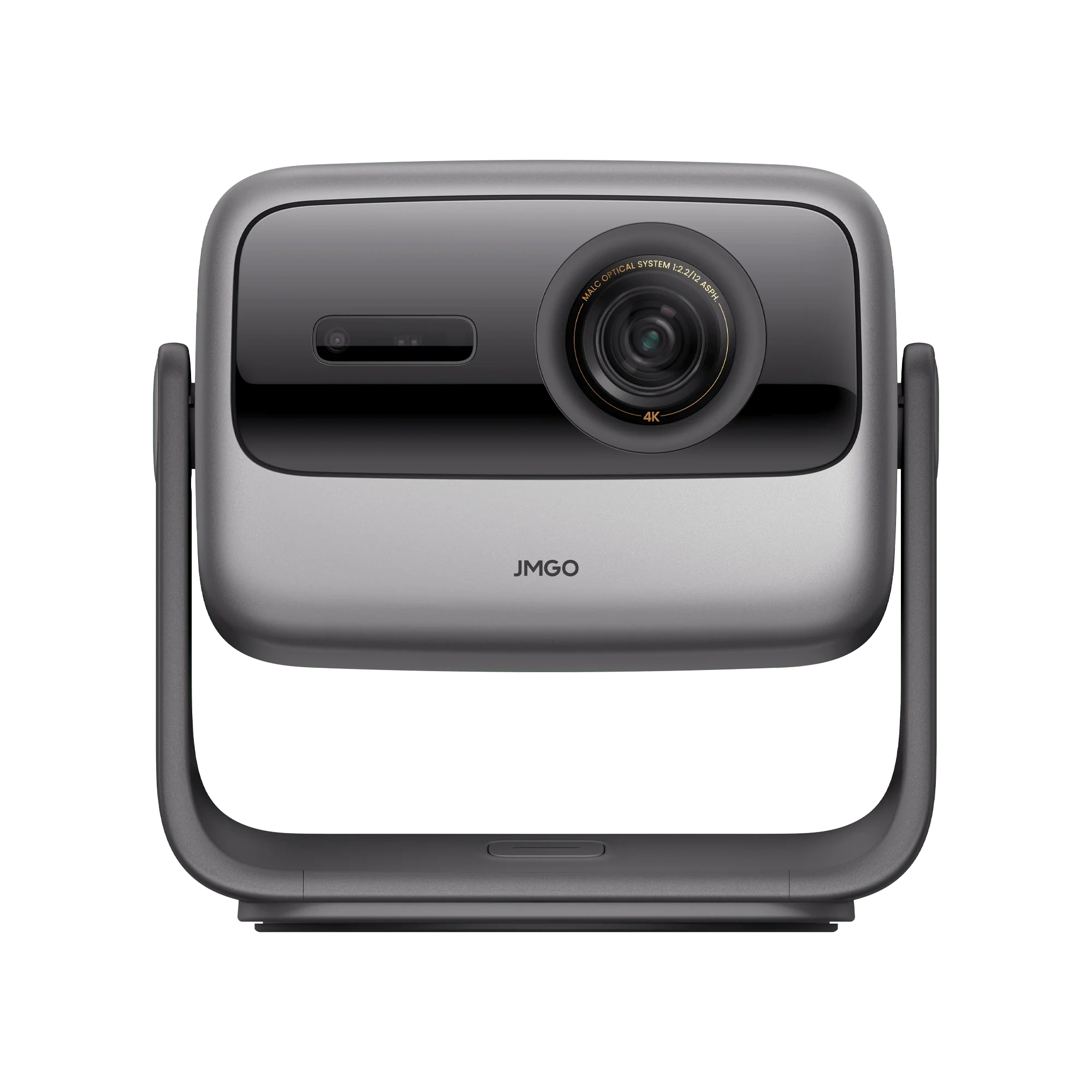

JMGO N1S Ultimate projector, front view, on its gimbal stand

Brand	JMGO · N1S
Type	Home cinema
Released	September 2024
Resolution	4K UHD (1080p pixel shift)
HDR formats	HDR10, HLG
Imaging technology	DLP
Light source type	RGB triple laser
ISO light output	3,300 lm
Throw ratio	1.2:1

A portable RGB triple-laser DLP projector on a built-in gimbal stand, with a 1080p chip pixel-shifted to 4K UHD and a rated 3,300 ISO lumens. It runs Google TV with native Netflix and has two HDMI inputs, one with eARC, but no optical zoom or lens shift.

Data sheet


Imaging technology	DLP
Technology brand	DLP
Number of imaging devices	1
Chip / panel diagonal	0.47 in
Native aspect ratio	16:9
Native resolution	1920 × 1080
Pixel shift	XPR 4-way
Addressable resolution	3840 × 2160
Dynamic contrast	1,600:1
BT.2020 gamut	110%
Gamut metric	Area
Bit depth / 'number of colours'	10 bit
Colour management system	6-axis
Greyscale control points	11
HDR formats	HDR10, HLG
Frame interpolation (MEMC)	Yes
Auto low-latency mode	Yes
3D support	Yes
3D sync method	DLP-Link

Optics

Throw ratio	1.2:1
Zoom type	Digital
Focus	Motorized
Vertical lens shift	0%
Horizontal lens shift	0%
Interchangeable lens	No
Image size range	40–300 in
Corner / warp correction	4pt

Light source

Light source type	RGB triple laser
Light source detail	MALC 2.0 stacking RGB triple laser
Light source life	Normal: 30,000 h
Light-source dimming	Manual steps
ISO light output	3,300 lm ISO 21118	ISO 21118

Audio

Speaker power	20 W
Speaker count	2
Audio channels	Stereo
Dolby Atmos	No
DTS	Yes
Audio outputs	3.5 mm, HDMI eARC
HDMI eARC	Yes
Bluetooth speaker mode	Yes

Inputs, control & connectivity

Max input signal	3840 × 2160
HDMI port count	2
HDMI ports (feature-level)	HDMI 1: HDMI 2.1; HDMI 2: HDMI 2.1, eARC
USB media playback	Yes
Wi-Fi	Wi-Fi 6
Bluetooth version	5.2
Ethernet	No
Autofocus	When moved
Auto keystone	Yes
Screen fit / alignment	Yes
Obstacle avoidance	Yes
Eye-protection sensor	Yes
Integrated stand / gimbal	Vertical deg: 135 · Horizontal deg: 360 · Removable: true

Firmware / software

Smart OS	Google TV
OS version	Google TV 3.0
Certified OS	Yes
Netflix	Native
Casting	Chromecast built-in
RAM	2 GB
Storage	32 GB

Environment & power

Operating temperature	0–40°C
Operating orientations	Table, Ceiling, Rear
Rated voltage	100–240 V
Rated frequency	50–60 Hz
Power consumption (max)	240 W
Power supply	External brick
Fan noise (sound pressure)	Rated: 26 dB(A)

Physical & installation

Weight	4.5 kg
Tripod socket	No

Support & ownership

Warranty	🇺🇸 US 1 yr · 🇪🇺 EU 2 yr · 🇯🇵 JP 1 yr
User manual	https://global.jmgo.com/cdn/shop/files/JMGO_N1S_Ultimate_User_manual.pdf
Photobiological risk group	RG2
Laser product class	Class 1
Safety & market certifications	CE, FCC

In the box

Box contents	Projector, Remote, Power cord, Power adapter, Batteries, Quick start guide, Allen wrench
Remote type	Voice
