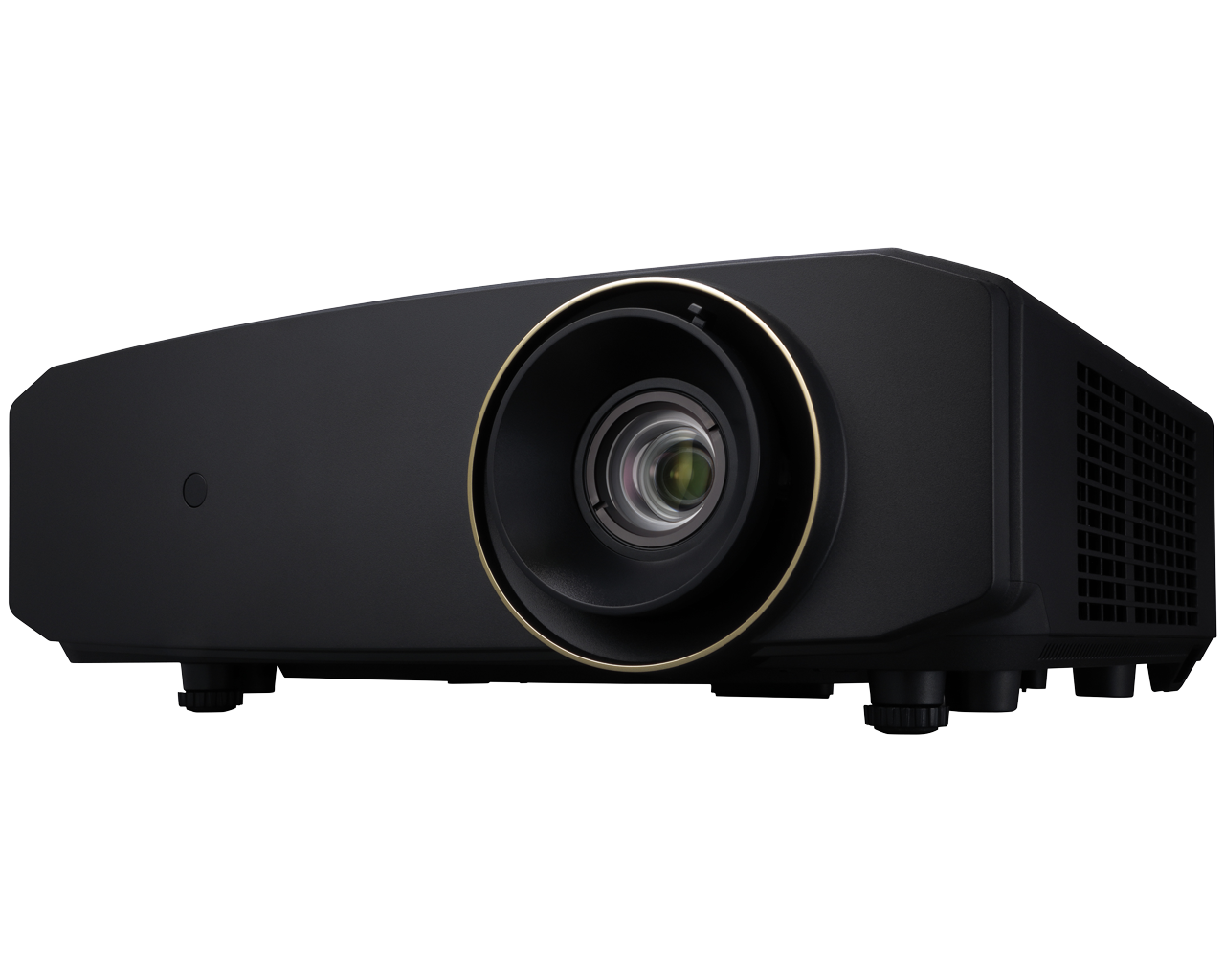

JVC LX-NZ30

MSRP$4,299.95

Brand	JVC · DLP Home Theater
Type	Home cinema
Resolution	4K UHD (1080p pixel shift)
HDR formats	HDR10, HLG
Imaging technology	DLP
Light source type	Laser (phosphor)
Claimed brightness (non-standard)	3,300
Throw ratio	1.36–2.18:1

A single-chip DLP laser projector for home theatre that gets 4K UHD from a 0.47-inch 1080p DMD with pixel shifting, with a rated 3,300 lumens and a manual 1.6x zoom lens with wide lens shift. It has two HDMI 2.0 inputs, DisplayPort and USB-C, and 1080p input up to 240 Hz. JVC lists no built-in speaker or smart platform.

Data sheet


Imaging technology	DLP
Technology brand	DLP
Number of imaging devices	1
Chip / panel diagonal	0.47 in
Native resolution	1920 × 1080
Pixel shift	Other
Addressable resolution	3840 × 2160
Dynamic light control	Laser dimming
Rec.709 gamut	100%
Gamma / EOTF presets	2.2, 2.4, 2.6
Colour management system	6-axis
Picture mode memories	2
HDR formats	HDR10, HLG
Tone-mapping brand name	Auto Tone Mapping
Max refresh rate	1920×1080: 240 Hz · 3840×2160: 60 Hz

Optics

Throw ratio	1.36–2.18:1
Projection distance table	80″: 2.4–3.84 m · 90″: 2.7–4.32 m · 95″: 2.85–4.56 m · 100″: 3–4.8 m · 110″: 3.3–5.28 m · 120″: 3.6–5.76 m · 130″: 3.9–6.24 m · 140″: 4.2–6.72 m · 150″: 4.5–7.2 m · 160″: 4.8–7.68 m · 170″: 5.1–8.16 m · 180″: 5.4–8.64 m · 200″: 6–9.6 m
Zoom ratio	1.6×
Focus	Manual
Vertical lens shift	±60%
Horizontal lens shift	±23%
Motorized lens shift	No
Focal length	14.3–22.9 mm
F-number	1.81
Image size range	60–200 in
Corner / warp correction	Warp

Light source

Light source type	Laser (phosphor)
Light source detail	Blue laser diode, 105 W x 1, wavelength 449-461 nm, with phosphor
Light source life	Normal: 20,000 h
Cool-down time	120 s
Claimed brightness (non-standard)	3,300
Claimed brightness unit	Unspecified

Inputs, control & connectivity

Max input signal	3840 × 2160
HDMI port count	2
HDMI ports (feature-level)	HDMI 1: HDMI 2.0, HDCP 2.3; HDMI 2: HDMI 2.0, HDCP 2.3
USB-C video (DP Alt Mode)	Yes
RS-232	Yes
LAN control	Yes
12 V trigger	Yes
Ethernet	Yes

Environment & power

Operating temperature	0–40°C
Operating humidity	10–90%RH
Altitude / high-altitude mode	3,000 m
High-altitude mode	Yes
Operating orientations	Table, Ceiling, Rear
Rated voltage	100–240 V
Rated frequency	50–60 Hz
Power consumption (max)	360 W
Standby power	0.5 W
Networked standby power	2 W
Fan noise (sound pressure)	Normal: 34 dB(A) · Eco: 29 dB(A)

Physical & installation

Width	405 mm
Depth	341 mm
Height	146 mm
Weight	5.9 kg
Colours / finishes	Black, White
Mount hole pattern	Screw: M4 · Screw length mm: 8

Support & ownership

Warranty	🇺🇸 US 2 yr
User manual	https://manuals.jvckenwood.com/download/files/B5A-4412-11.pdf
Photobiological risk group	RG2
Laser product class	Class 1
Safety & market certifications	FCC, CE

In the box

Box contents	Remote, Batteries, Power cable, Manual
Remote type	IR

Tools

Throw calculator — How far from the screen the LX-NZ30 needs to sit for a given image size, set to its 1.36–2.18:1 lens.
Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
Download spec as JSON — The same data from the open data API, with variants and identifiers.

Variants & identifiers

Use these to confirm a listing is this exact model. Any of them works at /p/{code}.

Variant	Region	Type	Code
Black	🇺🇸 US	MPN	LX-NZ30B
White	All regions	ASIN	B0BTTXMSGL
White	All regions	MPN	LX-NZ30WG
All variants	All regions	Model number	LX-NZ30W
All variants	All regions	Model number	LX-NZ30BG
