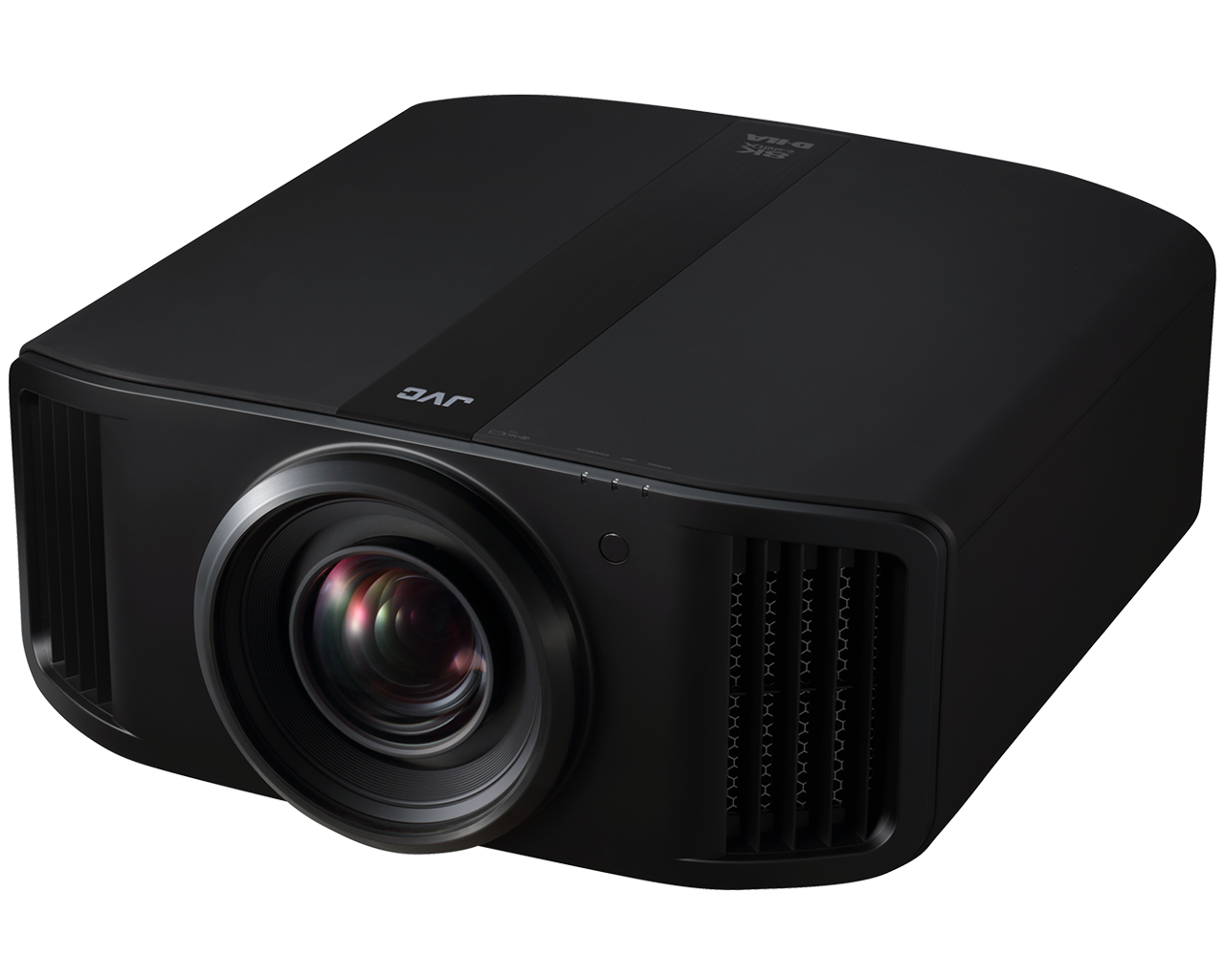

DLA-NZ900

MSRP$32,999.95

Brand	JVC · Procision
Type	Home cinema
Resolution	8192 × 4320 (DCI 4K pixel shift)
HDR formats	HDR10, HDR10+, HLG
Imaging technology	LCoS
Light source type	Laser (phosphor)
Claimed brightness (non-standard)	3,300
Native on/off contrast	150,000:1
Throw ratio	1.35–2.75:1

A flagship native 4K D-ILA home cinema projector with three 0.69-inch devices, a blue laser light source and a motorized 2x all-glass lens with wide shift. JVC rates it at 3,300 lumens with a native contrast of 150,000:1. It has two 48 Gbps HDMI inputs that accept 4K120 and 8K60, 8K e-shiftX pixel shifting and RF 3D.

Data sheet


Imaging technology	LCoS
Technology brand	D-ILA
Number of imaging devices	3
Chip / panel diagonal	0.69 in
Native resolution	4096 × 2160
Pixel shift	8K e-shift
Addressable resolution	8192 × 4320
Optical system description	Wire-grid optical engine, 3 D-ILA devices
Native on/off contrast	150,000:1
Dynamic light control	Laser dimming
Manual iris / aperture	Yes
Rec.709 gamut	100%
DCI-P3 gamut	98% Cinema Filter in place	Cinema Filter in place
BT.2020 gamut	73% Cinema Filter in place	Cinema Filter in place
Colour temperature presets	D55, D65, D93, Custom
Gamma / EOTF presets	2.2, 2.4, 2.6, Custom
Bit depth / 'number of colours'	12 bit
Filmmaker Mode	Yes
Colour management system	6-axis
Auto-calibration	Sensor supported
ISF certified	Yes
Picture mode memories	6
HDR formats	HDR10, HDR10+, HLG
Tone mapping type	Dynamic
Tone-mapping brand name	Frame Adapt HDR
Metadata handling	Uses MaxCLL
Frame interpolation (MEMC)	Yes
Max refresh rate	1920×1080: 120 Hz · 3840×2160: 120 Hz · 4096×2160: 120 Hz · 7680×4320: 60 Hz
Auto low-latency mode	Yes
3D support	Yes
3D sync method	RF
3D formats	Frame packing, Side-by-side, Top-bottom
Glasses included	0

Optics

Throw ratio	1.35–2.75:1
Projection distance table	60″: 1.75–3.61 m · 80″: 2.37–4.84 m · 100″: 2.98–6.07 m · 120″: 3.59–7.3 m · 150″: 4.51–9.15 m · 200″: 6.04–12.22 m · 250″: 7.57–15.3 m · 280″: 8.48–17.14 m
Zoom type	Optical
Zoom ratio	2×
Focus	Motorized
Vertical lens shift	±100%
Horizontal lens shift	±43%
Motorized lens shift	Yes
Lens elements	18
Lens aperture	100 mm
Lens material	All-glass
Image size range	60–300 in
Lens memory	10

Light source

Light source type	Laser (phosphor)
Light source detail	New BLU-Escent laser diode
Light source life	Standard: 20,000 h
Life definition	50% brightness
Cool-down time	10 s
Laser wavelengths	B 455 nm
Light-source dimming	Manual steps
Claimed brightness (non-standard)	3,300
Claimed brightness unit	Peak lumens

Audio

HDMI eARC

Inputs, control & connectivity

Max input signal	7680 × 4320
HDMI port count	2
HDMI ports (feature-level)	HDMI 1: HDMI, 48 Gbps, HDCP 2.3; HDMI 2: HDMI, 48 Gbps, HDCP 2.3
USB media playback	No
RS-232	Yes
LAN control	Yes
12 V trigger	Yes
Control ecosystem drivers	Control4
Ethernet	Yes

Environment & power

Operating temperature	5–35°C
Operating humidity	20–80%RH
Altitude / high-altitude mode	2,000 m
High-altitude mode	Yes
Operating orientations	Table, Ceiling, Rear, Tilt-limited
Rated voltage	100–240 V
Rated frequency	50–60 Hz
Power consumption by mode	In use: 440 W
Standby power	0.3 W
Networked standby power	1.5 W
Fan noise (sound pressure)	Fan noise: 24 dB(A)

Physical & installation

Width	500 mm
Depth	528 mm
Height	234 mm
Weight	25.3 kg
Exhaust / intake direction	Front

Support & ownership

Warranty	🇺🇸 US 3 yr
Latest firmware	2.01
User manual	https://manuals.jvckenwood.com/download/files/B5A-4578-21.pdf
Photobiological risk group	RG2
Laser product class	Class 1
Safety & market certifications	FCC, ISF

In the box

Box contents	Remote, Batteries, Power cord, Lens cover, Quick guide
Remote type	Backlit
3D glasses in box	0

Tools

Throw calculator — How far from the screen the DLA-NZ900 needs to sit for a given image size, set to its 1.35–2.75:1 lens.
Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
Download spec as JSON — The same data from the open data API, with variants and identifiers.

Variants & identifiers

Use these to confirm a listing is this exact model. Any of them works at /p/{code}.

Variant	Region	Type	Code
US (BK)	🇺🇸 US	ASIN	B0D461XLL3
US (BK)	🇺🇸 US	MPN	DLA-NZ900BK
US (WK)	🇺🇸 US	MPN	DLA-NZ900WK
Europe (BE)	🇪🇺 EU	MPN	DLA-NZ900BE
