JVC DLA-NZ700
$8,999.99
Buy on Amazon →
| Brand | JVC · Procision |
| Type | Home cinema |
| Released | March 2025 |
| Resolution | DCI 4K |
| HDR formats | HDR10, HDR10+, HLG |
| Imaging technology | LCoS |
| Light source | Laser (phosphor) |
| Claimed brightness (non-standard) | 2,300 lm |
| Native contrast (on/off) | 80,000:1 |
| Throw ratio | 1.34–2.14:1 |

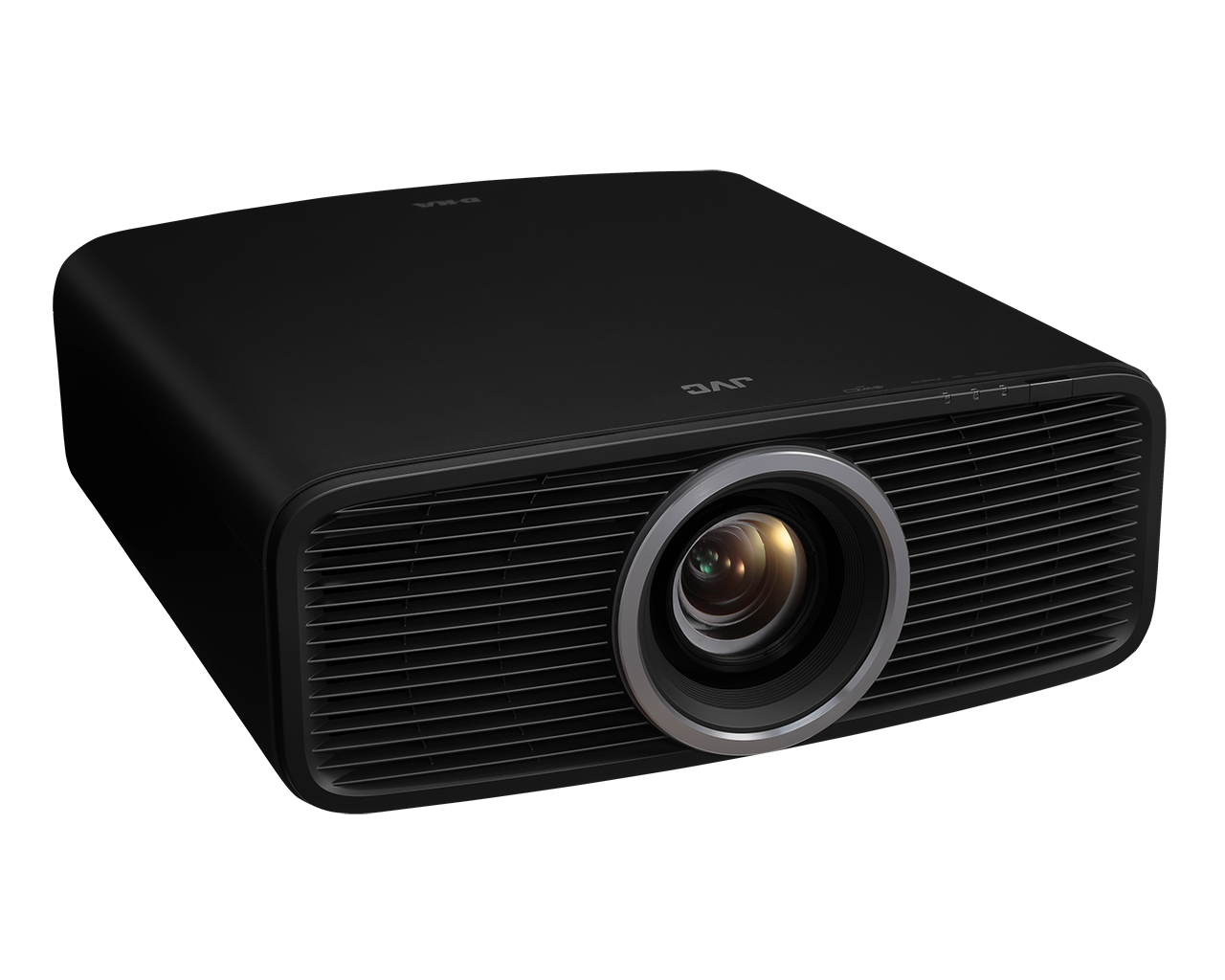

A native 4K D-ILA home cinema projector with three 0.69-inch devices, a blue laser light source and a motorized 1.6x lens with wide shift. JVC rates it at 2,300 lumens with a native contrast of 80,000:1. It has two 32 Gbps HDMI inputs, so no 4K120 or 8K input, and no 3D.
Where to buy
We earn a commission on purchases made through these links.
Data sheet
| Claimed brightness (non-standard) | 2,300 lm | |
| Imaging technology | LCoS | |
| Chip / panel diagonal | 0.69 in | |
| Native resolution | DCI 4K (4096 × 2160) | |
| Native aspect | 17:9Derived | |
| Pixel shift | None | |
| Native contrast (on/off) | 80,000:1 | |
| Dynamic contrast method | Light-source dimming | |
| Manual iris | Yes | |
| Colour gamut | Rec. 709 100% · DCI-P3 98% · BT.2020 73% Cinema Filter in place | Cinema Filter in place |
| Colour bit depth (per channel) | 12 bit | |
| Gamma / EOTF presets | 2.2, 2.4, 2.6, Custom | |
| Colour temperature presets | D93, D65, D55, Custom | |
| HDR formats | HDR10, HDR10+, HLG | |
| Tone mapping | Dynamic | |
| Tone mapping (maker name) | Frame Adapt HDR (Gen 2) | |
| Colour management (CMS) | 6-axis | |
| Auto-calibration | Sensor supported | |
| Picture certifications | ISF, Filmmaker Mode | |
| 3D | No |
Light source
| Light source | Laser (phosphor) | |
| Emitter | Blue laser + phosphor | |
| Light engine | BLU-Escent | |
| Laser wavelengths | B 455 nm | |
| Light-source life | 20,000 h | |
| Light output control | Steps | |
| Cool-down time | 10 s |
Optics
| Throw ratio | 1.34–2.14:1100″ · 3.01–4.80 m | |
| Image size | 60–200 in | |
| Zoom | Optical | |
| Zoom ratio | 1.6×Derived | |
| Focus | Motorised | |
| Vertical lens shift | ±70% | |
| Horizontal lens shift | ±28% | |
| Motorised lens shift | Yes | |
| Lens memory slots | 5 | |
| Interchangeable lens | No | |
| Lens elements | 15 |
Motion & gaming
| Black frame insertion | Yes | |
| Max input refresh | 4K UHD: 60 Hz · DCI 4K: 60 Hz |
Inputs & control
| HDMI inputs | 2 × HDMI (HDCP 2.3, 32 Gbps) | |
| Max input resolution | DCI 4K | |
| Control ports | None | |
| Control-system drivers | Control4 |
Smart platform
| Ethernet | Yes |
Physical & installation
| Dimensions (W × D × H) | 450 × 479 × 181 mm | |
| Weight | 14,800 g | |
| Orientations | Table, Ceiling, Rear, Limited tilt | |
| Exhaust | Rear |
Environment & power
| Operating temperature | 5–35°C | |
| Operating humidity | 20–80%RH | |
| Altitude | 2,000 m · high-altitude mode | |
| Power draw | 280 W | |
| Standby | 0.3 W | |
| Networked standby | 1.5 W | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Eco 23 dB(A) |
Safety & support
| Laser class | Class 1 | |
| Risk group | RG2 | |
| Marks | FCC | |
| Warranty | 🇺🇸 US 3 yr | |
| User manual | manuals.jvckenwood.com |
In the box
| In the box | Power cord, Remote, Remote batteries, Quick start guide, Lens cap | |
| Remote | Backlit |
Reviews
Articles
| Date | Title | Publication |
|---|---|---|
| May 17, 2025 | JVC DLA-NZ700 review TechRadar · May 17, 2025 | TechRadar |
| — | JVC DLA-NZ700 Review HiFiReport | HiFiReport |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|

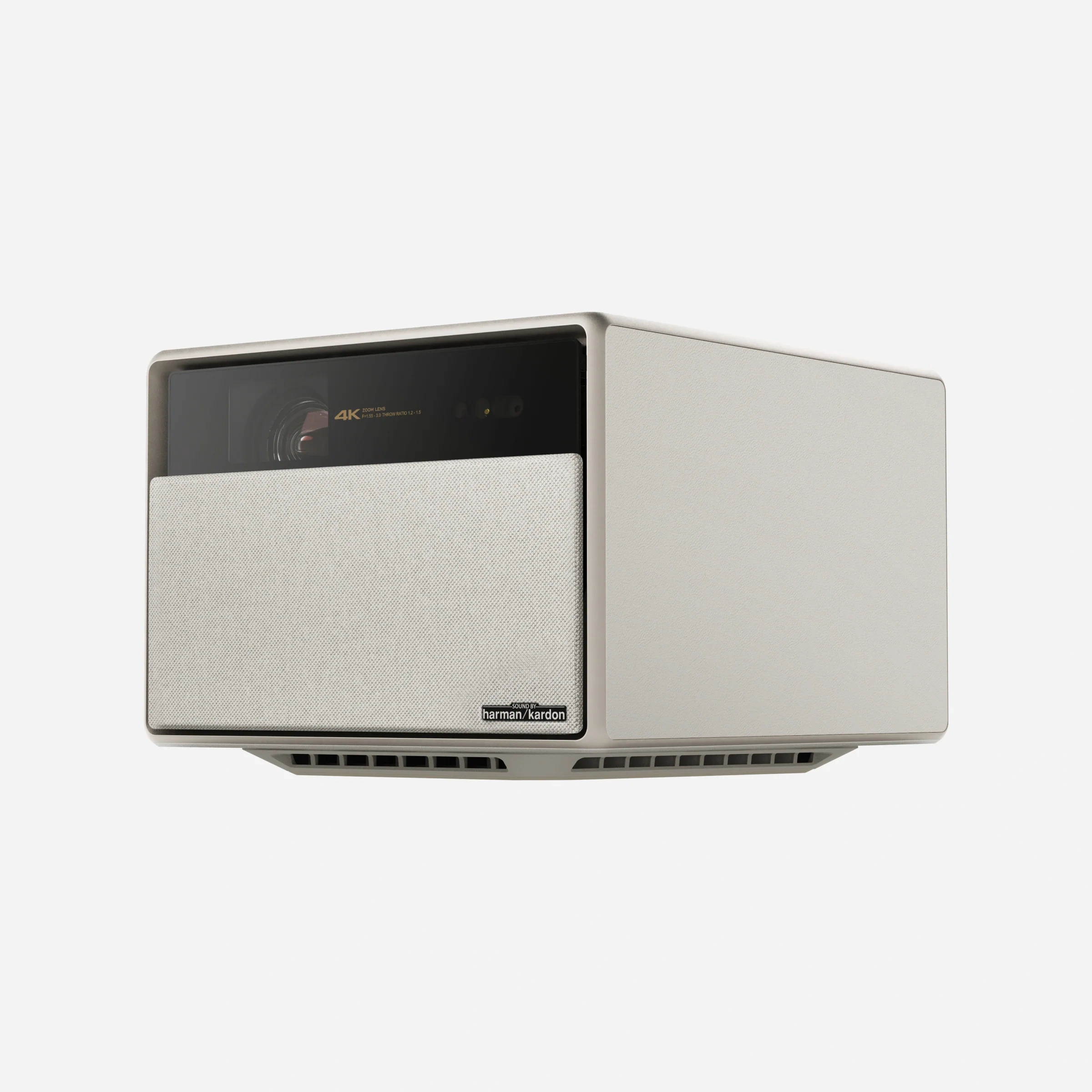

XGIMI HORIZON Ultra 4K UHD · DLP | 4K UHD | DLP | 2,300 | $1,443.90 −$7,556 | Compare |
JMGO N1S Pro 4K UHD · DLP | 4K UHD | DLP | 2,250 −50 | $799.99 −$8,200 | Compare |
JMGO N1 Ultra 4K UHD · DLP | 4K UHD | DLP | 2,200 −100 | $679.99 −$8,320 | Compare |

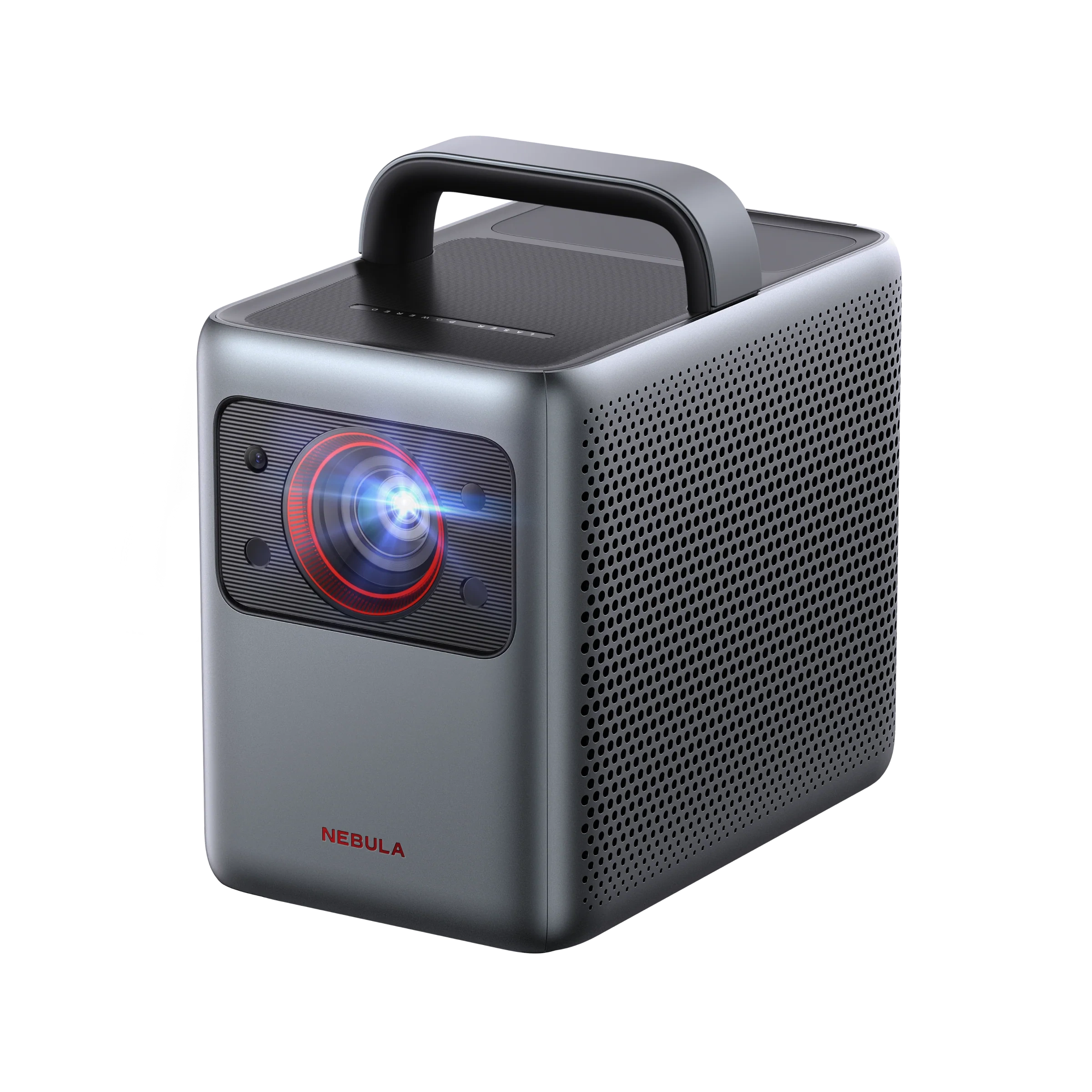

Nebula Cosmos Laser 4K 4K UHD · DLP | 4K UHD | DLP | 2,200 −100 | $1,999.99 −$7,000 | Compare |
Sony VPL-XW5100ES 4K UHD · LCoS | 4K UHD | LCoS | 2,200 −100 | $6,299.50 −$2,700 | Compare |

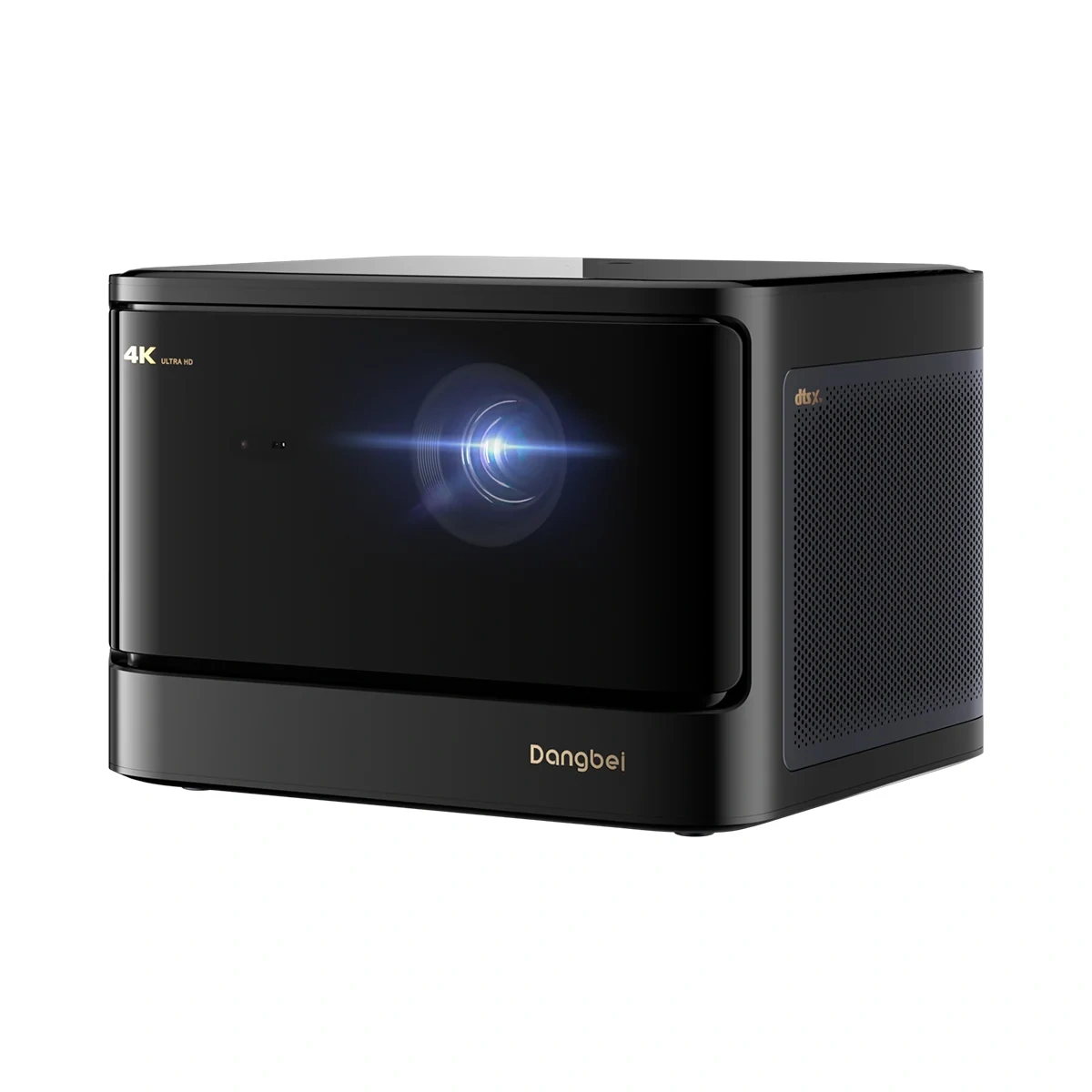

Dangbei DBOX02 4K UHD · DLP | 4K UHD | DLP | 2,450 +150 | $948.98 −$8,051 | Compare |
