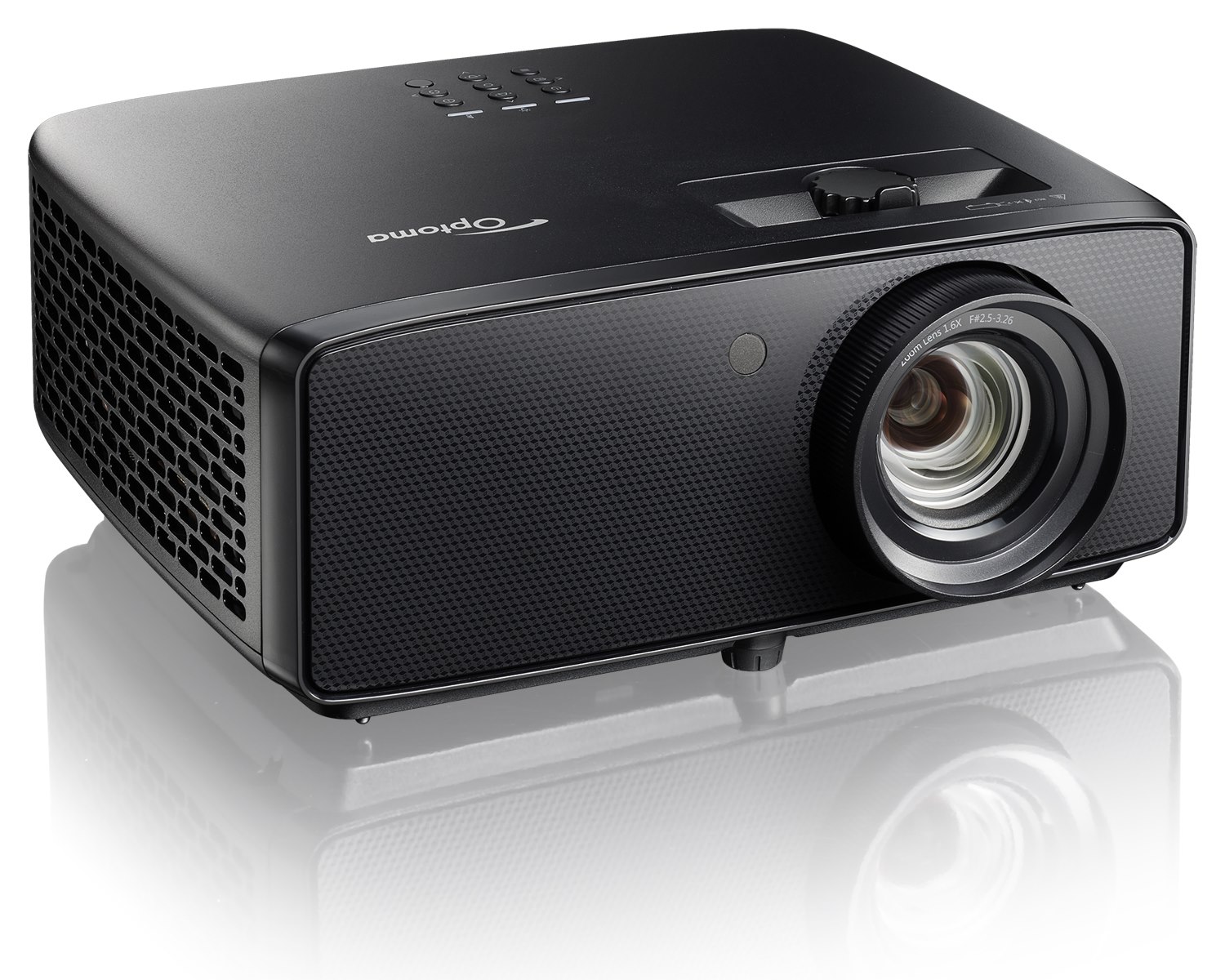

Optoma UHZ58LV

MSRP$2,299

Brand	Optoma
Type	Home cinema
Released	October 2025
Resolution	4K UHD (1080p pixel shift)
HDR formats	HDR10, HDR10+, HLG
Imaging technology	DLP
Light source type	Laser (phosphor)
ISO light output	3,000 lm
Throw ratio	1.4–2.24:1
Input lag (rated)	1920×1080 @ 60 Hz: 17.8 ms · 1920×1080 @ 120 Hz: 12.4 ms · 1920×1080 @ 240 Hz: 8.5 ms · 3840×2160 @ 60 Hz: 17.8 ms

A 3840x2160 DLP projector with a dual-laser light source, rated by Optoma at 3,000 ISO lumens, a 3,000,000:1 contrast ratio and 95% DCI-P3 coverage. It has a 1.6x manual zoom lens with a vertical lens-shift dial, HDR10+ and HLG support, three HDMI inputs (one HDMI 2.1) and 8.5 ms input lag at 1080p/240Hz. It suits living-room and dedicated-room home cinema and console gaming.

Data sheet


Imaging technology	DLP
Native aspect ratio	16:9
Native resolution	1920 × 1080
Pixel shift	XPR 4-way
Addressable resolution	3840 × 2160
Dynamic contrast	3,000,000:1
DCI-P3 gamut	95%
Gamma / EOTF presets	BT.1886, 2.2, 2.4
Filmmaker Mode	Yes
Colour management system	6-axis
Greyscale control points	11
ISF certified	Yes
HDR formats	HDR10, HDR10+, HLG
Frame interpolation (MEMC)	Yes
Max refresh rate	3840×2160: 120 Hz · 1920×1080: 240 Hz
Input lag (rated)	1920×1080 @ 60 Hz: 17.8 ms · 1920×1080 @ 120 Hz: 12.4 ms · 1920×1080 @ 240 Hz: 8.5 ms · 3840×2160 @ 60 Hz: 17.8 ms
Auto low-latency mode	Yes
3D support	Yes
3D sync method	DLP-Link
3D formats	Frame packing, Side-by-side, Top-bottom, Frame sequential

Optics

Throw ratio	1.4–2.24:1
Projection distance table	30″: 0.93–1.49 m · 40″: 1.24–1.98 m · 50″: 1.55–2.48 m · 60″: 1.86–2.98 m · 70″: 2.17–3.47 m · 80″: 2.48–3.97 m · 90″: 2.79–4.46 m · 100″: 3.1–4.96 m · 110″: 3.41–5.46 m · 120″: 3.72–5.95 m · 130″: 4.03–6.45 m · 140″: 4.34–6.94 m · 150″: 4.65–7.44 m · 200″: 6.2–9.92 m · 250″: 7.75–12.4 m · 300″: 9.3–14.88 m
Zoom type	Optical
Zoom ratio	1.6×
Focus	Manual
Vertical lens shift	103–118%
Motorized lens shift	No
Fixed offset	118%
Focal length	20.91–32.62 mm
F-number	2.5–3.26
Image size range	20.2–320 in
Vertical keystone	-30–30°
Horizontal keystone	-30–30°
Corner / warp correction	Warp

Light source

Light source type	Laser (phosphor)
Light source detail	Dual Laser
Light source life	Eco: 30,000 h
Cool-down time	90 s
ISO light output	3,000 lm ISO 21118	ISO 21118
Brightness uniformity (centre-to-corner)	80%

Audio

Speaker power	15 W
Speaker count	1
Audio channels	Mono
Audio outputs	3.5 mm, HDMI eARC
HDMI eARC	Yes

Inputs, control & connectivity

Max input signal	4096 × 2160
HDMI port count	3
HDMI ports (feature-level)	HDMI 1: HDMI 2.0; HDMI 2: HDMI 2.0; HDMI 3: HDMI 2.1
Horizontal scan frequency	15–255 kHz
Vertical scan frequency	24–240 Hz
USB media playback	Yes
RS-232	Yes
LAN control	Yes
Wired IR input	Yes
12 V trigger	Yes
PJLink class	Class 2
Control ecosystem drivers	Crestron
Ethernet	Yes
Auto keystone	Yes

Environment & power

Operating temperature	0–40°C
Operating humidity	10–80%RH
Altitude / high-altitude mode	3,048 m
High-altitude mode	Yes
Operating orientations	Table, Ceiling, Rear, 360°
Rated voltage	100–240 V
Rated frequency	50–60 Hz
Power consumption (max)	239 W
Power consumption by mode	Eco typical: 110 W · Eco max: 127 W · Bright typical: 207 W · Bright max: 239 W
Standby power	0.5 W
Power supply	External brick
Fan noise (sound pressure)	Eco: 28 dB(A) · Bright: 32 dB(A)

Physical & installation

Width	274 mm
Depth	219 mm
Height	108 mm
Weight	3.5 kg
Colours / finishes	Black
Mount hole pattern	Thread: M4 · Screw length mm: 8

Support & ownership

Warranty	🇺🇸 US 1 yr Optoma's own warranty page (support.optomausa.com) is unreadable (403). ProjectorCentral and projectorscreen.com also list 1 year.
Light-source warranty	5-year or 12,000 hour light source warranty (whichever comes first)
User manual	https://www.projectorcentral.com/pdf/projector_manual_12878.pdf
Photobiological risk group	RG2
Laser product class	Class 1
Safety & market certifications	FCC, CE

In the box

Box contents	Projector, Remote, Power cord, Power adapter, Quick start guide, Documentation
Remote type	Backlit
