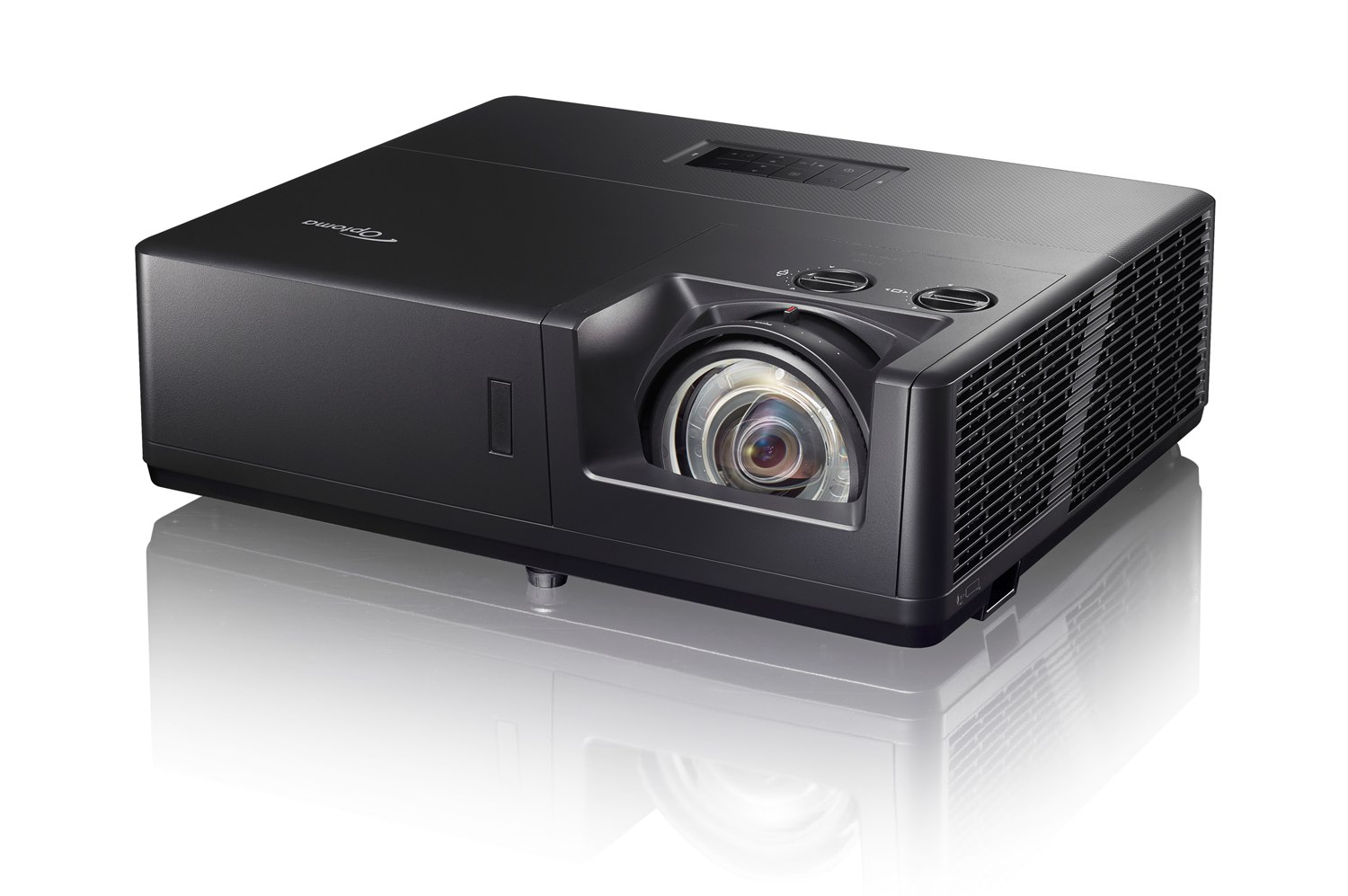

Optoma ZU607TST
| Brand | Optoma · Professional |
| Type | Installation |
| Released | March 2024 |
| Resolution | WUXGA |
| HDR formats | HDR10, HLG |
| Imaging technology | DLP |
| Light source | Laser (phosphor) |
| Claimed brightness (non-standard) | 6,000 lm |
| Throw ratio | 0.58:1 |
| Input lag | 1080p: 60 Hz 16.2 ms · 120 Hz 8.2 ms · 4K UHD: 60 Hz 16.2 ms |
A WUXGA (1920x1200) single-chip DLP laser short-throw projector with a fixed 0.58:1 lens, aimed at lecture halls, houses of worship, signage and large venues. It has manual lens shift, HDBaseT, two HDMI 2.0 inputs, 2 x 15 W speakers and a sealed IP6X optical engine.
Data sheet
| Claimed brightness (non-standard) | 6,000 lm | |
| Brightness uniformity | 85% | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.67 in | |
| Native resolution | WUXGA (1920 × 1200) | |
| Native aspect | 16:10Derived | |
| Dynamic contrast | 300,000:1 | |
| HDR formats | HDR10, HLG | |
| 3D | Yes | |
| 3D formats | Frame sequential | |
| 3D glasses sync | DLP-Link |
Light source
| Light source | Laser (phosphor) | |
| Emitter | Blue laser + phosphor | |
| Light-source life | 30,000 h max |
Optics
| Throw ratio | 0.58:1100″ · 1.25 m | |
| Image size | 30–300 in | |
| Projection offset | 100% | |
| Zoom | None | |
| Focal length | 8.51 mm | |
| Aperture (f-number) | 2.75 | |
| Focus | Manual | |
| Vertical lens shift | -100–110% | |
| Horizontal lens shift | ±4% | |
| Motorised lens shift | No | |
| Vertical keystone | 15° | |
| Horizontal keystone | 15° | |
| Auto keystone | Yes | |
| Corner correction | 4-corner | |
| Interchangeable lens | No |
Motion & gaming
| Input lag | 1080p: 60 Hz 16.2 ms · 120 Hz 8.2 ms · 4K UHD: 60 Hz 16.2 ms Gaming Mode on; the 4K60 source is output at 1080p60 | Gaming Mode on; the 4K60 source is output at 1080p60 |
Inputs & control
| HDMI inputs | 2 × HDMI 2.0 | |
| Other video inputs | VGA, Composite, HDBaseT | |
| Max input resolution | 4K UHD | |
| Audio inputs | 3.5 mm | |
| Control ports | RS-232, 12 V trigger | |
| PJLink | Class 2 | |
| Control-system drivers | Crestron, AMX |
Audio
| Speaker power | 15 W | |
| Speakers | 2 | |
| Audio outputs | 3.5 mm | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 374 × 302 × 117 mm | |
| Weight | 6,300 g | |
| Colours | Black | |
| Orientations | Portrait, 360° | |
| Ceiling mount | M4, screws ≥ 5 mm | |
| Ingress protection | IP6X (light engine) | |
| Sealed optical engine | Yes |
Environment & power
| Operating temperature | 0–40°C | |
| Operating humidity | 10–85%RH | |
| Altitude | High-altitude mode | |
| Power draw | Max 366 W · Eco 240 W | |
| Standby | Up to 0.5 W | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Max 36 dB(A) · Eco 33 dB(A) |
Safety & support
| Laser class | Class 1 | |
| Risk group | RG2 | |
| FDA laser notice | Notice 57 | |
| Warranty | 🇺🇸 US 3 yr Third-party listing; Optoma's warranty page (support.optomausa.com) is unreadable. | |
| User manual | region-resource.optoma.com |
In the box
| In the box | Power cord, Remote, Remote batteries, User manual | |
| Remote | Backlit |
