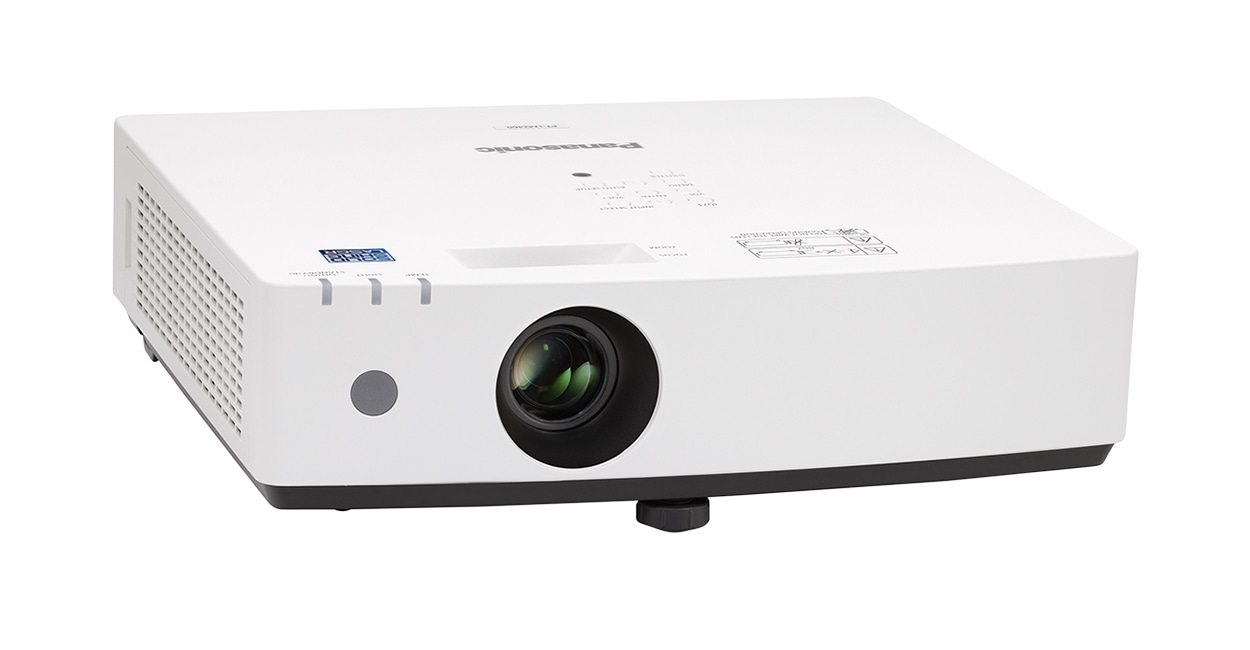

Panasonic PT-LMZ460

Brand	Panasonic · LMZ
Type	Portable
Released	December 2022
Resolution	WUXGA
Imaging technology	3LCD
Light source	Laser (phosphor)
Brightness	4,600 lm ISO
Throw ratio	1.36–1.64:1

A portable 3LCD laser projector rated at 4,600 lumens (ISO and ANSI) with a native 1920x1200 (16:10) panel. It has a 1.2x manual zoom lens with no optical lens shift, two HDMI inputs that accept 4K/30p, two VGA inputs, LAN control and a 10 W mono speaker. It weighs 4.2 kg and is aimed at classrooms and meeting rooms.

Data sheet


White light output	4,600 lm ISO (Normal power, Dynamic mode) · 4,600 lm ANSI (Normal power, Dynamic mode)
Claimed brightness (non-standard)	4,800 lm
Brightness uniformity	85%
Brightness by mode	Normal 4,600 lm · Eco 3,220 lm
Eco brightness	70%Derived
Imaging technology	3LCD
Chip / panel diagonal	0.64 in
Native resolution	WUXGA (1920 × 1200)
Native aspect	16:10Derived
Dynamic contrast	3,000,000:1

Light source

Light source	Laser (phosphor)
Light-source life	20,000 h normal · 24,000 h eco
Life defined as	50% brightness
Light output control	Continuous
Warm-up time	About 1 s [QUICK STARTUP] set to ON	[QUICK STARTUP] set to ON

Optics

Throw ratio	1.36–1.64:1100″ · 2.93–3.53 m
Image size	30–300 in
Zoom	Optical
Zoom ratio	1.21×Derived
Focal length	19.1–23 mm
Aperture (f-number)	1.61–1.76
Focus	Manual
Autofocus	No
Vertical lens shift	None
Horizontal lens shift	None
Vertical keystone	25°
Horizontal keystone	35°
Auto keystone	Yes
Corner correction	4-corner
Interchangeable lens	No

Inputs & control

HDMI inputs	2 × HDMI (HDCP 1.4)
Other video inputs	VGA
Max input resolution	DCI 4K
Audio inputs	3.5 mm
USB media playback	Yes
Control ports	RS-232
PJLink	Class 2
Control-system drivers	Crestron, AMX

Smart platform

Ethernet

Yes

Audio

Speaker power	10 W
Speakers	1
Layout	Mono
Audio outputs	3.5 mm
HDMI audio return	NoneDerived

Physical & installation

Dimensions (W × D × H)	349 × 309 × 105 mm
Weight	4,200 g
Orientations	Table, Ceiling, Rear, 360°
Ceiling mount	4 × M4, 8 mm deep, 1.25 N·m
Dust filter	Washable

Environment & power

Operating temperature	0–45°C
Operating humidity	20–80%RH
Altitude	2,700 m
Power draw	Max 240 W · Normal 215 W · Eco 165 W
Standby	0.5 W [STANDBY MODE] set to ECO	[STANDBY MODE] set to ECO
Power supply	Built in
Mains input	100–240 V · 50/60 Hz
Fan noise	Normal 35 dB(A) · Eco 24 dB(A)

Safety & support

Laser class	Class 1
Risk group	RG2
User manual	bizpartner.panasonic.net

In the box

Power cord, Remote, Remote batteries
